Hot 600dpi Colour Duplex Micr Ocr A4 Portable High Speed Document Scanner (A600)

Product Description

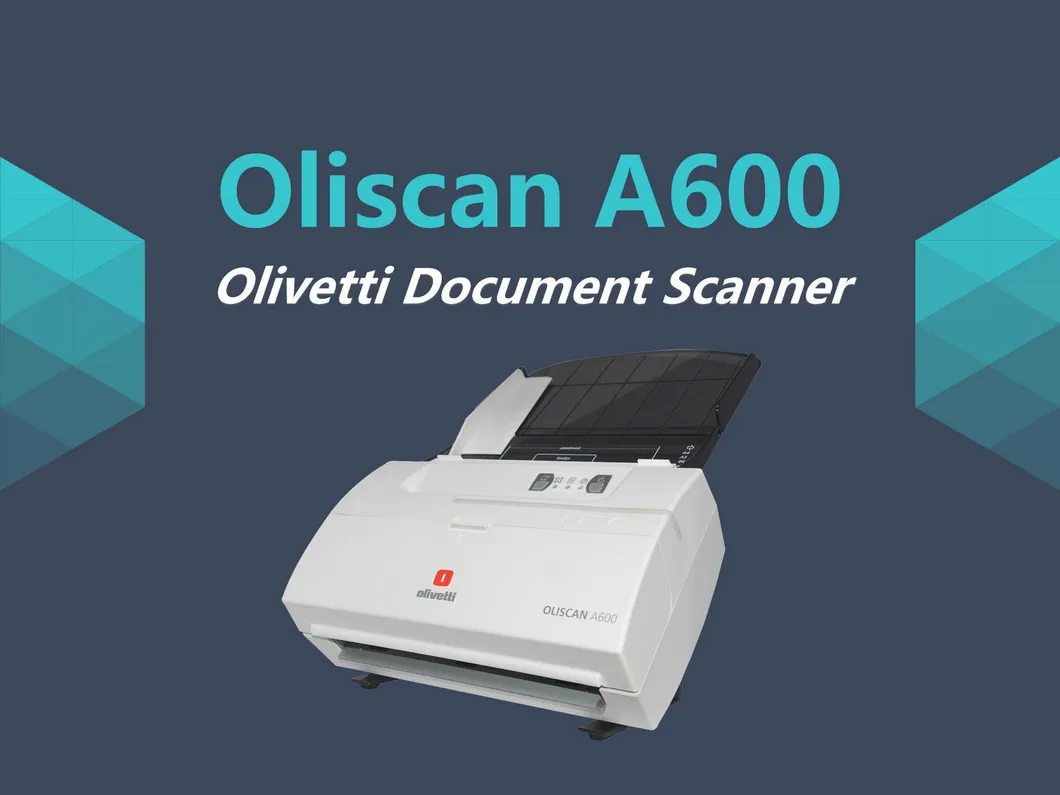

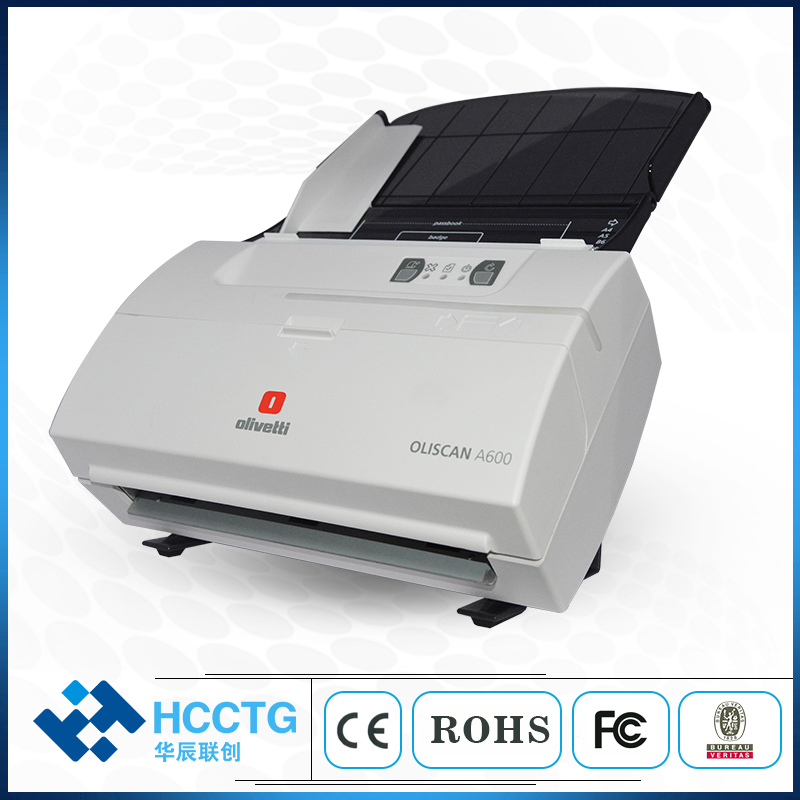

Hot 600DPI Colour Duplex MICR OCR A4 Portable High Speed Document Scanner A600

General

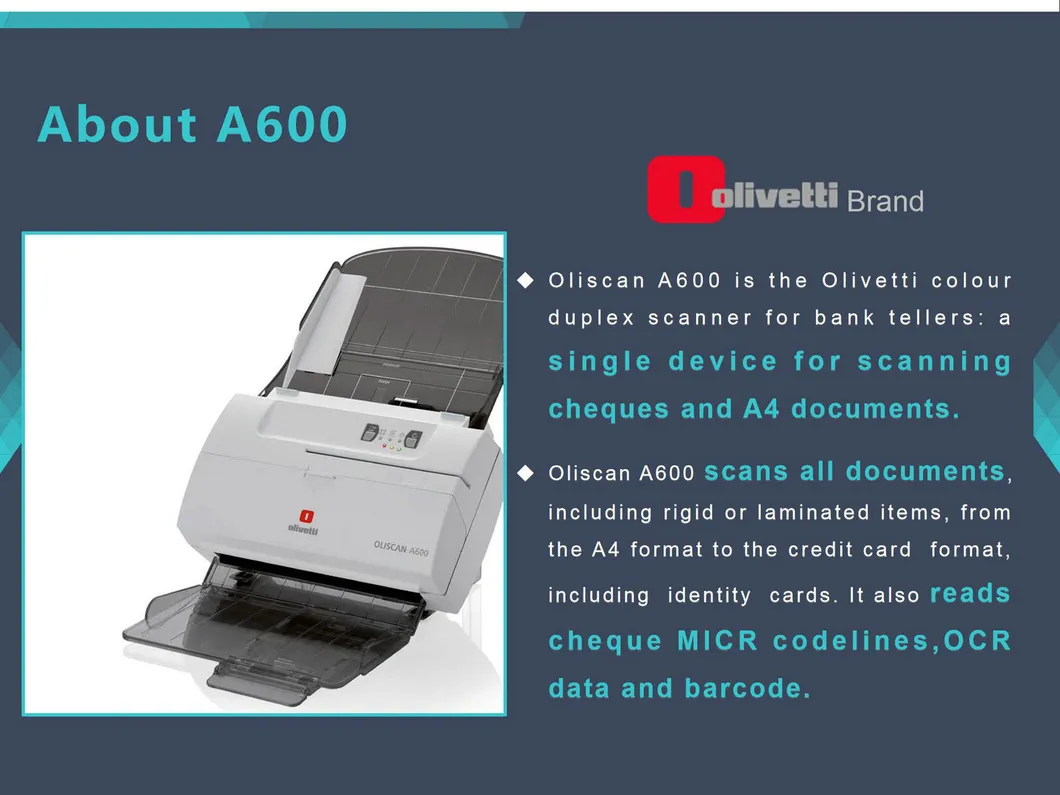

A600 is the colour duplex scanner specifically designed for bank tellers: a single device for scanning cheques and A4 documents. In particular the device scans all documents (from the A4 format to the credit card format, including identity cards) and it also reads cheque MICR codelines, OCR data and barcode.
A600 is one of the smallest and quietest scanners in its category, optimizes use of space at the teller counter.

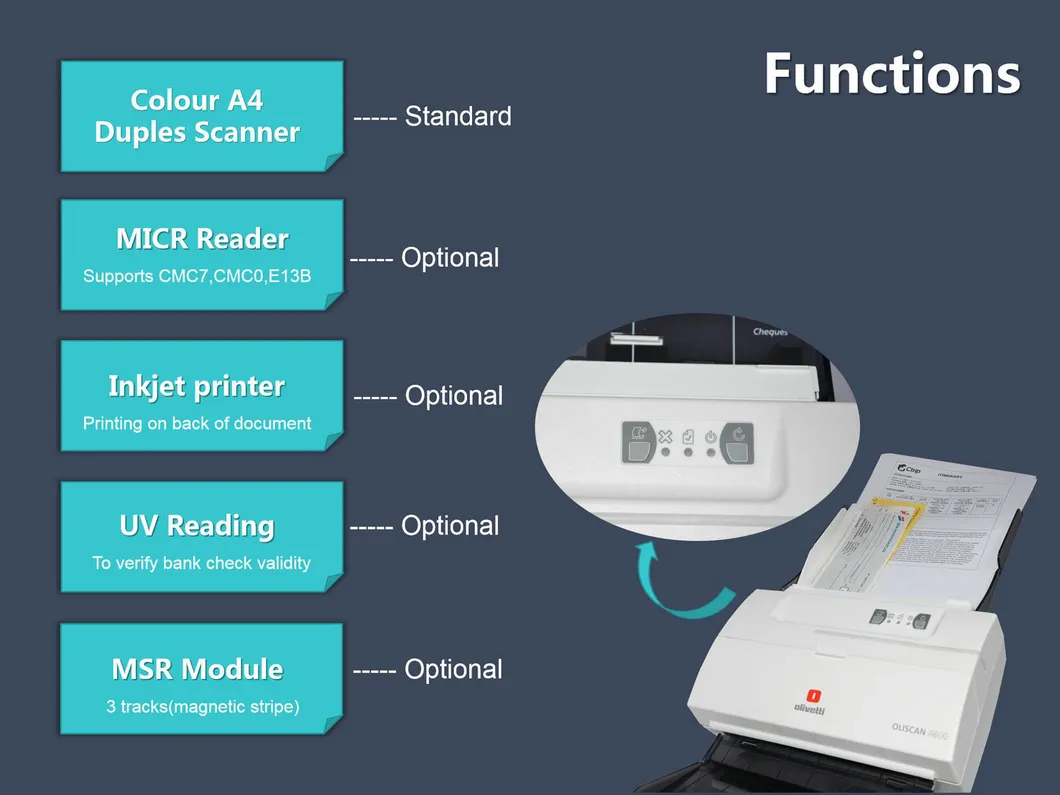

Feature

Colour A4 duples scanner
Resolution 600 dpi
Speed up to 40 ppm
Automatic feeder for up to 30 documents
Management of bank forms, including rigid and small documents
Scanning of barcodes, micr codelines and OCR
Very easy to use
Integrated micr reader, badge reader and endorser (optional)
UV reading and order to verify bank cheques authentication (optional)

Specification

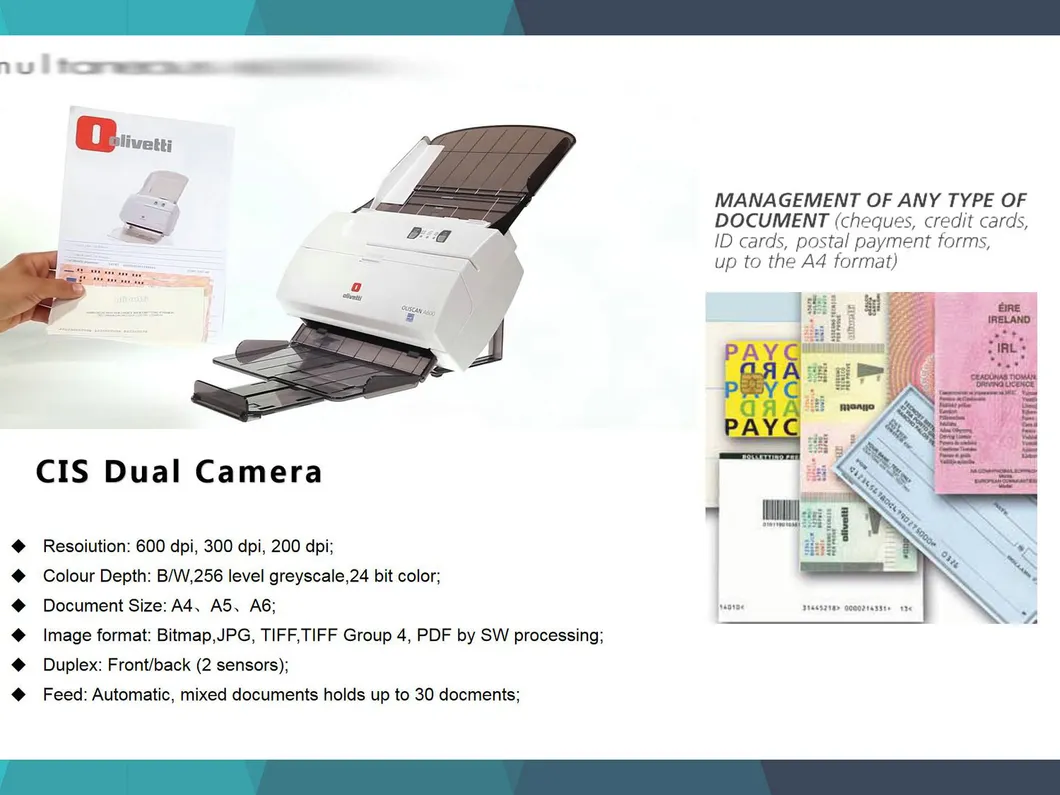

Technology	CIS dual camera
Resoiution	600 dpi, 300 dpi, 200 dpi
Colour depth	B/W,256 level greyscale,24 bit coloer
Document size	Height:40÷216 mm(1.6÷8.5'') Length:65÷355 mm(2.56÷14'') Paper documents:thickness 60÷120 g/m² Accepts laminated and rigid documents (manual insrtion) up to 1.5 mm thick
Image format	Bitmap,JPG, TIFF,TIFF Group 4, PDF by SW processing
Duplex	Front/back (2 sensors)
Feed	Automatic, mixed documents holds up to 30 docments
Output tray	Adjustable,pull-out
Double fees sensor	Ultrasonic sensor detects double document feed

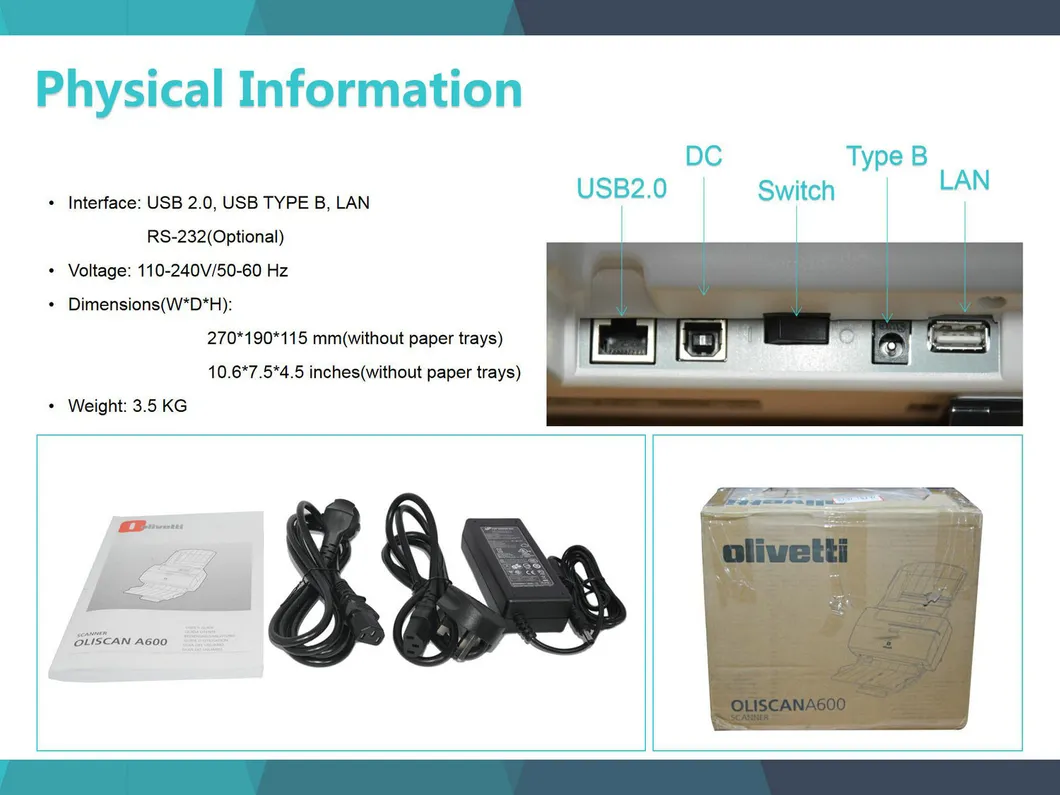

Dimensions(WDH)	270190115 mm(without paper trays) 10.67.54.5 inches(without paper trays)
Interfaces	USB 2.0 RS-232(Optional)

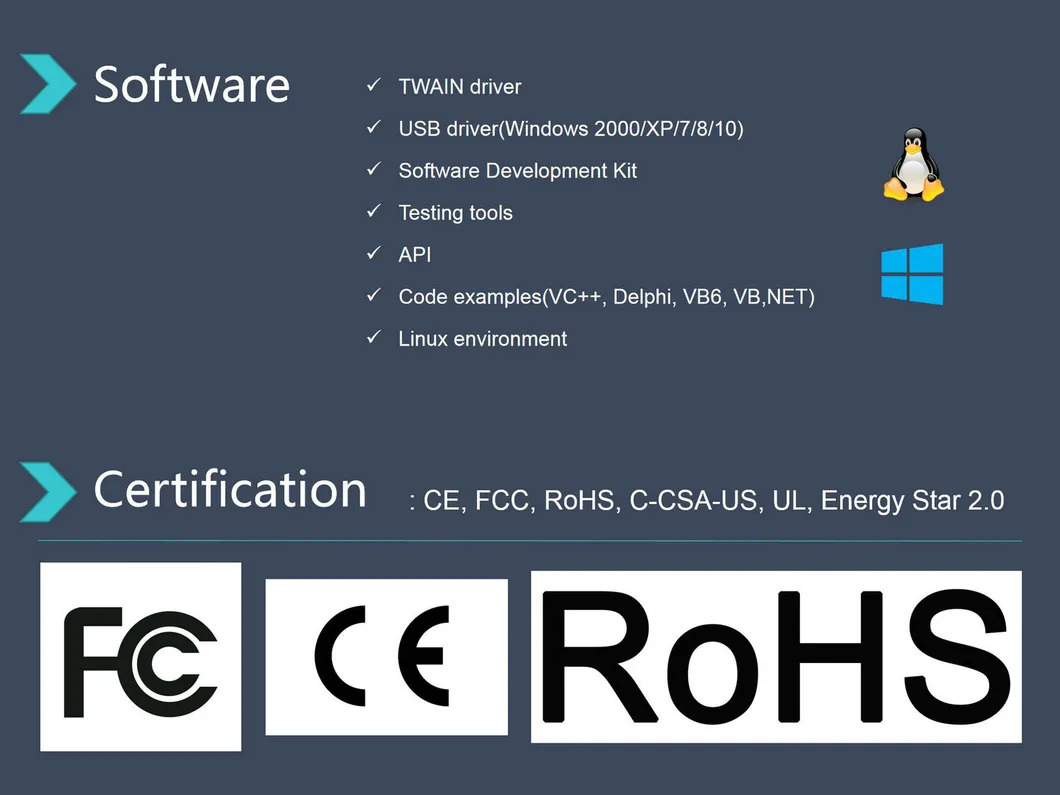

Software	TWAIN drver USB driver(Windows 2000,XP, Seven, 8,8.1) Software Development Kit Testing tools API Code examples(VC++, Delphi, VB6, VB,NET) Linux environment
Voltage	110÷240V/50-60 Hz (autorange)
Power consumption	30 W max.(scanning) <2.5 W(stand-by)
Noise level	<54 dBA (ISO 9296)
Certifications	CE, C-CSA-US, UL FCC class B RoHS Energy Star 2.0
Operating conditions	Temprature:15÷32°C Humidity:35%÷85% (without condensation)
Options
Weight	~3.5 Kgs (7.7 lbs)
MICR reader	Supports CMC7,CMC0,E13B
Endorser	Inkjet, printing on back of document,1 line
Integrated badge reader	3 tracks(magnetic stripe)
Chip Card Reader	By extemal device,partially integrated
Infrared lighting	To verify microholes oresence
UV image	To verify bank check validity showing UV graphics
