China Manufacturer Smart Bluetooth Mini Qr Code Scanner for Windows PC System
China Manufacturer smart bluetooth Mini Qr Code Scanner for Windows PC SystemProduct DescriptionAdvantages for Ring barcode scanner CMX-R30 Small size, easy to carry Three scanning modes, including continuous scanning mode, manual scanning mode and induction scanning mode Provide feedback mechanism ......
Send Inquiry
Product Description

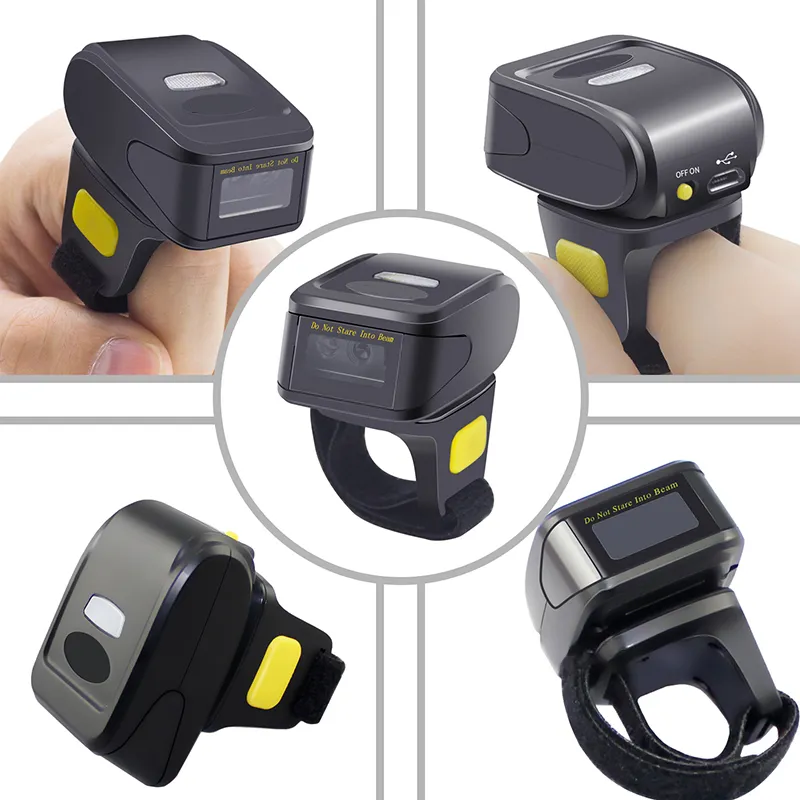

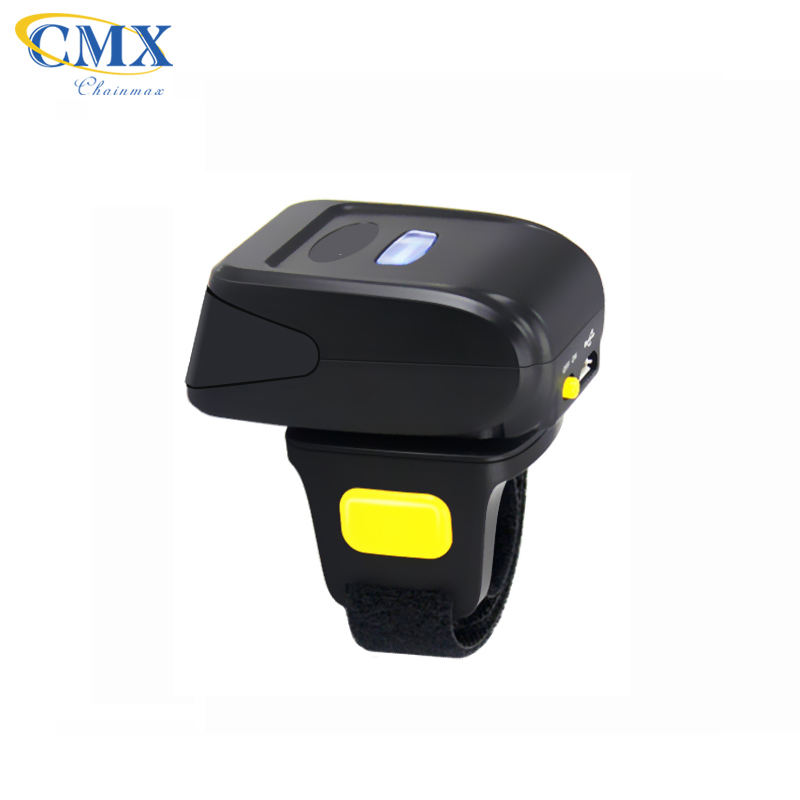

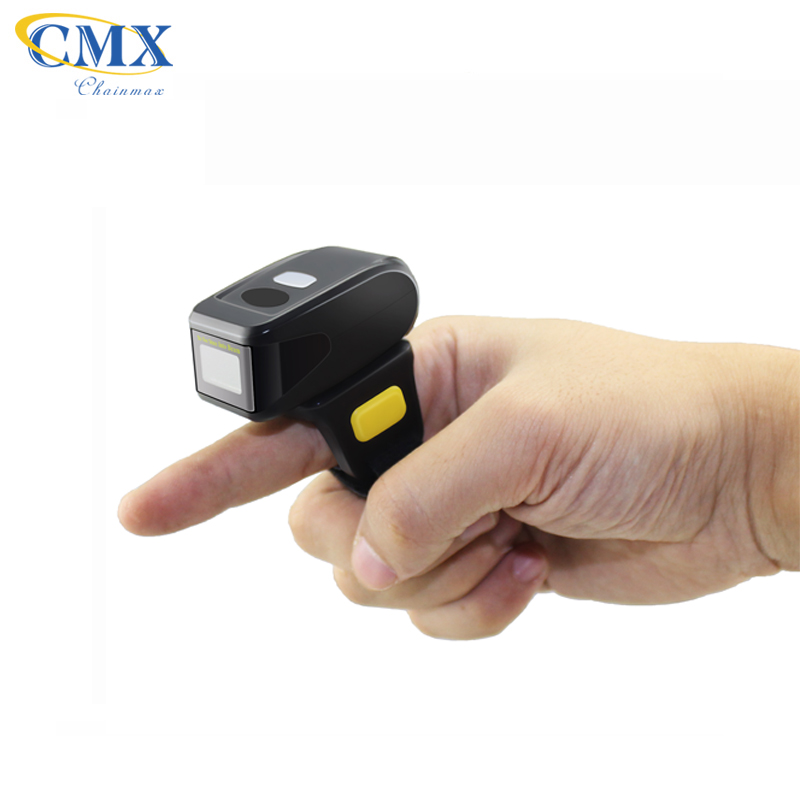

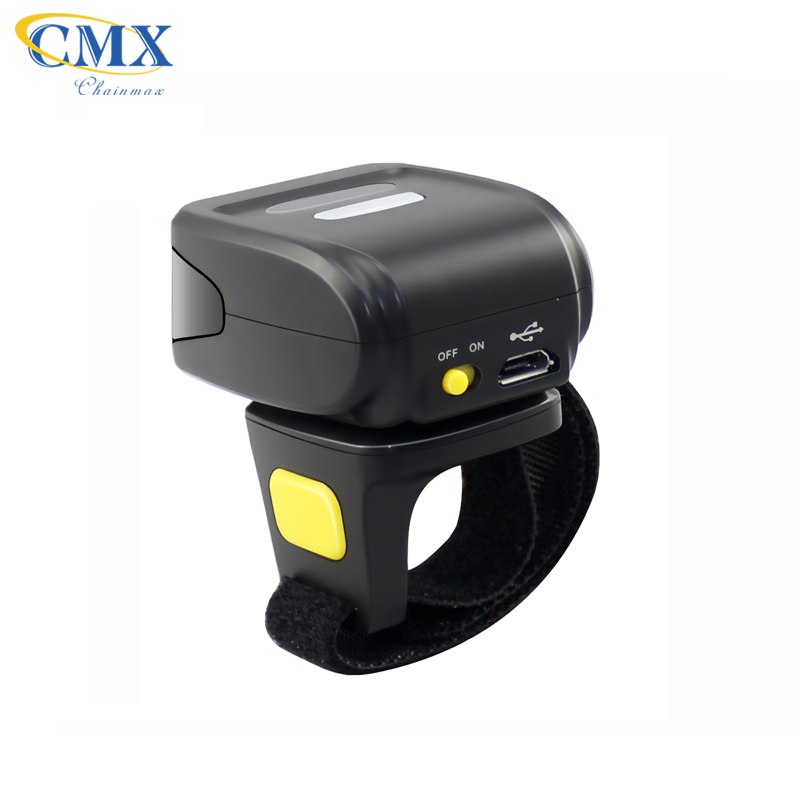

Advantages for Ring barcode scanner CMX-R30
★ Small size, easy to carry
★ Three scanning modes, including continuous scanning mode, manual scanning mode and induction scanning mode
★ Provide feedback mechanism through LED lights, buzzer and vibration
★ Mobile phone fast charging technology, charging time is less than 1 hour, and the battery can be recharged more than 1000 times.
★ Ultra-long working time, with an average scan time of 5 seconds, it can work for 12 hours in one dimension and 8 hours in two dimensions when fully charged.

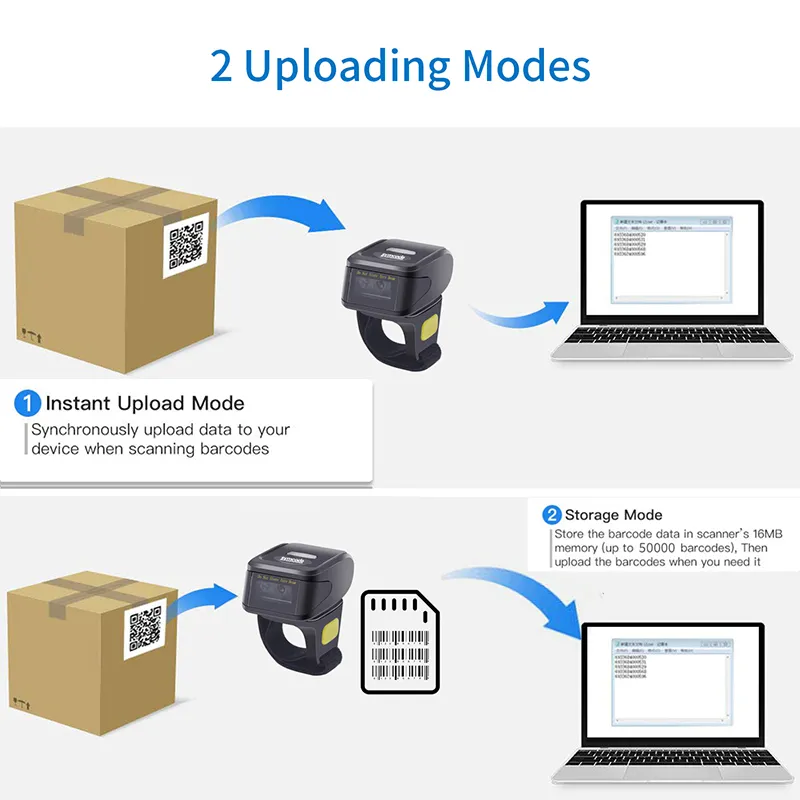

★ Built-in 16MB memory for storage mode use, can store more than 200,000 barcode data
★ Support Bluetooth SPP, HID, BLE
★ Support Chinese transmission, automatically reconnect after Bluetooth is disconnected
★ The data transmission format, data editing setting, and bar code type setting can be changed by reading the setting bar code
Specification for Ring barcode scanner CMX-R30
| Model Name | CMX-R30 |
| Type | Ring type bluetooth barcode scanner |

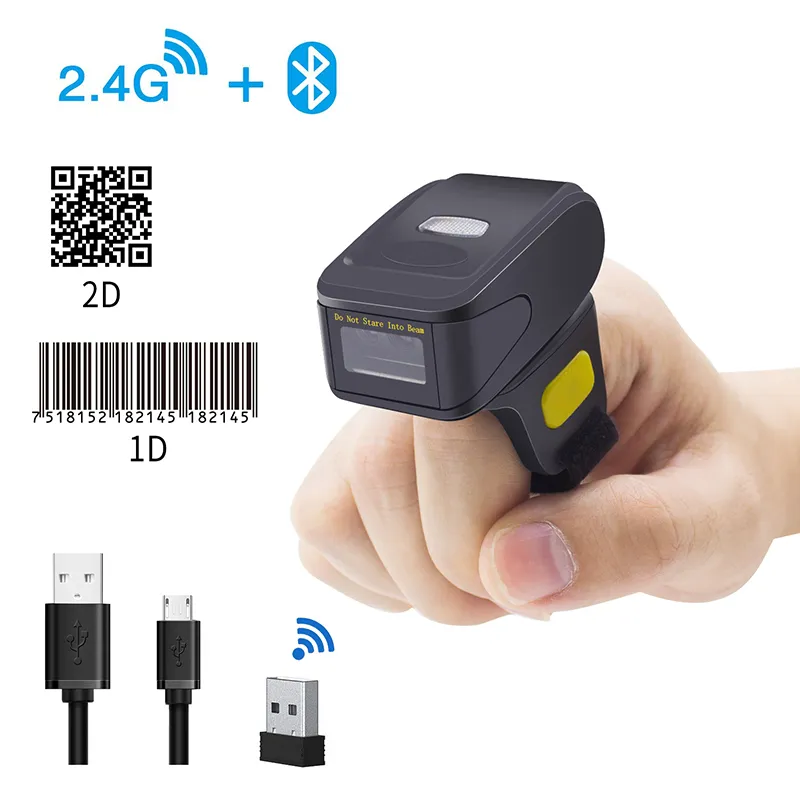

| Decoding type | 1D barcode ,2D optional |
| Light source | 650nm |
| Scan Rate | 100±10 scans /second |
| Reading Preciseness | 0.10mm(4mil) |

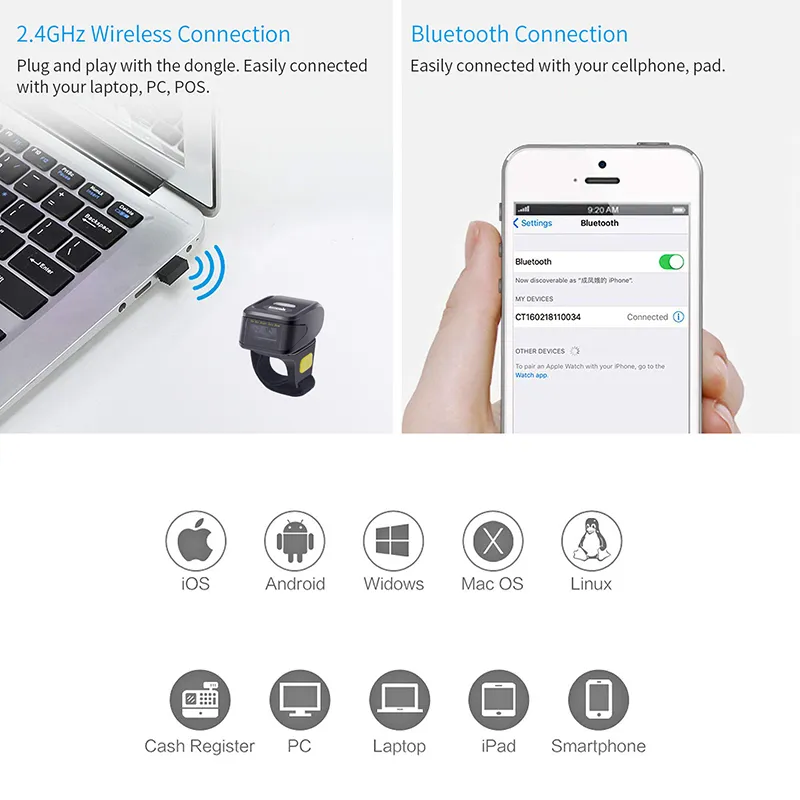

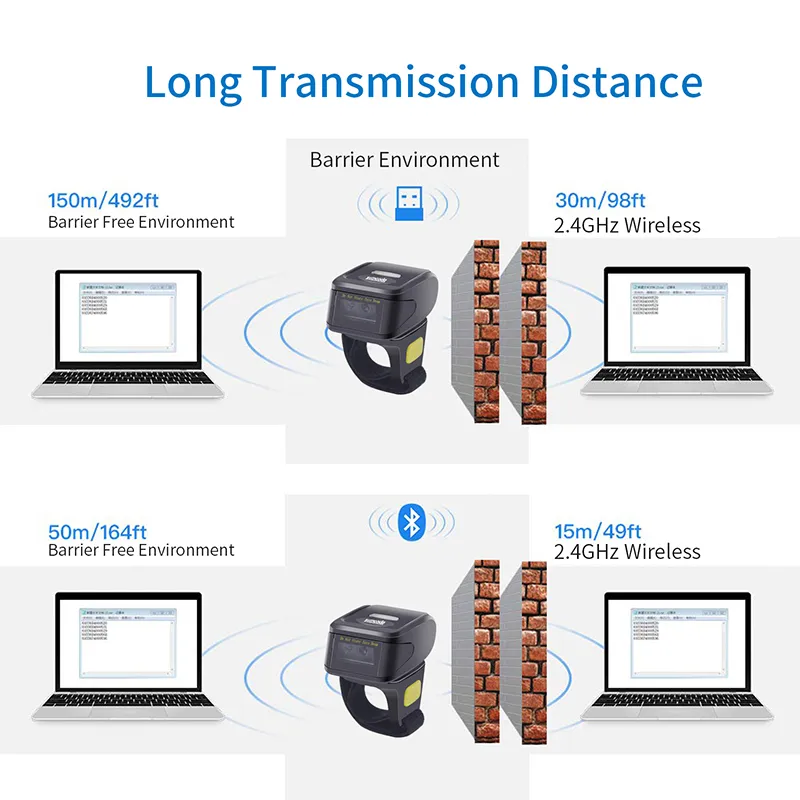

| Interface | Bluetooth 4.0/USB/2.4G |

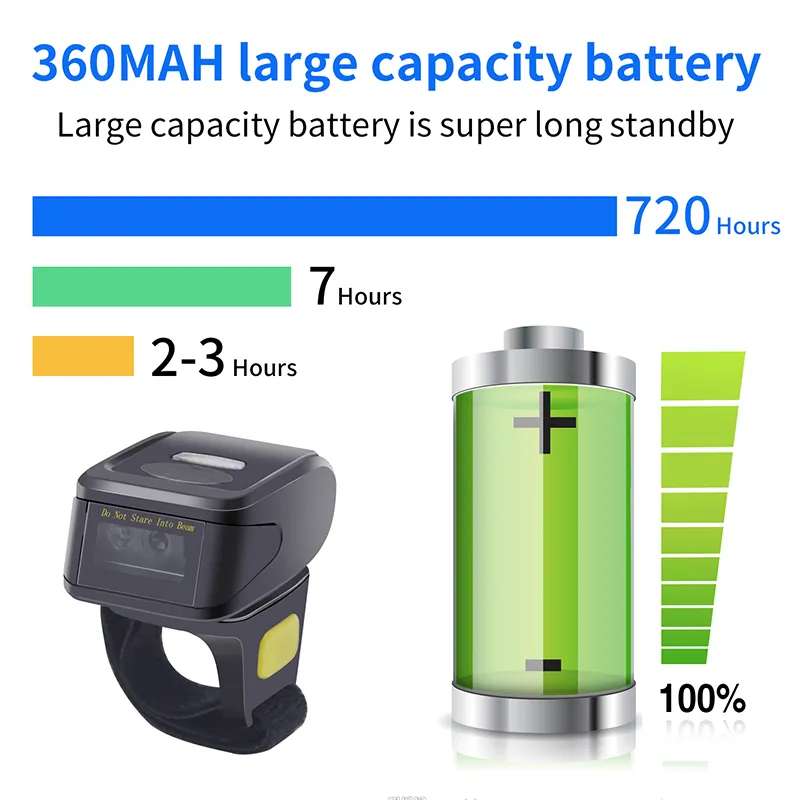

| Battery | DC 3.7V 360mA Li-ion battery |

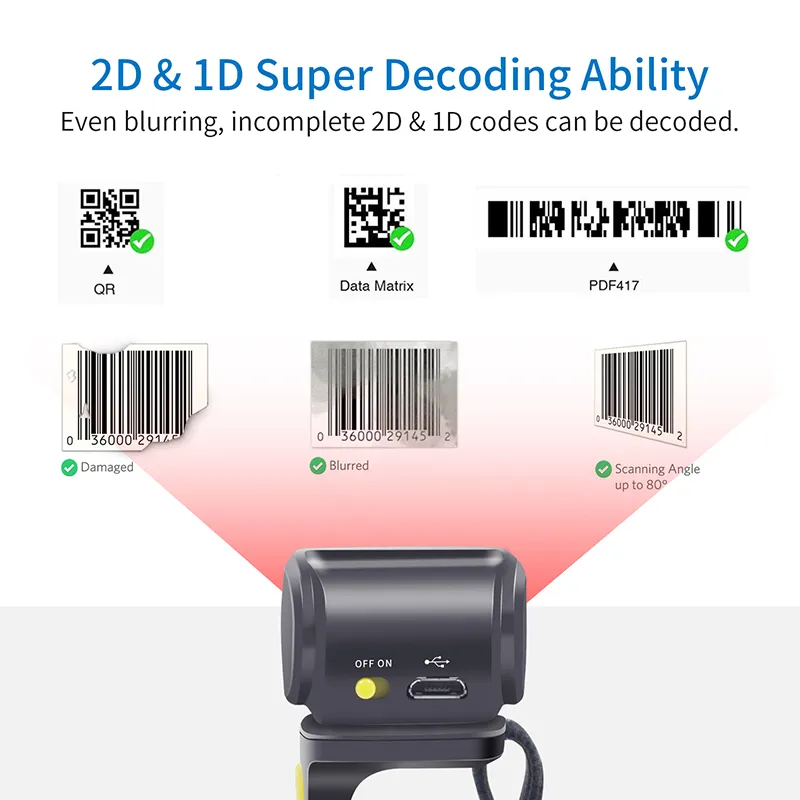

| 1D 2D Barcode scanner | Support Symbologies 1D:Codebar ,code 11 ,code 93 ,MSI ,code 128,UCC/EAN-128,Code 39 EAN-8 ,EAN-13,UPC-A ,ISBN,Industrial 25,Interleaved 25 ,standard 25,2/5 matrix ,GSI databar (formerly RSS)Variants 2D:PDF417/QR code/Data matrix/Aztec/Maxicode |
| Support Operation system | Windows XP/7/8,android ,IOS |
| reading distance | 2.5-600mm(100% UPC/EAN) |
| Scan scope | 10mm-250mm |
| Scan angle | Roll±35 degree/pitch±65 degree/Yaw±50 degree |
| Bit error rate | 1/5million |
| Power voltage | 5V |
| Demensions (W*H*D) | 53mm*29mm*36mm |
| Weight | 65g (include battery) |
| ENVIROMENT | |
| Operating Temperature | 0 ºC~ 50 ºC/32 to 122 F |
| Storage Temperature | -10 ºC~ 50 ºC/-4 to 140 F |
| Humidity | 20% ~ 85% (non-condensing) |
1.Are you manufacturer?
Yes,we are manufacturer since 2015 profession in thermal printer, pos terminal, handheld PDA, barcode scanner etc;
2.Do you support OEM/ODM?
Yes, we have strong factory and R&D team to support OEM/ODM.
3.What will be the MOQ?
1PC Sample order test is avaliable we can arrange
4.Would you provide SDK for me?
Yes,we offer free SDK and tech support after sample device ordered.
5.What the after sale service for barcode scanner?
a.Our all products will provide 12 months warranty.
b.if there is no Man-made problem,we will replace or repair for your freely.1% extra device and spare parts will be provided when bulk order
c.Professional engineers provide 7*24 online service
