Bar Code Reader Is a Desktop 2D Image Presentation Barcode Scanner Bar Codes
Factory Wholesales 2D Image Platform Scanner Features- Wide field-of-view, Omni-directional scanning capability.- 300,000 pixels global shutter, with great speed and precision.- Fast decoding speeds at 120 FPS/s.- Minimum resolution: 4 mils (3mils supports customization.)- Easily read the paper, pla......
Send Inquiry
Product Description

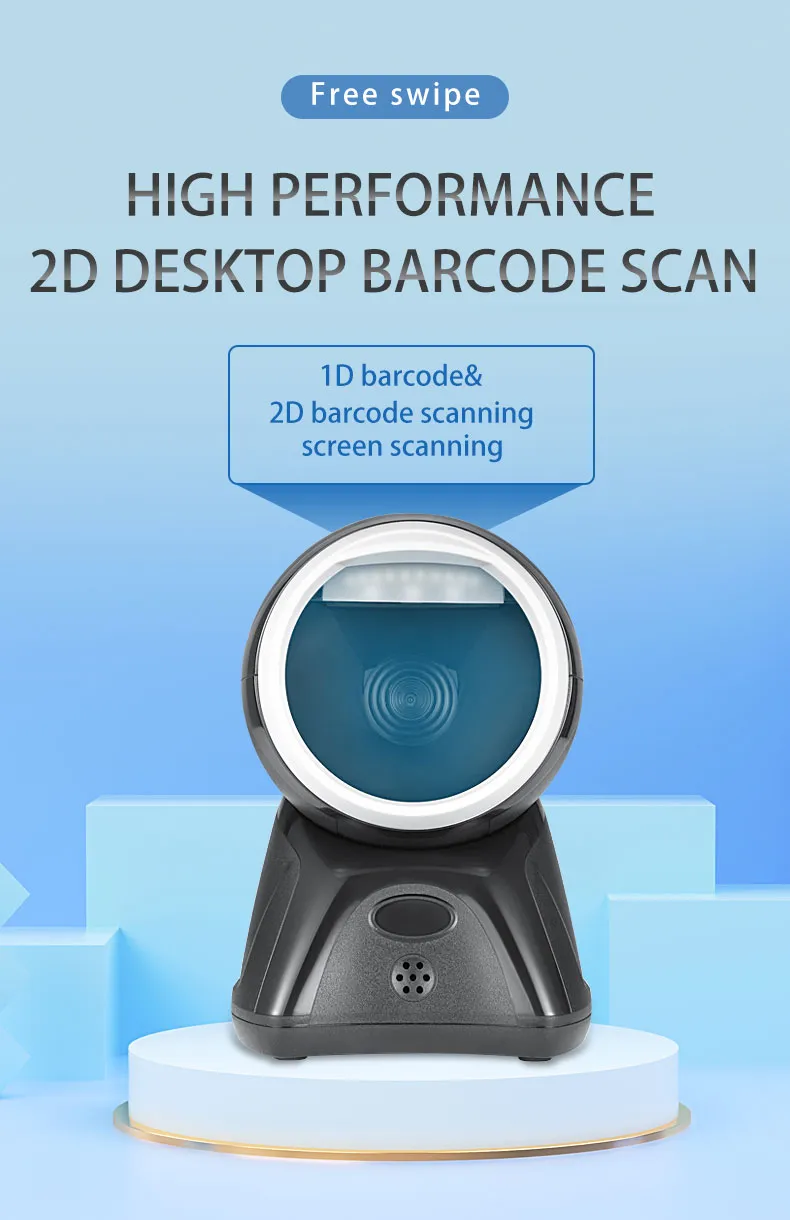

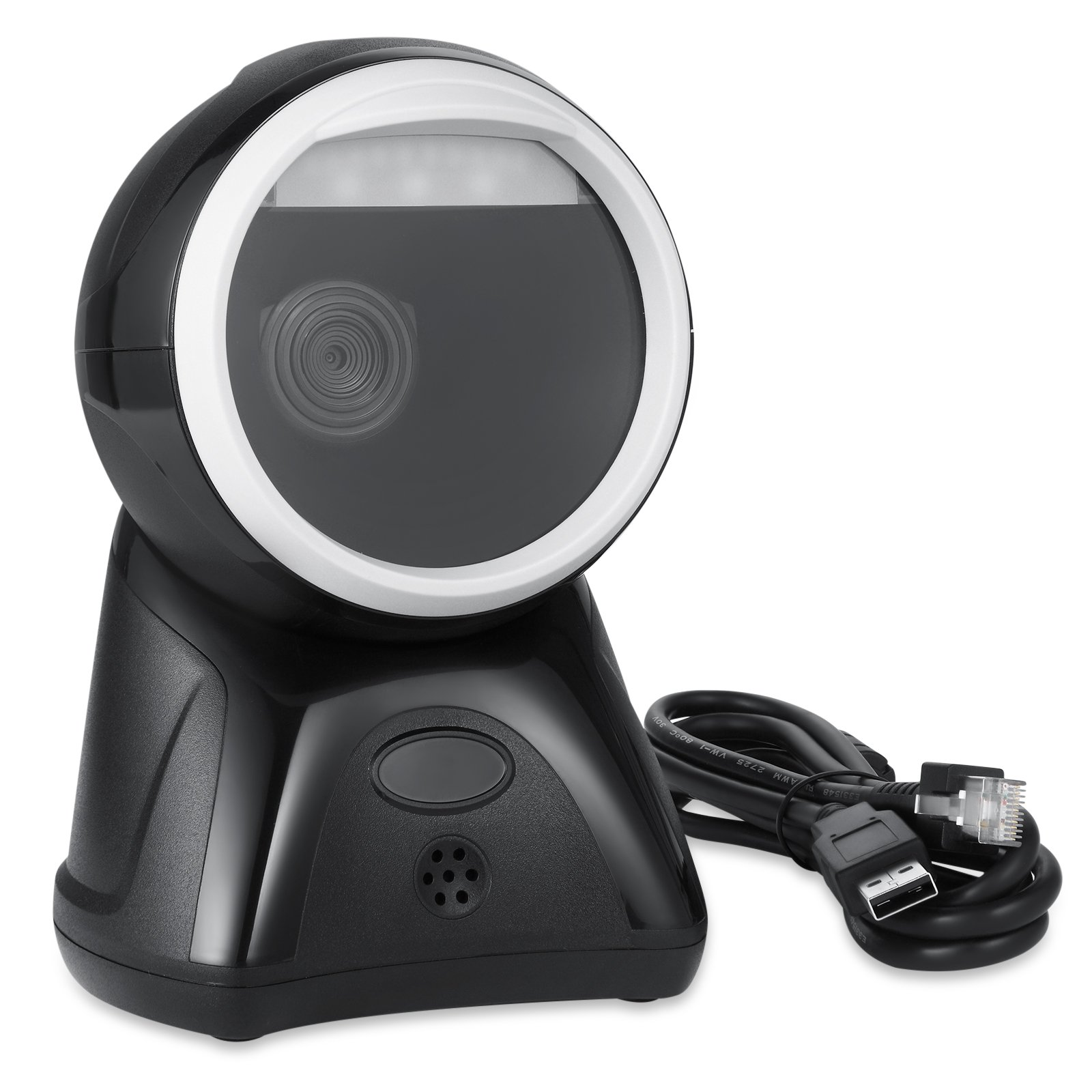

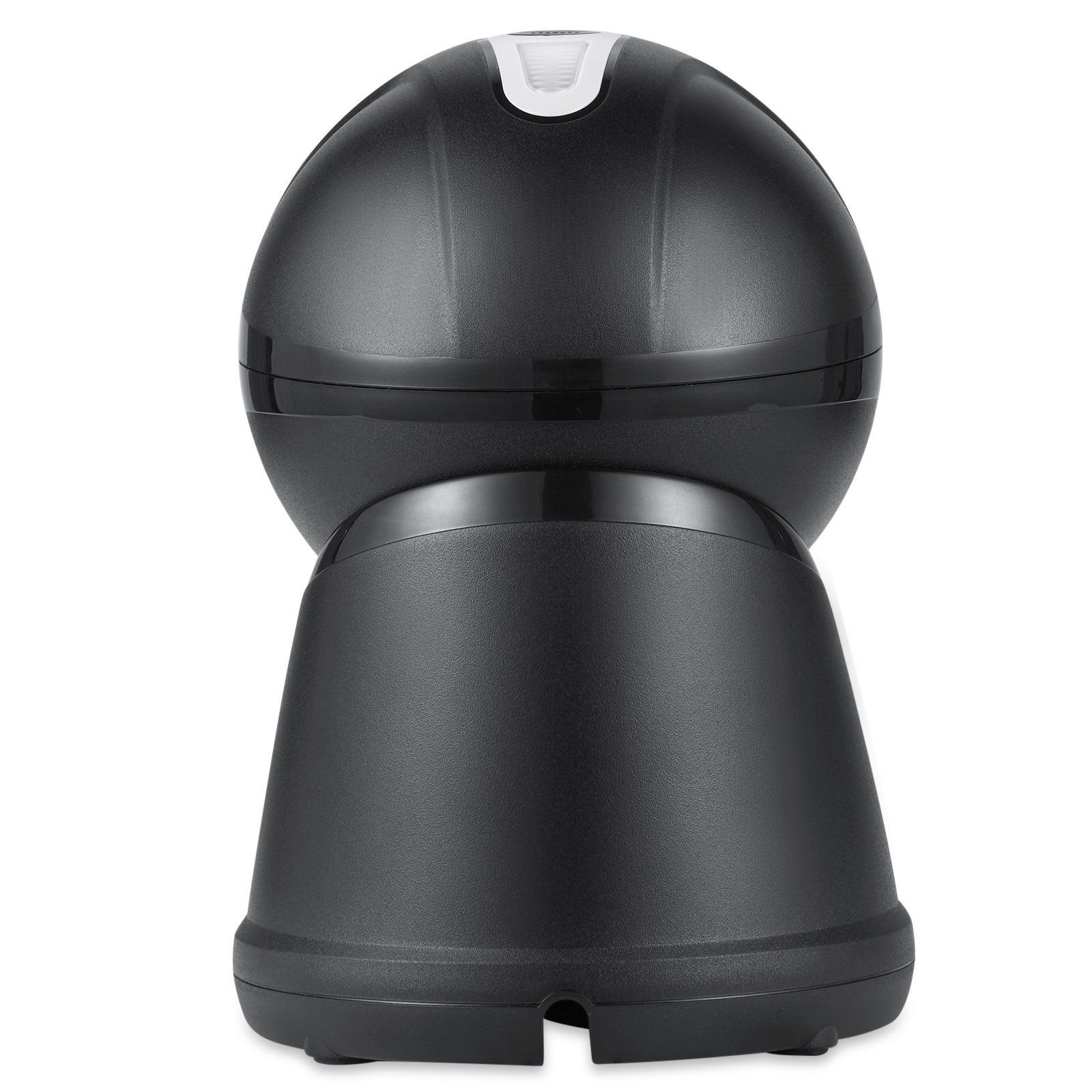

Factory Wholesales 2D Image Platform Scanner
Features
- Wide field-of-view, Omni-directional scanning capability.
- 300,000 pixels global shutter, with great speed and precision.
- Fast decoding speeds at 120 FPS/s.
- Minimum resolution: 4 mils (3mils supports customization.)

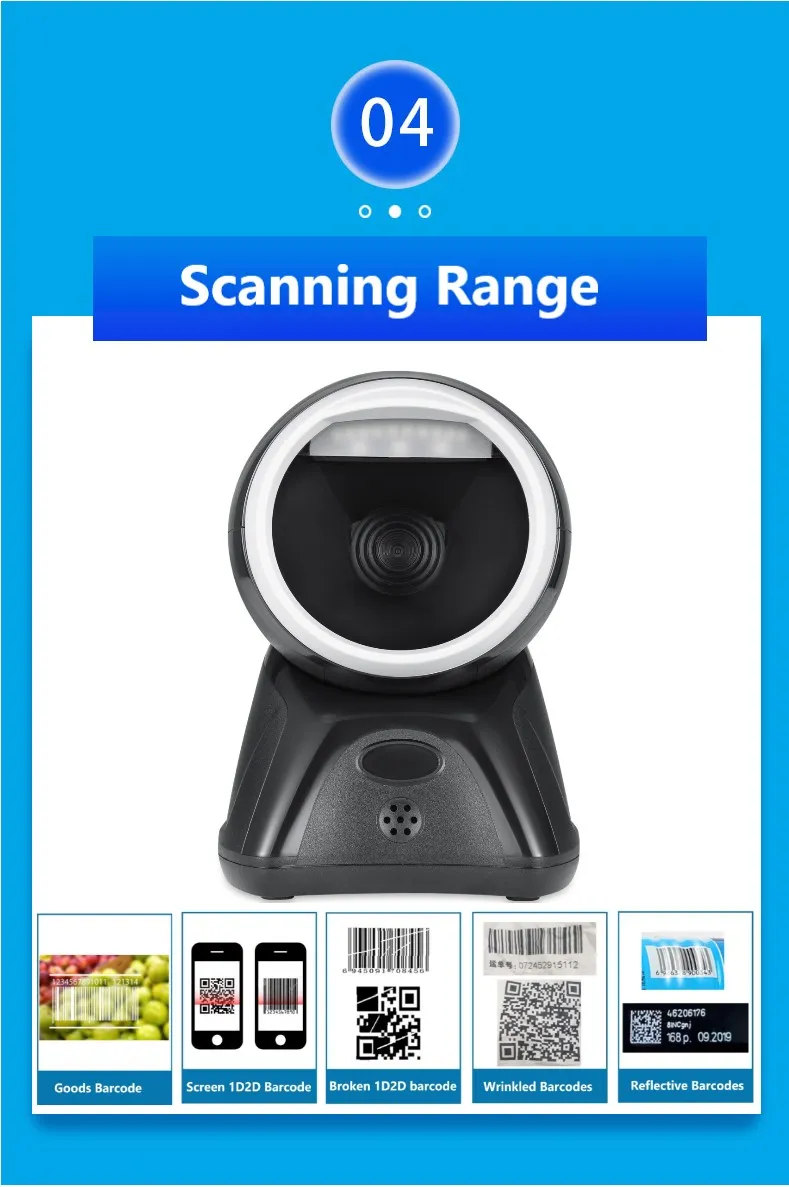

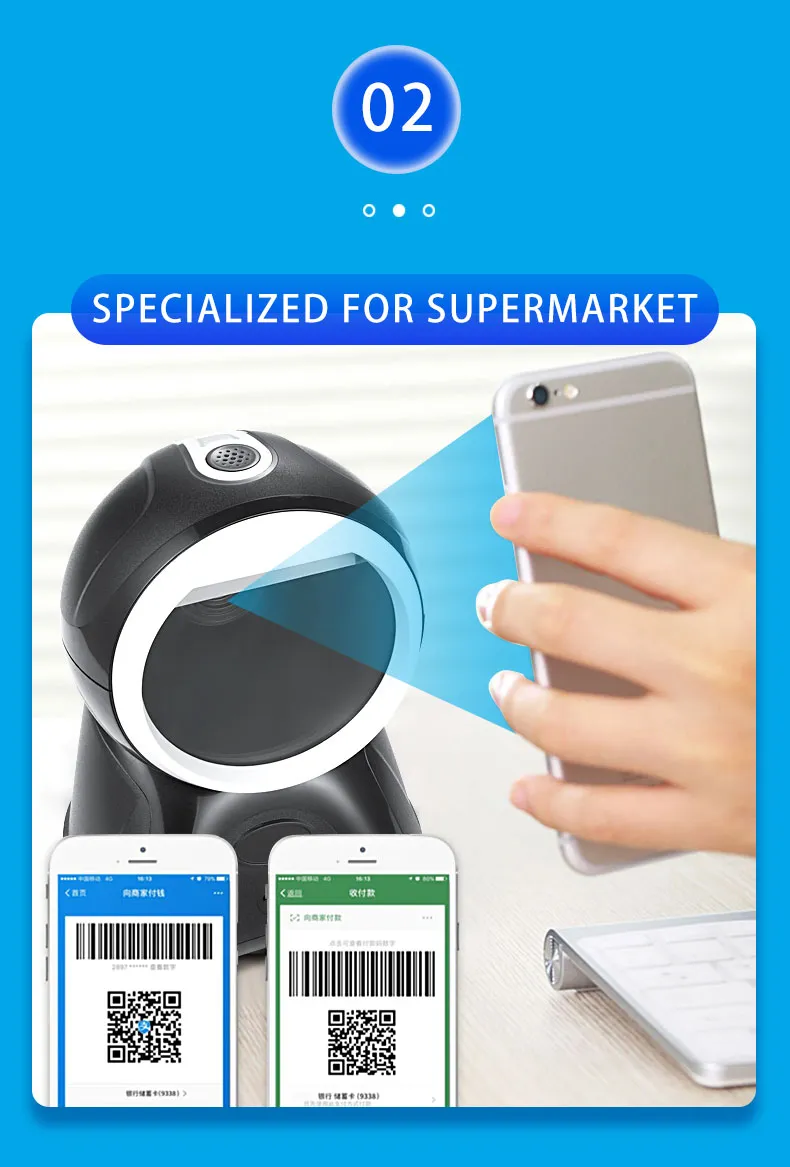

- Easily read the paper, plastic, mobile phones, LCD displays, etc., and even high-precision, wrinkled, damaged, or poorly printed barcodes.

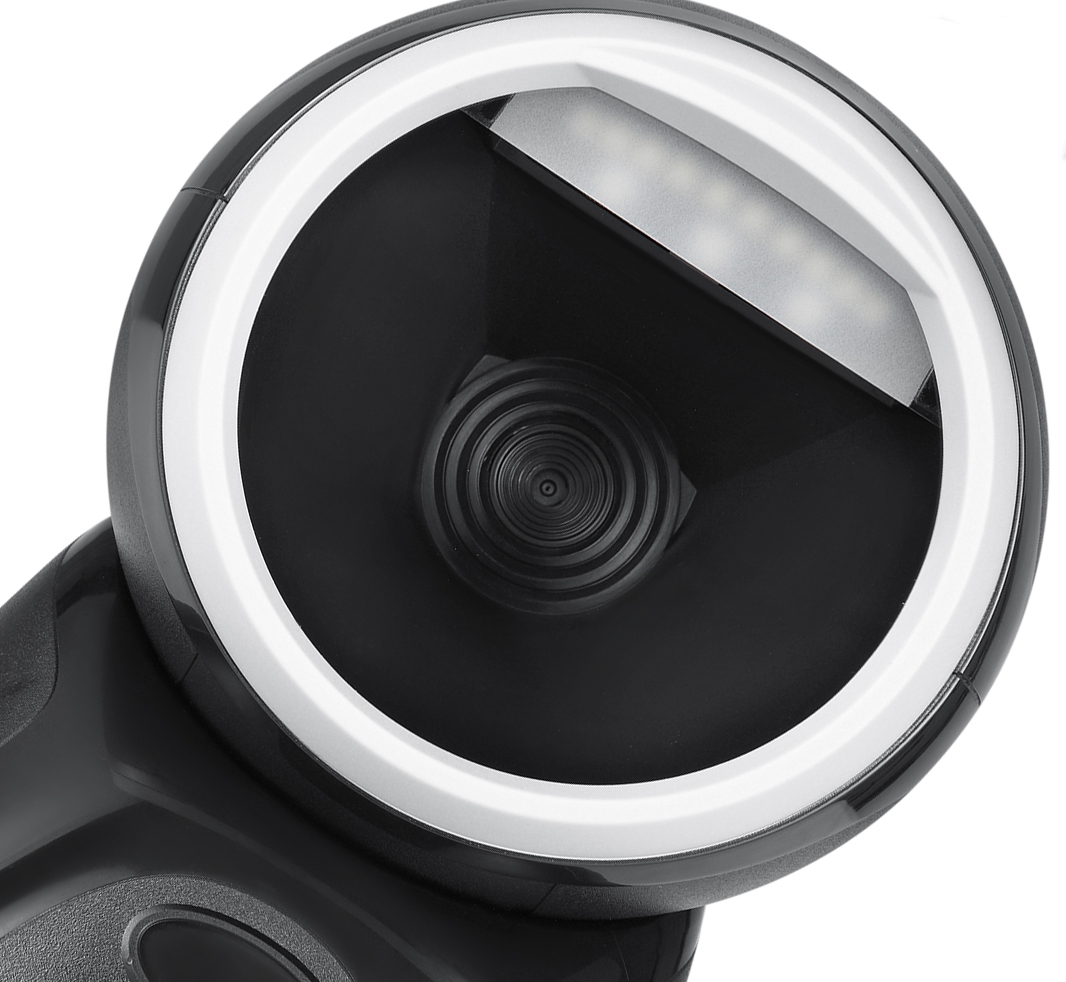

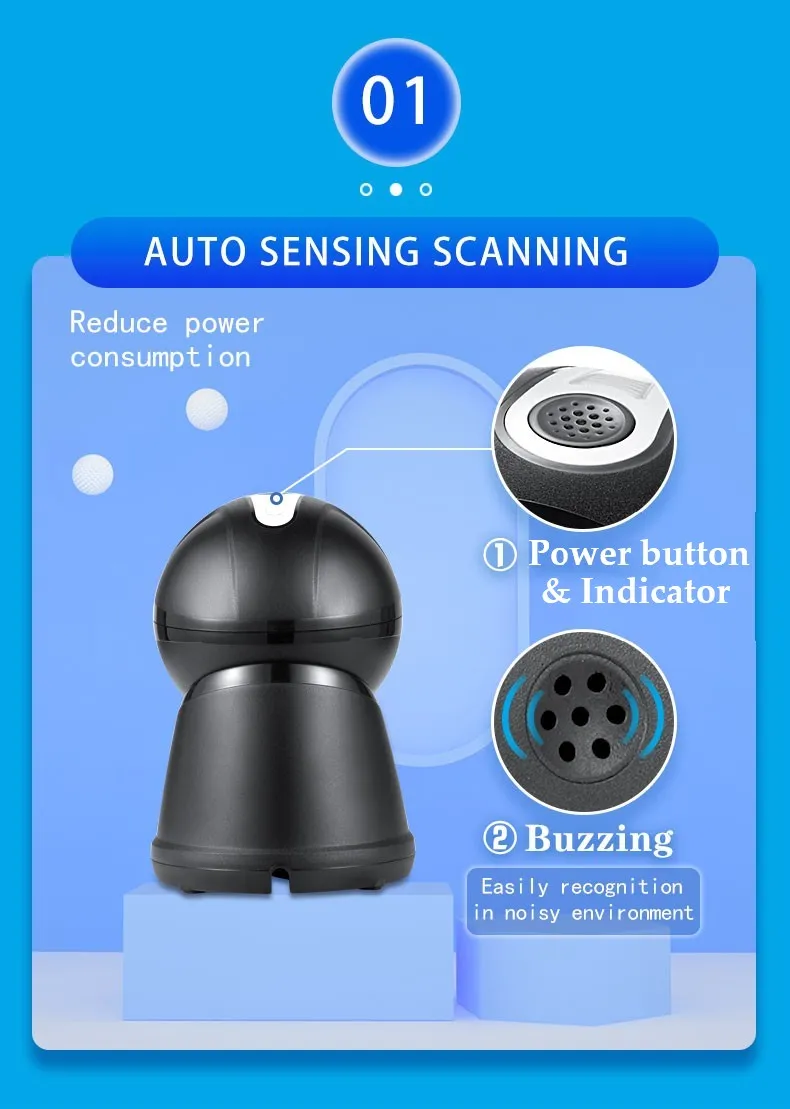

- Bright red LEDs for illuminating scanning surfaces.

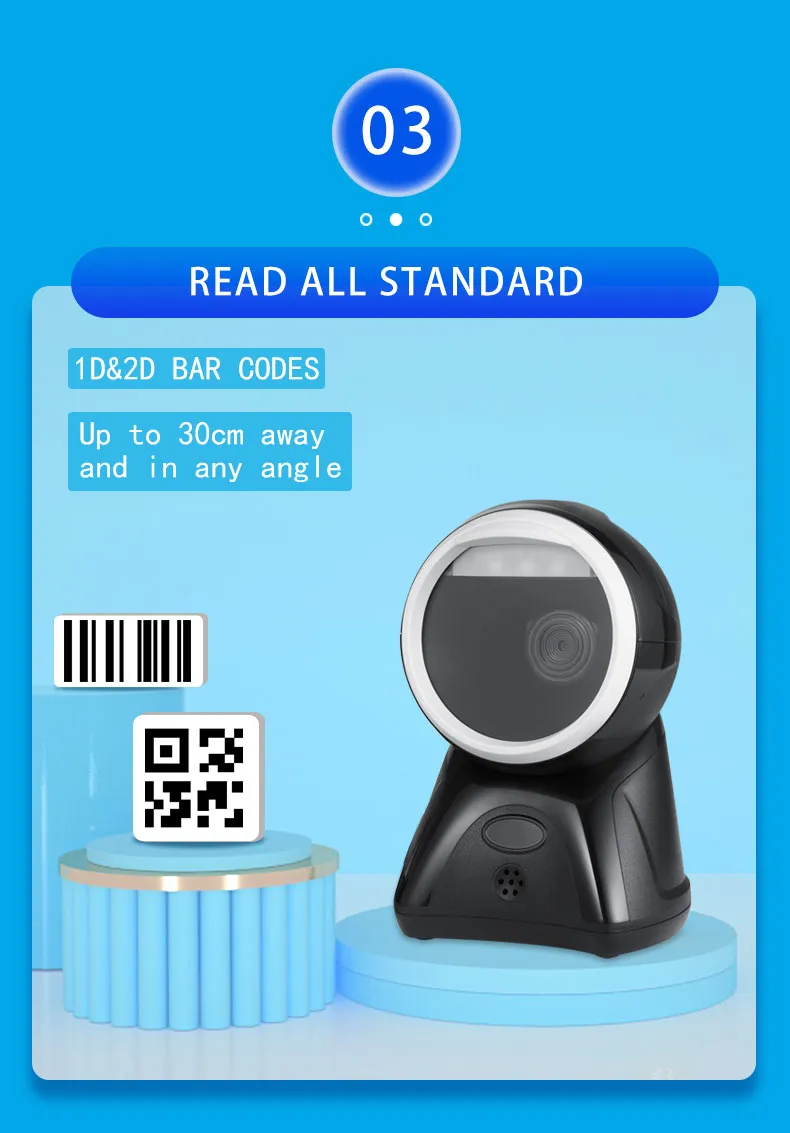

- Read all mainstream 1D&2D barcodes.
- The ideal option for rapid work.
| Performance Parameter | |
| Light Source | LED Red light(Germany) |
| Image sensor | 640*480 pixels |
| Resolution(maximum) | 0.102mm / 4mils |
| Print contrast ratio(minimum) | ≥15% |
| Motion tolerance | 2M/sec |
| Reading Angle | Pitch: 0-360°; Roll(Tilt): ±60°; Skew (Yaw): ±60° |
| Decoding Capability | 1D: All standard 1D codes, including GS1 DataBar™ linear code can be automatically distinguished and decoded. 2D: Aztec Code; Data Matrix; MaxiCode; QRCode; HANXIN; Micro QR Code Stack code: GS1 DataBar Expanded Stacked; GS1 DataBar Stacked; GS1 DataBar Stacked Omnidirectional; GS1 DataBar Composite; MicroPDF417; PDF417. |
| Reading Indicators | LED light&Buzzer(adjustable tone and volume) |
| Typical depth of Filed | Precision Barcode Depth of Filed 5mil CODE128 1mm-80mm 5mil EAN-13 1mm-80mm 13.34mil EAN-13 5mm-245mm 5mil PDF417 5mm-70mm 10mil PDF417 5mm-180mm 15mil PDF417 10mm-280mm 20mil DM 5mm-80mm (The minimum depth of field is determined by the barcode length and scanning angle. It depends on the print resolution, contrast and ambient light.) |
| Physical characteristics | |
| Color available | Black&Orange&Blue |
| Dimensions(L*W*H) | 112*101*164mm |
| Weight | 313g |
| Cable | 1.6m |
| Electrical Parameter | |
| Current | Working current(Standard): < 300 mA Standby current(Standard): < 210 mA |
| Input Voltage | 5 VDC (+/- 10%)/500mA |
| Environmental Parameter | |
| ESD protection(Air discharge) | 8 kV |

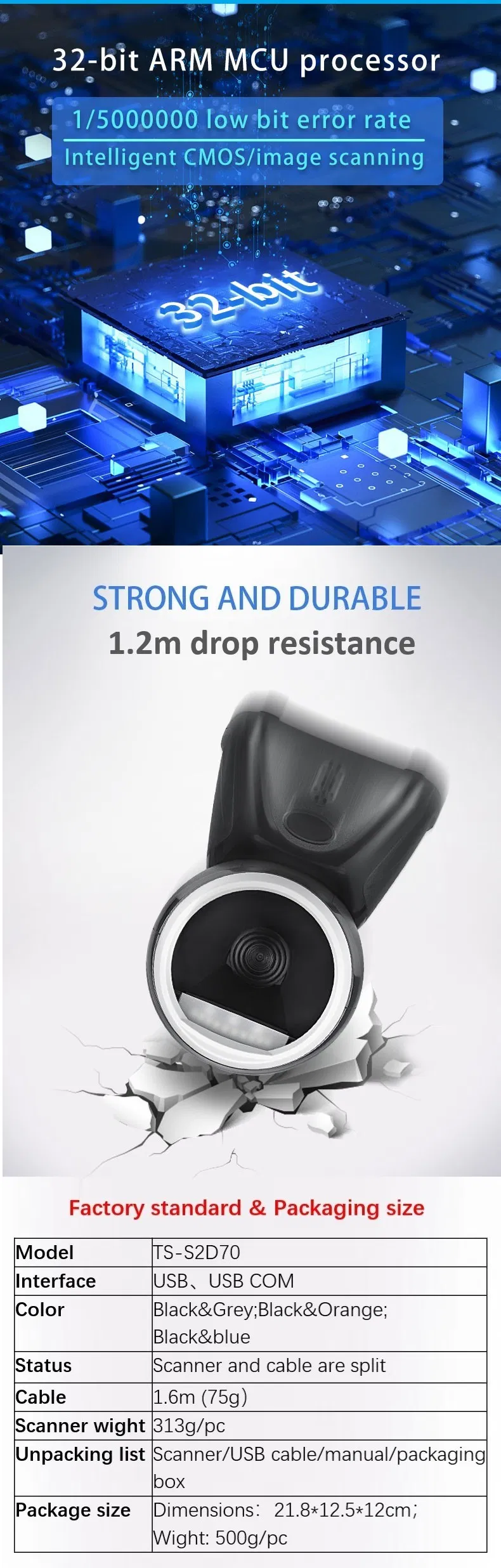

| Drop resistance | Withstands repeated drops from 1.2m/4.0 ft onto a concrete surface. |
| Particulate and water sealing | IP52 |
| Temperature | Operation: 0 to 40 °C Storage/Transport: -40 to 70 °C |
| Humidity(non-condensing) | 5 - 95% |
| Ambient light | 0 -100,000 lux |
| Interfaces | |

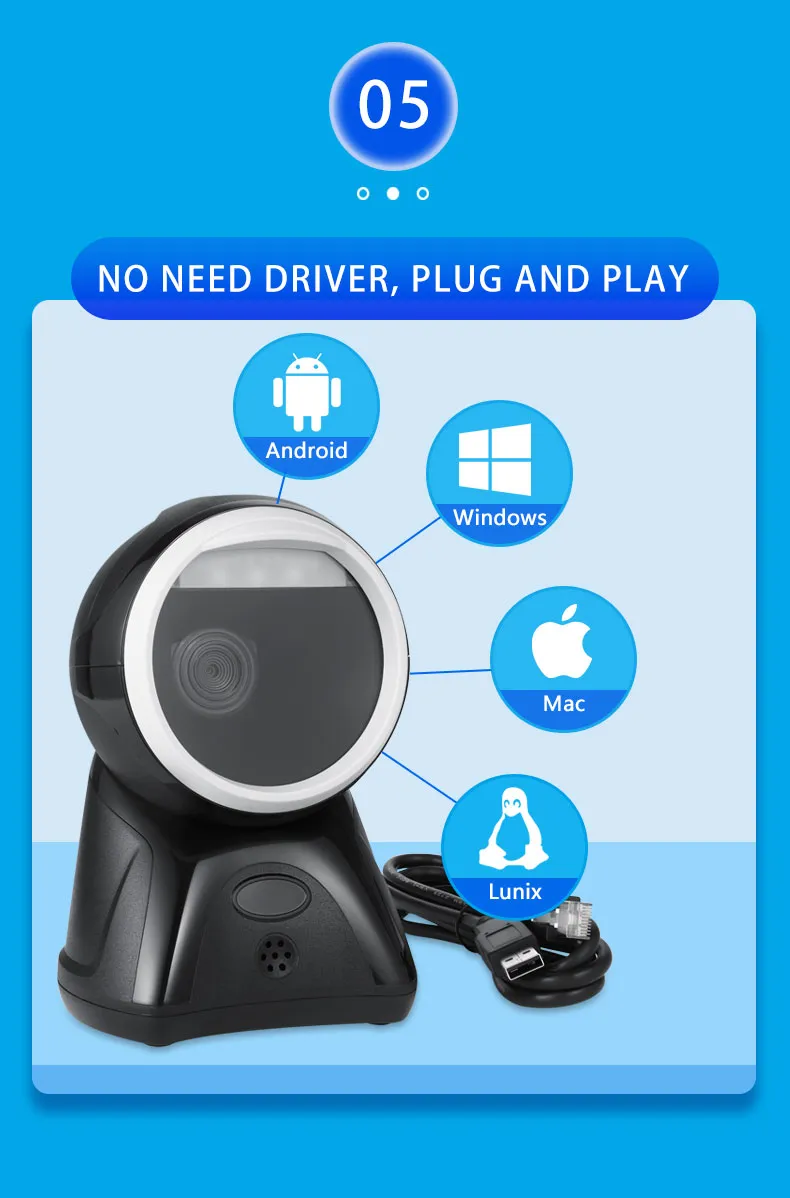

| Interfaces | RS-232; USB HID; USB COM; HID POS available as per customer's needs |
