2D Barcode Scanner Online Bar Code Reading Barcode Readers

Product Description

PRODUCT ATTRIBUTES

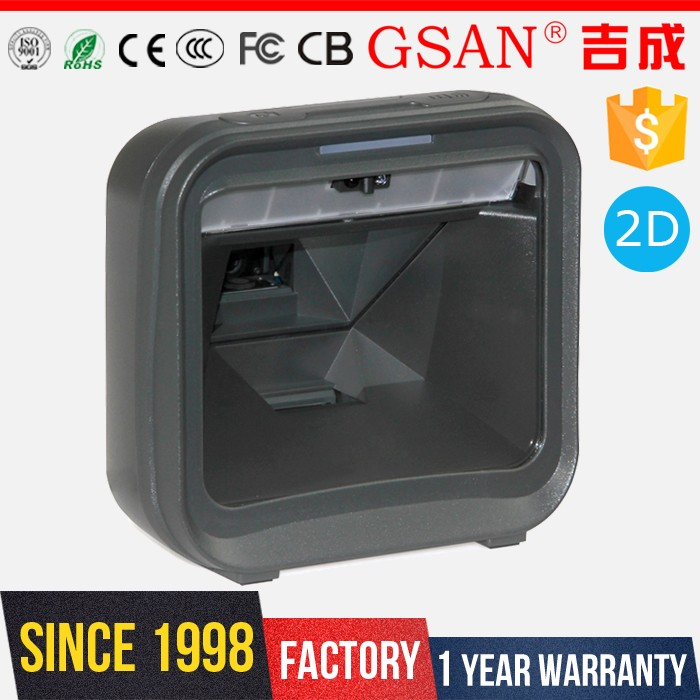

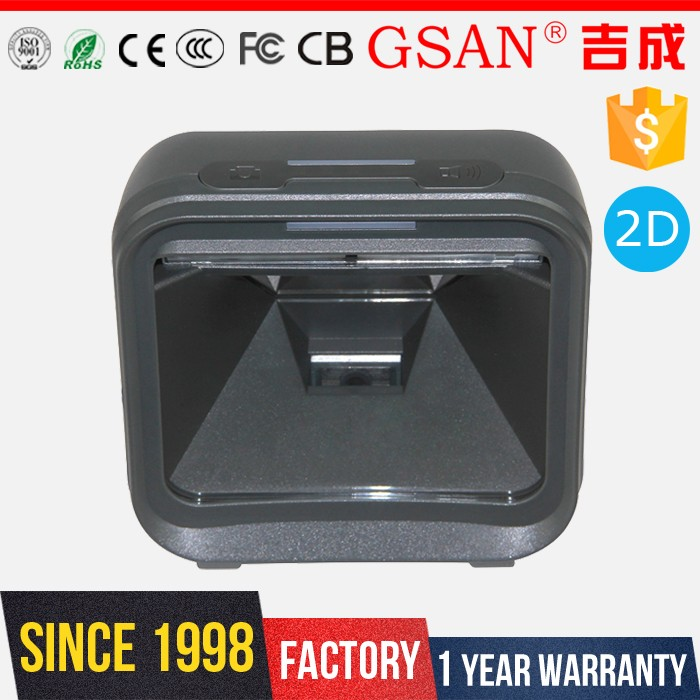

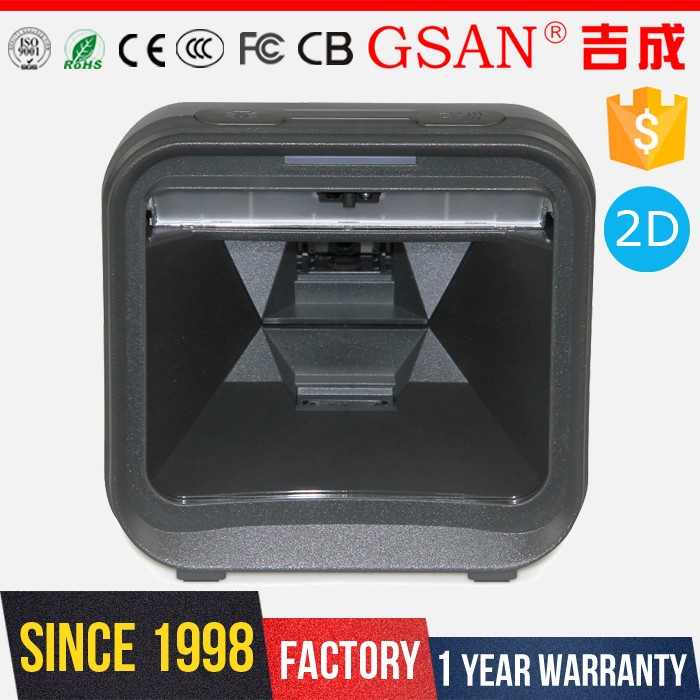

GS-TU3300 2D QR code & Barcode Scanner
Scan Speed	45 frames per second
Input voltage	5VDC + 0.25V
Power	5.00 W (working);0.40 W (standby)
Current	1000mA (working); 80mA (standby)
Image size	1280*960pixels
Scanning angle	+60°, +40°, 360°(Skew, Pitch, Roll)
Decode capability	UPC-A,UPC-E,UPC-E1, EAN-13,EAN-8,ISBN (Bookland EAN), ISSN, Code39, Code39 full ASCII, Code 32, Trioptic Code 39, Interleaved 2 of 5, Industrial 2 of 5 (Discrete 2 of 5), Matrix 2 of 5,Codabar(NW7), code 128, UCC/EAN 128 (GS1-128), ISBT 128, Code 93, Code 11 (USD-8), MSI/Plessey, UK/Plessy, China post, China Finance, GS1 DataBar (formerly RSS) variants.
Indicator	Beeper, LED
Interface supported	Keyboard wedge, RS-232, USB virtual COM
Dimensions	Height * Width * Depth 152mm * 81mm * 144mm (Without stand); 152mm * 112mm * 184mm (With stand);
Weight	543g (without stand, without cable); 810g (with stand, without cable);
Cable	Straight 2.0m
Connector type	RJ-45 phone jack connector
Case material	PC+TPU
Temperature	0°to 50°( 32°to 122°F),Operating; -40°to 70°(-40°to 158°F), Storage
Humidity	5% to 95% (non-condensing)
Programming method	Manual (reading special bar code)
Program upgrade	Online
Min. element width	4mil, 1mil=0.0254mm
Decoding depth	4 mil Code39(9 chars): 5mm-60mm 5 mil Code39(3 chars): 0mm-100mm 10 mil Code39(3 chars): 0mm-148mm 13 mil UPC(6 chars): 0mm-170mm 15 mil Code39(1 chars): 0mm-193mm 20 mil Code39(1 chars): 0mm-220mm
Safety	EMC: EN55022, EN55024 Electrical safety: EN62471:2008 Illumination: 0-100, 000LUX Protection class: IP52 Drop resistance: 1.5m(5.0ft) drops to concrete

PRODUCT CATEGORIES
2D Barcode Scanner Online Bar Code Reading Barcode Readers

COMPANY INFORMATION
(1) PRODUCT DEVELOPMENT TEAM
We have our own research and development team of engineers for product to run more stable.
(2) STRICT MATERIAL PURCHASING
Taking fully into account the suitability of accessories at design-time and non-compatibility, there are strict party control and to expect the delivery inspection.
(3 )STRICT PRODUCTION CONTROLL
GSAN using assembly-line production, strict homework and testing requirements to ensure product consistency.
(4) RIGOROUS QC TESTING
GSAN are subject to rigorous testing before launch, including functional testing, application testing,
security testing, electromagnetic compatibility testing, as well as temperature and humidity test.
(5) AFTER-SALES SERVICE
Customer Service is even based on "dedication to customer service," responsibility is to uphold the legitimate rights and interests of our customers to ensure that manufacturers credit!
(6)CERTIFICATE AUTHENTICATION
After 10 years of unremitting quality management, the company's various products have 3C, FCC, CB,, CE, EMC and many other certified products are exported to Europe and the United States and around the world.
2D Barcode Scanner Online Bar Code Reading Barcode Readers

EXHIBITION & CUSTOMER PHOTO
2D Barcode Scanner Online Bar Code Reading Barcode Readers

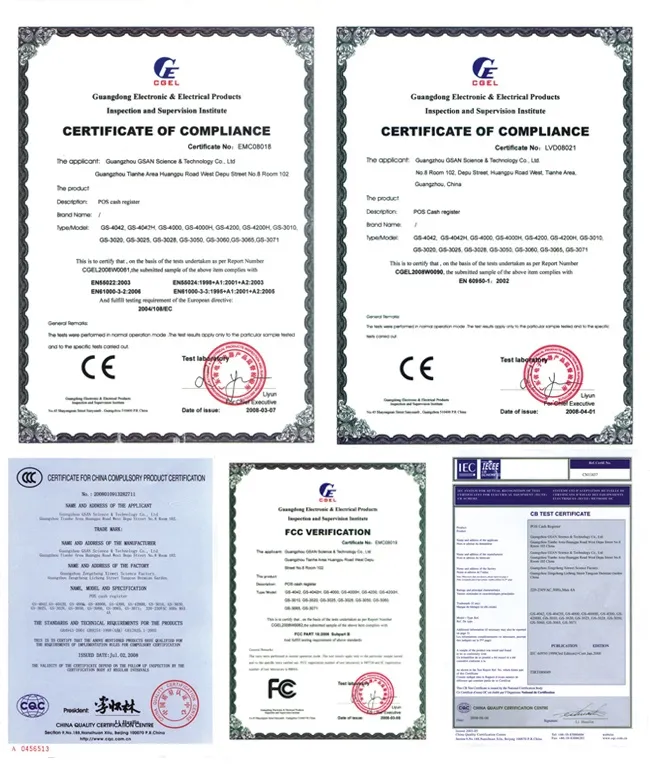

OUR CERTIFICATE
2D Barcode Scanner Online Bar Code Reading Barcode Readers

Our Service

HOW TO CONTACT US?

Contact person	Enrico
	gsan201402
Tel	+86 (20) 8750 6970
Fax	+86 (20) 8750 4498
Web	http://gzgsan.en.made-in-china.com http://gzgsan.en.made-in-china.com/
Address	4F, No.C10, Huachuang Animation Industrial Park, Jinshan Avenue, Shiqi, Pan Yu District, Guangzhou City. China (Mainland)

OEM & ODM?

Provide ODM or OEM services, if purchased from sunphor, conforms to the manufacturer's specifications and will be free from defects in workmanship and materials for a period of 2 years (24 months) from the date of original purchase.

1) During the warranty period, should your SUNPHOR product prove to be defective, free to call or email us for warranty repair instructions.
2) We have service technician provide telephone or email diagnostic service to you. Customer's satifactory is our permanent principle.
3) Regarding to the defective product, we will exchan
ge the spare parts without charge for parts or labor. And the broken product or spare parts don't need to be sent back to us, we will send new ones with your next order.

QUALITY CONTROL AND MARKET

1. Certifications: ISO9001,ISO1004, CE, FCC, ROHS,CB,CCC
2. QC Staff: 12 QC employees with more 5 years experience will guard our products quality before goods are sending out. Meanwhile our 10 engineers is ready to provide momentarily the most professional technology and customization for you. That is why we always stay ahead of the competitors.
3.Material: Intel CPU,Industrial mainboard,New ABS material of shell,Original Sharp LCD,SMT electronic manufacture,Print machanism imported from Seiko.
4. Market :USA, Canada, Bolivia,Ecudor, Colombia, Argentina, Brazil, Chile, RussiaAustralia,China,Romania,France,Germany,Ghana,Morocco,SouthAfrica,Argeria,Vietnam,Philippines,Thailand etc

FAQ
1. How will you control product quality?
We strictly control every detail of production, and every product is inspected by our QC team
before delivery. Moreover, our production is abided by ISO9000, 3C, FCC, CB, CE and EMC.
2. Can you send samples for confirmation? Are they free?
Yes, of course, but sample fee is not for free.
3. What about delivery time?
Generally, production needs 7 to 15 days. And it also depends on product and quantity.
4. Can customize, modify and develop products according to the design drawing?
Yes, we provide OEM service and can customize products according to the drawing.
5. Whether the price reasonable?
With factory, we promise to provide reasonable and cost-effective price.
6. What about terms of payment?
Payment terms: T/T, west Union and L/C, etc.
7. Can you tell me something about product materials and workmanship?
We adopt environmental protection materials, and they are harmless to human being.
8. Can you list the products of your company?
Epos, touch Pos, receipt printer, cash box and barcode scanner.
9. If found quality problems, what should I do?
You can replace for a new one or we provide repair for you within 30 days for free.
10. What about minimum order quantity?
We have no limit for MOQ, so you can even buy only 1 piece.
