2D Small Kiosk Barcode Scanner Module Desktop Scanner Ms- 7120
Auto Sense Mini Barcode Scanner Kiosk QR Code Scanner Module MS-7120Features:* Large scan window, piano baking paint appearance;* Perfect compatibility of paper electronic screen;* object self-sensing, large perspective image sensor;* Support backless screen bar code reading image sensor;* Built-in ......
Send Inquiry
Product Description

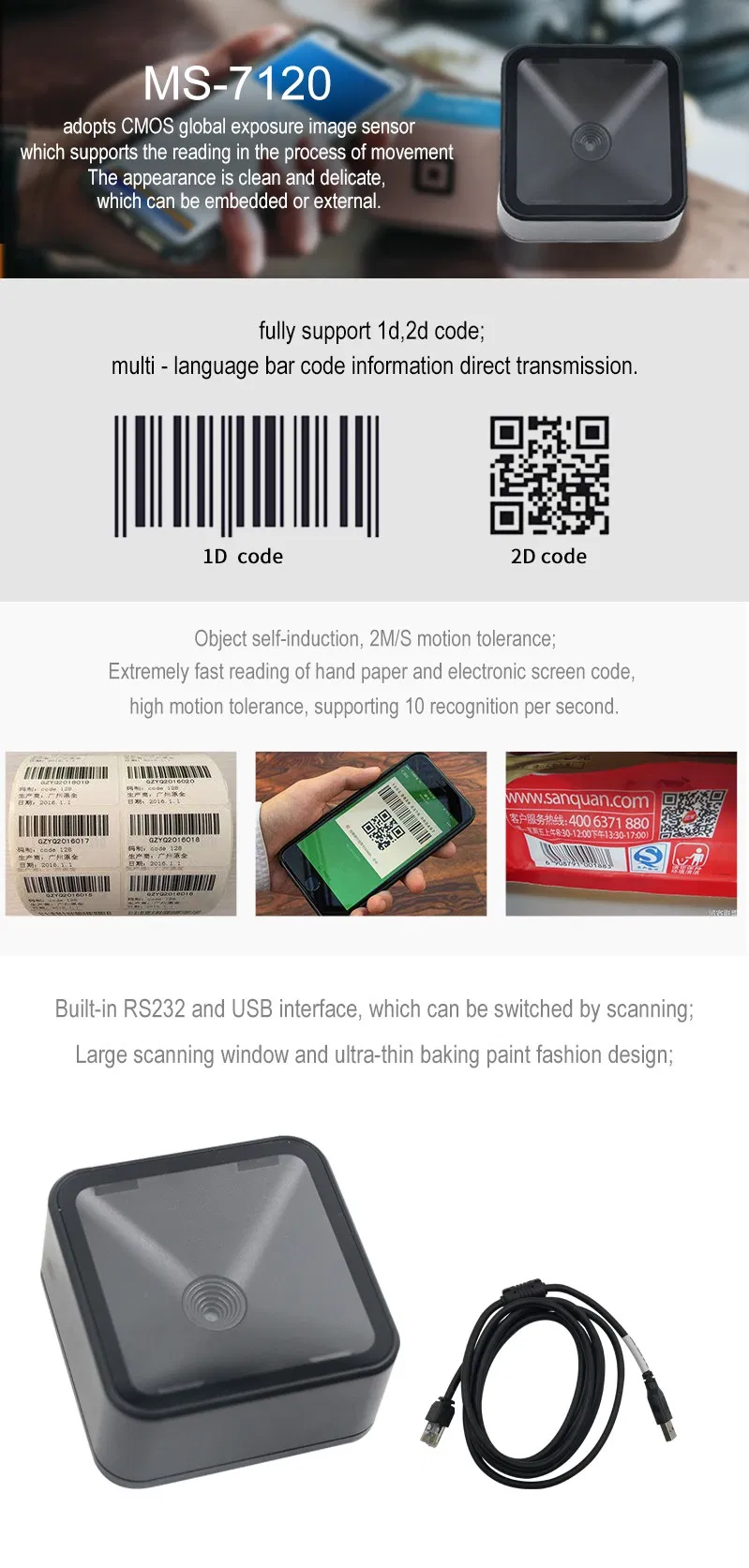

Auto Sense Mini Barcode Scanner Kiosk QR Code Scanner Module MS-7120
* Large scan window, piano baking paint appearance;
* Perfect compatibility of paper electronic screen;
* object self-sensing, large perspective image sensor;
* Support backless screen bar code reading image sensor;
* Built-in RS232 and USB interface;
* Fast reading of paper and electronic screen codes, high motion tolerance;
* Support 1D & 2D code; Multi-language bar code information direct transmission.
Specification

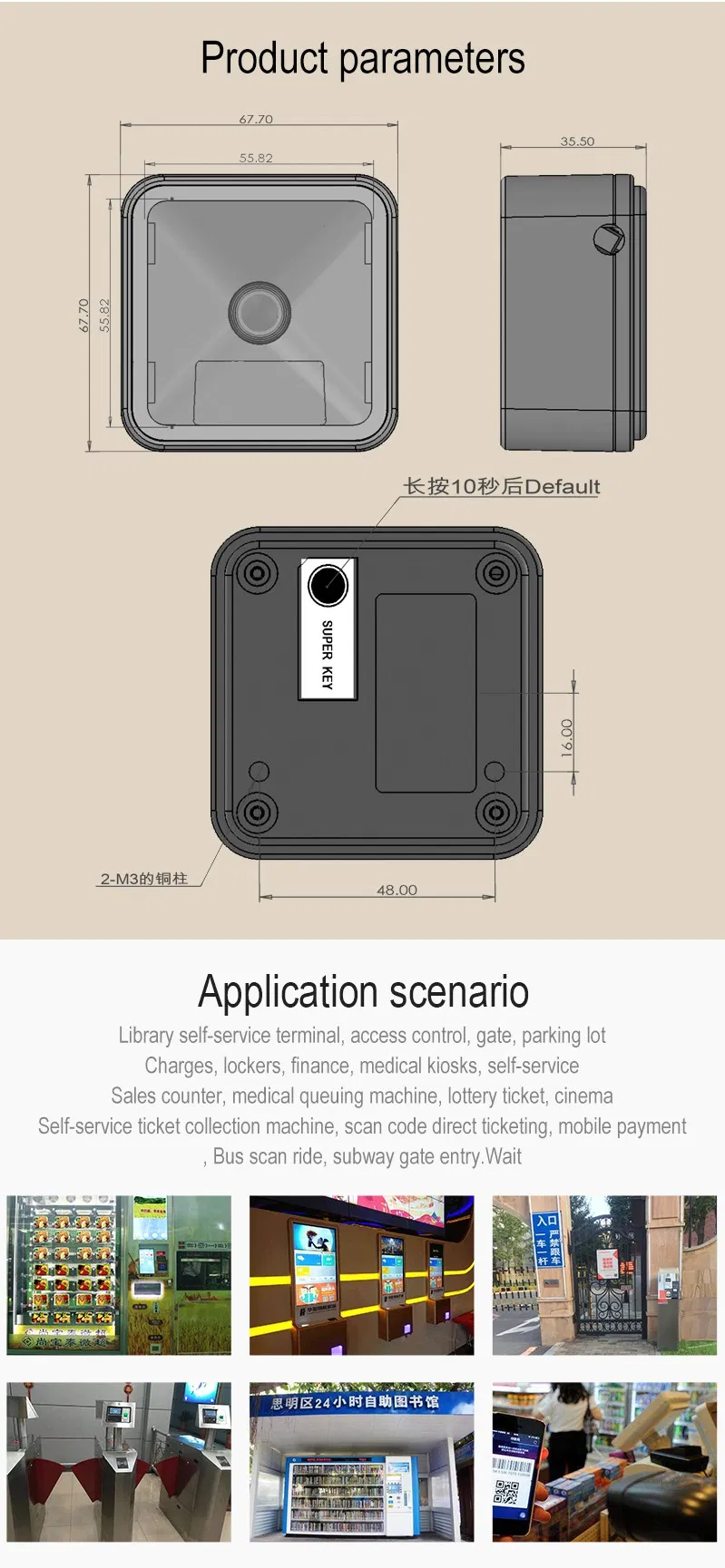

| Physical Characteristics | |
| Dimensions | 67mm*67mm*35mm |
| Weight | 145.5g |
| Voltage | 3.3-5VDC |
| Working Current | 200mA |
| Standby Current | 90mA |
| Peak Current | 300mA |
| Interfaces | USB, RS232 |
| Performance | |
| Image(Pixels) | 640 pixels(H)*480 pixels(V) |
| Light Source | Illumination: 6500K LED |
| Minimum Resolution | ≥3.9 mil |
| 6.88 mil (PDF417) | 0mm-50mm |
| 10 mil (Data Matrix) | 0mm-50mm |
| 13 mil (UPCA) | 5mm-110mm |
| 20 mil (QR) | 0mm-100mm |
| Scan Angle Roll/Pitch/Skew | 360°, ±65°, ±60° |
| Field of View | 72° (H) x 64° (V) |
| Motion Tolerances | >2m/s |
| Decode Capability | |
| 1D | UPC, EAN, Code 128, Code 39, Code 93, Code 11, Matrix 2 of 5, Codabar Interleaved 2 of 5, Mis Plessey, GSI DataBar, China Postal, Korean Postal , etc |
| 2D | PDF417, MicroPDF417, Data Matrix, Maxicode, QR Code, MicroQR, Aztec Hanxin, etc. |
| Environment | |
| Operating Temperature | -30°C to 70°C |
| Storage Temperature | -40°C to 150°C |
| Humidity | 0% to 95% relative humidity,non-condensing |
| Shock Specifications | Designed to withstand 1.5m(5') drops |
| Ambient Light Immunity | 0-100.000 Lux. |
