2D Reading Performance Omni Directional Barcode Scanner Laser Lines High Speed Decoding 1d Barcode Reader
Factory Wholesales 2D Image Platform Scanner Features- Stylish and compact, attractive.- Automatic dormant mode, energy-saving.- 300,000 pixels global shutter, with great speed and precision.- Minimum resolution: 4 mils- Bright White LED for illuminating scanning surfaces.- Read all mainstream......
Send Inquiry
Product Description

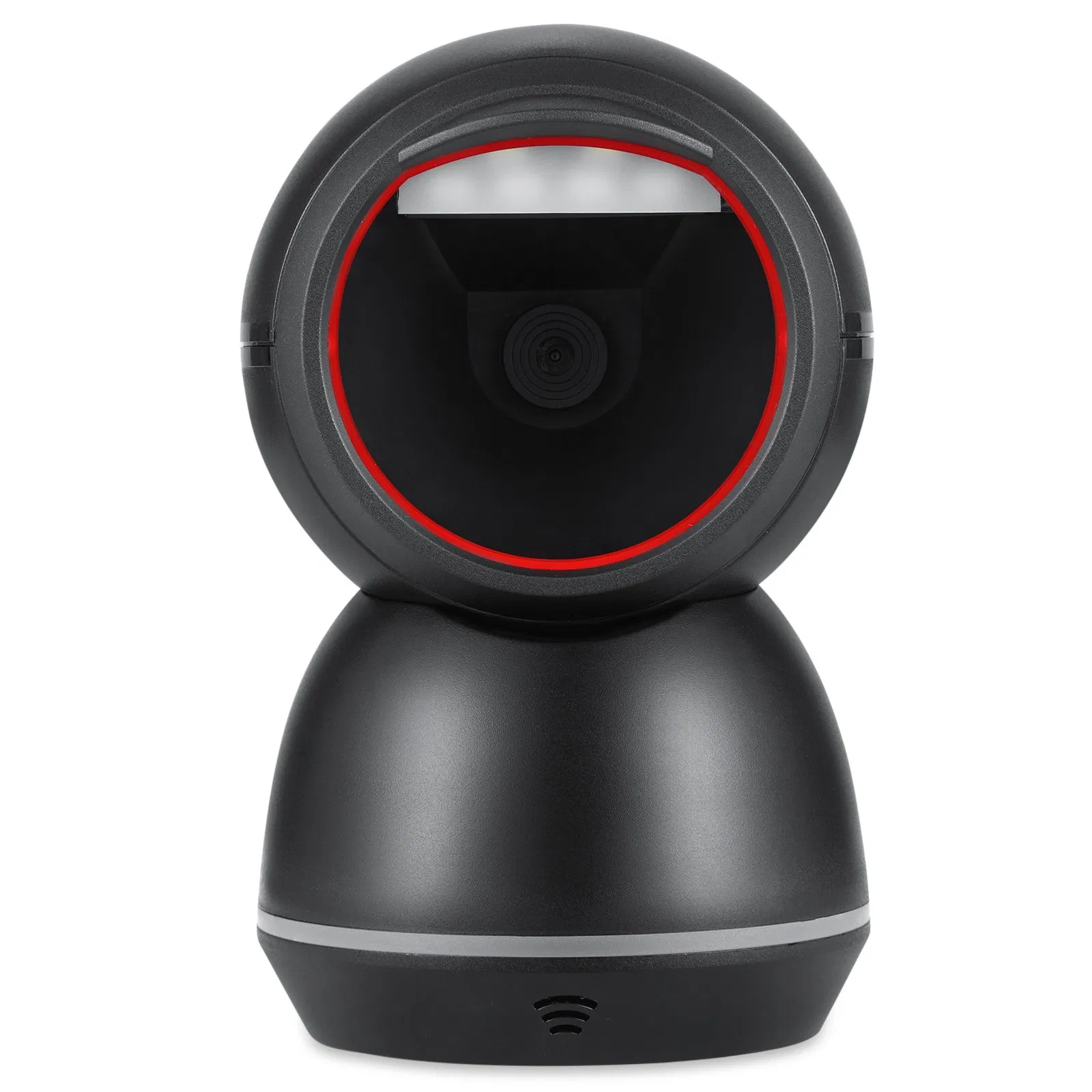

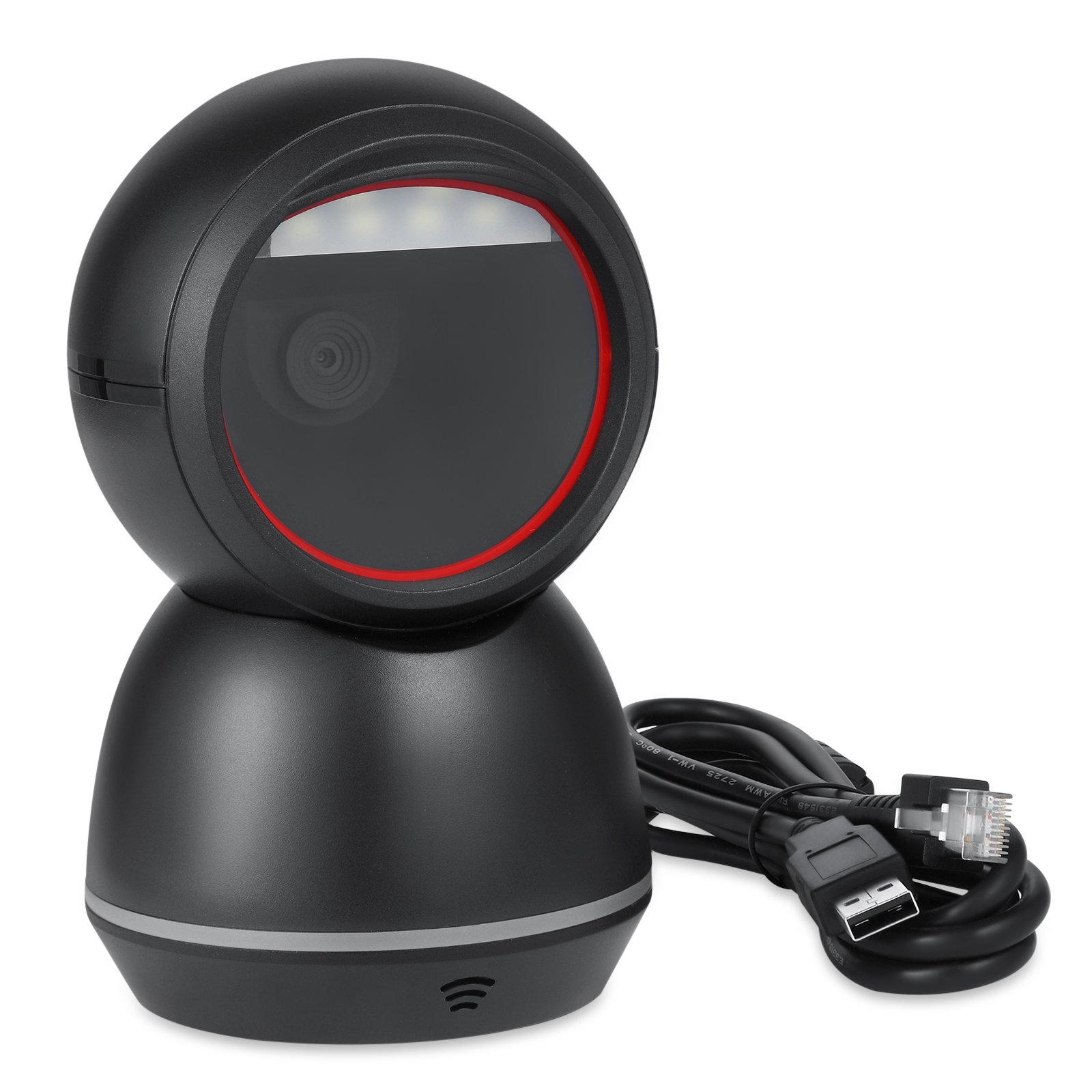

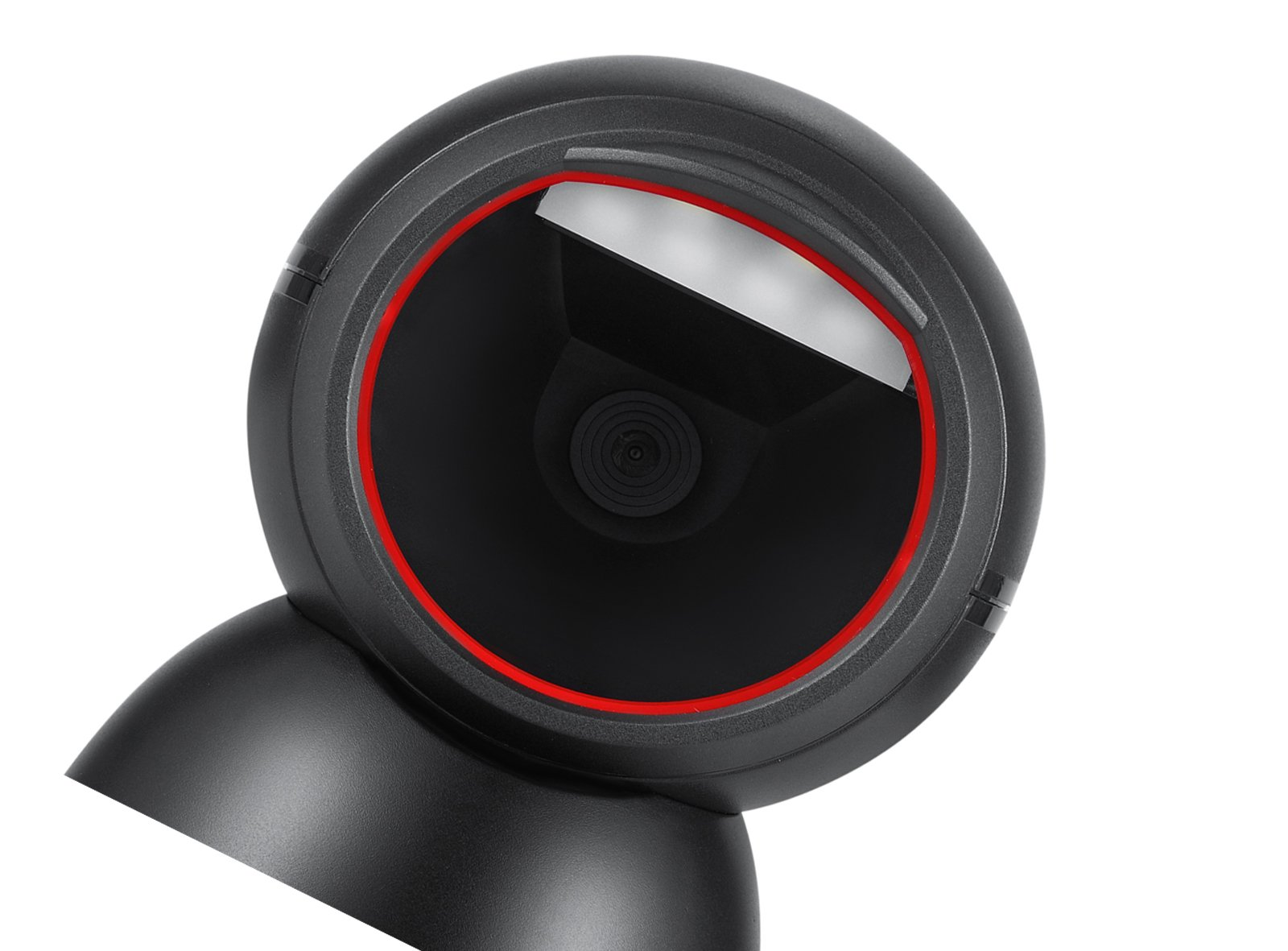

Factory Wholesales 2D Image Platform Scanner
Features
- Stylish and compact, attractive.
- Automatic dormant mode, energy-saving.
- 300,000 pixels global shutter, with great speed and precision.
- Minimum resolution: 4 mils
- Bright White LED for illuminating scanning surfaces.
- Read all mainstream 1D&2D bar codes.
- Strong body with scratch-resistant material.
- Quickly read various LCD and OLED mobile phone screen codes and printed product codes.
- Stylish and compact, attractive.
- Automatic dormant mode, energy-saving.
- 300,000 pixels global shutter, with great speed and precision.
- Minimum resolution: 4 mils
- Bright White LED for illuminating scanning surfaces.
- Read all mainstream 1D&2D bar codes.
- Strong body with scratch-resistant material.
- Quickly read various LCD and OLED mobile phone screen codes and printed product codes.
| Performance Parameter | |
| Light Source | LED White LED |
| Image sensor | 640*480 pixels |
| Resolution(maximum) | 0.102mm / 4mils |
| Print contrast ratio(minimum) | ≥15% |
| Motion tolerance | 2M/sec |
| Reading Angle | Pitch: 0-360°; Roll(Tilt): ±60°; Skew (Yaw): ±60° |
| Decoding Capability | 1D: All standard 1D codes, including GS1 DataBar™ linear code can be automatically distinguished and decoded. 2D: Aztec Code; Data Matrix; MaxiCode; QRCode; HANXIN; MicroQR Code Stack code: GS1 DataBar Expanded Stacked; GS1 DataBar Stacked; GS1 DataBar Stacked Omnidirectional; GS1 DataBar Composite; MicroPDF417; PDF417. |
| Reading Indicators | LED/Buzzer(adjustable tone) |
| Typical depth of Filed | Precision Barcode Depth of Filed 5mil CODE128 0mm-70mm 5mil EAN-13 0mm-70mm 13.34mil EAN-13 0mm-240mm 5mil PDF417 0mm-60mm 10mil PDF417 0mm-170mm 15mil PDF417 0mm-270mm 20mil DM 0mm-80mm (The minimum depth of field is determined by the barcode length and scanning angle. It depends on the print resolution, contrast and ambient light.) |
| Physical characteristics | |
| Color available | White; Black |
| Dimensions(L*W*H) | 96*105.55*157.06mm |
| Weight | 278g |
| Cable | 1.8M |
| Electrical Parameter | |
| Current | Working current(Standard): < 300 mA Standby current(Standard): < 210 mA |
| Input Voltage | 5 VDC (+/- 10%)/500mA |
| Environmental Parameter | |
| ESD protection(Air discharge) | 8 kV |
| Drop resistance | Withstands repeated drops from 1.2m/4.0 ft onto a concrete surface. |
| Temperature | Operation: 0 to 40 °C Storage/Transport: -40 to 70 °C |
| Humidity(non-condensing) | 5 - 95% |
| Ambient light | 0 -100,000 lux |
| Interfaces | |
| Interfaces | RS-232; USB HID; USB COM;HID POS available as per customer's needs |
