Product Description

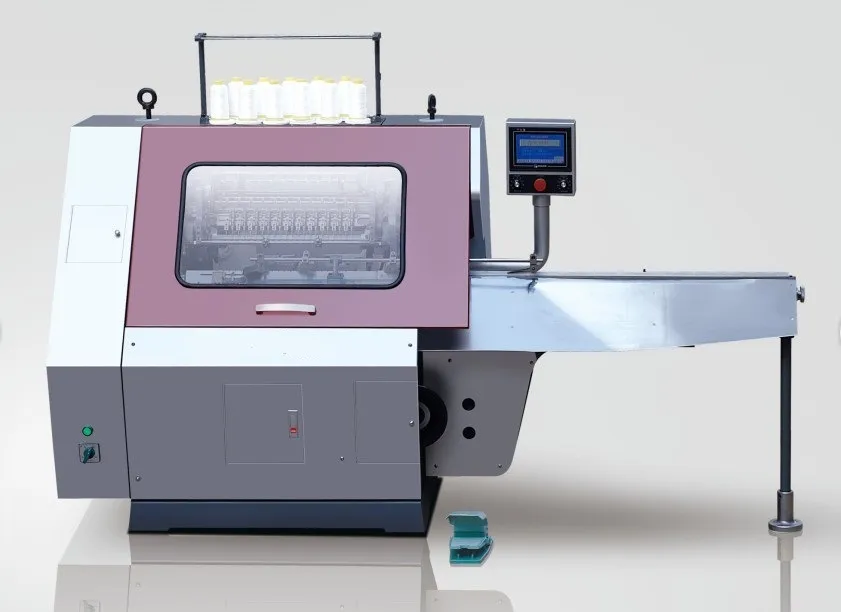

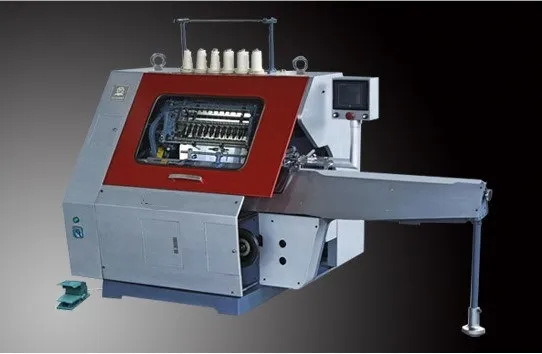

Semi-automatic Book Sewing Machine (HSXB-460A)

This machine carries out the automatic function for paste, putting up the pages,counting, cutting line and separating books, tied page count, at the secant, production statistics. The lubricants automatically carries out detection and control on lack, breaking, shrinks, jams and so on.

The machine is with high lock line precision and international practical needle distance(19m) with the close needle(1.5mm). Lock line is firm, tidy and beautiful and prevents leak adhesive.

It is easy for operation and adjustment. It is ideal equipment for the large and medium-sized print factories, and binding and gluing binding books.

General traits

.Semi-auto: Automatic gluing / binding/ reception.
.Multi-auto-functions: Paste / putting up pages/ counting/ cutting /seperating/ tied page count / production statistics etc.
.Lubricants automatic cotrol system:Automatically.
.Automatic-detection: Carry out detection and control on lack / breaking /shrinks / jams etc.
.Needles:High lock precision / international needle distance(19mm)with close needle(1.5mm).
.Lock line: Firm / tidy/ prevents leak adhesive.

book sewing machine

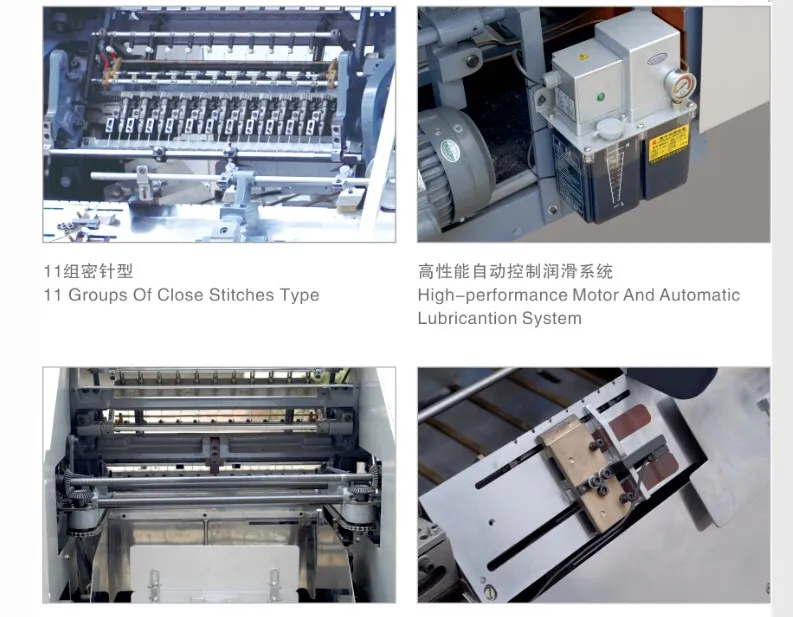

-11 groups of close stitches type
-high-precision of threading
-easy to operate and adjust
Semi-Automatic Book Sewing Machine (HSXB-460A)

Semi-Automatic Book Sewing Machine (HSXB-460A)

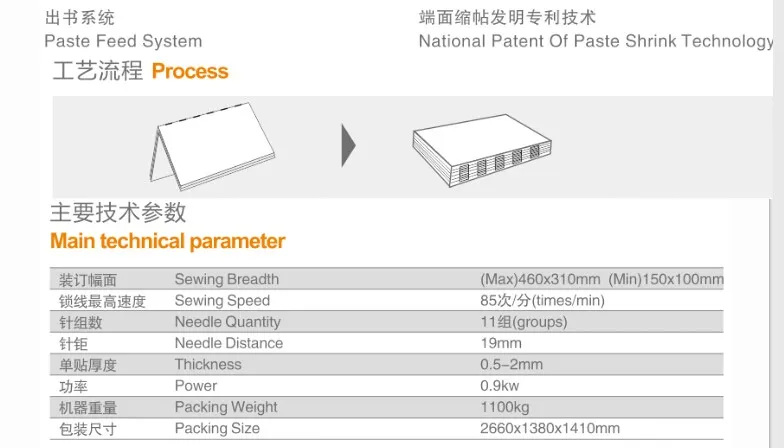

Sewing Breadth	460310mm 150100mm
Sewing Speed	85 times/min
Needle Quantity	11 groups
Needle Distance	19mm
Thickness	0.5-2mm
Power	0.9kw
Packing Weight	1100kg
Packing Size	266013801410mm
