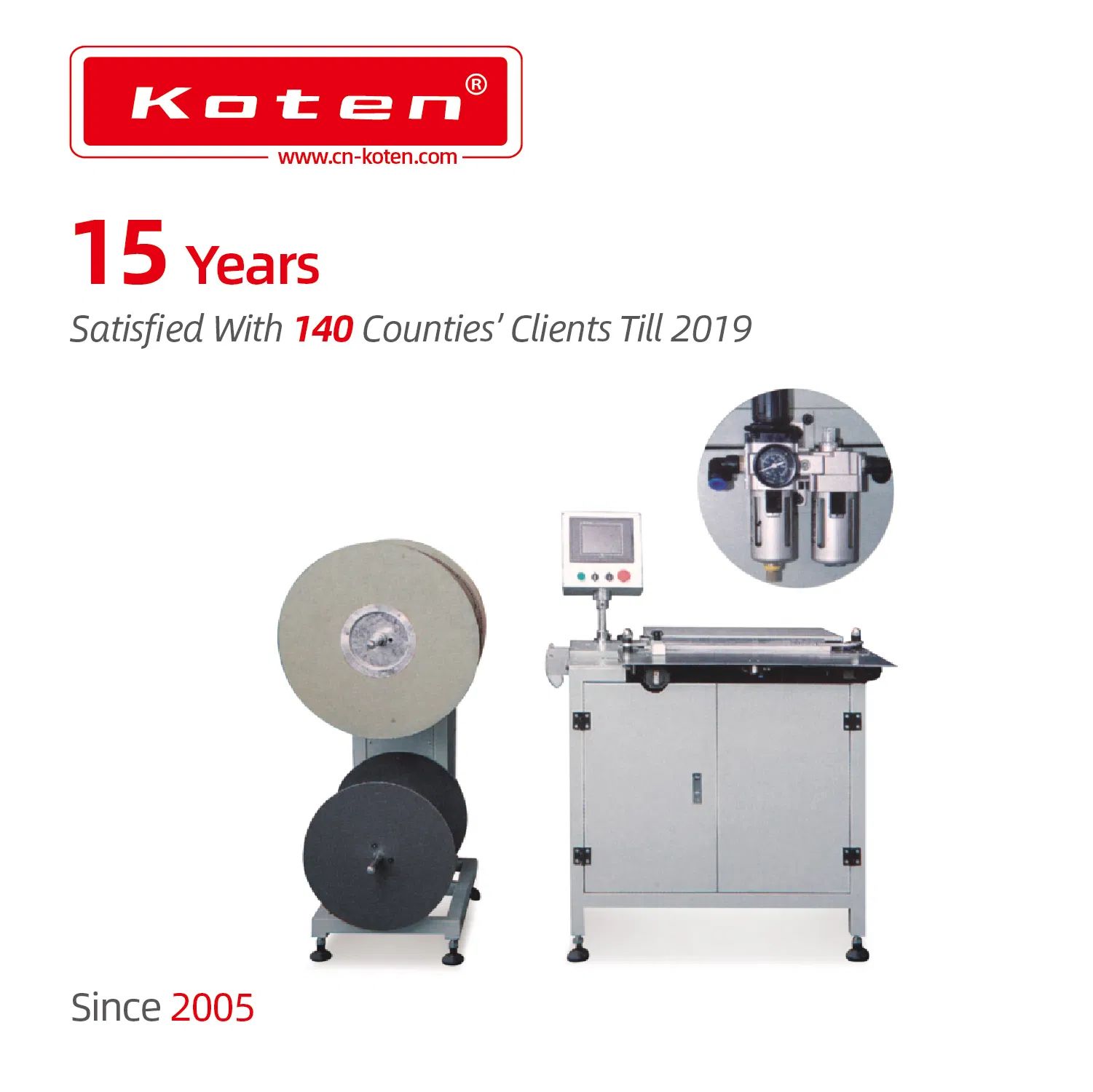

                            Double Loops Notebook/Exercise Book/Table Calendar Wire Coil Spiral Comb Binding Machine
                            • Double Loops Notebook/Exercise Book/Table Calendar Wire Coil Spiral Comb Binding MachineDouble Loops Notebook/Exercise Book/Table Calendar Wire Coil Spiral Comb Binding Machine
                            • Double Loops Notebook/Exercise Book/Table Calendar Wire Coil Spiral Comb Binding MachineDouble Loops Notebook/Exercise Book/Table Calendar Wire Coil Spiral Comb Binding Machine
                            • Double Loops Notebook/Exercise Book/Table Calendar Wire Coil Spiral Comb Binding MachineDouble Loops Notebook/Exercise Book/Table Calendar Wire Coil Spiral Comb Binding Machine
                            • Double Loops Notebook/Exercise Book/Table Calendar Wire Coil Spiral Comb Binding MachineDouble Loops Notebook/Exercise Book/Table Calendar Wire Coil Spiral Comb Binding Machine

                            Double Loops Notebook/Exercise Book/Table Calendar Wire Coil Spiral Comb Binding Machine

                            Samples.Sizes.Inside diameters of the double loopsSize6.4mm1/4 inch 3: 17.9mm5/16inch9.5mm3/8inch11.1mm7/16inch12.7mm1/2inch14.3mm9/16inch15.9mm5/8inch 2: 119.0mm3/4inch22.2mm7/8inch25.4mm1inch Main Specifications. ModelWB-520Pitch of double wire4: 1" 3: 1" 2: 1"Ma......

                            Send Inquiry

                            Product Description

                            Double Loops Notebook/Exercise Book/Table Calendar Wire Coil Spiral Comb Binding Machine

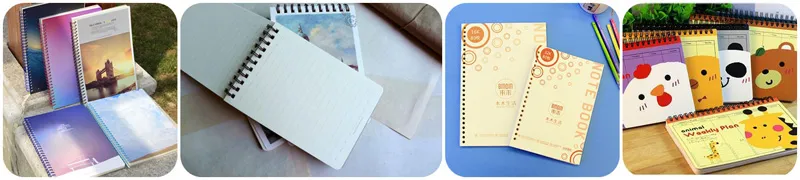

                            Samples.

                            Double Loops Notebook/Exercise Book/Table Calendar Wire Coil Spiral Comb Binding Machine

                            Double Loops Notebook/Exercise Book/Table Calendar Wire Coil Spiral Comb Binding Machine

                            Sizes.
                            Inside diameters of the double loopsSize
                            6.4mm1/4 inch      3: 1
                            7.9mm5/16inch
                            9.5mm3/8inch
                            11.1mm7/16inch
                            12.7mm1/2inch
                            14.3mm9/16inch
                            15.9mm5/8inch    2: 1
                            19.0mm3/4inch
                            22.2mm7/8inch
                            25.4mm1inch

                            Double Loops Notebook/Exercise Book/Table Calendar Wire Coil Spiral Comb Binding Machine
                            Main Specifications.

                            ModelWB-520
                            Pitch of double wire4: 1"       3: 1"       2: 1"
                            Max. binding thickness(Mould matched additionally)3/16" - 9/16" (520)
                            Binding typeHole binding or skip binding(up to five steps)
                            Max. Paper width520mm(520)
                            Max. Binding width60- 520mm(520)
                            Max. Paper length75mm
                            Working speed1200books/hr
                            Size of worktable660x300 WxD
                            Power220v/1 ph/50hz
                            Air compressor1.5kw
                            Air pressure6-8bar
                            Main size1030x770x1200mm
                            Weight220kgs
                            Dimension of pay-off490x760x1220mm
                            Net weight of pay-off65kgs
                            Optional Hanger Attachment.
