T6h86b SKD 86 Inch 4K LCD Display Interactive Intelligence Panel Glass Board for Teaching
Product DescriptionDetailed Photos1.Q:Can you introduce your company?A:Dida is a large-scale display product integration solution provider that integrates mold design, manufacturing, product stamping and injection molding, module back-lighting OEM. The team has rich experience in product design, man......
Send Inquiry
Product Description

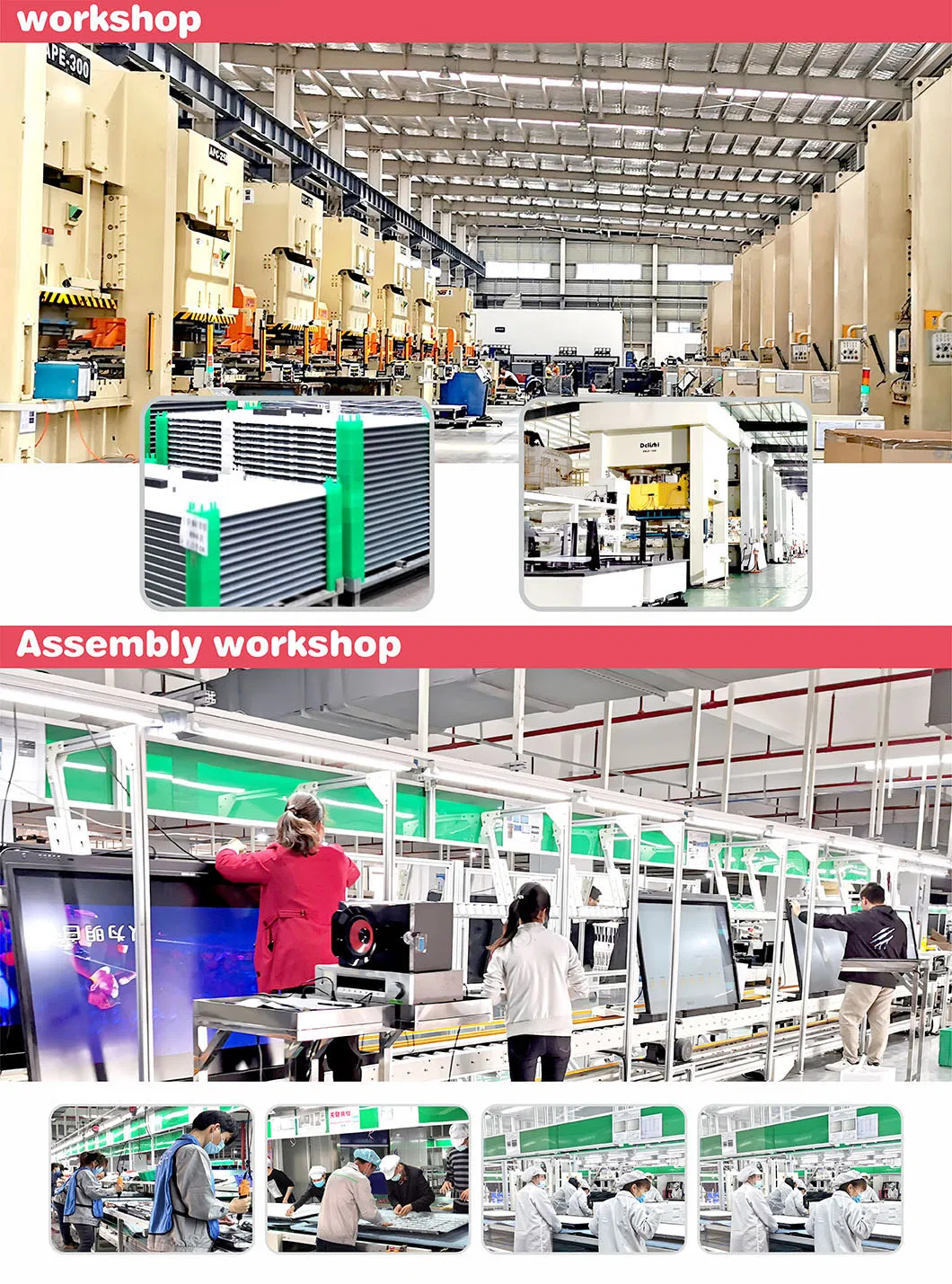

A:Dida is a large-scale display product integration solution provider that integrates mold design, manufacturing, product stamping and injection molding, module back-lighting OEM. The team has rich experience in product design, manufacturing, selling in the display industry. The 100,000-class dust-free workshops. Professional design and production of large-size LCD structural parts, backlight modules, and educational and conference integrated machine.
2.Q:Why does your company only produce on-in-all machine sets?
A:1>. Because the cost of developing an all-in-one machine is very high, we want to help customers save development costs.
2>. We have a very strong R&D team and strong innovation ability. Have rich experience in OEM and ODM
3>. The purpose of our company is to achieve customer brand and help more middle-size companies to grow.
| Model | T6H86B | |
| Name | 86 inch education machine | |
| Display parameters | Display size | 1895.04(H)×1065.96V) (mm) |
| Image scale | 16:9 | |
| Brightness | 350cd/M2 | |
| Contrast ratio | 1200:1 | |
| Color | 10bit TrueColor(16.7M) | |
| Backlighting type | DLED | |
| Max.viewing angle | 178° | |
| Resolution | 3840 * 2160 | |
| Machine Parameters | Vedio standard | PAL/NTSC/SECAM |
| Audio system | DK/BG/I | |
| power of audio system | 2X10W | |
| overall power consumption | ≤500W | |
| stand-by power consumption | ≤0.5W | |
| life times | 30000 hours | |
| input power | 100-240V, 50/60Hz | |
| Machine dimensions | 1953.3 (length) x 1151.42 (height) x 93.0 (thickness) mm | |
| 1953.3 (length) x 1151.42 (height) x 126.6 (thickness) mm (including rack) | ||
| Packing size | 2101 (length) x 1338 (height) x 220 (thickness) mm | |
| N.G | 67KG | |
| W.G | 82KG | |
| working environment | working temperature :0ºC ~ 50ºC; working humidity :10%RH ~ 80%RH; | |
| storage environment | storage temperature :-20ºC ~ 60ºC; storage humidity : 10%RH ~ 90%RH; | |
| Output interface | Front Interface: HDMI*1, TOUCH*1, USB2.0*1, USB3.0*1 | |
| Back Interface: HDMI*2, USB*2, TOUCH-USB*1, RS232*1, RJ45*1, VGA*1, AUDIO*1 | ||
| Input interface | LineOut*1,COAX*1,(HDMIout) | |
| Frant botton | SOURCE,MENU,VOL+,VOL-,HOME,POWER,ECO | |
| WIFI | 2.4 | |
| Bluetooth | No | |
| Andriod system Parameters | CPU | MSD6A648(Cortex A53*4 /1.5G) |
| GPU | T720MP2 | |
| RAM | 2G | |
| FLASH | 8/16/32G option | |
| Android version | Andriod6.0 | |
| OSD language | Chinese English | |

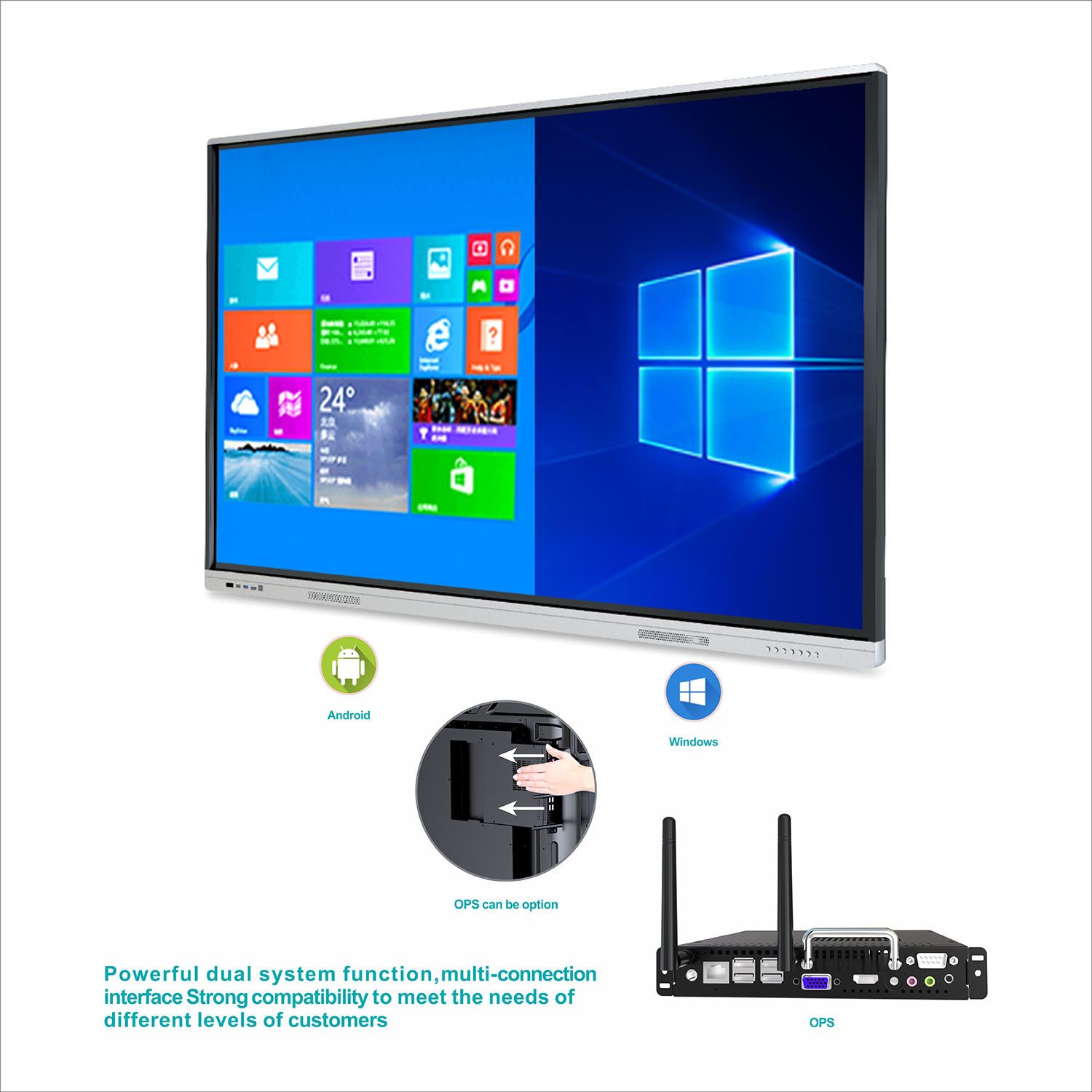

| OPS Parameters | CPU | I3/I5/I7 option |
| Memory | 4G DDR3 | |
| Hard disk | 128G SSD/256G SSD option | |
| Opareting system | window7 /window10 option | |
| Interface | HDMI*1 USB2.0*4 USB3.0*2 VGA*1 Earphone*1 MIC*1 RS232*1 RJ-45 network interface*1 Power botton Recovery botton | |
| WIFI | Support 802.11 b/g/n | |
| Touch frame parametrs | Toucy type | Infrared touch |
| Installation Method | Built-in front disassembly | |
| Touch screen sensing method | Fingers, writing pens, or other non-transparent objects ≥ Ø8mm | |
| Resolution | 32767*32767 | |
| Touch system communication port | USB 2.0 | |
| Responding speed | ≤8 ms | |
| Positioning accuracy | ≤±2mm | |
| Light resistance | 88K LUX | |
| Multi-touch technology | 20-points touch | |
| Number of touches | More than 60 million times in the same location | |
| Touch support operating system | WIN7,WIN8,WIN10,LINUX,Android,MAC | |

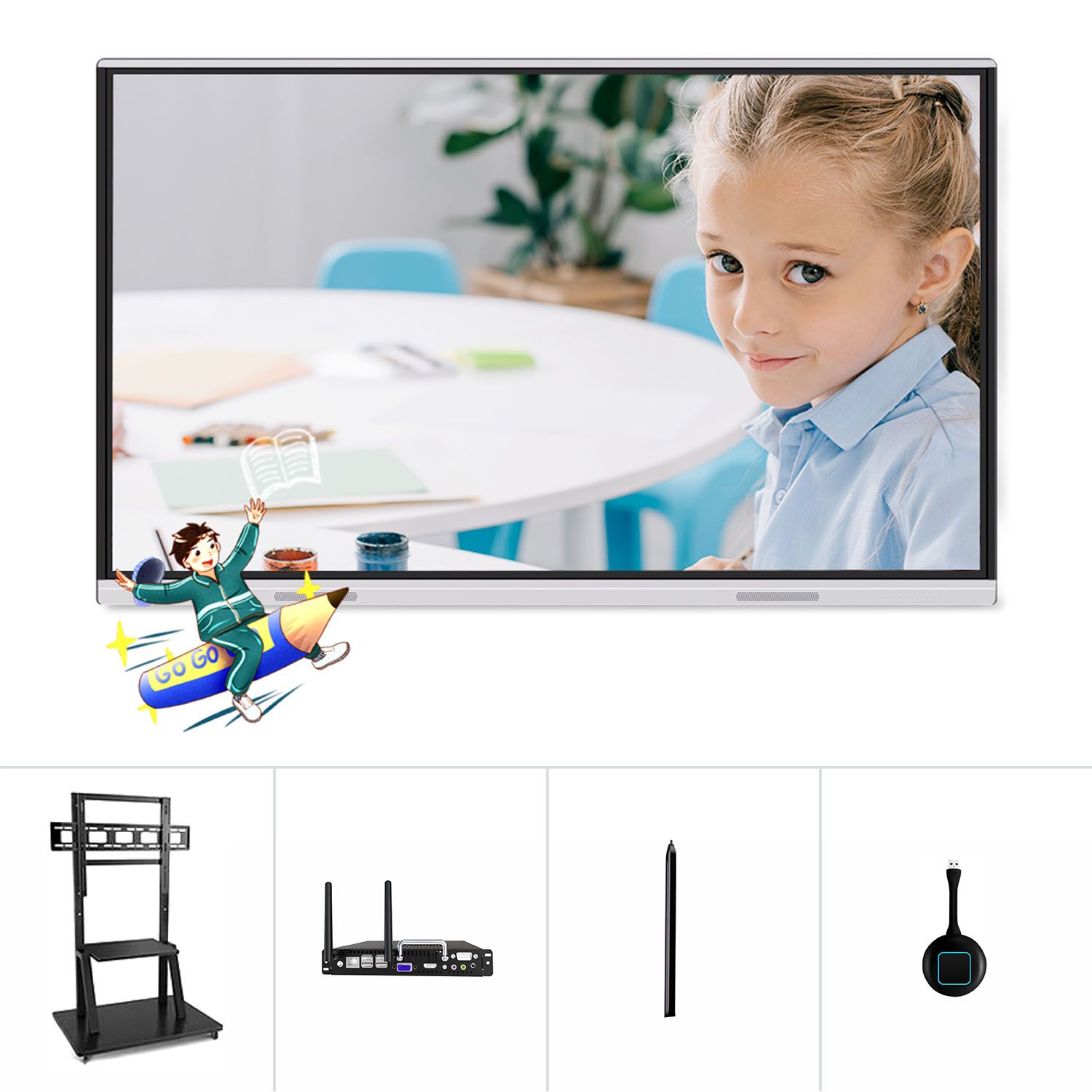

| Accessories | Remote controller | 1 pcs |
| Power Cable | Standard 1.8 meters 1 | |
| Touch Pen | 1 pcs | |
| Warranty card | 1 pcs | |
| Certificate of inspection | 1 pcs | |
| Wall mounted bracker | 1 set | |
| Machine dimensions | 1953.3 (length) x 1151.42 (height) x 93.0 (thickness) mm |
| 1953.3 (length) x 1151.42 (height) x 126.6 (thickness) mm (including rack) | |
| Packing size | 2101 (length) x 1338 (height) x 220 (thickness) mm |
| N.G | 67KG |
| W.G | 82KG |
| working environment | working temperature :0ºC ~ 50ºC; working humidity :10%RH ~ 80%RH; |
| storage environment | storage temperature :-20ºC ~ 60ºC; storage humidity : 10%RH ~ 90%RH; |
Dida is a large-scale display product integration solution provider integrates mold design, manufacturing, product stamping and injection molding, module back-lighting OEM.
Team has rich experience of product design,manufacturing,selling in the display industry. The 100,000-class dust-free workshops. Professional design and production of large-size LCD structural parts,backlight modules and educational and conference integrated machine.
The corporate has served well-known global companies in LG, Samsung, ChiMei, AUO, BOE, Skyworth, TCL etc for many years.Dida Be recognized by many brand companies in the display industry,committed to serving and building customers brands.
1.Q:Can you introduce your company?
A:Dida is a large-scale display product integration solution provider that integrates mold design, manufacturing, product stamping and injection molding, module back-lighting OEM. The team has rich experience in product design, manufacturing, selling in the display industry. The 100,000-class dust-free workshops. Professional design and production of large-size LCD structural parts, backlight modules, and educational and conference integrated machine.
2.Q:Why does your company only produce on-in-all machine sets?
A:1>. Because the cost of developing an all-in-one machine is very high, we want to help customers save development costs.
2>. We have a very strong R&D team and strong innovation ability. Have rich experience in OEM and ODM
3>. The purpose of our company is to achieve customer brand and help more middle-size companies to grow.
3. Q:what is your MOQ?
A:1 sets
4.Q:How about your delivery time?
A:It depends on your quantity. If the goods are in stock, usually delivered within 3-5 days. If it is customized, we need to confirm the delivery date according to the actual situation.
5.Q:What payment methods does your company accept?
A:we accept T/T Paypal LC etc.
6.Q:Where is your company located?
A:Our headquarters is in Changan town, Dongguan, China. It is 1 hour from Shenzhen and 1.5 hours from Guangzhou. Traffic is very convenient.
7.Q:How many people at your R&D department?
A:12 persons.
8.Q:Does your company has an engineer to guide us in assembling the finished product?
A:Yes, We have professional engineers to instruct you on how to assemble. Actually very simple, don't worry.
9.Q: How about transportation?
A: We can go by air or sea according to your requirements. All accessories will be placed in a sturdy cardboard box with plastic bags on the outside of the box. So, you don't have to worry about the box breaking.
