T6h55D 55inch SKD Multi-Port Digital Whiteboard Anti-Glare Toughened Glass Interactive Whiteboard
T6 series 55 inch LCD Display Smart Office Digital All-in-One PC Electric Educational Equipment Touch Screen Interactive Whiteboard For Preschool educationProduct introduction:This inch touch smart Whiteboard,It integrates TV, stereo, computer, projector, electronic whiteboard and tablet computer. U......
Send Inquiry
Product Description
T6 series 55 inch LCD Display Smart Office Digital All-in-One PC Electric Educational Equipment Touch Screen Interactive Whiteboard For Preschool education
Product introduction:
This inch touch smart Whiteboard,It integrates TV, stereo, computer, projector, electronic whiteboard and tablet computer. Unlike traditional projection or electronic whiteboard devices, it does not leave a shadow on the display interface and has higher brightness and smooth writing.Become a necessary product for a new generation of conferences!
One key to scan the QR code after writing, take away the learning materials
Product Introduction:
| model | DH-T6H55D | |
| Name | 55-inch smart conference tablet | |
| Display parameters | display size | 1209.6(H)*680.4(V) (mm) |
| image scale | 16:9 | |
| brightness | 350cd/m2 | |
| contrast ratio | 1200:1 | |
| color | 8bit true color (16.7M) | |
| backlighting type | DLED | |
| Max.viewing angle | 178° | |
| Resolution | 1920*1080 | |
| Machine parameters | vedio standard | PAL/NTSC/SECAM |
| audio system | DK/BG/I | |
| power of audio system | 2X10W | |
| Input port | Side port:VGA*1,AUDIO*1,USB2.0*1,TOUCH-USB*1,HDMI*1,TV*1, AV*1,Optional:RS232*1 | |
| Rear port:None | ||
| Front port:USB2.0*1 USB3.0*1 | ||
| Output port | Headset*1 | |
| other functions | None | |
| Whole machine power consumption | ≤200W | |
| Standby power consumption | ≤0.5W | |
| Whole machine life | ≥30000Hours | |
| Input power | AC 100-240V, 50/60Hz | |
| Machine size | 1257.6(L)*743.6(H)*84(T)mm | |
| 1257.6(L)*743.6(H)*115(T)mm | ||
| Package Size | 1390(L)*900(H)*200(T)mm | |
| net weight | 24KG | |
| Gross weight | 31KG | |
| working environment | working temperature:0ºC ~ 50ºC; working humidity temperature:10%RH ~ 90%RH; | |
| Storage environment | storage temperature:-20ºC ~ 60ºC; storage humidity temperature: 10%RH ~ 90%RH; | |
| Android parameters | CPU | None |
| GPU | None | |
| ROM | None | |
| FLASH | None | |
| Android version | None | |
| OSD language | None | |
| OPS Parameters | CPU | I3/I5/I7(Option) |
| memory | 4G DDR3 | |
| Hard Disk | 128G SSD/256G SSD option(Option) | |
| operating system | window7 /window10 option | |
| interface | HDMI*1, USB2.0*4, USB3.0*2, VGA*1, Earphone*1, MIC*1, RS232*1, RJ-45 network interface*1, POWER button, RECOVERY button | |
| WIFI | Support 802.11 b/g/n | |
| Touch box parameters | Touch type | Infrared touch |
| Installation Method | Built-in front disassembly | |
| Touch screen sensing method | Fingers, writing pens, or other non-transparent objects ≥ Ø8mm | |
| Resolution | 32767*32767 | |
| Touch system communication port | USB 2.0 | |
| responding speed | ≤8 ms | |
| positioning accuracy | ≤±2mm | |
| Light resistance | 88K LUX | |
| multi-touch technology | 20-points touch | |
| Number of touches | More than 60 million times in the same location | |
| Touch support operating system | WIN7,WIN8,WIN10,LINUX,Android,MAC | |
| Attachment | remote control | Quantity: 1 |
| AAA battery | Quantity: 1 pair | |
| Manual | Quantity: 1 serving | |
| National standard three plug power cord | Quantity: Standard 2 meters 1 | |
| Touch pen | Quantity: 1 | |
| Warranty Card | Quantity: 1 serving | |
| Certificate of conformity | Quantity: 1 serving | |
| Wall mount | Quantity: 1 set | |
| Characteristic function | Common interface front, button front, speaker front, with digital audio output, support full channel touch, touch channel automatic switching, gesture recognition, intelligent control, remote control integrated computer shortcut keys, intelligent eye protection, one-key switch machine. | |
Children can draw colorful pictures on the Interactive intelligent whiteboard
Teachers can upload various documents on the smartboard for vivid explanations
Product advantages

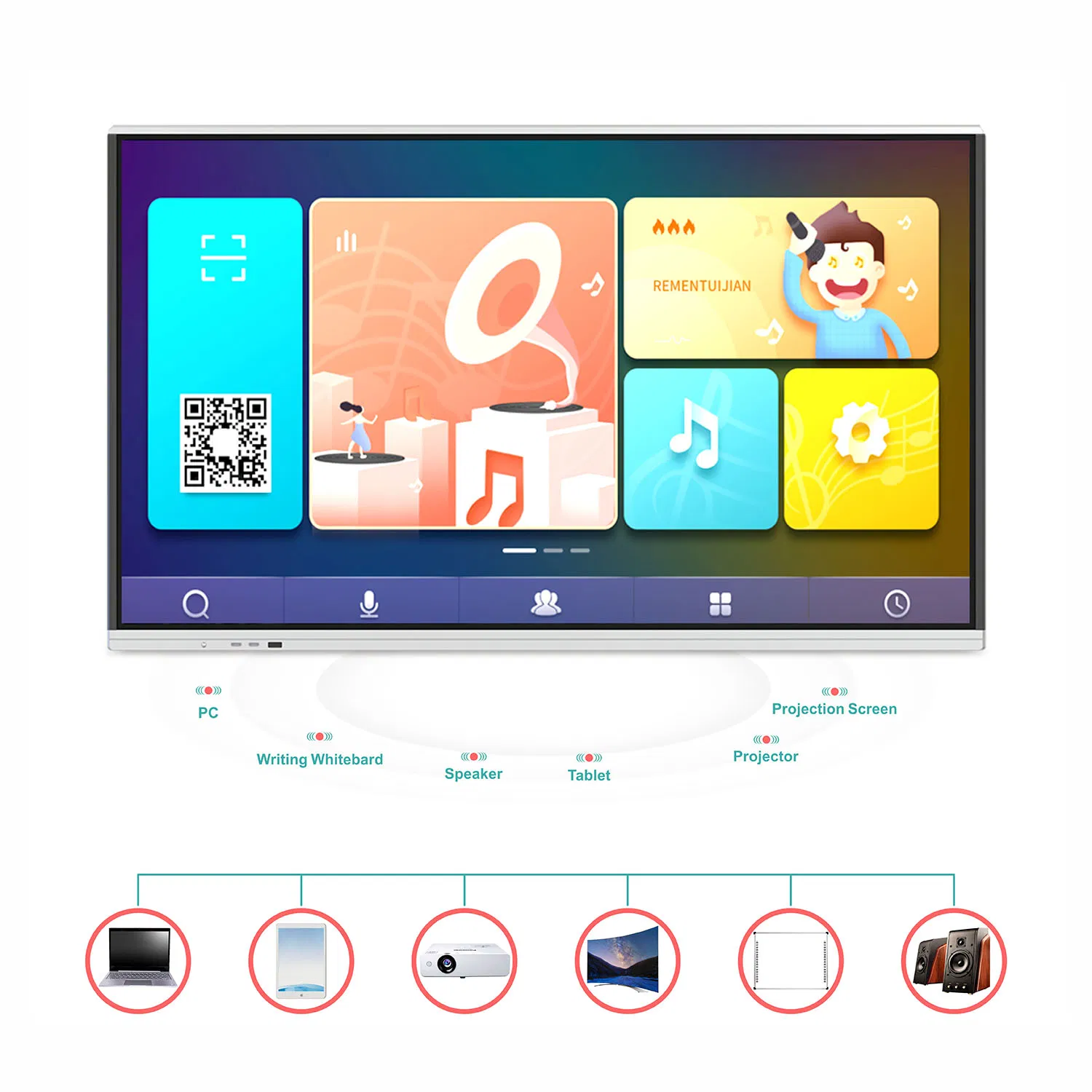

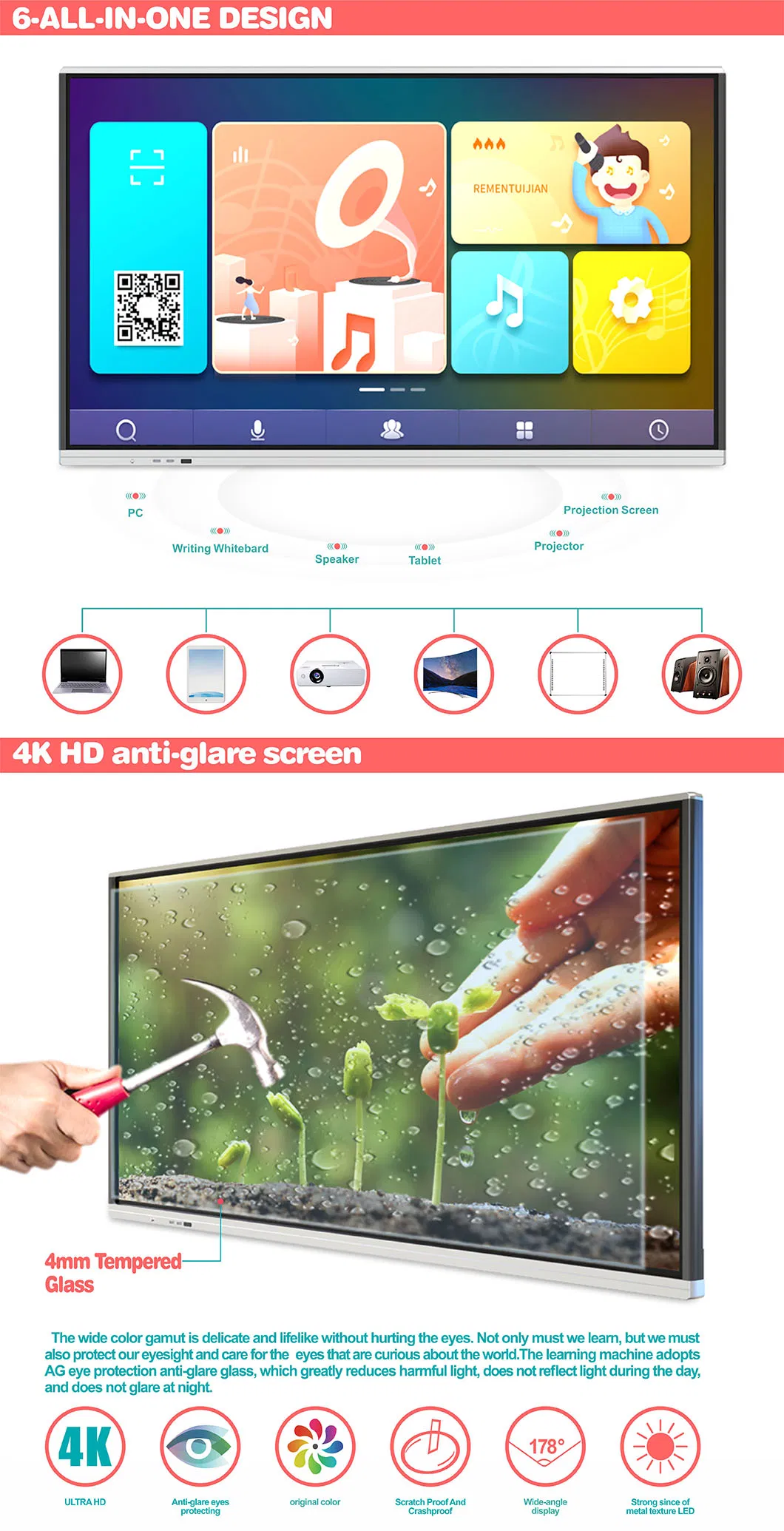

1,Six In One Design: computer, whiteboard, projector, TV, speaker, Tablet,multifunction in one equipment.
2,Support 10 points IR touch ( 20 points touch option): Adopt super sensitive touch panel, increase the touch accuracy, and it can stand more than 35 million time secure touch without any uncontrolled space. Touch easily and control perfectly.

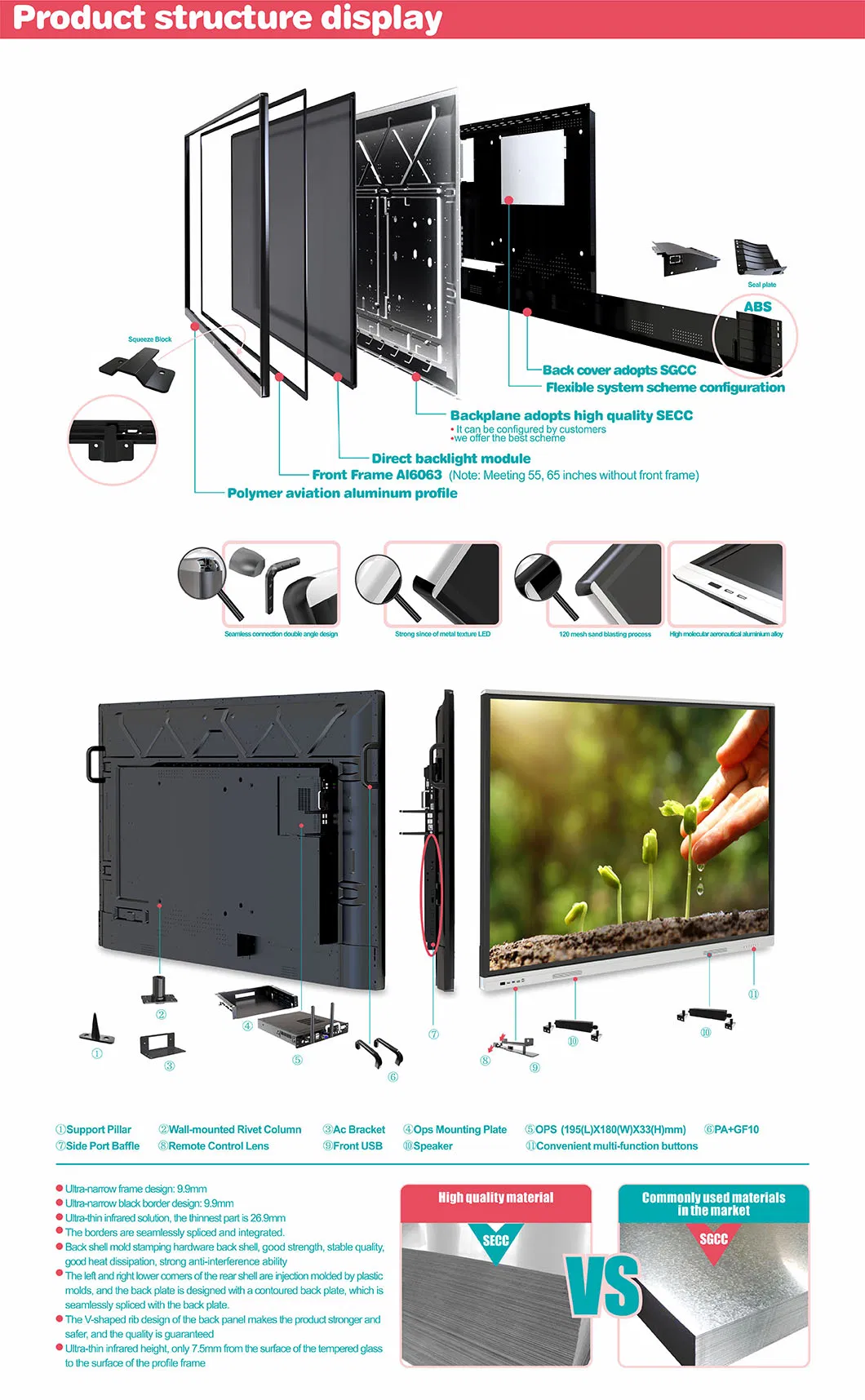

3,Full-size standard mold back plate: Compared with traditional sheet metal CNC laser products, the product has better consistency and high strength. The back plate is strong enough to support the front profile frame and tempered glass, and the quality is stable, and it is fully mechanized. Production, high output.
4,4mm explosion-proof Anti-glare tempered glass: 4mm Ultra-Thin rating 7 glass can protect screen effectively, and Turn the reflective 5,surface of the original glass into a matte non-reflective surface
5,Infrared touch screen with aluminum plate, small heat, fast heat dissipation, which can effectively extend the life of panel.

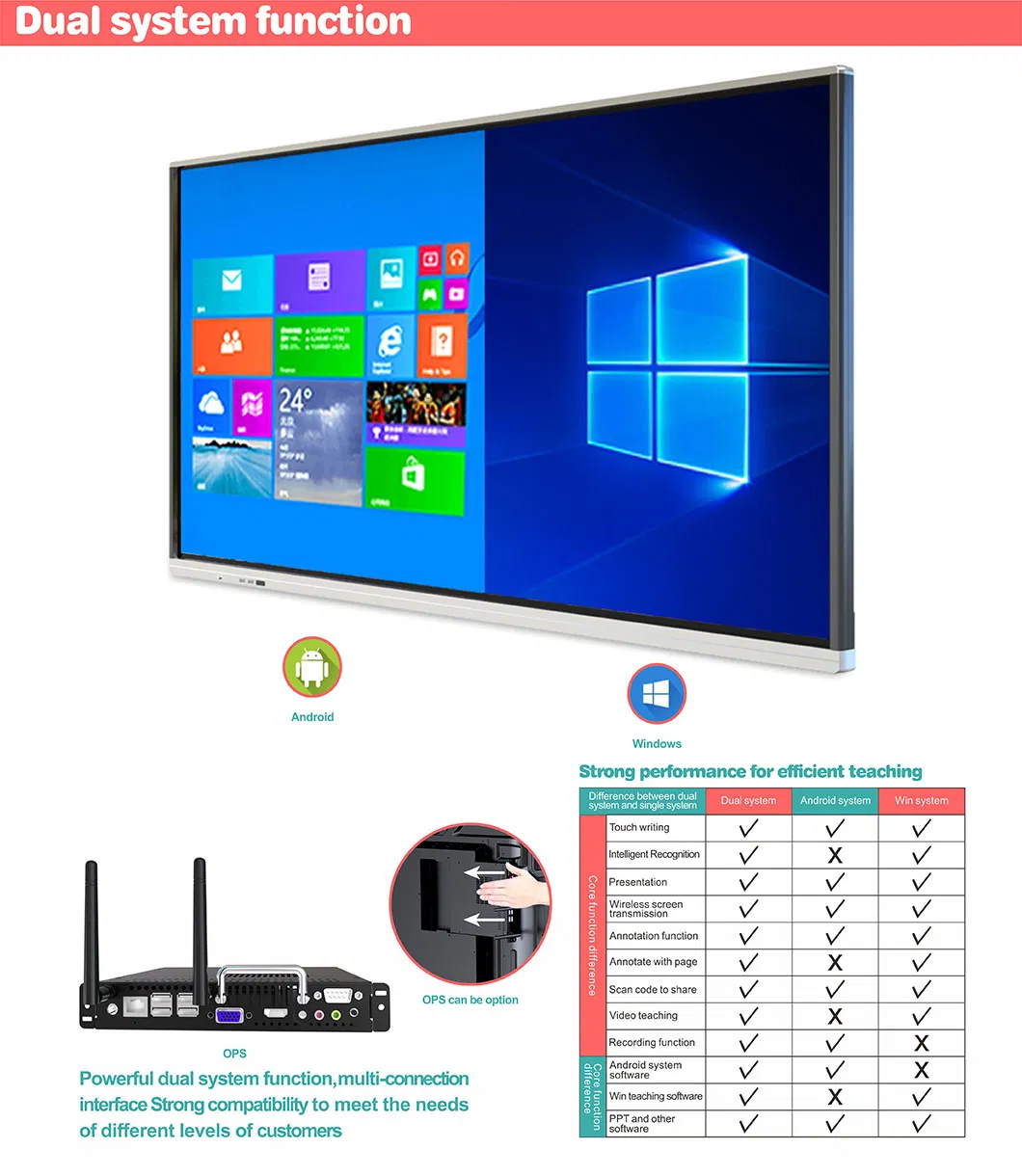

6,Dual core processor : windows and android dual system built-in design. Both systems can achieve whiteboard writing and multimedia playing.
7,Fast response speed: 0.8ms fluent writing and demonstration. More convenient courseware management. Accurate, fast touch, no delay.
8,Intelligent operation: Freely write, annotate and screen shot. Automatically recognize input channel. Intelligent eye protection. Light sensor with automatic brightness control. Energy save & intelligent awake.
9.Intelligent writing & Touch control: the writing function interface can realize the functions of writing, magnifying, shrinking, erasing, dragging, and the like.
10,Screen-mirroring with android phone, iphone, ipad, computer,etc.
We especially pursue every detail of the composition of the touch screen whiteboard
Why Choose US ?
1.About the Whiteboard, We are the source factory and our shipment volume ranks among the top three in the country, we have a very accurate grasp of the materials from the front end to the finished products in the later stage.
2. We have many experienced engineers who can respond quickly and provide customers with free assembly training courses
3. Experienced sales with big lcd industry manufacturer and project background.
4. ISO 9001 , CE, ROHS, 3C, FCC Certificated products: advertising digital signage module, backlight kit, education and conference all-in-one machine module, backlight and machine kit,and customized machine program.
5. Original factory lcd screen,Reasonable price ,high quality and good after-sale tech support.
1.Q:Can you introduce your company?

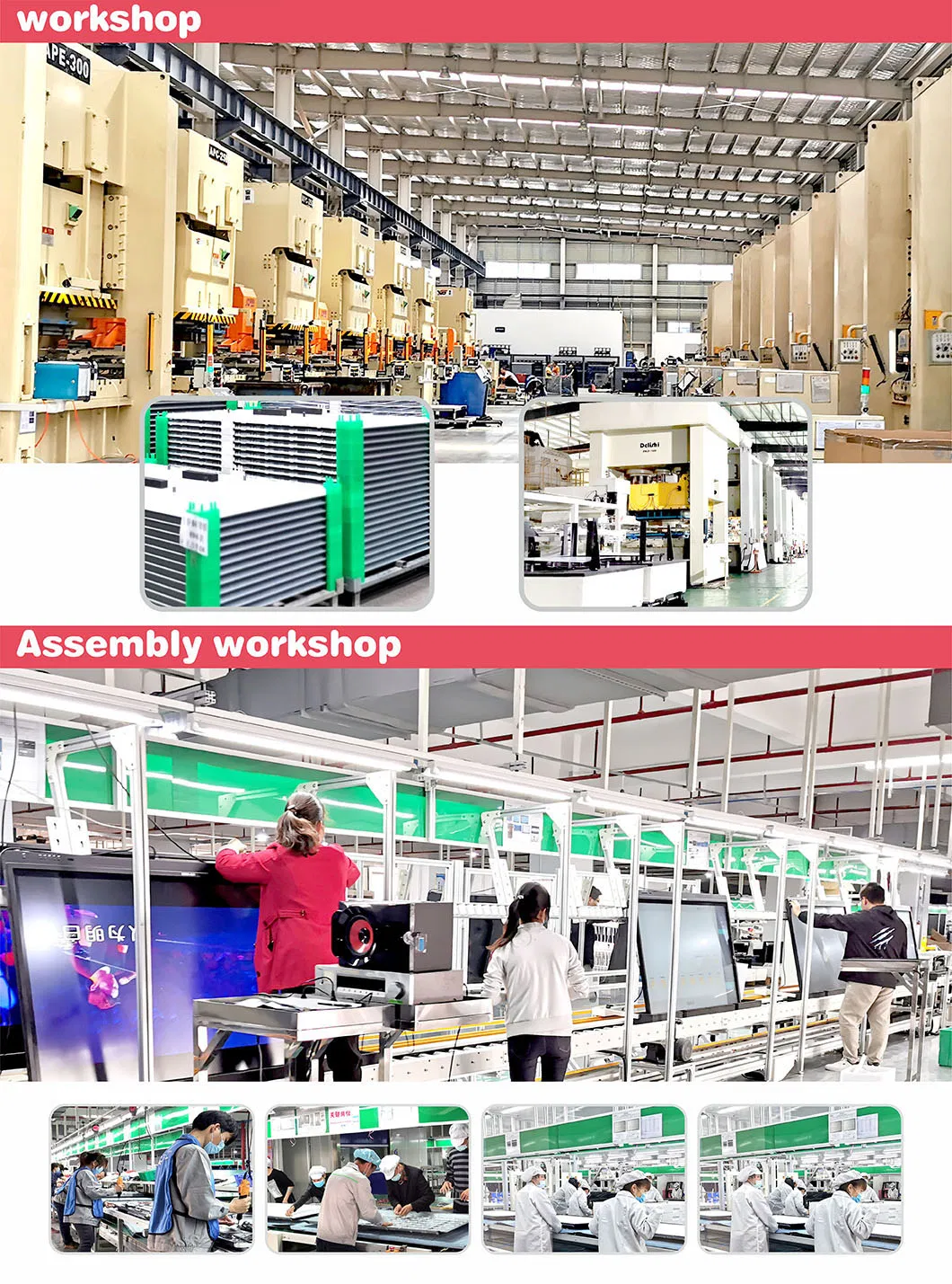

A:Dida is a large-scale display product integration solution provider that integrates mold design, manufacturing, product stamping and injection molding, module back-lighting OEM. The team has rich experience in product design, manufacturing, selling in the display industry. The 100,000-class dust-free workshops. Professional design and production of large-size LCD structural parts, backlight modules, and educational and conference integrated machine.
2.Q:Why does your company produce all-in-one Whiteboard sets?
A:1>. Because the cost of developing an all-in-one machine is very high, we want to help customers save development costs.
2>. We have a very strong R&D team and strong innovation ability. Have rich experience in OEM and ODM
3>. The purpose of our company is to achieve customer brand and help more middle-size companies to grow.
3. Q:what is your MOQ?
A:1 sets
4.Q:How about your delivery time?
A:It depends on your quantity. If the goods are in stock, usually delivered within 3-5 days. If it is customized, we need to confirm the delivery date according to the actual situation.
5.Q:What payment methods does your company accept?
A:we accept T/T Paypal LC etc.
6.Q:Where is your company located?
A:Our headquarters is in Changan town, Dongguan, China. It is 1 hour from Shenzhen and 1.5 hours from Guangzhou. Traffic is very convenient.
7.Q:How many people at your R&D department?
A:12 persons.
8.Q:Does your company has an engineer to guide us in assembling the finished product?
A:Yes, We have professional engineers to instruct you on how to assemble. Actually very simple, don't worry.
9.Q: How about transportation?
A: We can go by air or sea according to your requirements. All accessories will be placed in a sturdy cardboard box with plastic bags on the outside of the box. So, you don't have to worry about the box breaking.
