T6h55D 55inch SKD Infrared Touch Digital Blackboard Mold Stamping Backboard Interactive Boards for Education
Dida is a large-scale display product integration solution provider that integrates mold design, manufacturing, product stamping and injection molding, module back-lighting OEM. The team has rich experience in product design, manufacturing, selling in the display industry. The 100,000-class dust-fre......
Send Inquiry
Product Description
Dida is a large-scale display product integration solution provider that integrates mold design, manufacturing, product stamping and injection molding, module back-lighting OEM. The team has rich experience in product design, manufacturing, selling in the display industry. The 100,000-class dust-free workshops. Professional design and production of large-size LCD structural parts, backlight modules, and educational and conference integrated machine.
The corporate has served well-known global companies in LG, Samsung, Chimie, AUO, BOE, Skyworth, TCL, etc for many years. Dida Be recognized by many brand companies in the display industry, committed to serving and building customer's brands.
Why choose to buy an all-in-one machine
1. Tariffs can be reduced
2. The price of sets material is much lower than that of finished products
3. The assembly method is very simple. Don't worry, we have professional assembly instructional videos.
A: Dida is a large-scale display product integration solution provider that integrates mold design, manufacturing, product stamping and injection molding, module back-lighting OEM. The team has rich experience in product design, manufacturing, selling in the display industry. The 100,000-class dust-free workshops. Professional design and production of large-size LCD structural parts, backlight modules, and educational and conference integrated machine.
2.Q: Why does your company only produce on-in-all machine sets?
A:1>. Because the cost of developing an all-in-one machine is very high, we want to help customers save development costs.
2>. We have a very strong R&D team and strong innovation ability. Have rich experience in OEM and ODM
3>. The purpose of our company is to achieve customer brand and help more middle-size companies to grow.

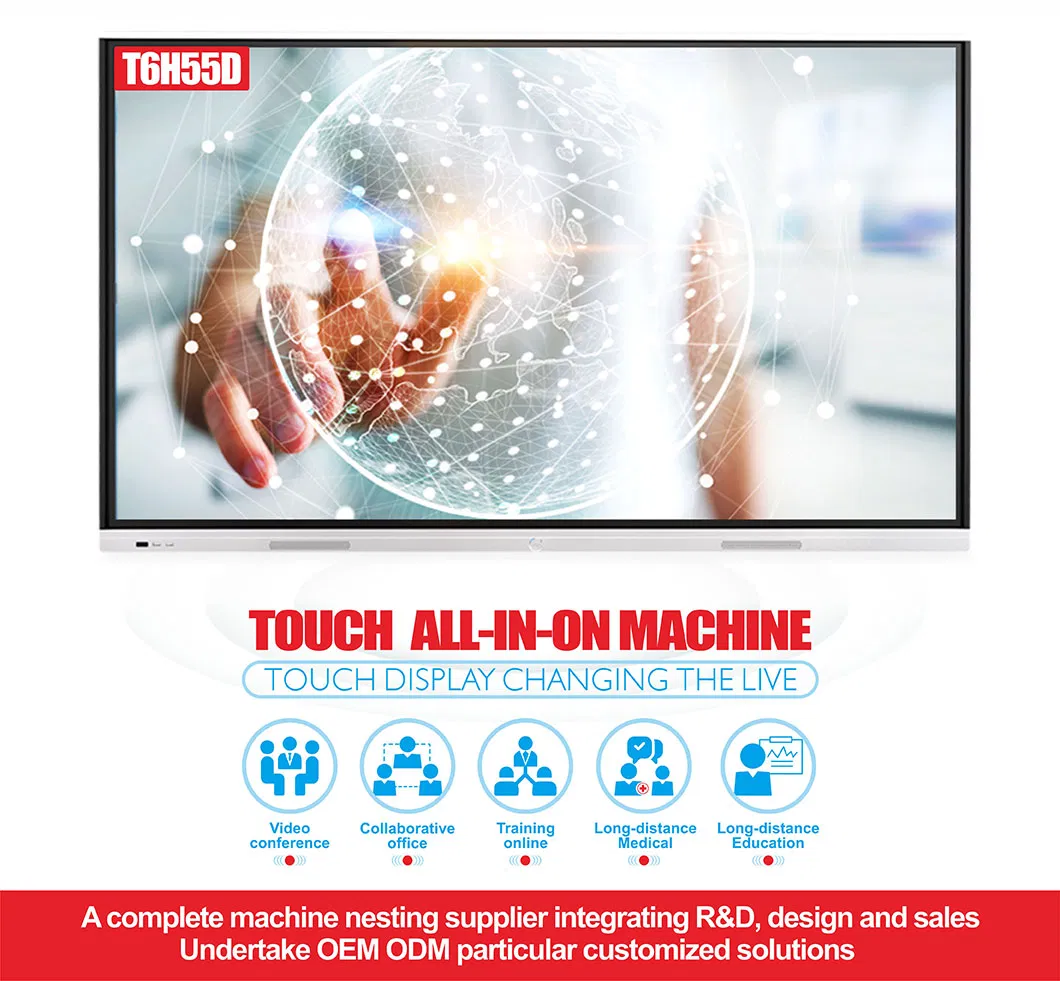

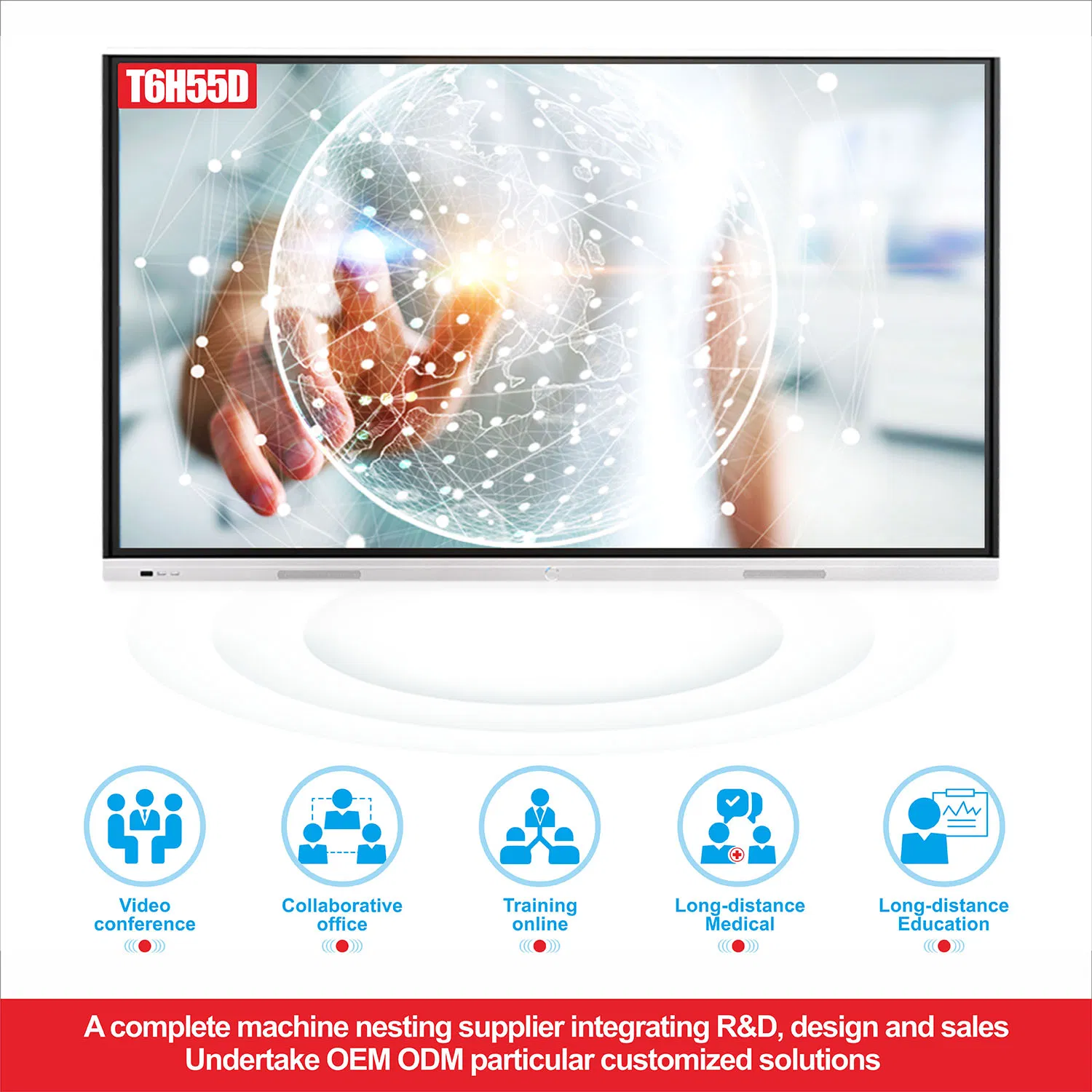

| model | T6H55D | |
| Name | 55-inch Interactive panel touch | |
| Display parameters | Display size | 1209.6(H)× 680.4(V) (mm) |
| Image scale | 16:9 | |
| Brightness | 350cd/m2 | |
| Contrast ratio | 1200:1 | |
| Color | 8bit true color (16.7M) | |
| Backlighting type | DLED | |
| Max.viewing angle | 178° | |
| Resolution | 1920*1080 | |
| Machine parameters | Vedio standard | PAL/NTSC/SECAM |
| Audio system | DK/BG/I | |
| Power of audio system | 2X10W | |
| Input port | Side port:VGA*1 AUDIO*1 USB2.0*1 TOUCH-USB*1 HDMI*1 TV*1,AV*1 Optional:RS232*1 | |
| Rear port:None | ||
| Front port:USB2.0*1 USB3.0*1 | ||
| Output port | Headset*1 | |
| Other functions | None | |
| Whole machine power consumption | ≤200W | |
| Standby power consumption | ≤0.5W | |
| Whole machine life | ≥30000Hours | |
| Input power | AC 100-240V, 50/60Hz | |
| Machine size | 1257.6(L)*743.6(H)*84(T)mm | |
| 1257.6(L)*743.6(H)*115(T)mm | ||
| Package Size | 1390(L)*900(H)*200(T)mm | |
| Net weight | 24KG | |
| Gross weight | 31KG | |
| Working environment | working temperature:0ºC ~ 50ºC; working humidity temperature:10%RH ~ 90%RH; | |
| Storage environment | storage temperature:-20ºC ~ 60ºC; storage humidity temperature: 10%RH ~ 90%RH; | |
| Android parameters | CPU | No |
| GPU | No | |
| ROM | No | |
| Flash | No | |
| Android version | No | |
| OSD language | No | |
| OPS Parameters | CPU | I3/I5/I7(Option) |
| Memory | 4G DDR3 | |
| Hard Disk | 128G SSD/256G SSD option(Option) | |
| Operating system | window7 /window10 option | |

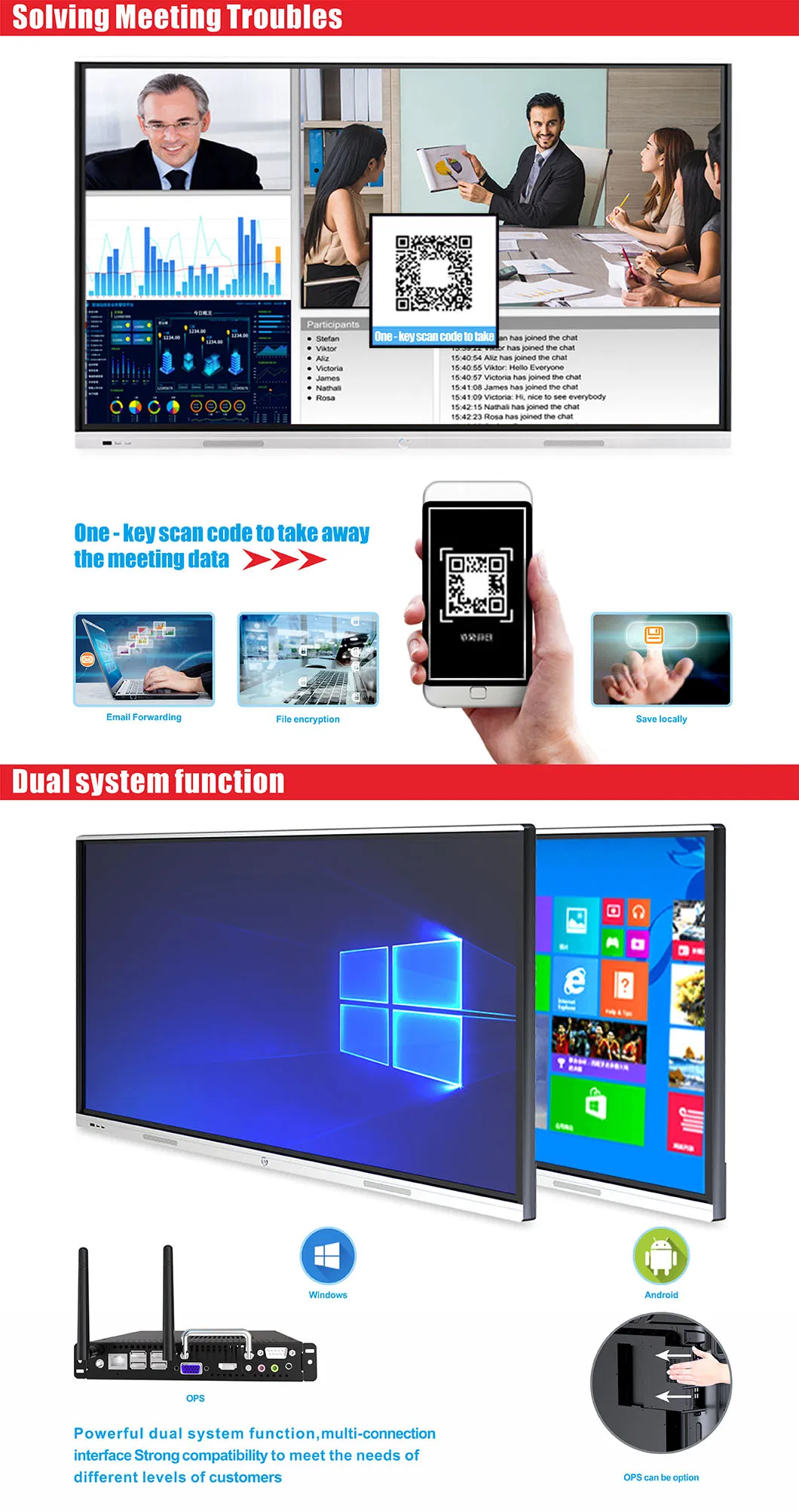

| Interface | HDMI*1 USB2.0*4 USB3.0*2 VGA*1 Earphone*1 MIC*1 RS232*1 RJ-45 network interface*1 POWER button RECOVERY button | |
| WIFI | Support 802.11 b/g/n | |
| Touch box parameters | Touch type | Infrared touch |
| Installation Method | Built-in front disassembly | |
| Touch screen sensing method | Fingers, writing pens, or other non-transparent objects ≥ Ø8mm | |
| Resolution | 32767*32767 | |
| Touch system communication port | USB 2.0 | |
| Responding speed | ≤8 ms | |
| Positioning accuracy | ≤±2mm | |
| Light resistance | 88K LUX | |
| Multi-touch technology | 20-points touch | |
| Number of touches | More than 60 million times in the same location | |
| Touch support operating system | WIN7,WIN8,WIN10,LINUX,Android,MAC | |
| Accessories | Remote control | 1 PCS |
| AAA battery | 1 set | |
| Manual | 1 PCS | |
| Power Cable | Standard 1.8 meters 1 | |
| Touch pen | 1 PCS | |
| Warranty Card | 1 PCS | |
| Certificate of conformity | 1 PCS | |
| Wall mount | 1 set | |
| Overall Dimensions | 1485 (L) x 887.58 (H) x 92.0 (TH) mm |
| 1485 (L) x 887.58 (H) x 126.6 (TH) mm (including rack) | |
| Packing size | 1626 (L) * 1060 (H) * 200 (TH) mm |
| N.G | 38KG |
| W.G | 48KG |
| Working environment | Working temperature:0ºC ~ 50ºC Working humidity:10%RH ~ 80%RH |
| storage environment | storage temperature:-20ºC ~ 60ºC storage humidity: 10%RH ~ 90%RH |
1. Dida is a large-scale display product integration solution provider that integrates mold design, manufacturing, product stamping and injection molding, module back-lighting OEM. The team has rich experience in product design, manufacturing, selling in the display industry. The 100,000-class dust-free workshops. Professional design and production of large-size LCD structural parts, backlight modules, and educational and conference integrated machine., our price is competitive.
2. 55 inch~98 inch for your optional, and monthly producing capacity over 50000 sets, normal stock over 10000 sets.
3. Cargoes can be quickly shipped out 3-5 work days once confirmed the order.
4. MOQ is 1pcs, more quantity more discount, also welcome OEM / ODM orders.
5. Our team is Quality first, high quality strict control .Our company has passed the CE & ROHS & ISO & FCC etc. certifications.
6. Qualified: Years Experience Manufacture With Senior Engineers Technicians. Low defectives, 12 months warranty and 24 hours timely professional service.
7. Pre-Service: 24/7 Online Aftersale Service Team. We will send you vedio about machine, they will show you how to operate the machine practically.
8. After sales service: we have special technician team, they will help you on line or by cellphone. Have any question about our machine, please feel freely to contact with us. we promise we will help you solve the question with the greatest patience.
9. Lead Time: Within 3-5 days.
10. Warmly welcome your visiting!
