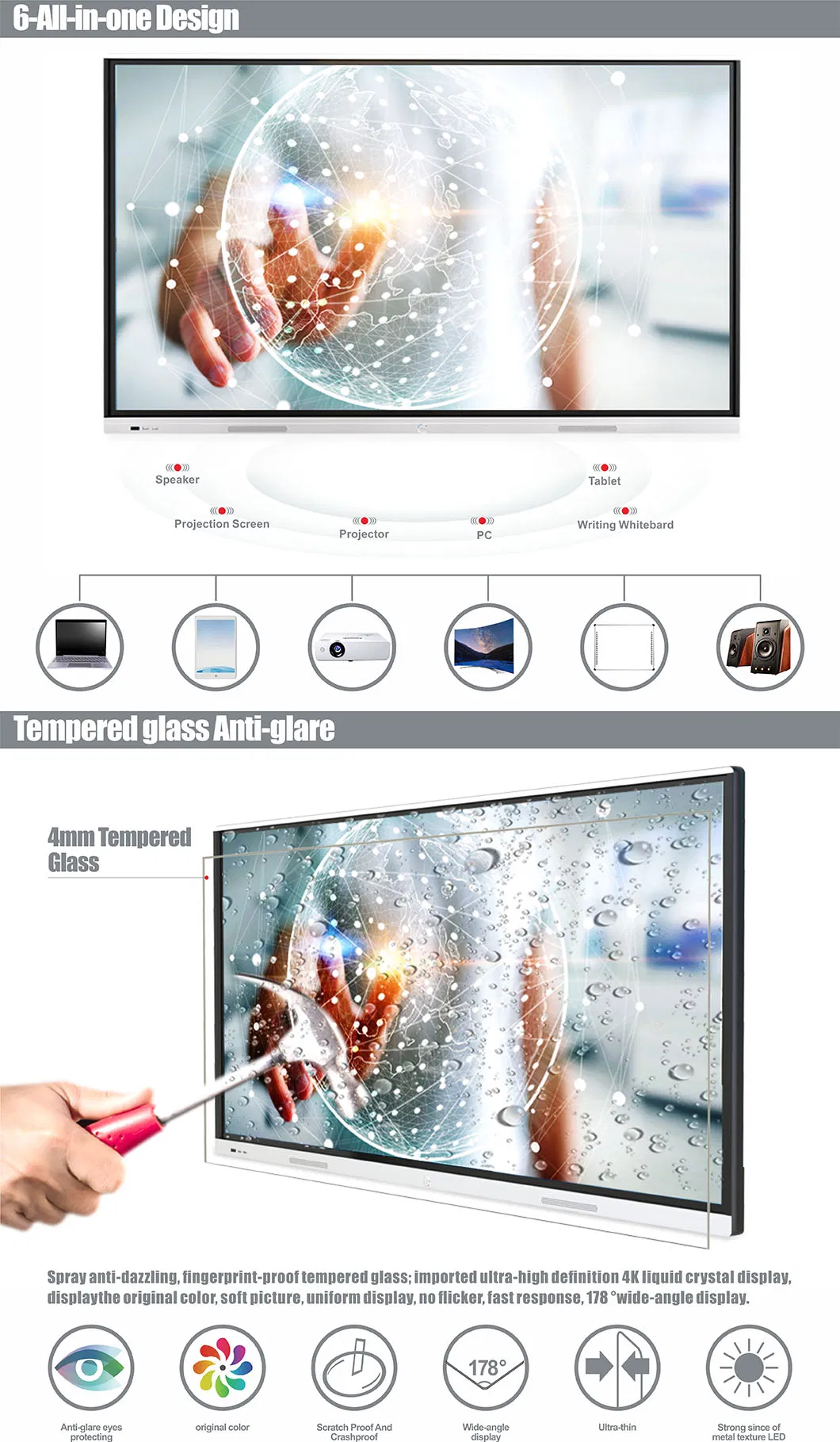

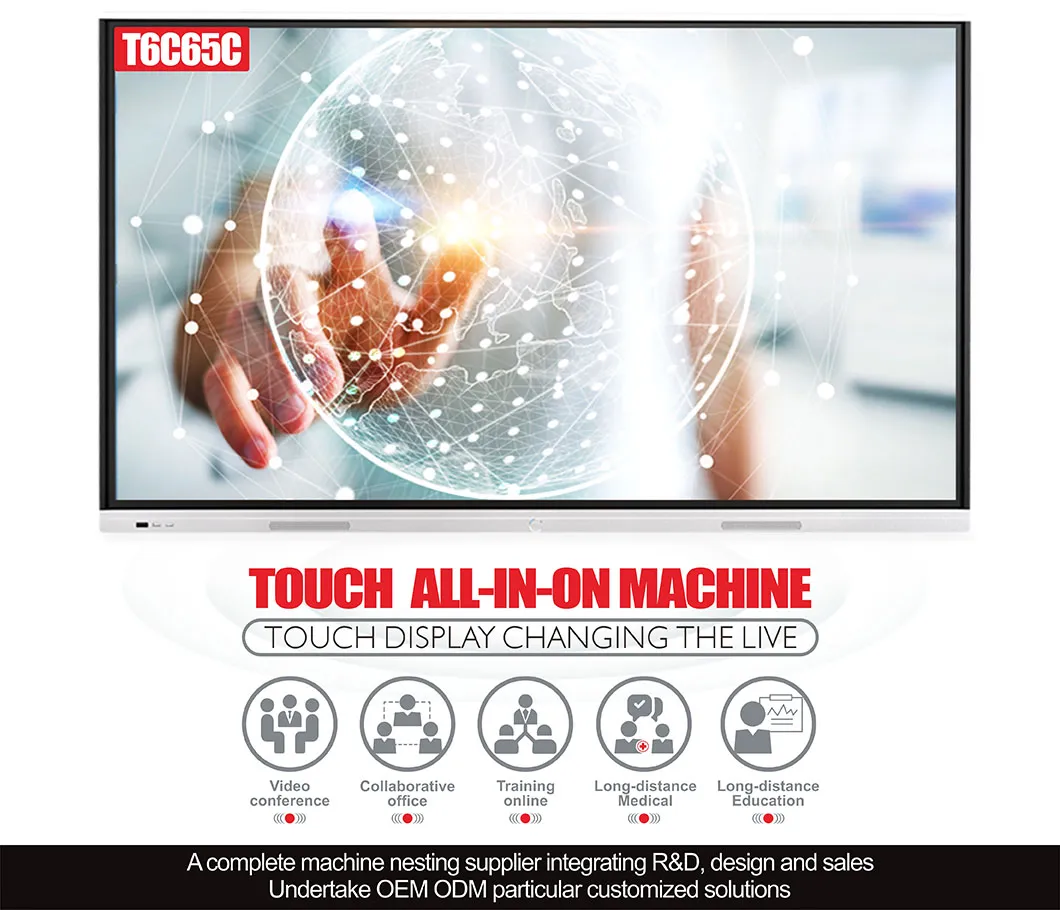

T65c65c Nesting 65inch Anti-Glare Toughened Glass Interactive Flat Panel for Conference
Product DescriptionDetailed Photos1. Features of sheet metal CNC laser products:The back shell material of the sheet metal CNC product is made of low-cost SPCC and processed by CNC numerical control bending. Not only the production efficiency is low, but the product consistency is poor. When the who......
Send Inquiry
Product Description
The back shell material of the sheet metal CNC product is made of low-cost SPCC and processed by CNC numerical control bending. Not only the production efficiency is low, but the product consistency is poor. When the whole machine is thin and the back plate strength is poor, the time is Long, easily lead to instability of infrared signal docking.

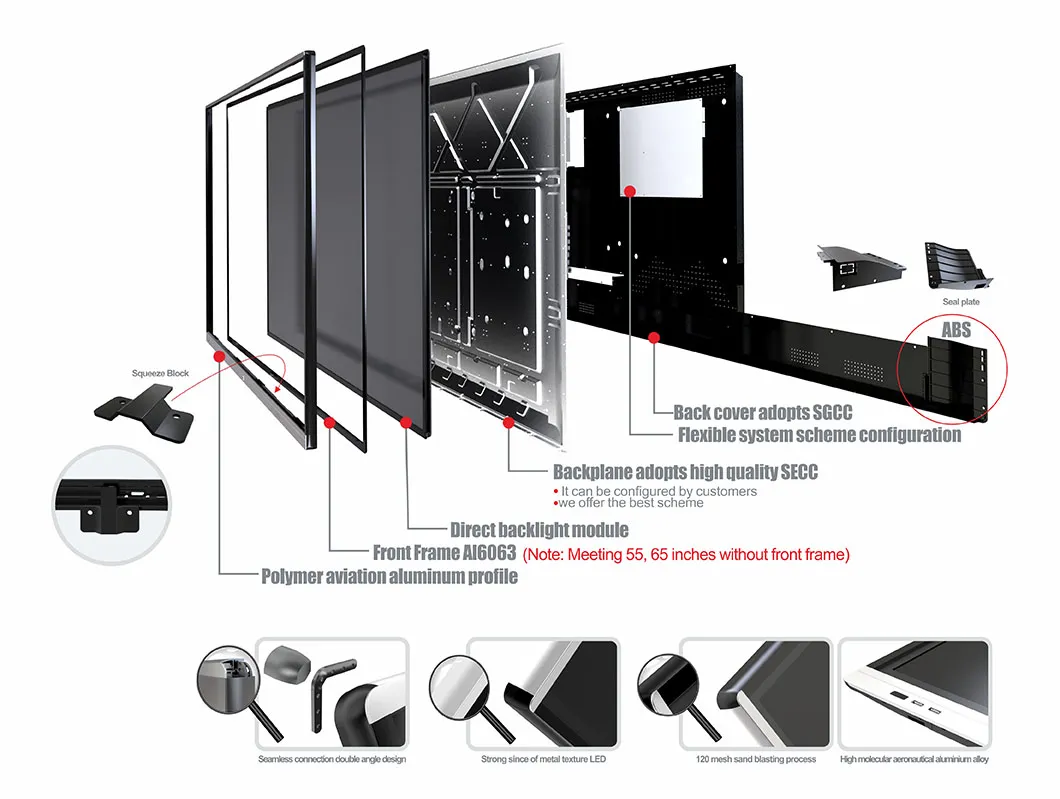

The professional stamping die developed for the back panel of the touch all-in-one machine has multiple cross ribs on the back to make the back panel strong enough to support the front profile frame and tempered glass, stable quality, fully mechanized production, and the output can reach 8000 pieces/day , And there are a lot of convex hulls on the back, no need to use adapter plate.
| model | T6C65C | |
| Name | 65-inch smart conference tablet | |
| Display parameters | Display size | 1428.48(H)×803.52(V) (mm) |
| Image scale | 16:9 | |
| Brightness | 350cd/M2 | |
| Contrast ratio | 1200:1 | |
| Color | 10bit true color (16.7M) | |
| Backlighting type | DLED | |
| Max.viewing angle | 178° | |
| Resolution | 3840 * 2160 | |
whole machine parameters | Vedio standard | PAL/NTSC/SECAM |
| Audio system | DK/BG/I | |
| Power of audio system | 2X10W | |
| Whole machine power | ≤250W | |
| Standby power | ≤0.5W | |
| Back light life | 30000 hours | |
| Working voltage | 100-240V, 50/60Hz | |

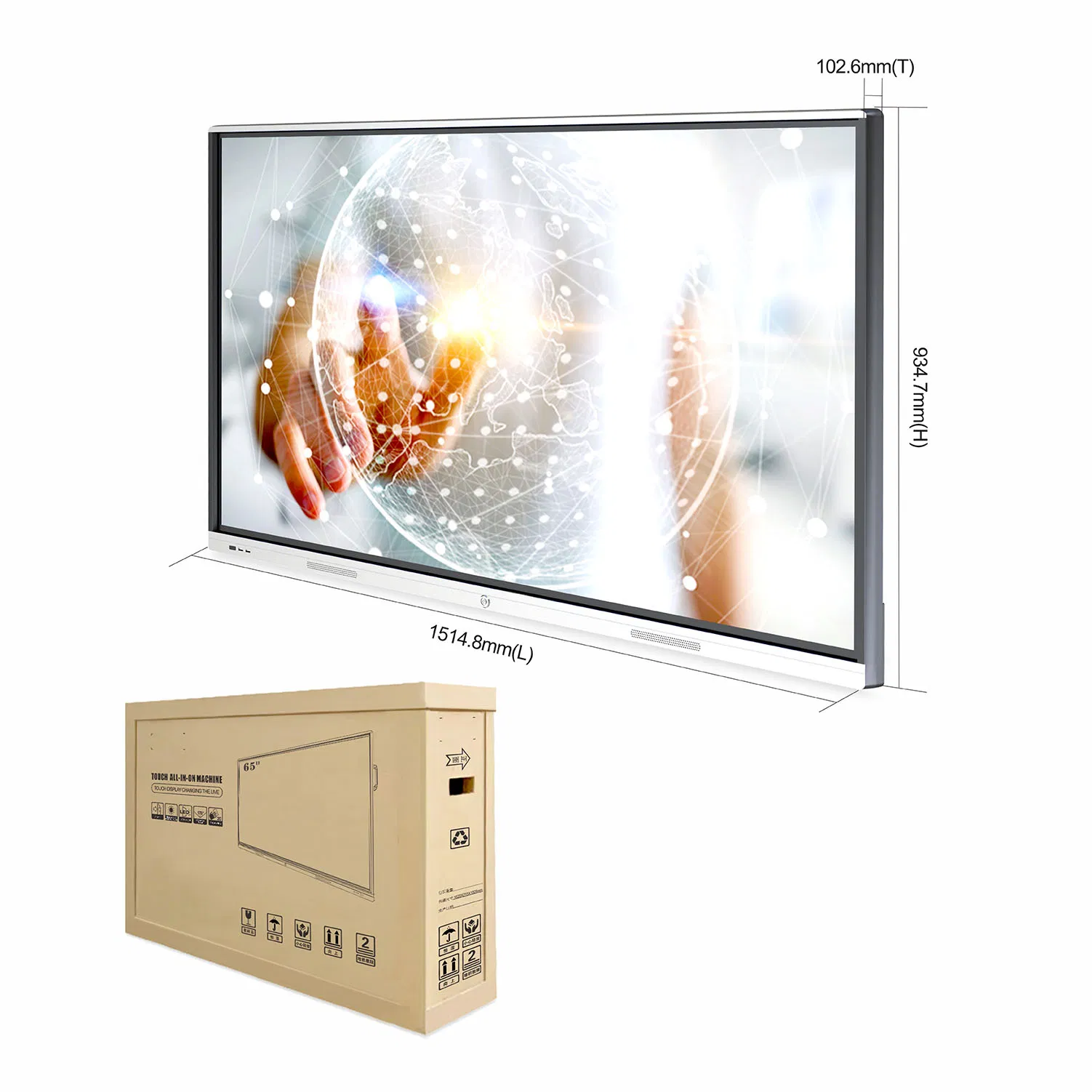

| Whole machine size | 1485 (L) x 887.58 (H) x 92.0 (TH) mm | |
| 1485 (L) x 887.58 (H) x 126.6 (TH) mm (including rack) | ||
| Packing size | 1626 (L) * 1060 (H) * 200 (TH) mm | |
| N.W | 38KG | |
| G.W | 48KG | |
| Working environment | working temperature:0ºC ~ 50ºC; working humidity temperature:10%RH ~ 80%RH; | |
| Storage environment | storage temperature:-20ºC ~ 60ºC; storage humidity temperature: 10%RH ~ 90%RH; | |
| Input port | Front port:USB2.0*1 USB3.0*1 | |
| Rear port:HDMI*2,USB*2,TOUCH-USB*1,RS232*1,RJ45*1,VGA*1,AUDIO*1 | ||
| Output port | LineOut*1, COAX*1, (HDMIout optional) | |
| WIFI | 2.4+5G, | |
| Bluetooth | No | |
| Android Parameters | CPU | MSD6A648(Cortex A53*4 /1.5G) |
| GPU | T720MP2 | |
| RAM | 2G | |
| FLASH | 32G | |
| Android version | Andriod6.0 | |
| OSD language | Chinese English | |

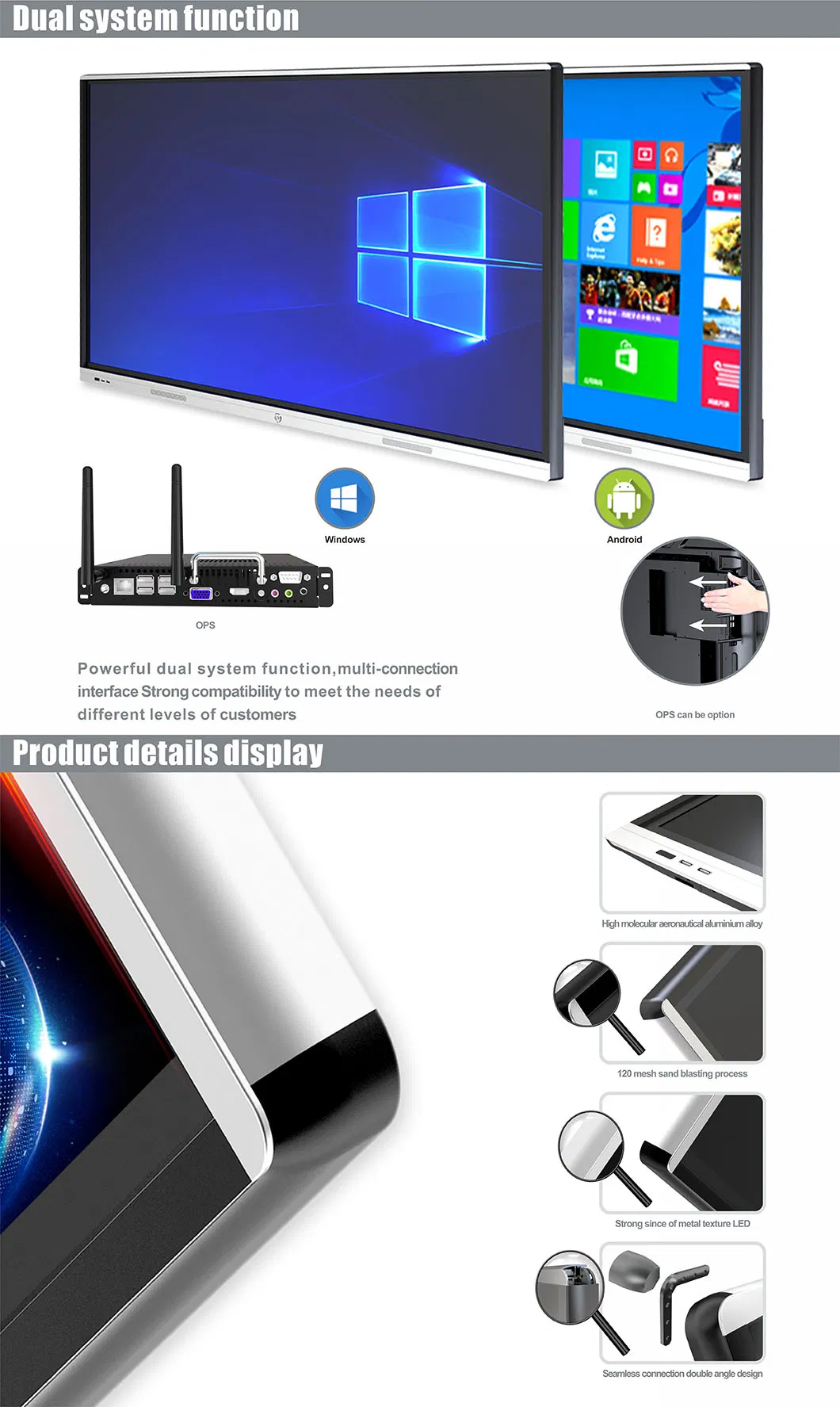

| OPS parameters | CPU | I3/I5/I7 option |
| Memory | 4G DDR3 | |
| Hard Disk | 128G SSD/256G SSD option | |
| Operating system | window7 /window10 option | |
| Interface | HDMI*1 USB2.0*4 USB3.0*2 VGA*1 Earphone*1 MIC*1 RS232*1 RJ-45 network interface*1 POWER button RECOVERY button | |
| WIFI | Support 802.11 b/g/n | |
| Touch frame Parameters | Touch type | Infrared touch |
| Installation Method | Built-in front disassembly | |
| Touch screen sensing method | Fingers, writing pens, or other non-transparent objects ≥ Ø8mm | |
| Resolution | 32767*32767 | |
| Touch system communication port | USB 2.0 | |
| Responding speed | ≤8 ms | |
| Positioning accuracy | ≤±2mm | |
| Light resistance | 88K LUX | |

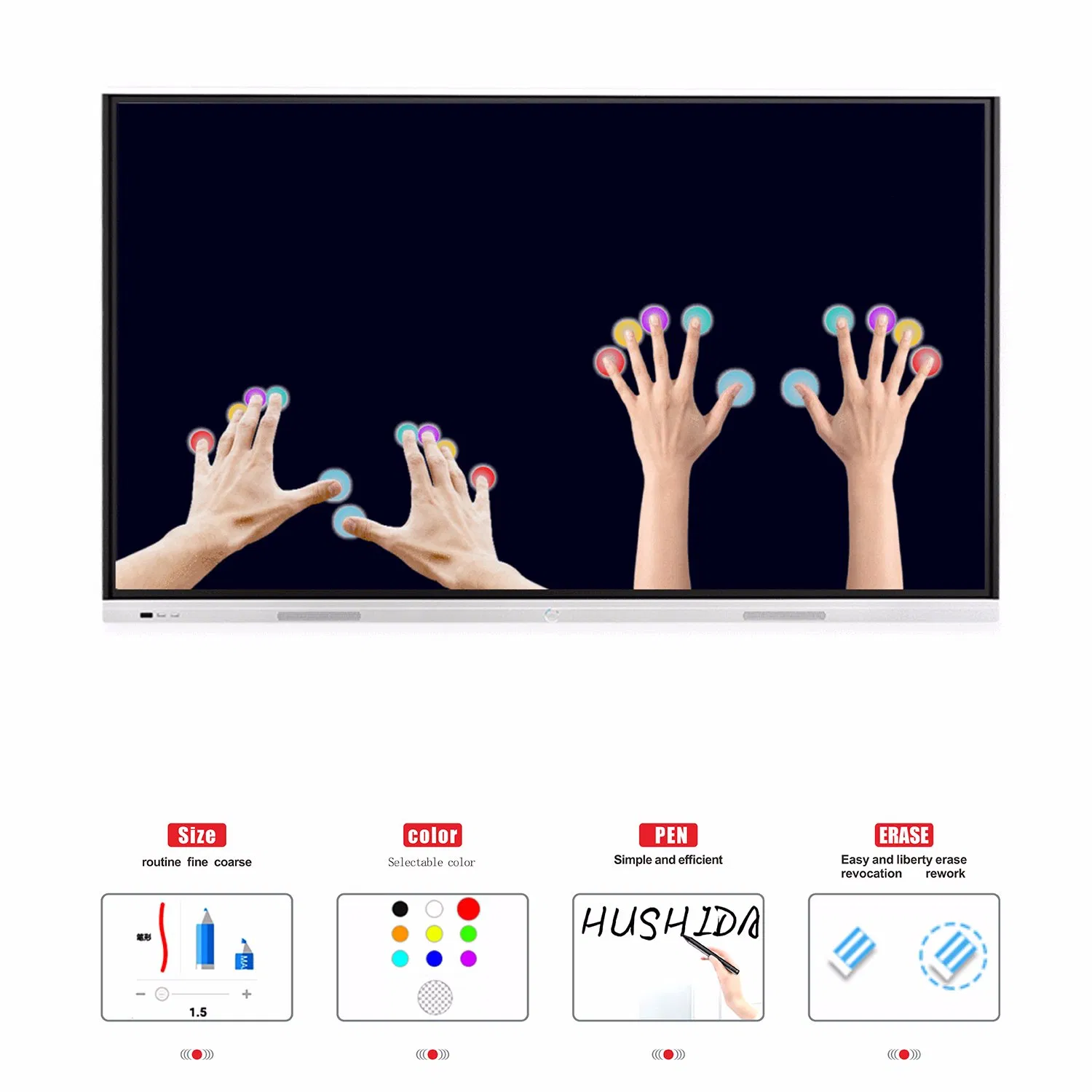

| Multi-touch technology | 20-points touch | |
| Number of touches | More than 60 million times in the same location | |
| Touch support operating system | WIN7,WIN8,WIN10,LINUX,Android,MAC | |
| Accessories | Remote controller | 1 pcs |
| Specification | 1 pcs | |
| Power cable | Standard 1.8 meters 1 | |
| Touch pen | 1 pcs | |
| Warranty card | 1 pcs | |
| Certificate of conformity | 1 pcs | |
| Wall mounted bracker | 1 set | |
Dida is a display product R&D and selling enterprise. It has successfully developed more than 200 products, covering 43, 49, 55, 65, 70, 75, 85, 86, 98 and other large display structure hardware .

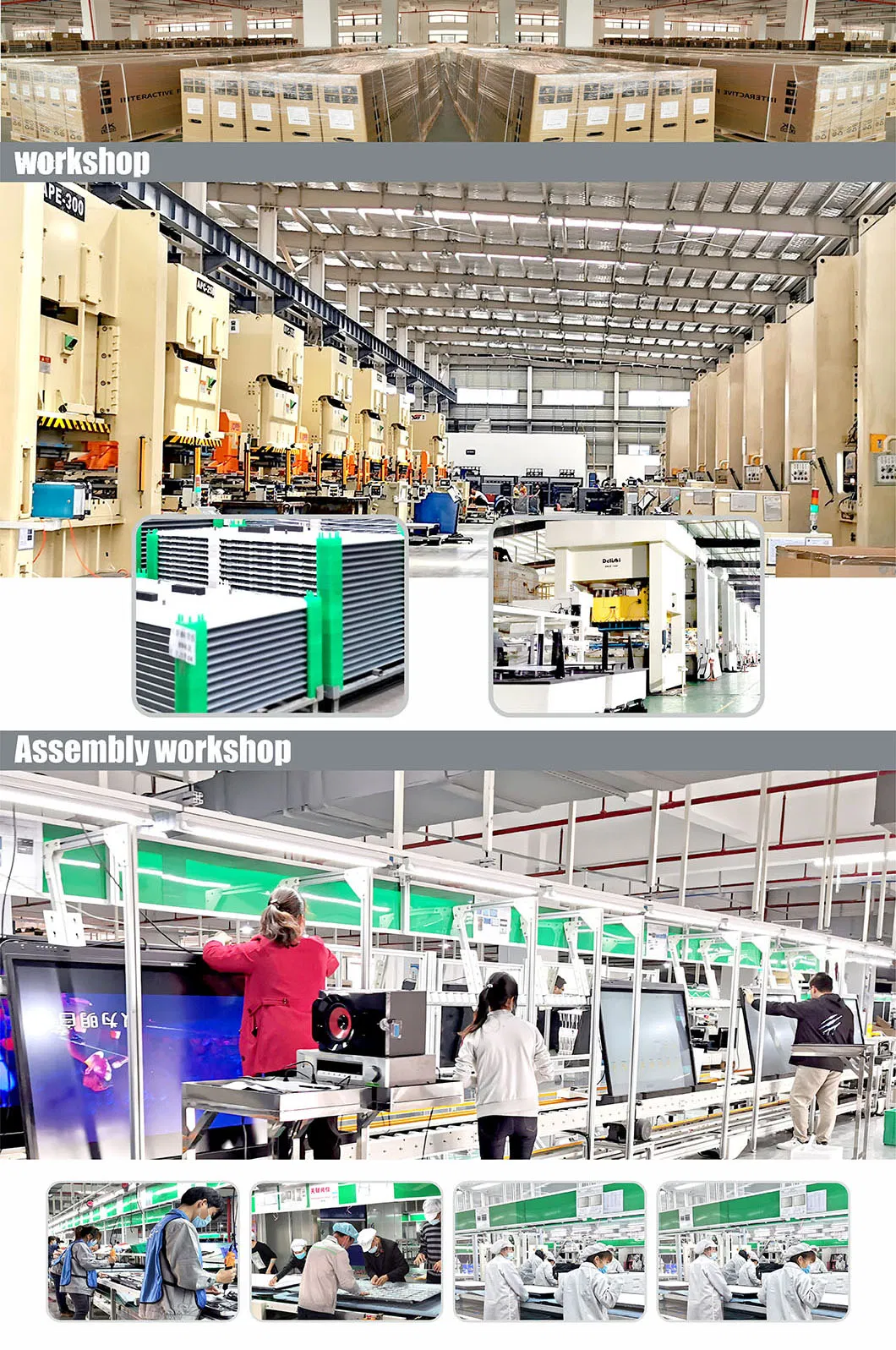

It has nearly one hundred appearance and structural utility model patents. The mold design and production ability are extremely strong.we have built several automated stamping and baking paint lines in five cities to ensure mass supply worldwide. Dida has been designated as a strategic partner by Huawei, BOE, Hikvision, Skyworth, Konka, TCL, etc.
Dida is the global all-in-one machine as the most influential supplier of solutions.
1.Q:Can you introduce your company?
A:Dida is a large-scale display product integration solution provider that integrates mold design, manufacturing, product stamping and injection molding, module back-lighting OEM. The team has rich experience in product design, manufacturing, selling in the display industry. The 100,000-class dust-free workshops. Professional design and production of large-size LCD structural parts, backlight modules, and educational and conference integrated machine.
2.Q:Why does your company only produce on-in-all machine sets?
A:1>. Because the cost of developing an all-in-one machine is very high, we want to help customers save development costs.
2>. We have a very strong R&D team and strong innovation ability. Have rich experience in OEM and ODM
3>. The purpose of our company is to achieve customer brand and help more middle-size companies to grow.
3. Q:what is your MOQ?
A:1 sets
4.Q:How about your delivery time?
A:It depends on your quantity. If the goods are in stock, usually delivered within 3-5 days. If it is customized, we need to confirm the delivery date according to the actual situation.
5.Q:What payment methods does your company accept?
A:we accept T/T Paypal LC etc.
6.Q:Where is your company located?
A:Our headquarters is in Changan town, Dongguan, China. It is 1 hour from Shenzhen and 1.5 hours from Guangzhou. Traffic is very convenient.
7.Q:How many people at your R&D department?
A:12 persons.
8.Q:Does your company has an engineer to guide us in assembling the finished product?
A:Yes, We have professional engineers to instruct you on how to assemble. Actually very simple, don't worry.
9.Q: How about transportation?
A: We can go by air or sea according to your requirements. All accessories will be placed in a sturdy cardboard box with plastic bags on the outside of the box. So, you don't have to worry about the box breaking.
