Product Description

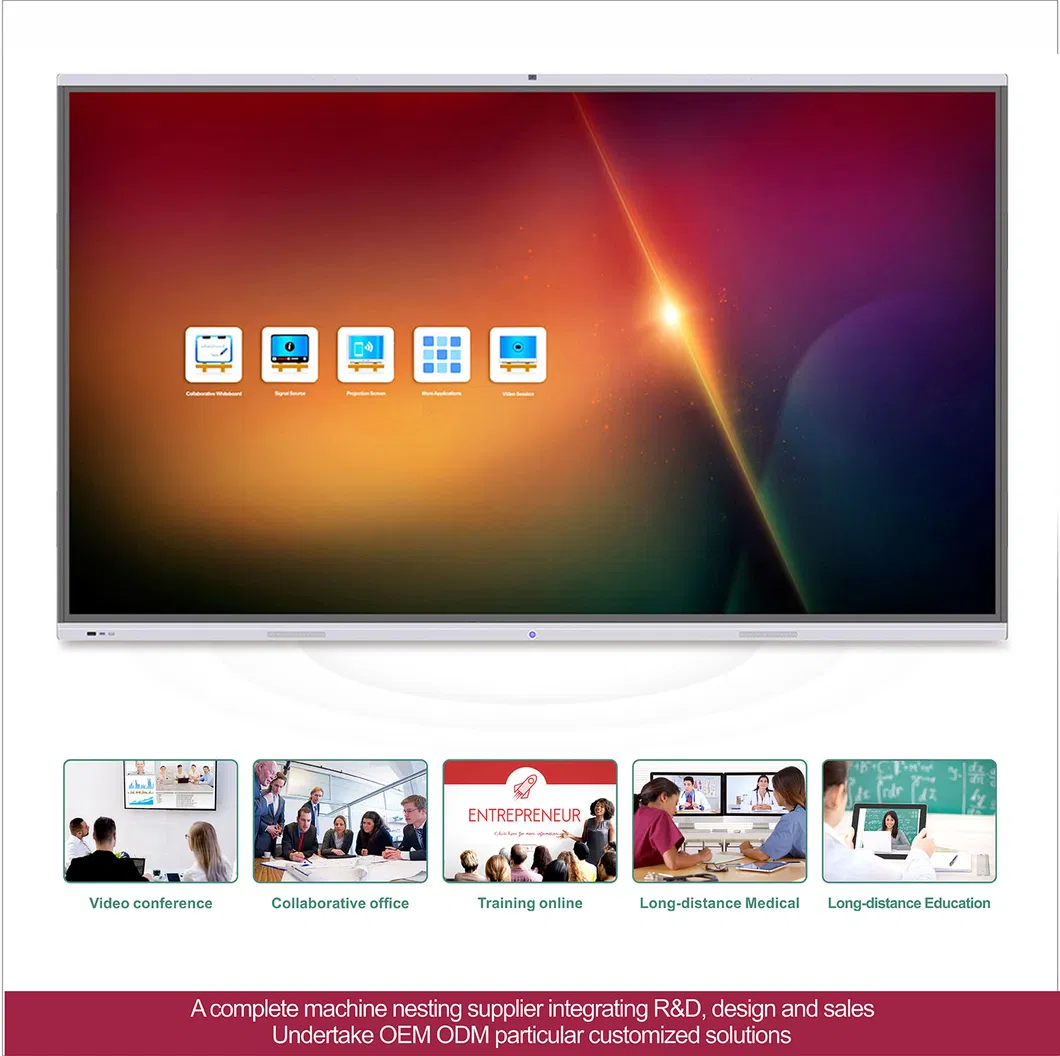

T6 Series 85 Inch Smartboard Interactive Whiteboard with Built-in Camera Microphone and Android+Windows System Used for Conference or Education

Features And Advantages

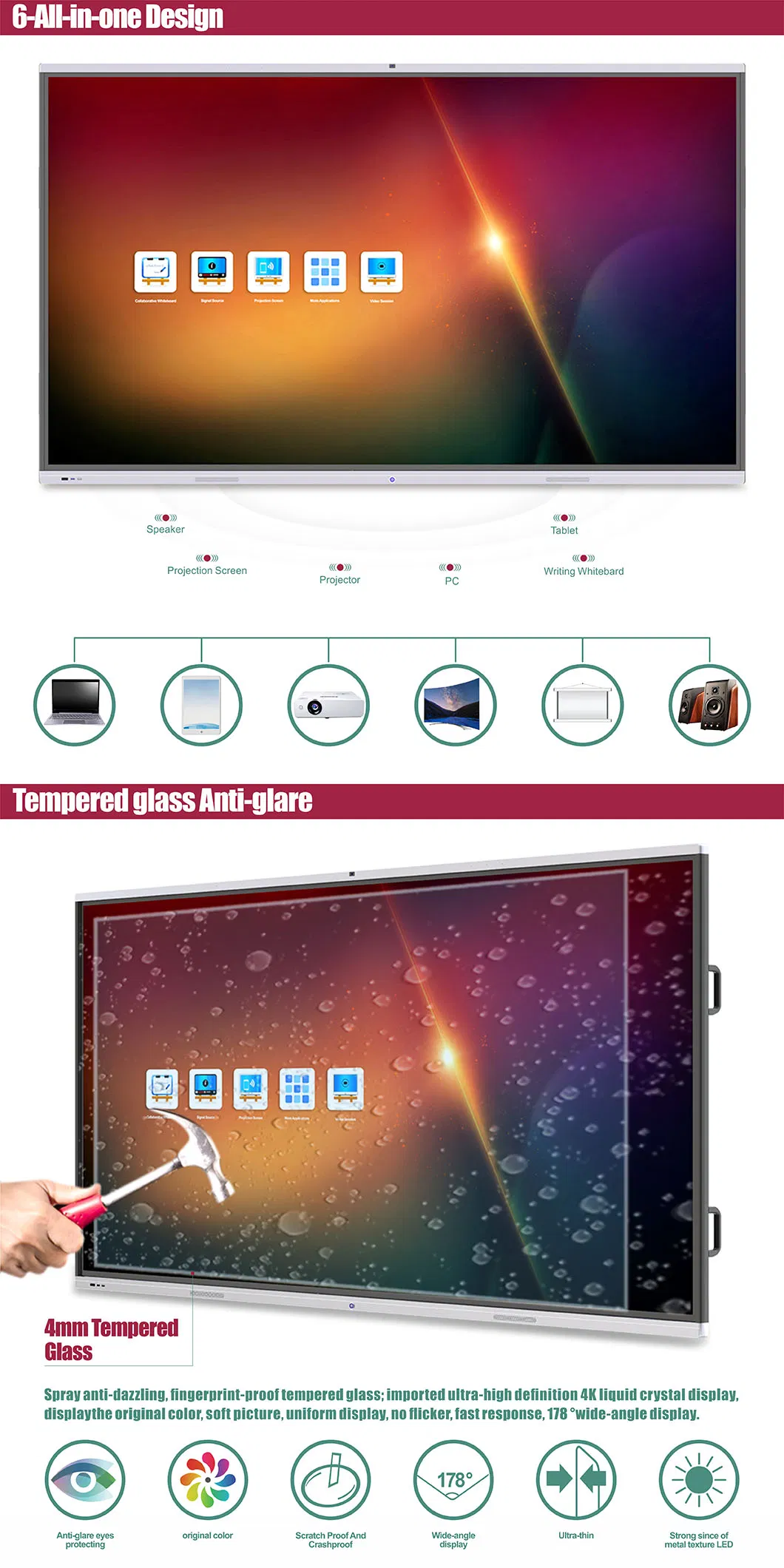

Six In One Design: computer, whiteboard, projector, TV, speaker, Tablet,multifunction in one equipment.
Support 10 points IR touch ( 20 points touch option): Adopt super sensitive touch panel, increase the touch accuracy, and it can stand more than 35 million time secure touch without any uncontrolled space. Touch easily and control perfectly.

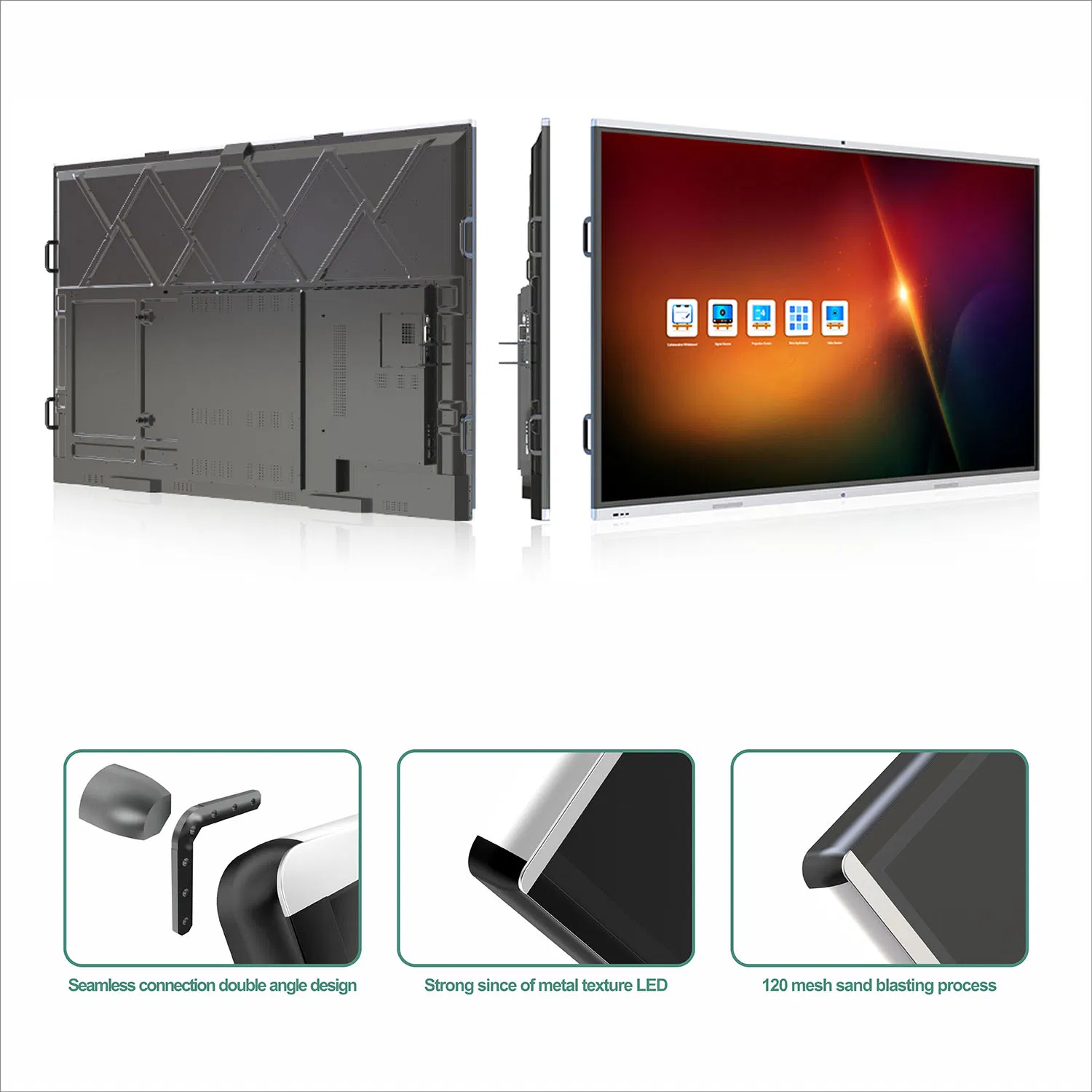

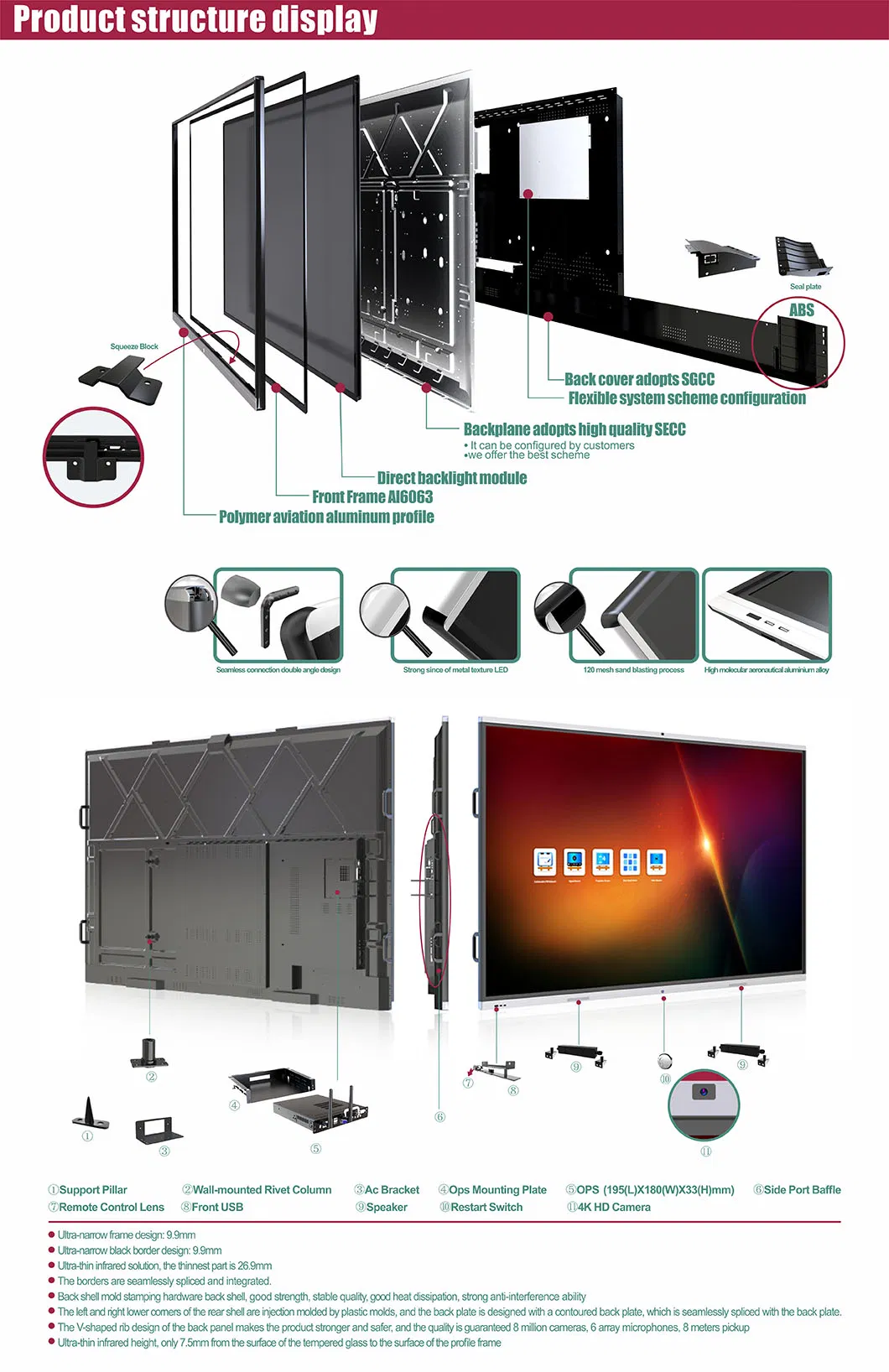

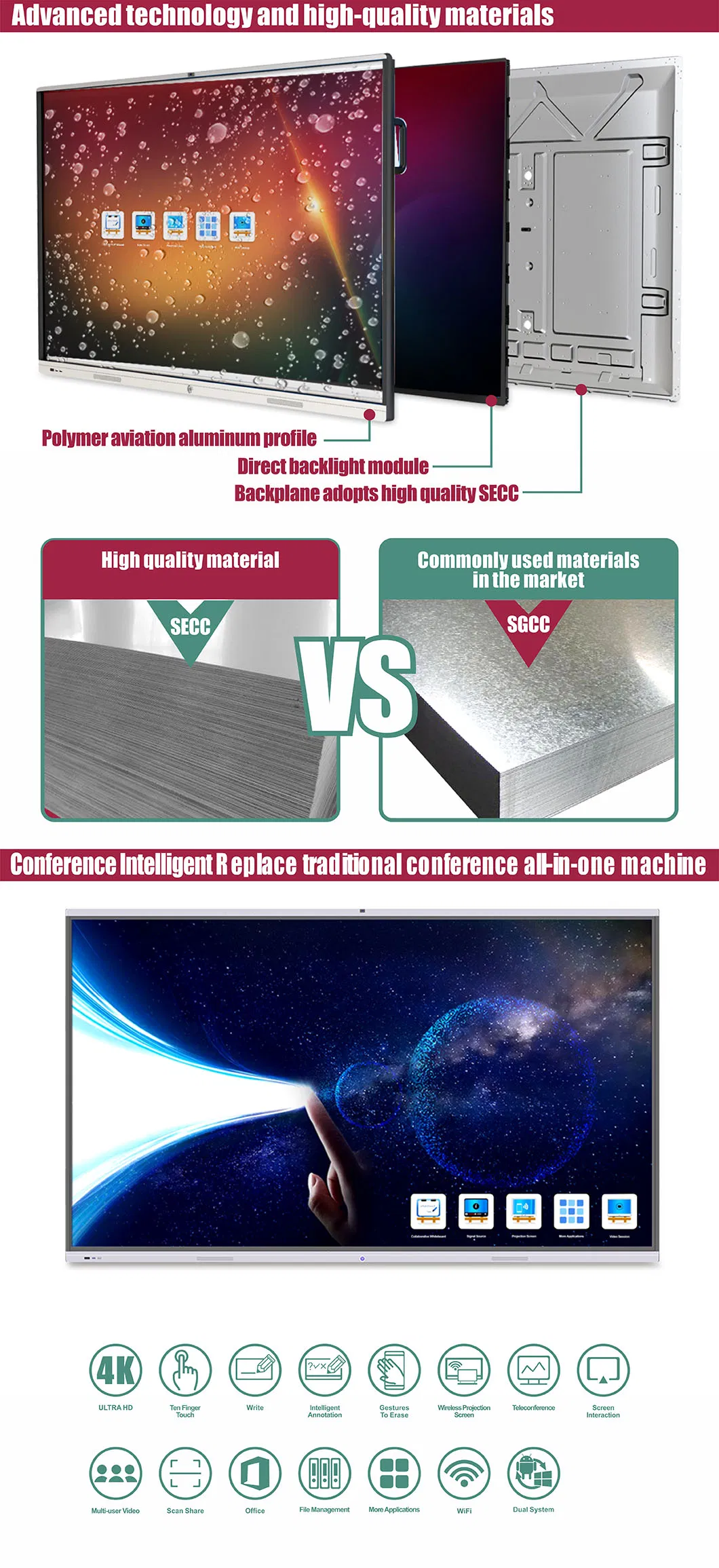

Full-size standard mold back plate: Compared with traditional sheet metal CNC laser products, the product has better consistency and high strength. The back plate is strong enough to support the front profile frame and tempered glass, and the quality is stable, and it is fully mechanized. Production, high output.

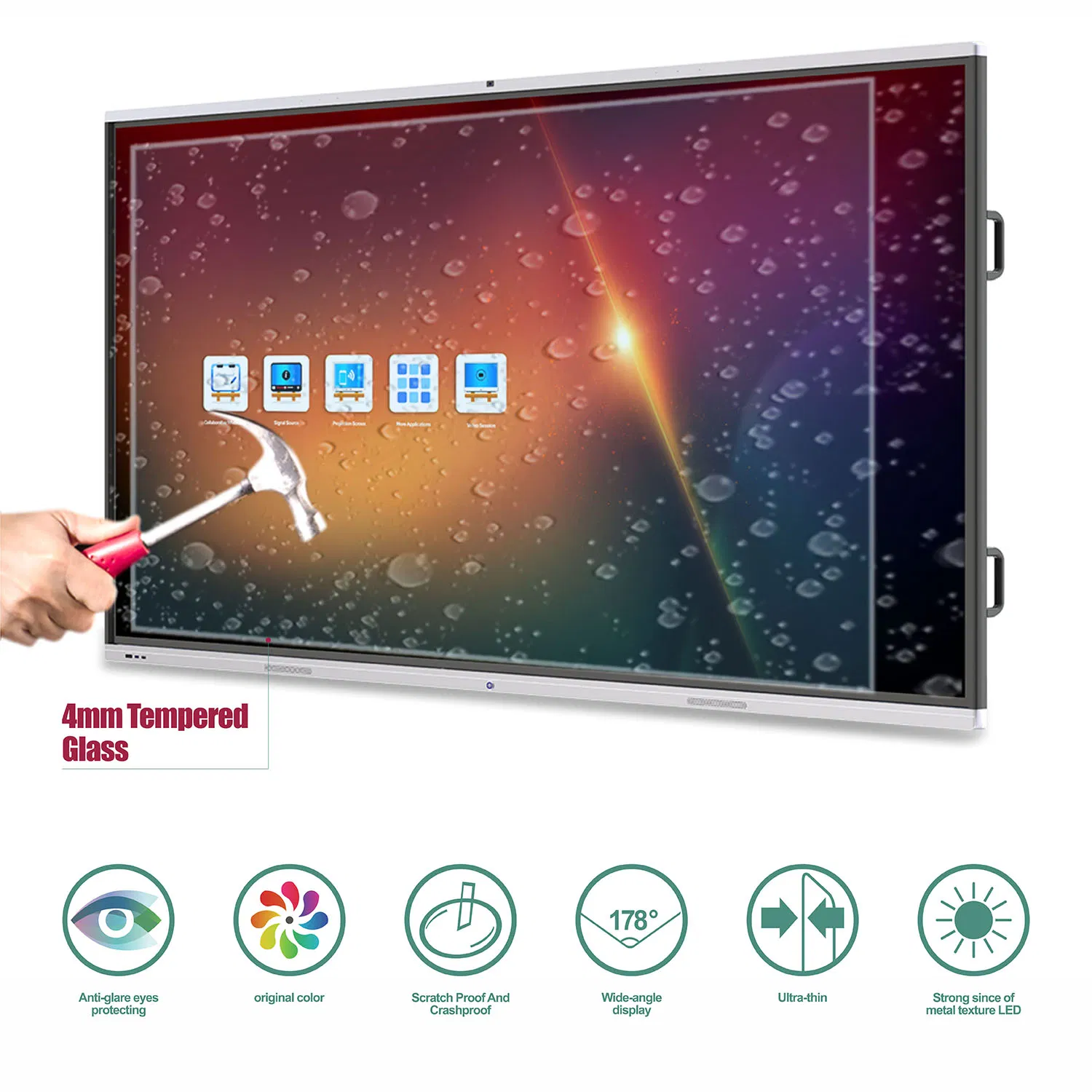

4mm explosion-proof Anti-glare tempered glass: 4mm Ultra-Thin rating 7 glass can protect screen effectively, and Turn the reflective surface of the original glass into a matte non-reflective surface
Infrared touch screen with aluminum plate, small heat, fast heat dissipation, which can effectively extend the life of panel.

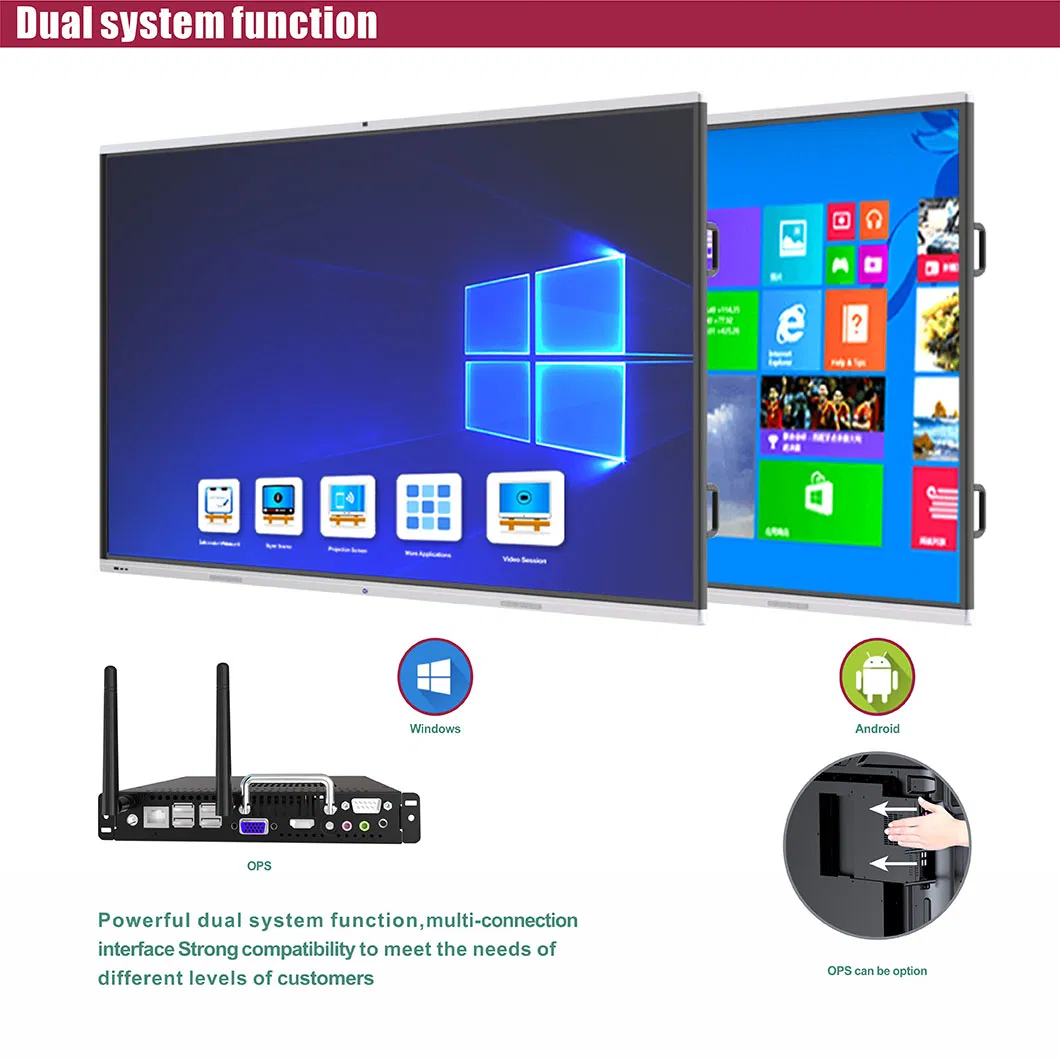

Dual core processor : windows and android dual system built-in design. Both systems can achieve whiteboard writing and multimedia playing.
Fast response speed: 0.8ms fluent writing and demonstration. More convenient courseware management. Accurate, fast touch, no delay.
Intelligent operation: Freely write, annotate and screen shot. Automatically recognize input channel. Intelligent eye protection. Light sensor with automatic brightness control. Energy save & intelligent awake.

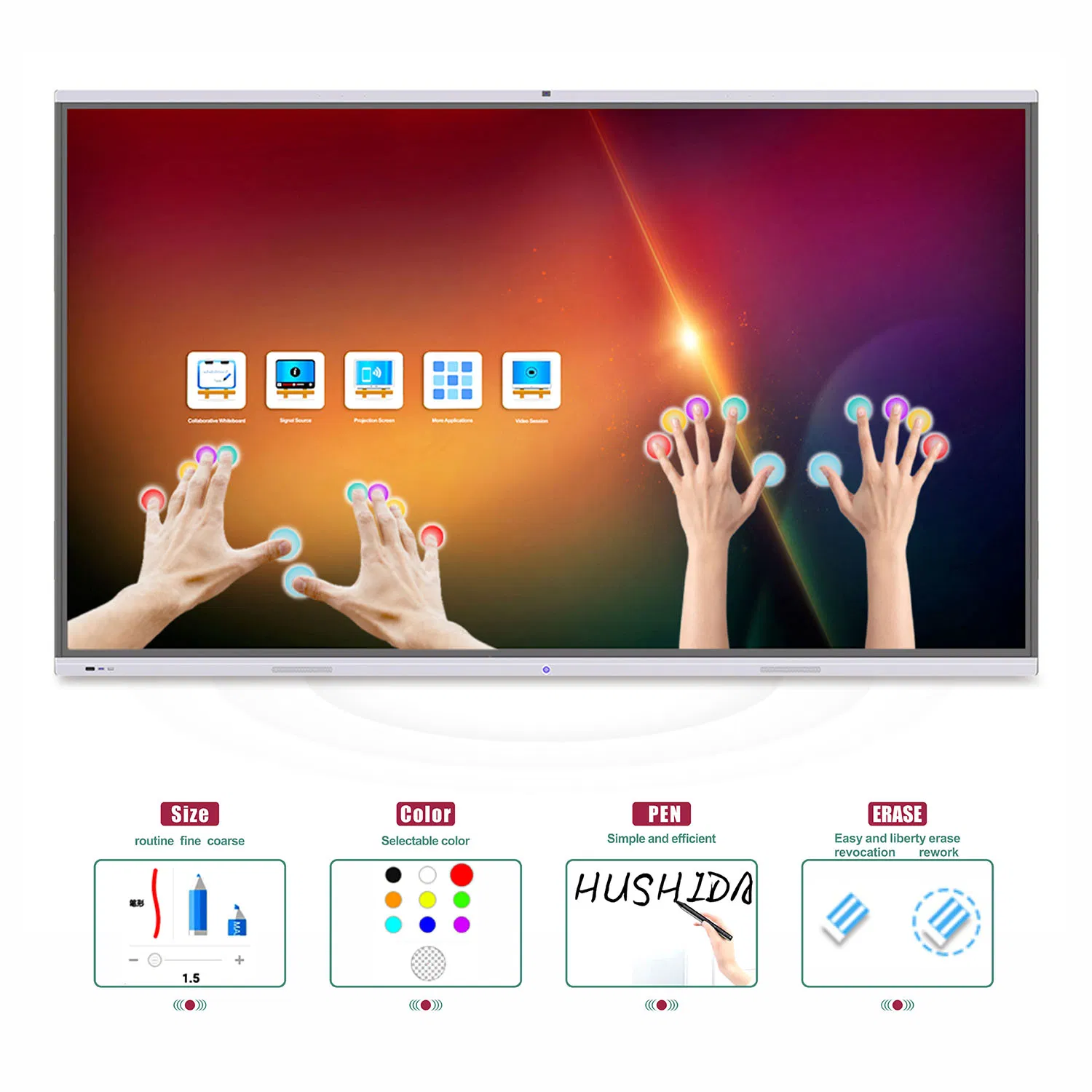

Intelligent writing & Touch control: the writing function interface can realize the functions of writing, magnifying, shrinking, erasing, dragging, and the like.
Screen-mirroring with android phone, iphone, ipad, computer,etc.
Bulit-in Camara and microphone

Model	T6M85C
Name	85 inch smart conference tablet
Display Parameters	display size	1872(H)*1053V) (mm)
	image sacale	16:9
	brightness	350cd/m²
	contrast ratio	1200:1
	color	10bit TureColor(16.7M)
	backlighting type	DLED
	Max.viewing angle	178°
	Resolution	3840 * 2160
Machine Parameters	Video standard	PAL/NTSC/SECAM
	Audio system	DK/BG/I
	Power of audio system	2X10W
	overall power consumption	≤500W
	Stand-by power consumption	≤0.5W
	life times	30000 hours
	input power	100-240V, 50/60Hz
	Proudct dimensions	1953(L)1164(H)92.0(T)mm
	Proudct dimensions	1953(L)1164(H)126.6(T)mm(with hanger)
	Packing size	2101 (L)1338(H) 250(T)mm
	N.W	67KG
	G.w	83KG
	working environment	working temperature:0ºC ~ 50ºC; working humidity:10%RH ~ 80%RH;
	storage environment	storage temperature:-20ºC ~ 60ºC; storage humidity :10%RH ~ 90%RH;
	input interface	front interface :USB2.01 USB3.01
	input interface	back interface:HDMI2, USB2.01, USB3.01, TFCard1, TOUCH-USB3, RS2321,RJ451, VGA1, AUDIO1, MiniAV1, MiniYPBPR*1 (DP option)
	output interface	RJ45out1, LineOut1, COAX1, HDMIout1
	WIFI	2.4+5G
	Bluetooth	None
Andrion system Parameters	CPU	Hi3751 V811(Dual-core A73 and dual-core A53 /1.5G)
	GPU	Quad-core MaliG51
	RAM	4G
	FLASH	32G
	Android version	Android 8.0
	OSD language	Chinese English
OPS Parameters	CPU	I5 / I7 option
	Memory	4G DDR4
	Hard disk	128G SSD/256G SSD option
	Operating system	window10
	interface	HDMI1, USB2.04, USB3.02, VGA1, Earphone1, MIC1 RS232RJ-45, network interface1, Power botton, Recovery botton
	WIFI	Support 802.11 b/g/n
Touch frame Parameters	Touch type	infrared touch
	installation method	Built-in front disassembly
	Touch screen sensing method	Fingers, writing pens, or other non-transparent objects ≥ Ø8mm
	Resolution	32767*32767
	Touch system communication port	USB 2.0+UART
	responding speed	≤8 ms
	positioning accuracy	≤±2mm
	Light resistance	88K LUX
	multi-touch technology	20 points touch
	Number of touches	More than 60 million times in the same location
	Touch support operating system	WIN7,WIN8,WIN10,LINUX,Android,MAC
Camera Parameters	Pixel	800W
	Image Sensor	1/2.8 inch CMOS
	camera lens	Fixed focus lens, effective focal length 4.11mm
	Perspective	Horizontal viewing angle 68.6 degrees diagonal 76.1 degrees;
	Main camera focusing method	focus
	Video output	MJPG YUY2
	Maximum number of frames	30
	drive	Free drive
	Video resolution (resolution)	3840*2160
Microphone parameters	Microphone type	Array microphone
	Number of marks	6
	level of sensitivity	-38db
	Signal to noise ratio	63db
	Pickup distance	8 meters
	Number of samples	16/24bit
	Sampling Rate	16kHz-48kHz
	drive	win10 free drive
	Echo cancellation	Support
Accessories	Remote control	1 pcs
	Power cable	Standard 1.8 meters 1
	Infrared touch pen	1 pcs
	Warranty Card	1 pcs
	Certificate of conformity	1 pcs

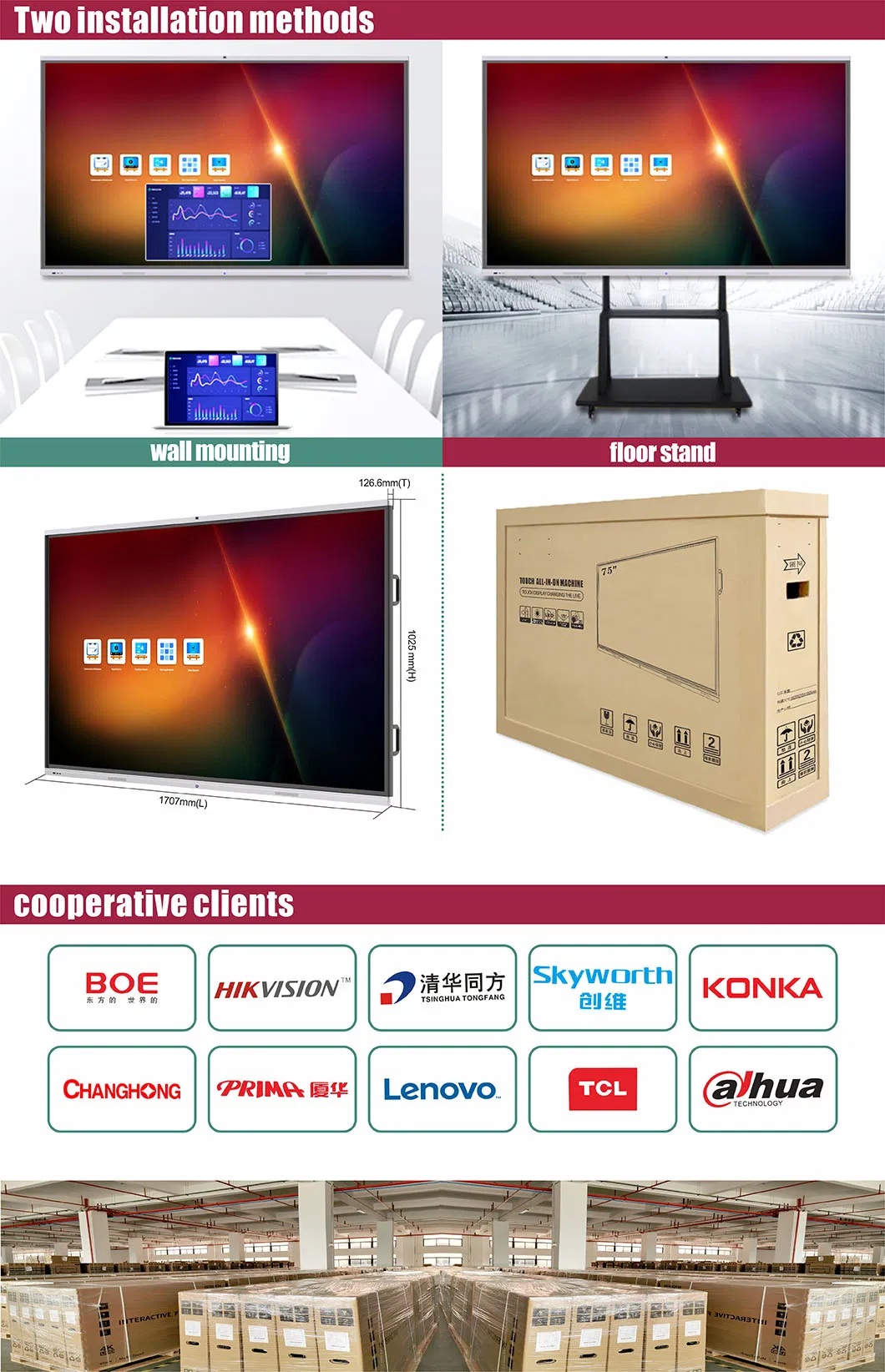

	wall mounted bracker	1 set
Characteristic function	1. Common interface front, speaker front, digital audio output, support full channel touch, touch channel automatic switching, gesture recognition, smart control, remote control integrated computer shortcut keys, smart eye protection, one-key switch; 2. The upper profile has a built-in camera, and during a network video conference, the guide participants can see the scene; 3. The upper profile has a built-in array microphone function. During a network video conference, both the site and the guide can hear the voice of each other when they explain; 4. Optional high-precision 20-point real touch with an accuracy of 1mm.

T6 Series 85 Inch Smartboard Interactive Whiteboard with Built-in Camera Microphone and Android+Windows System Used for Conference or Education

Q:Can you introduce your company?
A:Dida is a high-tech enterprise , which specializes in Research &Development, Design, Production and Marketing of the CKD(completely knock down)&SKD(semi knock down)  of LCD Display.Our main business includes advertising digital signage module, backlight kit, education and conference all-in-one machine module, backlight and machine kit, customized machine program. Also,we are the explosion-proof TV in KTV And large size display kit, nano blackboard,ultra-large capacitance electromagnetic conference integration solution provider , infrared touch education system integration solution provider, flexible MIN-LED screen body, MIN-LED outdooradvertising integration solution provider.
2.Q:Do you provide all in one machine?
  A:No, we mainly supply Nesting, and we have professional technicians to provide guidance services for the assembly of the whole machine all the time.

3.Q:what is your MOQ?
  A:1 sets

4.Q:How about your delivery time?
A:It depends on your quantity. If the goods are in stock, usually delivered within 3-5 days. If it is customized, we need to confirm the delivery date according to the actual situation.

5.Q:What payment methods does your company accept?
A:we accept T/T, Paypal, and LC etc.

6.Q:Where is your company located?
A:Our headquarters is in Changan town, Dongguan, China. It is 1 hour from Shenzhen and 1.5 hours from Guangzhou. Traffic is very convenient.

7.Q:How many people at your R&D department?
A:12 persons.

8 . Q: How about transportation?
A: We can go by air or sea according to your requirements. All accessories will be placed in a sturdy cardboard box with plastic bags on the outside of the box.
