T6 Series 75 Inch Interactive Touch Screen Manufacturer Whiteboard with Windows and Androind System for Conference&Education
Company profile:Founded in 2015, the group includes Guangdong DiDa Display Flexidis Technology Co.,Ltd. which focuses on technology development and product sales of min LED andMicro LED products, and Dr. Takaku, the core technical team, has been engaged in LED research for more than 20 years. The de......
Send Inquiry
Product Description
Founded in 2015, the group includes Guangdong DiDa Display Flexidis Technology Co.,Ltd. which focuses on technology development and product sales of min LED andMicro LED products, and Dr. Takaku, the core technical team, has been engaged in LED research for more than 20 years. The developed LED products have many advantages, such as high brightness, super-large arbitrary shape, light weight, high pixel, high energy saving, and free bending, which are widely used in commercial outdoor advertising and media, which are different from the existing LED technology in the industry. Business conferences and large-scale education and security control The center and all kinds ofscenes.
The nesting of the sizes we can provide
are:55,65,70,75,85,86,98.They are all made by professional moulds.
Since it was founded, the industry's most comprehensive product resources, excellent product quality, professional service attitude based on the global commercial display market. By the end of 2018 statistics, Dida delivery market share ranked among the country's top 4. Shenzhen DiDa Display Technology Co., Ltd. has a clear position, mainly focusing on the education and conference industry products
and materials development and sales, its structural materials create a disruptive industry switching and application.
Product introduction:

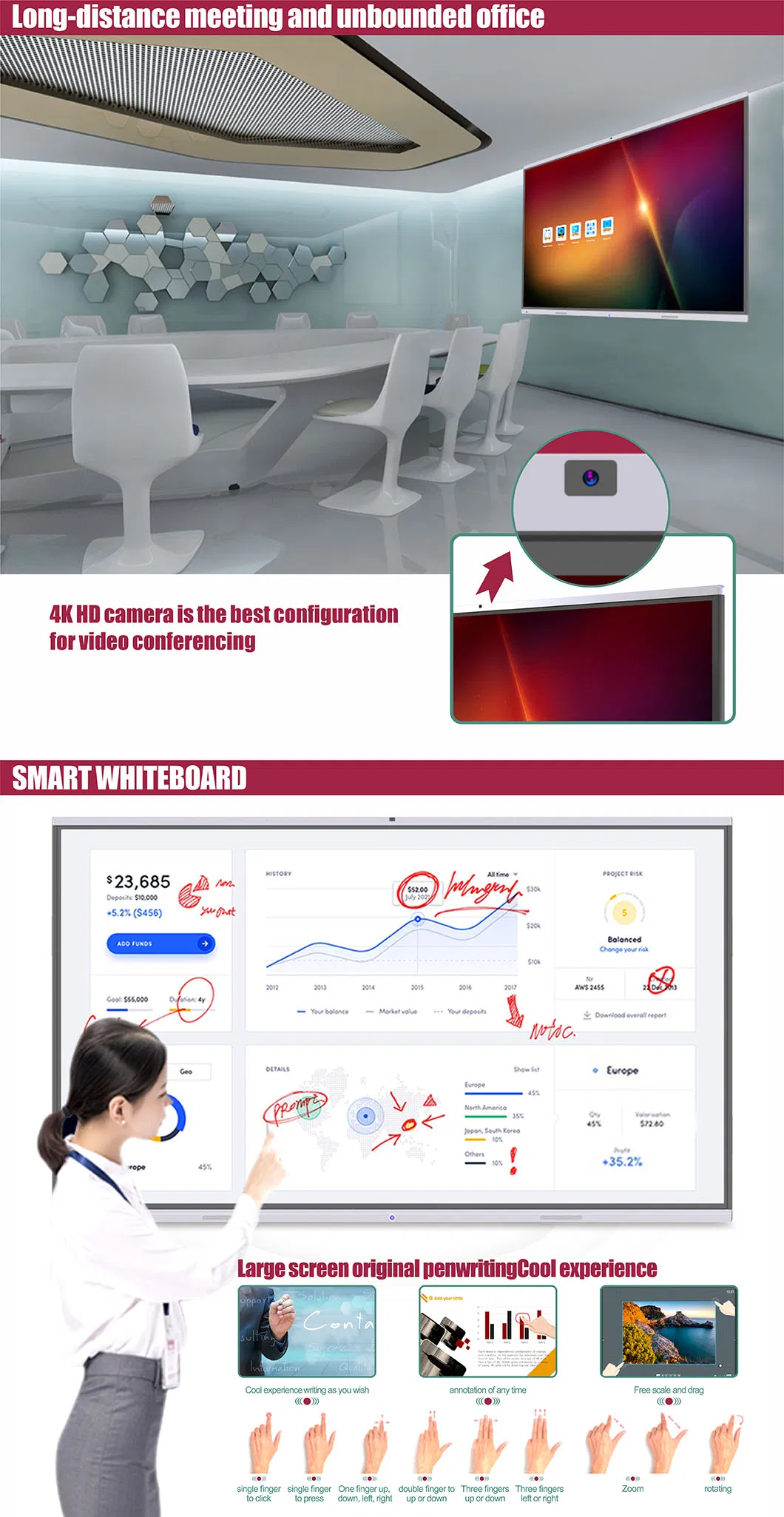

This touch smart whiteboard integrates TV, stereo, computer, projector, electronic whiteboard and tablet. Different from traditional projection or electronic whiteboard devices, it does not leave a shadow on the display interface, has higher brightness and smooth writing effect, and has its own camera and microphone function, which is suitable for remote video conferencing. become a necessary product for the new generation of conferences!
Support 20 points to write at the same time and remote video conferencing!
Product parameters:
| Model | T6M75C | |
| Name | 75 inch smart conference tablet | |
| Display Paremeters | display size | 1650.24(H)*928.26(V) (mm) |
| image scale | 16:9 | |
| brightness | 350cd/m2 | |
| contrast ratio | 1200:1 | |
| color | 10bit Turecolor(16.7M) | |
| backlighting type | DLED | |
| Max.viewing angle | 178° | |
| Resolution | 3840 * 2160 | |
| Machine Parameters | Vedio standard | PAL/NTSC/SECAM |
| audio system | DK/BG/I | |
| power of audio system | 2X10W | |
| overall power consumption | ≤350W | |
| stand-by power consumption | ≤0.5W | |
| life times | 30000Hours | |
| Input power | 100-240V, 50/60Hz | |
| whole machine size | 1707(L)*1025(H)*92.0(T)mm | |
| 1707(L)*1025(H)*126.6(T)mm(with hanger) | ||
| packing size | 1880(L)*1220(H)*2450(T)mm | |
| N.W | 52KG | |
| G.W | 67KG | |
| working environment | working temperature:0ºC ~ 50ºC; working humidity:10%RH ~ 80%RH; | |
| storage environment | storage temperature:-20ºC ~ 60ºC; storage humidity: 10%RH ~ 90%RH; | |
| input interface | front interface:USB2.0*1 USB3.0*1 | |
| Back interface:HDMI*2,USB2.0*1,USB3.0*1,TFCard*1 TOUCH-USB*3,RS232*1,RJ45*1,VGA*1,AUDIO*1 MiniAV*1,MiniYPBPR*1 (DP option) | ||
| output interface | RJ45out*1,LineOut*1,COAX*1,HDMIout*1 | |
| WIFI | 2.4+5G, | |
| Bluetooth | None | |
| Andrion system Parameters | CPU | Hi3751 V811(Dual-core A73 and dual-core A53 /1.5G) |
| GPU | Quad-core MaliG51 | |
| RAM | 4G | |
| FLASH | 32G | |
| Android version | Android 8.0 | |
| OSD language | Chinese English | |
| OPS Parameters | CPU | I3/ I5 / I7 (option) |
| Memory | 4G DDR4 | |
| Hard disk | 128G SSD/256G SSD option | |
| Operating system | window10 | |
| interface | HDMI*1,USB2.0*4,USB3.0*2,VGA*1,Earphone*1,MIC*1 RS232*RJ-45,network interface*1,Power botton Recovery botton | |
| WIFI | Support 802.11 b/g/n | |
| Touch frame Parameters | Touch type | infrared touch |
| installation method | Built-in front disassembly | |
| Touch screen sensing method | Fingers, writing pens, or other non-transparent objects ≥ Ø8mm | |
| Resolution | 32767*32767 | |
| Touch system communication port | USB 2.0+UART | |
| responding speed | ≤8 ms | |
| positioning accuracy | ≤±2mm | |
| Light resistance | 88K LUX | |
| multi-touch technology | 20 points touch | |
| Number of touches | More than 60 million times in the same location | |
| Touch support operating system | WIN7,WIN8,WIN10,LINUX,Android,MAC | |
| Camera Parameters | Pixel | 800W |
| Image Sensor | 1/2.8 inch CMOS | |
| camera lens | Fixed focus lens, effective focal length 4.11mm | |
| Perspective | Horizontal viewing angle 68.6 degrees diagonal 76.1 degrees; | |
| Main camera focusing method | focus | |
| Video output | MJPG YUY2 | |
| Maximum number of frames | 30 | |
| drive | Free drive | |
| Video resolution (resolution) | 3840*2160 | |
| Microphone parameters | Microphone type | Array microphone |
| Number of marks | 6 | |
| level of sensitivity | 38db | |
| Signal to noise ratio | 63db | |
| Pickup distance | 8 meters | |
| Number of samples | 16/24bit | |
| Sampling Rate | 16kHz-48kHz | |
| drive | win10 free drive | |
| Echo cancellation | Support | |
| Accessories | Remote control | 1 pcs |
| Power cable | Standard 1.8 meters 1 | |
| Infrared touch pen | 1 pcs | |
| Warranty Card | 1 pcs | |
| Certificate of conformity | 1 pcs | |
| wall mounted bracker | 1 set | |
| special function | 1. Common interface front, speaker front, digital audio output, support full channel touch, touch channel automatic switching, gesture recognition, smart control, remote control integrated computer shortcut keys, smart eye protection, one-key switch; 2. The upper profile has a built-in camera, and during a network video conference, the guide participants can see the scene; 3. The upper profile has a built-in array microphone function. During a network video conference, both the site and the guide can hear the voice of each other when they explain; 4. Optional high-precision 20-point real touch with an accuracy of 1mm. | |

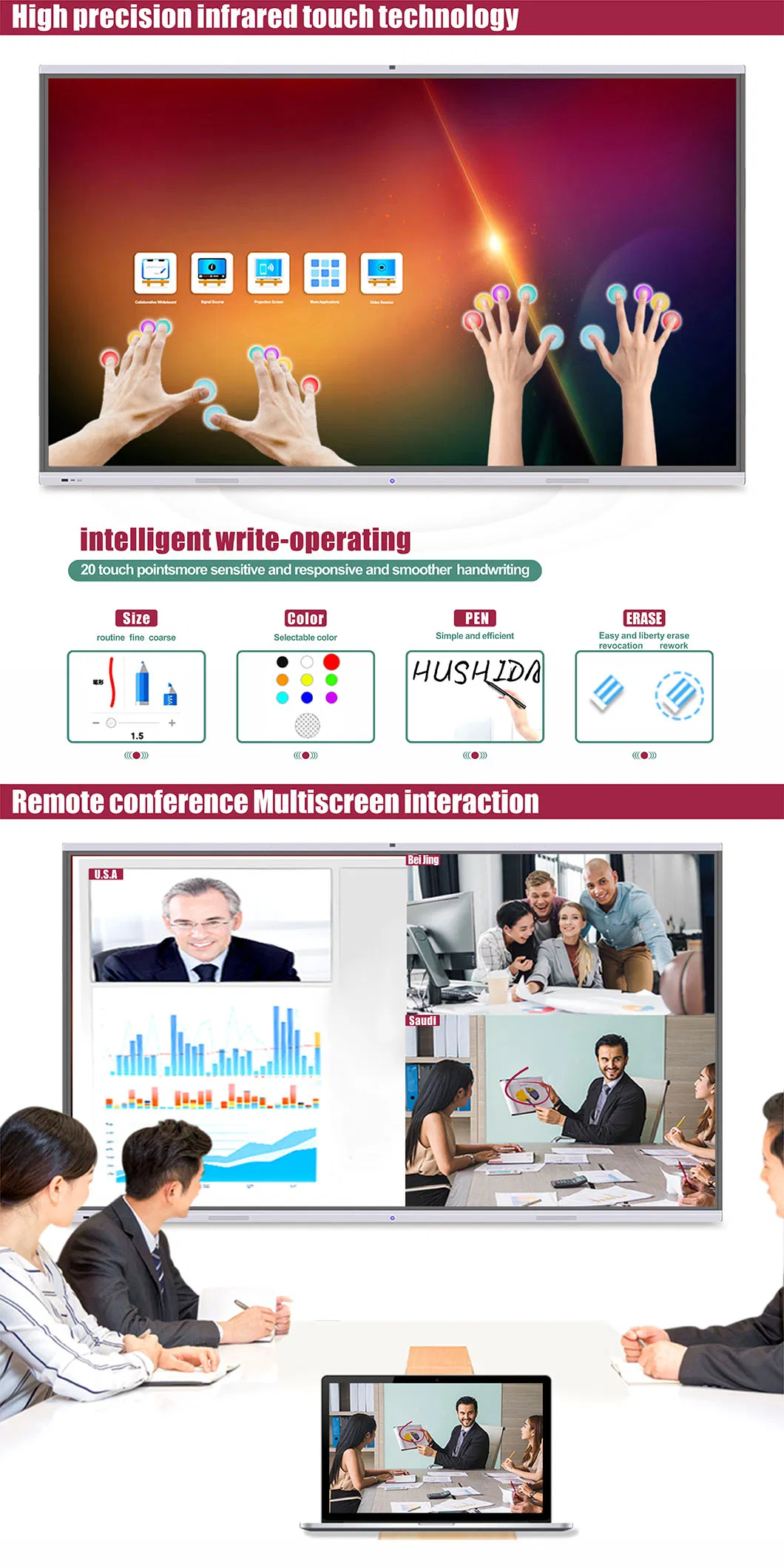

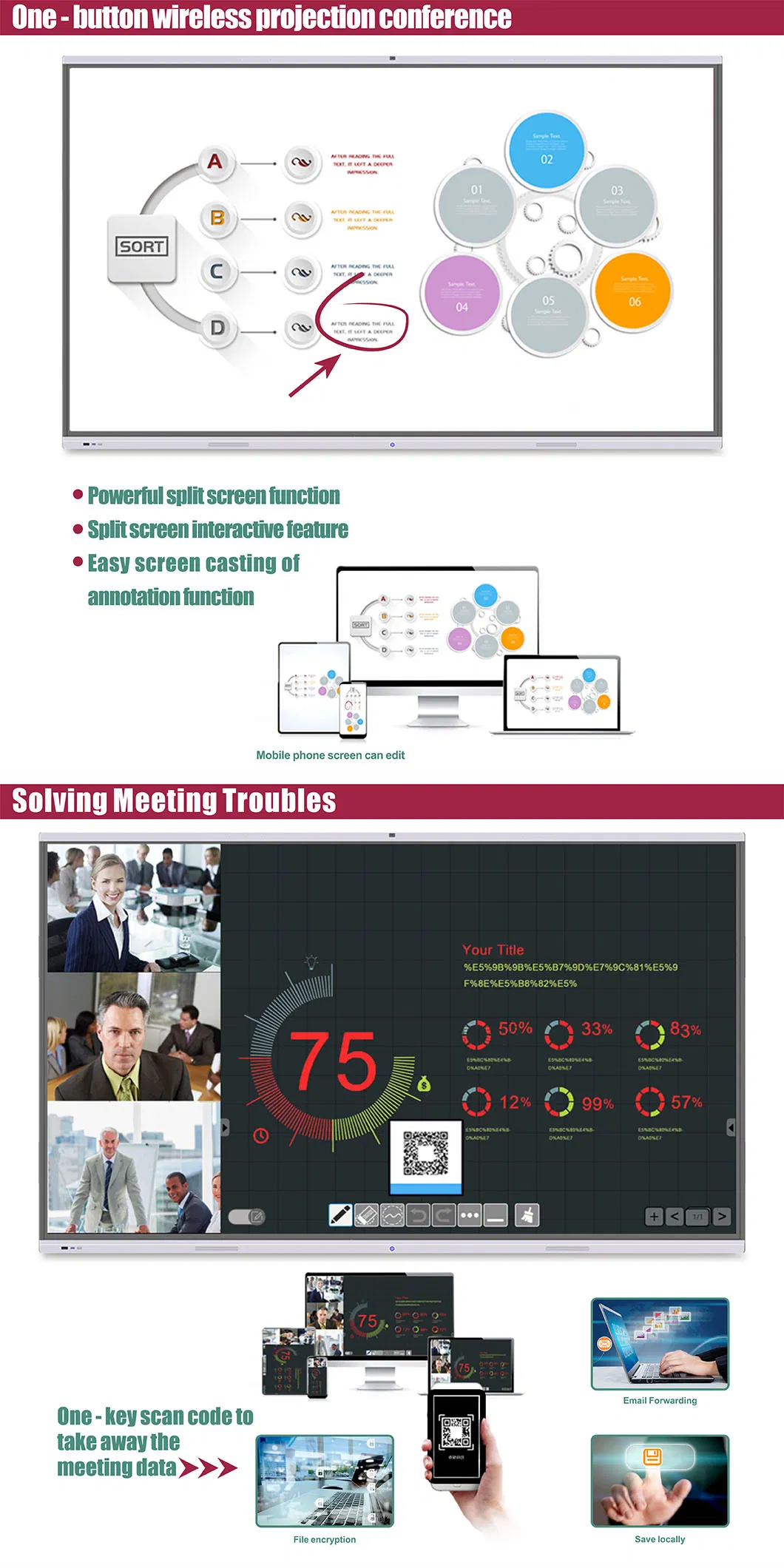

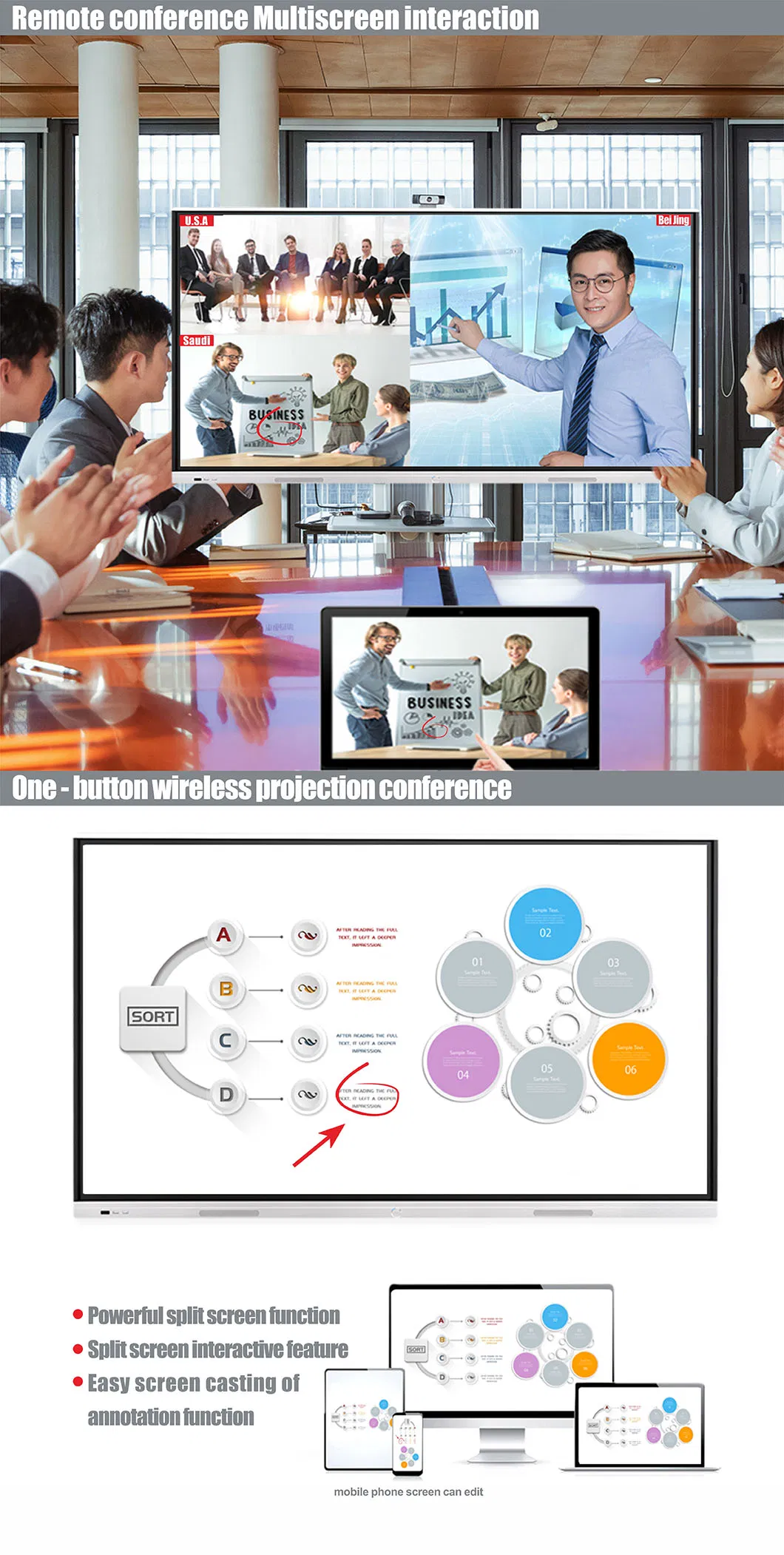

Multi-screen interaction, mobile phone projection!
One key to scan the QR code after writing, Take away the written content of the meeting!
High-definition 4K screen, display more clearly!
Meeting moderator can upload various documents on the Interactive intelligent whiteboard for vivid explanations! With multiple gesture writing functions!
Plug-in ops computer, more convenient mobile data!
Tempered glass on the surface make sure writing safely
Product advantages

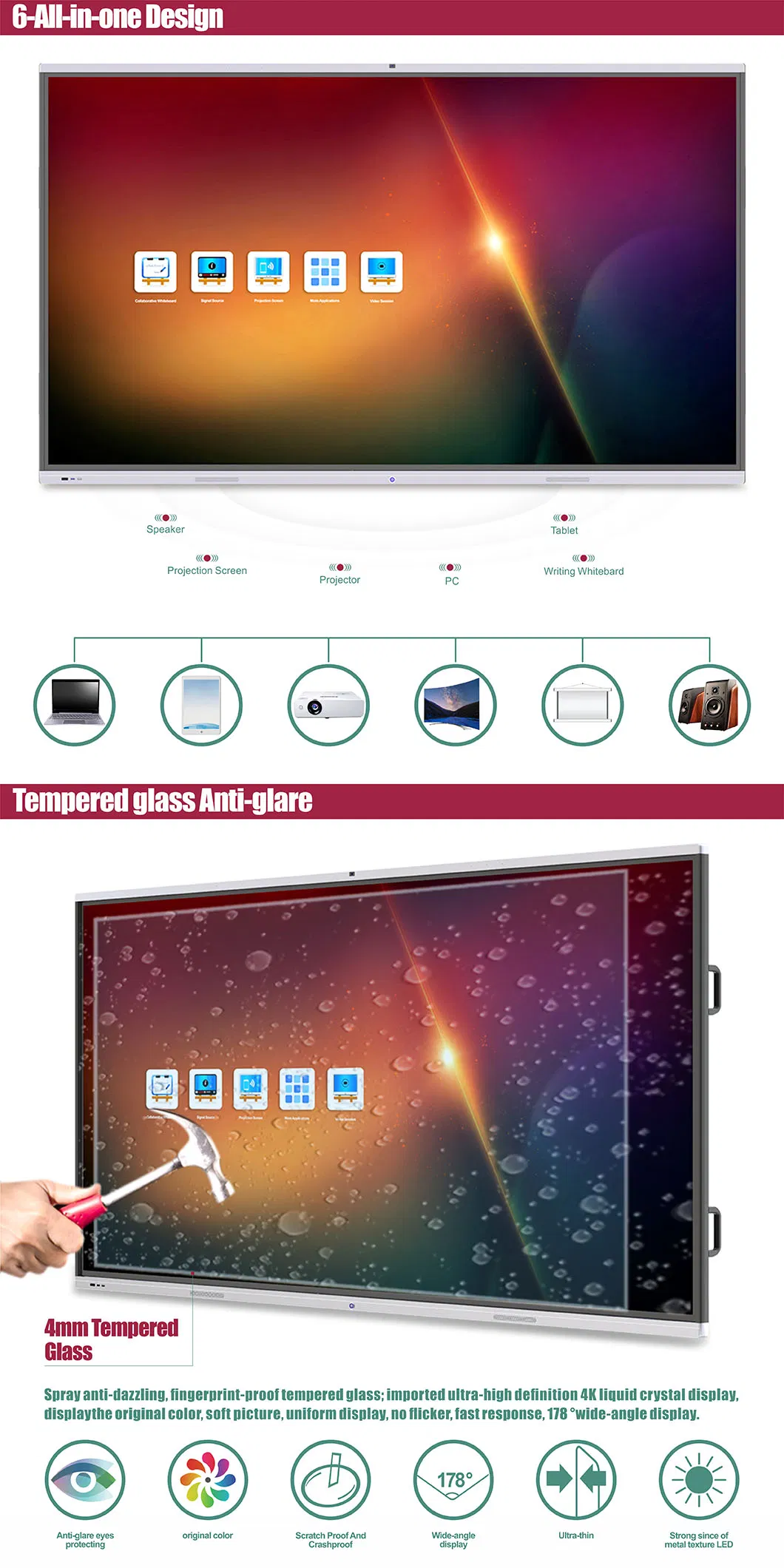

1,Six In One Design: computer, whiteboard, projector, TV, speaker, Tablet,multifunction in one equipment.
2,Support 10 points IR touch ( 20 points touch option): Adopt super sensitive touch panel, increase the touch accuracy, and it can stand more than 35 million time secure touch without any uncontrolled space. Touch easily and control perfectly.

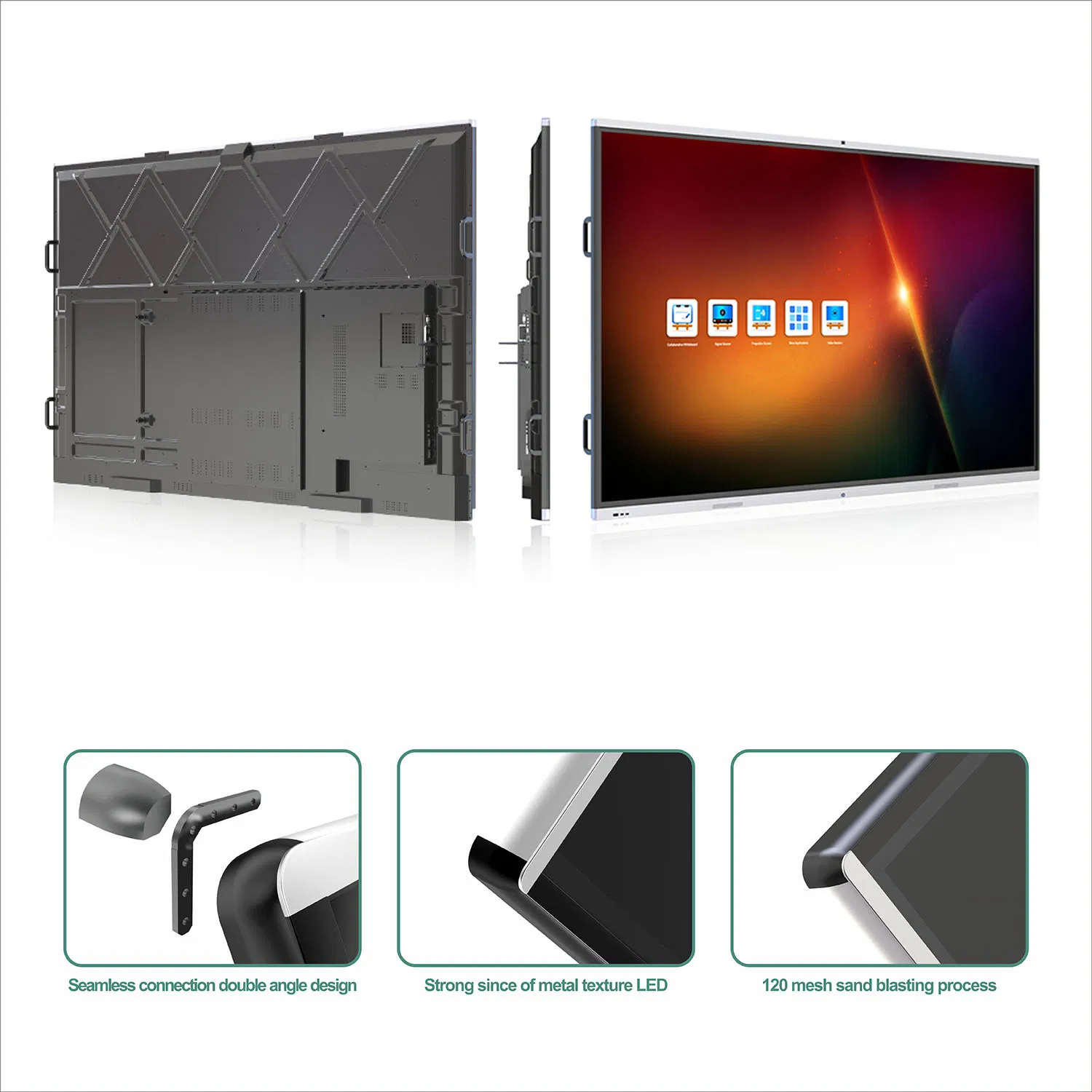

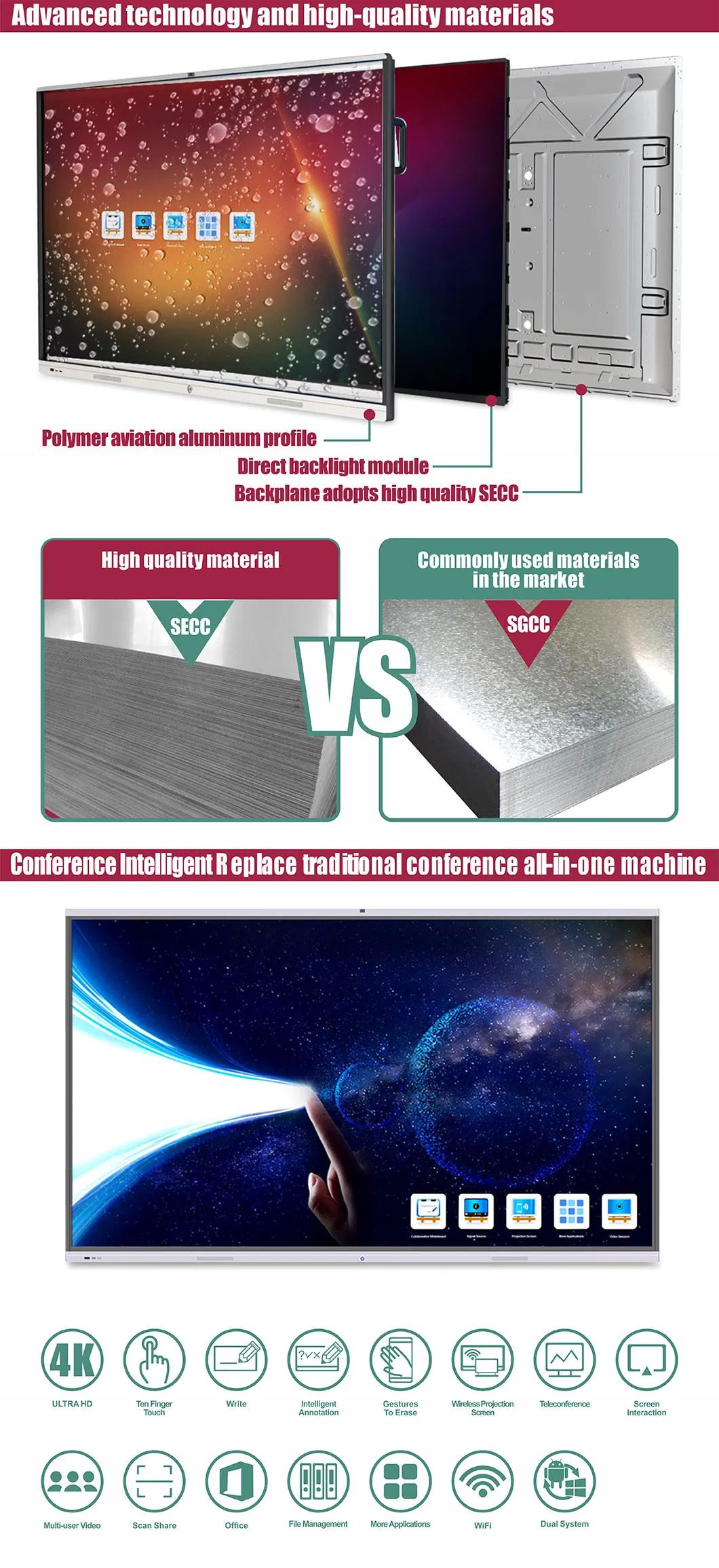

3,Full-size standard mold back plate: Compared with traditional sheet metal CNC laser products, the product has better consistency and high strength. The back plate is strong enough to support the front profile frame and tempered glass, and the quality is stable, and it is fully mechanized. Production, high output.
4,4mm explosion-proof Anti-glare tempered glass: 4mm Ultra-Thin rating 7 glass can protect screen effectively, and Turn the reflective 5,surface of the original glass into a matte non-reflective surface
5,Infrared touch screen with aluminum plate, small heat, fast heat dissipation, which can effectively extend the life of panel.

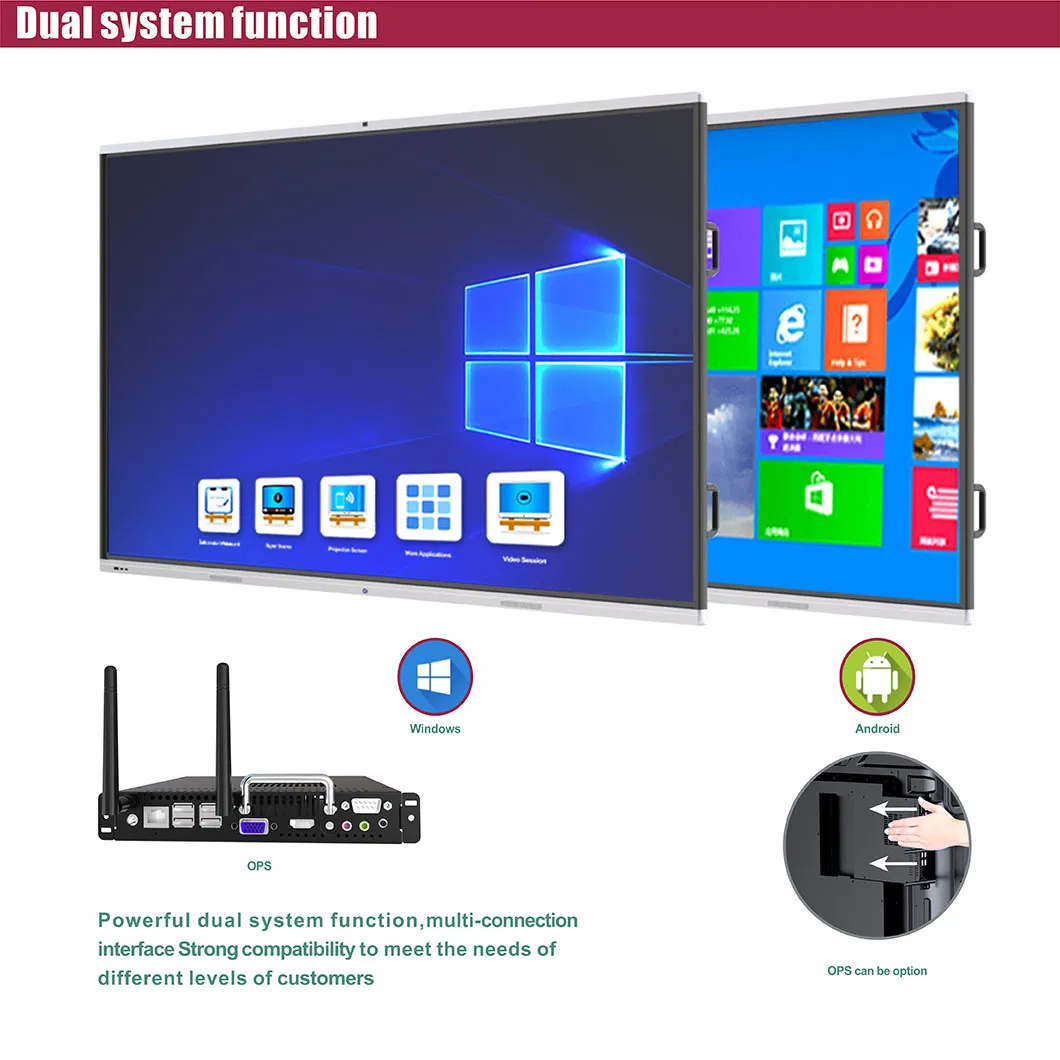

6,Dual core processor : windows and android dual system built-in design. Both systems can achieve whiteboard writing and multimedia playing.
7,Fast response speed: 0.8ms fluent writing and demonstration. More convenient courseware management. Accurate, fast touch, no delay.
8,Intelligent operation: Freely write, annotate and screen shot. Automatically recognize input channel. Intelligent eye protection. Light sensor with automatic brightness control. Energy save & intelligent awake.

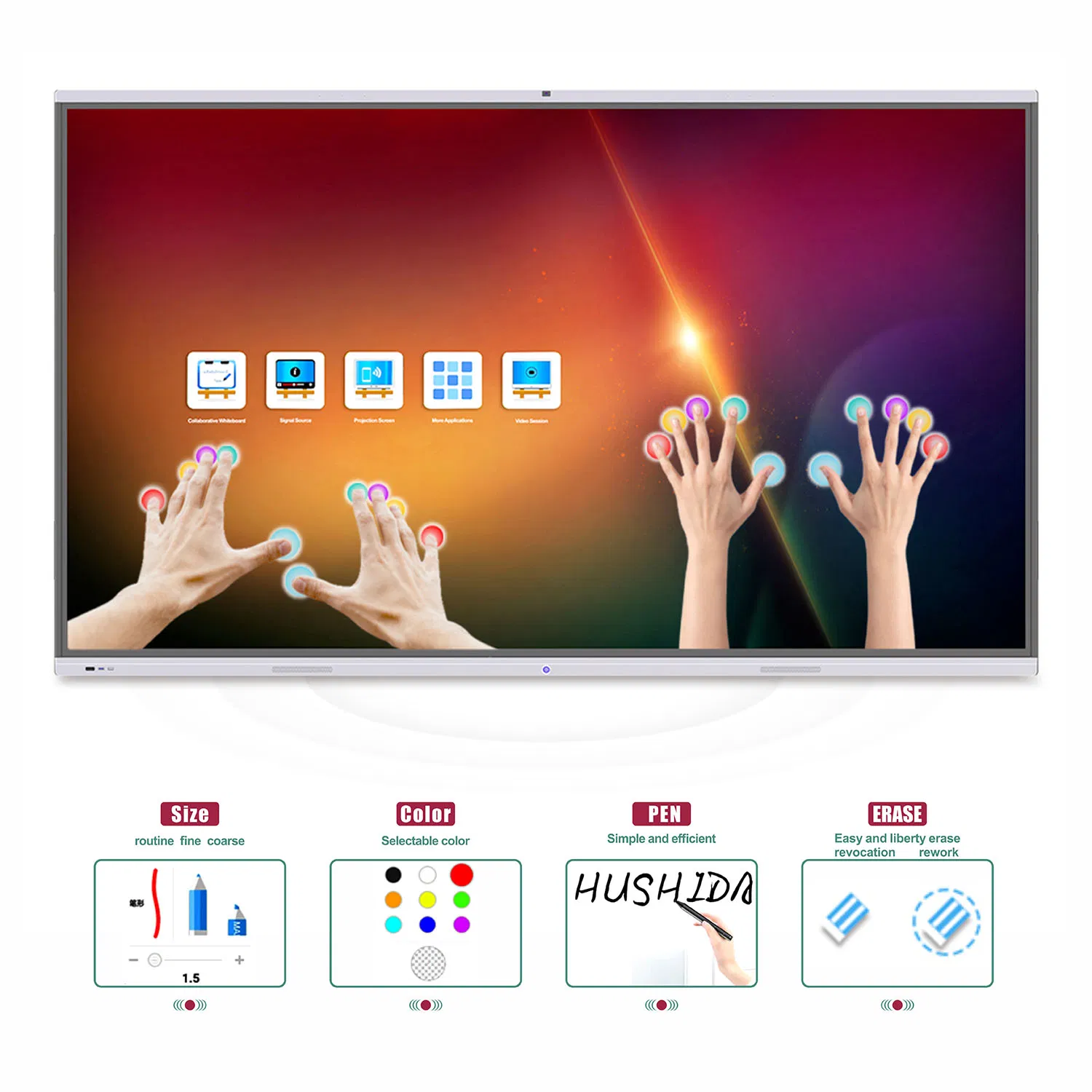

9.Intelligent writing & Touch control: the writing function interface can realize the functions of writing, magnifying, shrinking, erasing, dragging, and the like.
10,Screen-mirroring with android phone, iphone, ipad, computer,etc.

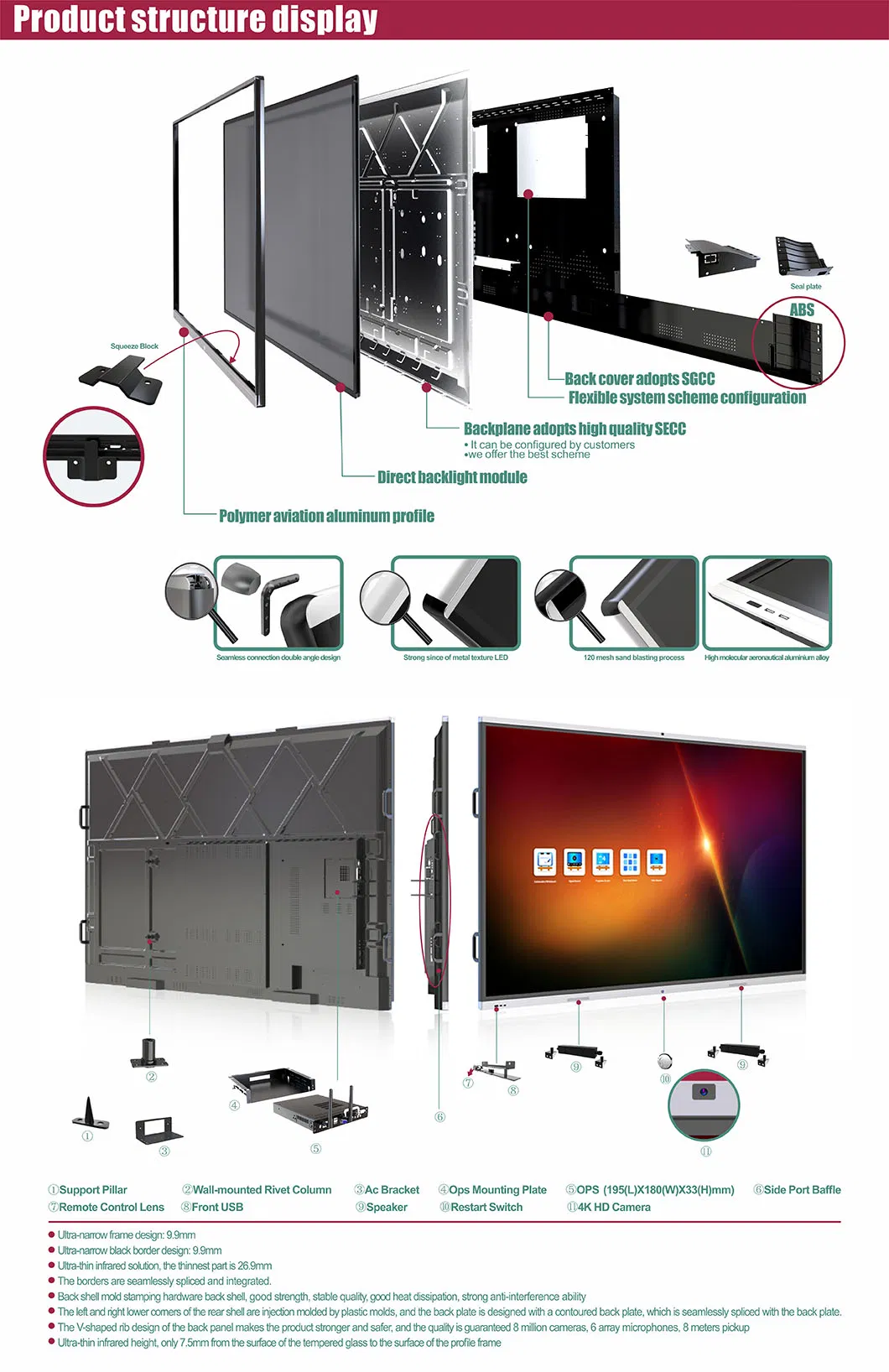

We especially pursue every detail of the composition of the touch screen whiteboard!
Why Choose US ?
1.About the Whiteboard, We are the source factory and our shipment volume ranks among the top three in the country, we have a very accurate grasp of the materials from the front end to the finished products in the later stage.
2. We have many experienced engineers who can respond quickly and provide customers with free assembly training courses
3. Experienced sales with big lcd industry manufacturer and project background.
4. ISO 9001 , CE, ROHS, 3C, FCC Certificated products: advertising digital signage module, backlight kit, education and conference all-in-one machine module, backlight and machine kit,and customized machine program.
5. Original factory lcd screen,Reasonable price ,high quality and good after-sale tech support.
1.Q:Can you introduce your company?

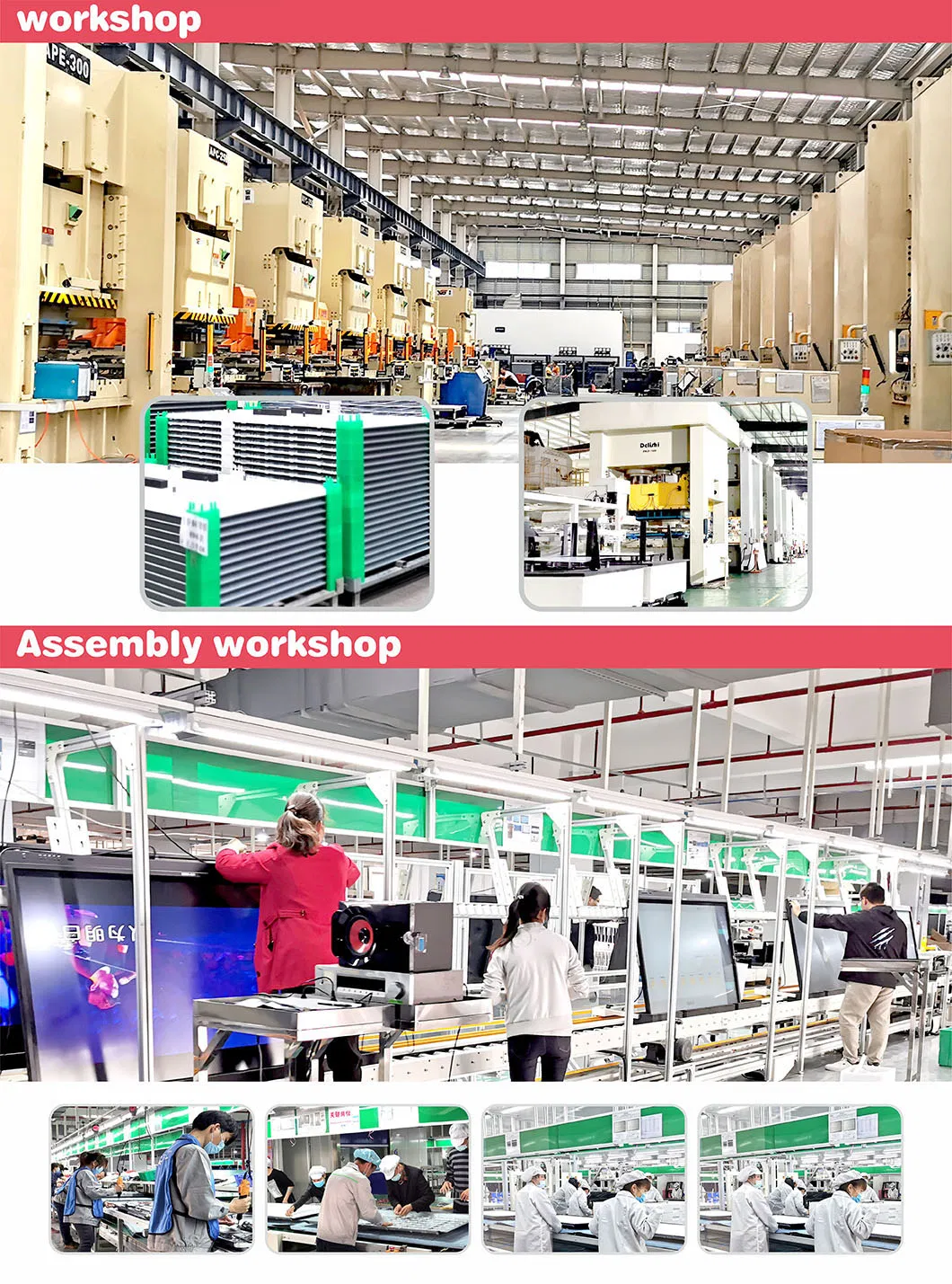

A:Dida is a large-scale display product integration solution provider that integrates mold design, manufacturing, product stamping and injection molding, module back-lighting OEM. The team has rich experience in product design, manufacturing, selling in the display industry. The 100,000-class dust-free workshops. Professional design and production of large-size LCD structural parts, backlight modules, and educational and conference integrated machine.
2.Q:Why does your company produce all-in-one Whiteboard sets?
A:1>. Because the cost of developing an all-in-one machine is very high, we want to help customers save development costs.
2>. We have a very strong R&D team and strong innovation ability. Have rich experience in OEM and ODM
3>. The purpose of our company is to achieve customer brand and help more middle-size companies to grow.
3. Q:what is your MOQ?
A:1 sets
4.Q:How about your delivery time?
A:It depends on your quantity. If the goods are in stock, usually delivered within 3-5 days. If it is customized, we need to confirm the delivery date according to the actual situation.
5.Q:What payment methods does your company accept?
A:we accept T/T Paypal LC etc.
6.Q:Where is your company located?
A:Our headquarters is in Changan town, Dongguan, China. It is 1 hour from Shenzhen and 1.5 hours from Guangzhou. Traffic is very convenient.
7.Q:How many people at your R&D department?
A:12 persons.
8.Q:Does your company has an engineer to guide us in assembling the finished product?
A:Yes, We have professional engineers to instruct you on how to assemble. Actually very simple, don't worry.
9.Q: How about transportation?
A: We can go by air or sea according to your requirements. All accessories will be placed in a sturdy cardboard box with plastic bags on the outside of the box. So, you don't have to worry about the box breaking.
