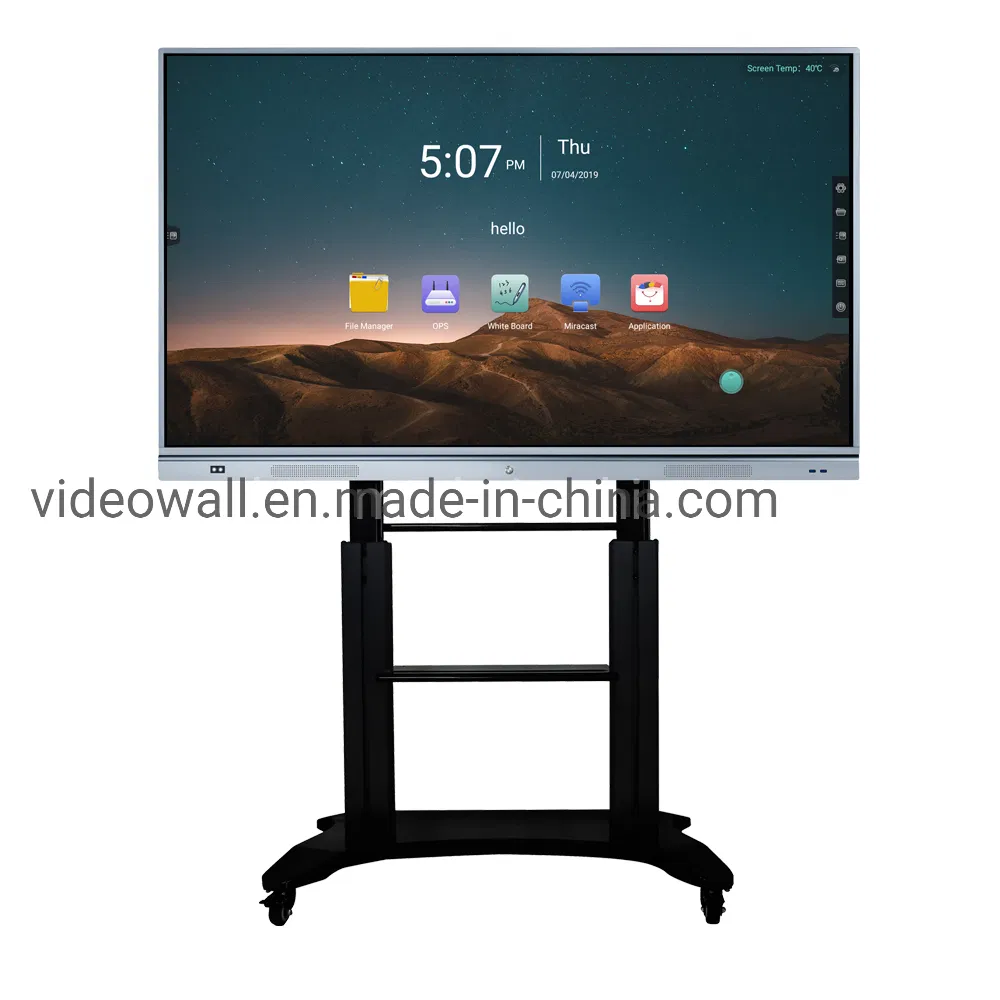

DV18 Series Android 8.0 Touch Screen Smart Board 65" 75" 85" Interactive Whiteboard For Education & Office Conference
DV18 Series Android 8.0 65" 75" 85" Touch Screen Smart Board Interactive Whiteboard For Education Office ConferenceFeatures:Android 8.0 system: Latest Android system and OPS computer support (Windows system)RAM 4G+32G Storage: Highest configuration Super-narrow bezel:1mm writing di......
Send Inquiry
Product Description

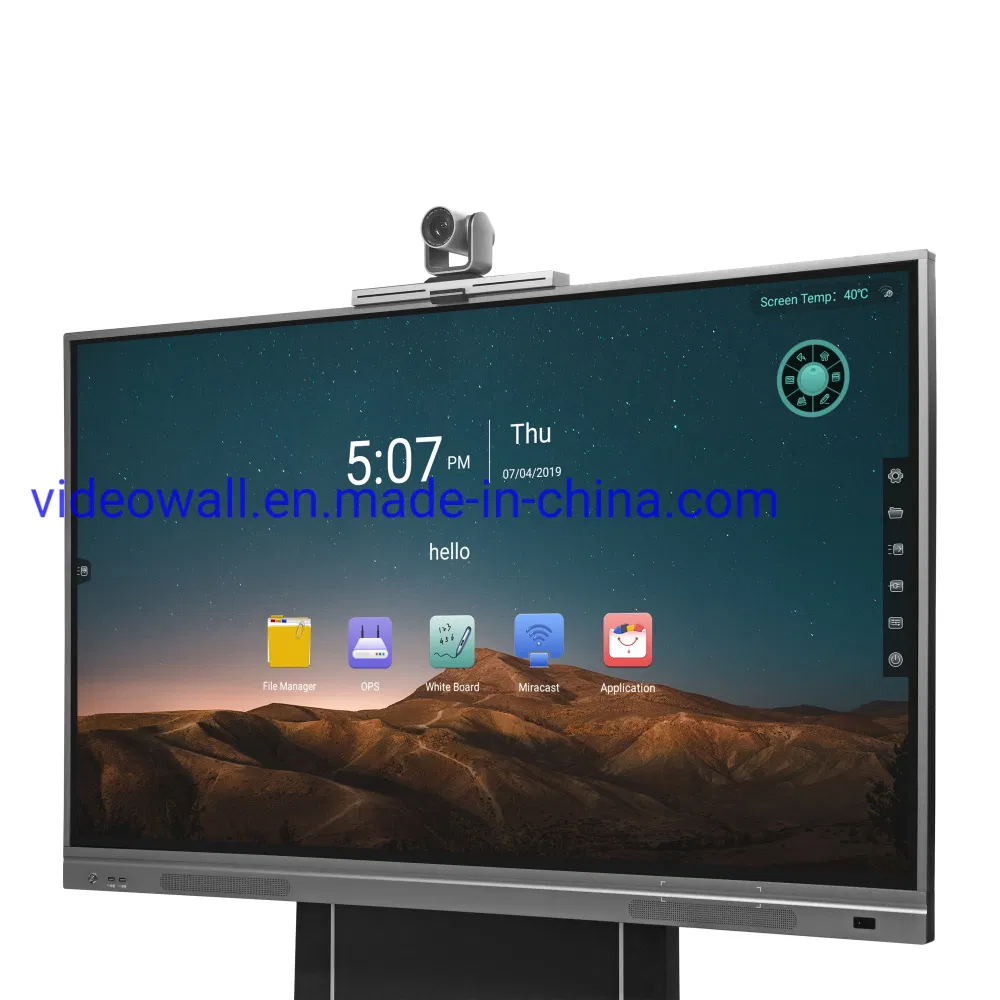

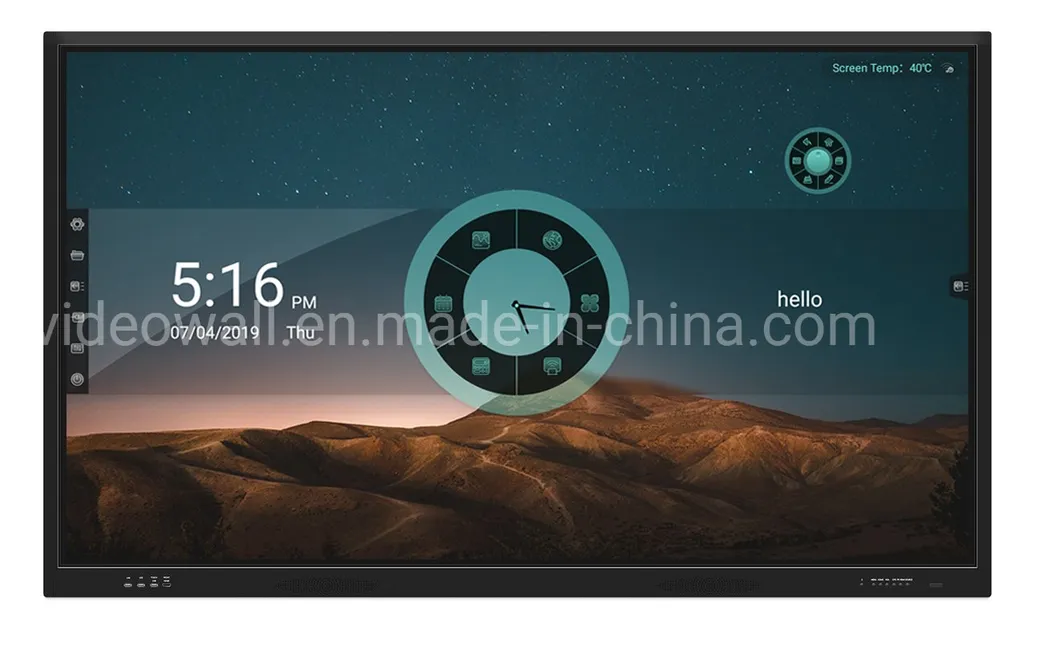

DV18 Series Android 8.0 65" 75" 85" Touch Screen Smart Board Interactive Whiteboard For Education Office Conference
Features:
Android 8.0 system: Latest Android system and OPS computer support (Windows system)
RAM 4G+32G Storage: Highest configuration
Super-narrow bezel:1mm writing distance and 12mm narrow bezel
Max 20point touch: Enables multi-users writing at same time
Quick toolbar, easy to use
Whiteboard App built-in: Providing you efficient Apps for classroom and conference.
Wireless mirroring: To project your laptop pc,mobile phone and tablets without cables
projectors. just one click to share your laptop to the smartboard
Available in 65" 75" 85" and 98"
Functions Of smart board touch screen:
20point touch, 10point writing, 2points zoom/drag, gesture erase (hand back erase),
Annotation function: making annotations on screen or during the presentation
Digital whiteboard function
Scan QR code to share annotation/memos
Wireless projection: share laptop, mobile screens to touch screen without cable, just one
click of wireless screen dongle.
OPS computer: quick switch from Android to OPS computer
Touch USB, HDMI, WIFI etc multi-input and output ports
Can connect with the camera, wireless microphone for video conference system
Optional:
1. Available size: 65" 70" 75" 86" 98"touch screen kiosk,
2. Windows system: supports customized windows 8.1/10 OS
3. Touchscreen: supports customized IR touch (10 points)/capacitive touch (10 points)
4. Optional: 3/4G module, camera, NFC, beacon, thermal printer, magic mirror
Application
Specification Of Screen
About DS Company
Shenzhen DS Technology Co., Ltd. is established in 2013 in Shenzhen.DS is a high-tech enterprise specialized in the development, production, and marketing of the interactive screen and commercial large size display products. Our products are divided into several series: Industrial LCD monitor, interactive whiteboard(55"-98"), LCD video wall(46"-55"), digital signage, and customized commercial screen display.

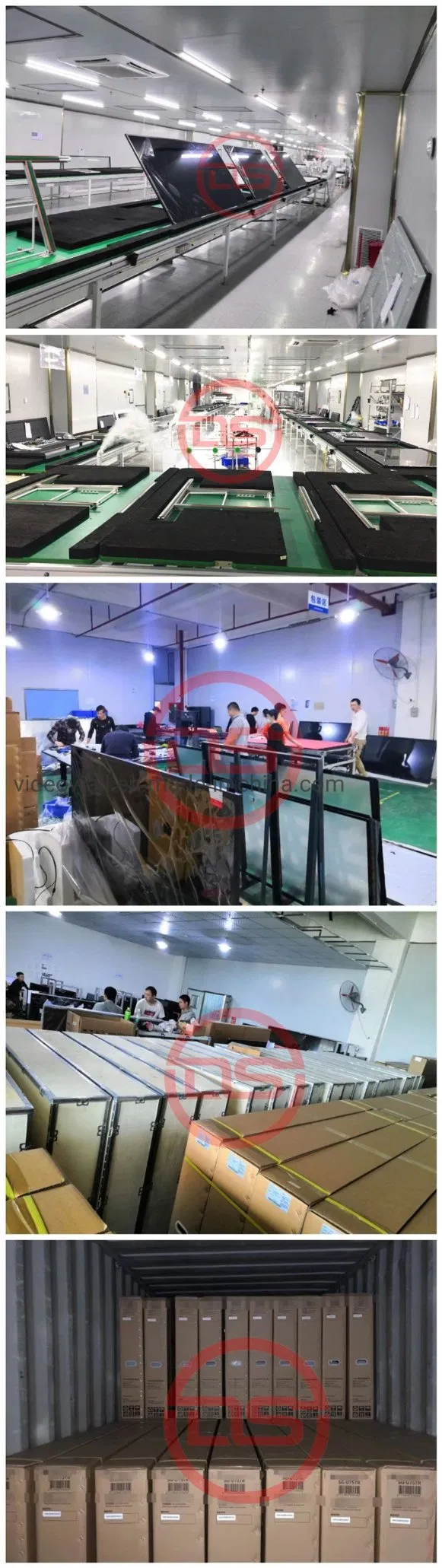

Our factory locates in Shenzhen, owning a core experienced technology team. We are certificated ISO9001: 2008 quality management system and ISO14001: 2004 environmental management system. We have a strict quality control process to ensure every product can meet our customer's requirements.
DS believes in professionalism, honesty, and integrity will bring our customer value, we dedicate our team in providing quality products and services. And we believe that is our brand value.
Shipping and Payment
1. Payment term: T/T 30% down payment before production, the 70% balance should be paid before shipment after inspection.
2.Warranty: 12 months warranty.Lifetime maintenance.
3.RMA policy: The customer bears all the freight and duty charge to the factory, and the factory affords the return freight charge.
4.Remark: ROHS, CE & FCC certificates in e-file format are available.
5.Package: The LCD display touch screen is packed in a carton box with EPE protection. And carton will be packed with a wooden case in international shipping.
What do we do?
In earlier years, DS Tech is dedicated to LCD video wall projects, providing video wall solutions with Samsung, LG and BOE LCD screen 46" 49" and 55" for the domestic market.
Since the quick development of the commercial display market, DS tech tends to enter into a large size screen display market, like the interactive whiteboard, digital signage, and other commercial display products. DS tech is growing rapidly with good quality and services.
Why Choose us?
1. Experienced engineers and sales with big LCD industry manufacturer and project background
2. ISO 9001, CE, ROHS, FCC Certificated products: interactive smartboard, touch screen kiosk, smart whiteboard touch screen, and seamless bezel video wall.
3. Full industrial display chain resources: LCD video wall, touch screen kiosk, all in one pc, interactive whiteboard, touch screen monitor, video wall controller, matrix, video splicing processor, matrix switcher, and VGA HDMI cable, etc accessories.
4. Original factory LCD screen, Reasonable price, high quality, and good after-sale tech support
5. Short delivery time, flexible payment way
6. Quick response, provide free training for customers. Please contact us for more details.
Features:
Android 8.0 system: Latest Android system and OPS computer support (Windows system)
RAM 4G+32G Storage: Highest configuration
Super-narrow bezel:1mm writing distance and 12mm narrow bezel
Max 20point touch: Enables multi-users writing at same time
Quick toolbar, easy to use
Whiteboard App built-in: Providing you efficient Apps for classroom and conference.
Wireless mirroring: To project your laptop pc,mobile phone and tablets without cables
projectors. just one click to share your laptop to the smartboard
Available in 65" 75" 85" and 98"
Functions Of smart board touch screen:
20point touch, 10point writing, 2points zoom/drag, gesture erase (hand back erase),
Annotation function: making annotations on screen or during the presentation
Digital whiteboard function
Scan QR code to share annotation/memos
Wireless projection: share laptop, mobile screens to touch screen without cable, just one
click of wireless screen dongle.
OPS computer: quick switch from Android to OPS computer
Touch USB, HDMI, WIFI etc multi-input and output ports
Can connect with the camera, wireless microphone for video conference system
Optional:
1. Available size: 65" 70" 75" 86" 98"touch screen kiosk,
2. Windows system: supports customized windows 8.1/10 OS
3. Touchscreen: supports customized IR touch (10 points)/capacitive touch (10 points)
4. Optional: 3/4G module, camera, NFC, beacon, thermal printer, magic mirror

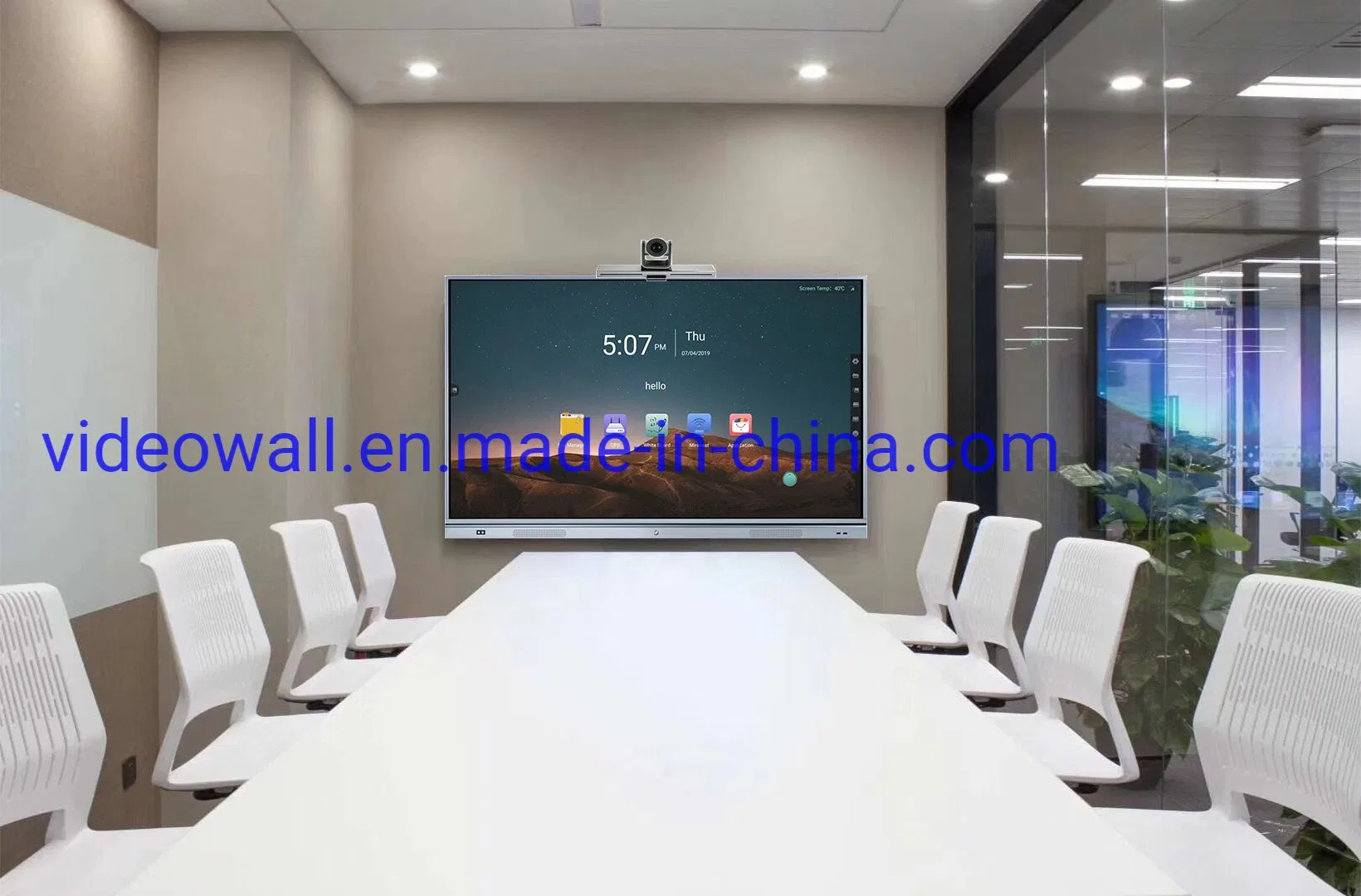

Application
- Education: school\university\training school

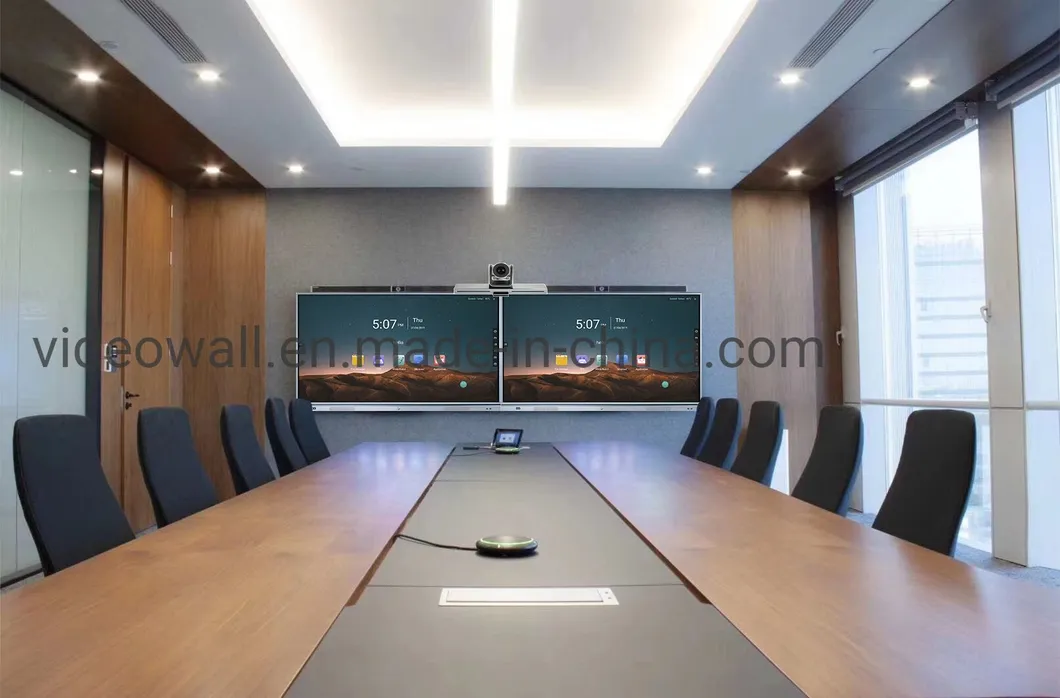

- Conference system: telecommunication-conference system
- Commercial: Outlets\ showroom\ 4S shops\ queen management system\building info. checking system
Specification Of Screen
| Product Parameter | |||
| Model | DSY-65DV18 | DSY-75DV18 | DSY-85DV18 |
| Backlight | LED | LED | LED |
| Active display size (diagonal) | 65" | 75" | 85" |
| Aspect Ratio | 16:9 | 16:9 | 16:9 |
| Product dimension (mm) | 1479.9*911.1*109.4mm | 1699.2*1038.2*104mm | 1940.2*1176.9*106.2mm |
| Slime frame | 13 mm | 13 mm | 13 mm |
| Dynamic Contrast Ratio | 4000:1 | 4000:1 | 4000:1 |
| Resolution | 3840*2160 (4K) | 3840*2160 (4K) | 3840*2160 (4K) |
| Colors | 8 bit / 1.07 billion colors | 8 bit / 1.07 billion colors | 8 bit / 1.07 billion colors |
| Brightness | 350cd/m2 | 350cd/m2 | 350cd/m2 |
| Response time | 8 ms | 8 ms | 8 ms |
| View Angle | 178°, 178° | 178°, 178° | 178°, 178° |
| Dot pitch (mm) | 0.124 mm x 0.372 mm | 0.4298 mm x 0.4298 mm | 0.4875 mm x 0.4875 mm |
| Panel life expentance | ≥50000 hrs | ≥50000 hrs | ≥50000 hrs |
| LCD quality | Grade A | Grade A | Grade A |
| Speakers | 15W x 2 | 15W x 2 | 15W x 2 |
| OPS Slot | Yes (42mm,80Pin) | Yes (42mm,80Pin) | Yes (42mm,80Pin) |
| Power consumption | Maximun< 220W | Maximun<300W | Maximun< 350W |
| Power voltage | 100V - 240VAC, 50/60Hz 15W x 2 | 100V - 240VAC, 50/60Hz 15W x 2 | 100V - 240VAC, 50/60Hz 15W x 2 |
| Work environment | TEMP: 0ºC ~ 40ºC / Humidity: 20% ~ 80% | TEMP: 0ºC ~ 40ºC / Humidity: 20% ~ 80% | TEMP: 0ºC ~ 40ºC / Humidity: 20% ~ 80% |
| Storage environment | TEMP: -10ºC ~ 60ºC / Humidity:10% ~ 60% | TEMP: -10ºC ~ 60ºC / Humidity:10% ~ 60% | TEMP: -10ºC ~ 60ºC / Humidity:10% ~ 60% |
| Maximum continue working time | 18 hours*7 days | 18 hours*7 days | 18 hours*7 days |
| Android System (Default) | |||
| System configuration | Android 8.0, RAM 4G + 32GB, chipboard: Hi3751ARBCV8110D0N , | ||
| Interface Inputs / Outputs | HDMI in*2, HDMI out *1, USB2.0*2,SD-TF*1, AV input*1 , YPbPr*1, RJ45*2, SPDIF output*1, VGA input*1, Touch USB*3, Audio input*1, DP IN*1, USB Extend *2, RS232*1, SD*1, AV output*1, earphone *1, MIC*1, wifi *4 | ||
| Model | DSY-65DV18 | DSY-75DV18 | DSY-85DV18 |
| Touch Screen Parameter | |||
| Glass surface | 4 mm Tempered glass | ||
| Technology | Infrared touch (IR touch) | ||
| HID support | Yes | ||
| Touch supported | 10 points touch /max 20 points touch | ||
| Writing tools | finger or any opaque object | ||
| Positioning accuracy | 2 mm | ||
| Response Time | ≤ 5ms | ||
| Connection Interface | USB | ||
| Detachable IR frame | Yes | ||
| Software | Yes | ||
| Touch Life Expectancy | ≥ 60,000,000 times | ||
About DS Company
Shenzhen DS Technology Co., Ltd. is established in 2013 in Shenzhen.DS is a high-tech enterprise specialized in the development, production, and marketing of the interactive screen and commercial large size display products. Our products are divided into several series: Industrial LCD monitor, interactive whiteboard(55"-98"), LCD video wall(46"-55"), digital signage, and customized commercial screen display.
Our factory locates in Shenzhen, owning a core experienced technology team. We are certificated ISO9001: 2008 quality management system and ISO14001: 2004 environmental management system. We have a strict quality control process to ensure every product can meet our customer's requirements.
DS believes in professionalism, honesty, and integrity will bring our customer value, we dedicate our team in providing quality products and services. And we believe that is our brand value.
Shipping and Payment
1. Payment term: T/T 30% down payment before production, the 70% balance should be paid before shipment after inspection.
2.Warranty: 12 months warranty.Lifetime maintenance.
3.RMA policy: The customer bears all the freight and duty charge to the factory, and the factory affords the return freight charge.
4.Remark: ROHS, CE & FCC certificates in e-file format are available.
5.Package: The LCD display touch screen is packed in a carton box with EPE protection. And carton will be packed with a wooden case in international shipping.
What do we do?
In earlier years, DS Tech is dedicated to LCD video wall projects, providing video wall solutions with Samsung, LG and BOE LCD screen 46" 49" and 55" for the domestic market.
Since the quick development of the commercial display market, DS tech tends to enter into a large size screen display market, like the interactive whiteboard, digital signage, and other commercial display products. DS tech is growing rapidly with good quality and services.
Why Choose us?
1. Experienced engineers and sales with big LCD industry manufacturer and project background
2. ISO 9001, CE, ROHS, FCC Certificated products: interactive smartboard, touch screen kiosk, smart whiteboard touch screen, and seamless bezel video wall.
3. Full industrial display chain resources: LCD video wall, touch screen kiosk, all in one pc, interactive whiteboard, touch screen monitor, video wall controller, matrix, video splicing processor, matrix switcher, and VGA HDMI cable, etc accessories.
4. Original factory LCD screen, Reasonable price, high quality, and good after-sale tech support
5. Short delivery time, flexible payment way
6. Quick response, provide free training for customers.
