DS tech 16M Series infrared Android 8.0 interactive whiteboard office supply for business
DS tech 16M Series infrared Android 8.0 interactive whiteboard office supply for business Functions:20point touch, 10point writing, 2points zoom/drag, gesture erase (hand back erase), Annotation function: making annotations on-screen or during the presentationDigital whiteboard function: insert......
Send Inquiry
Product Description

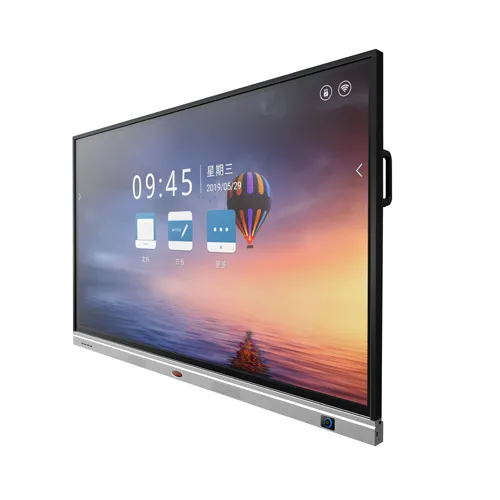

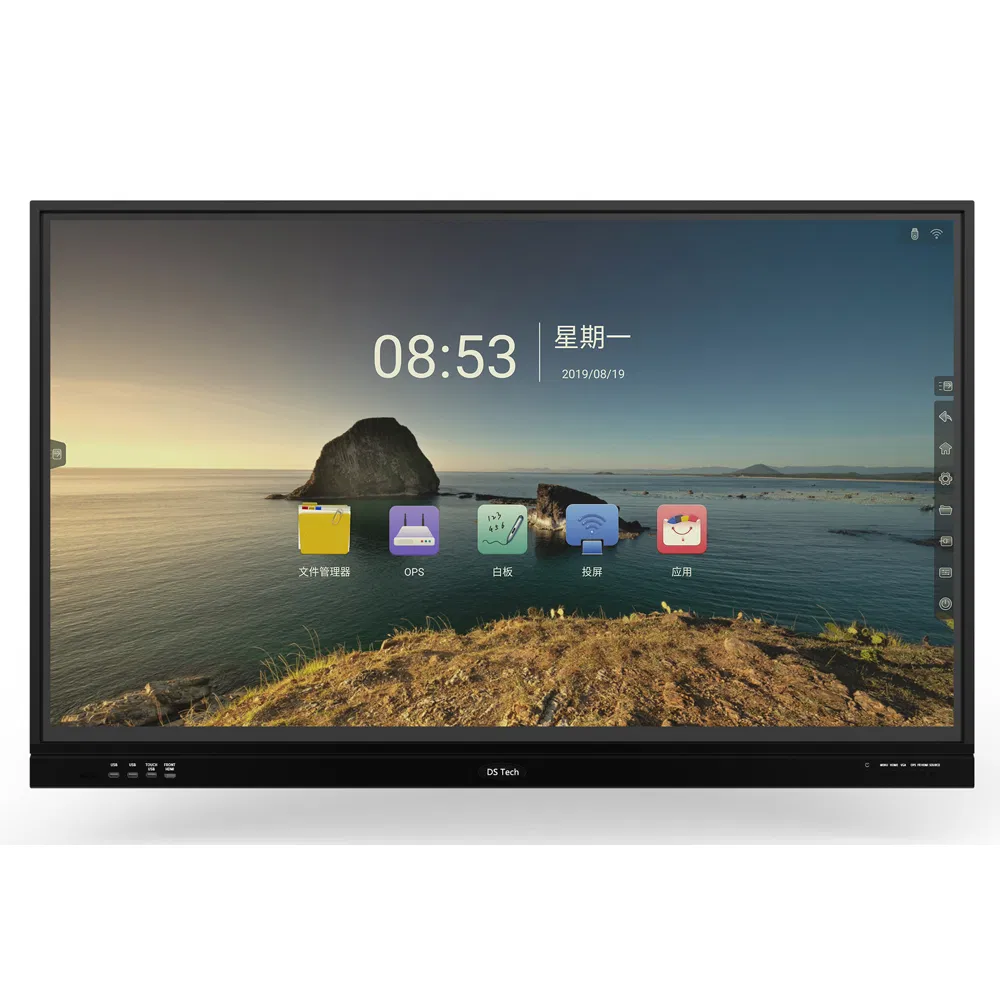

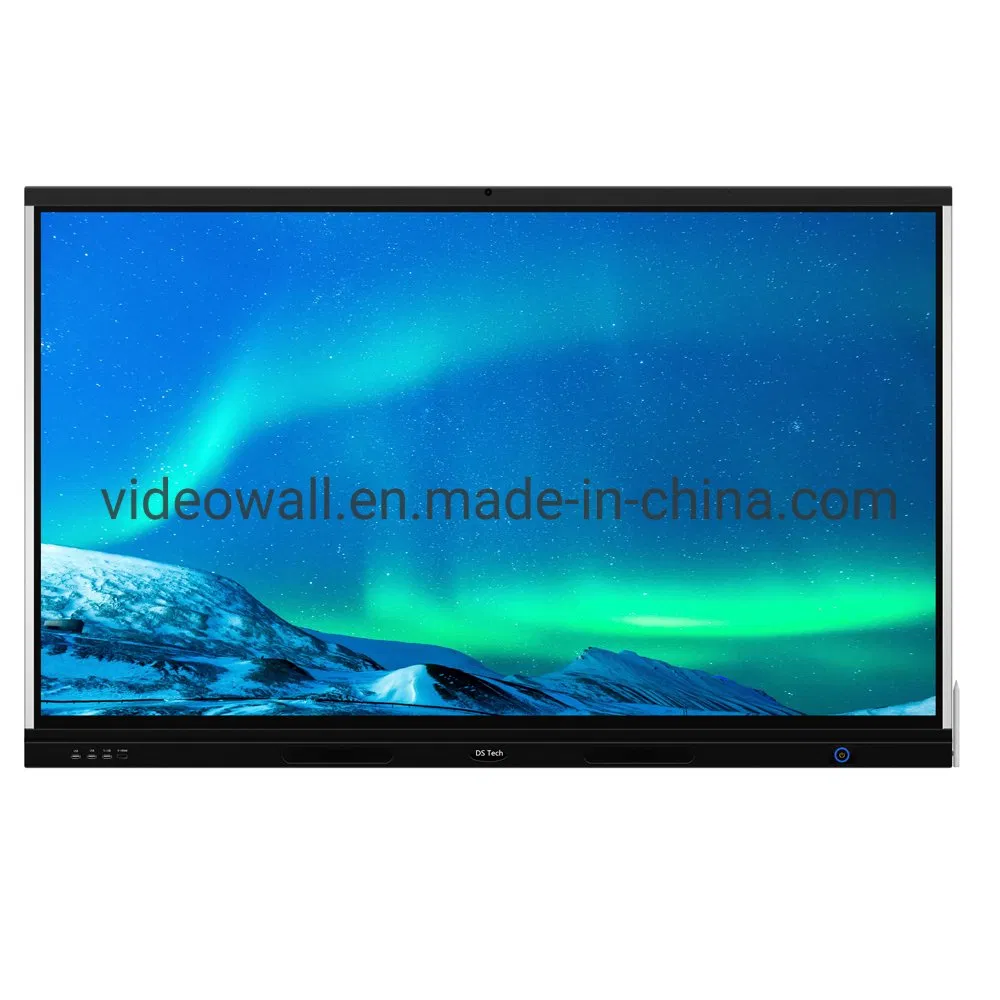

DS tech 16M Series infrared Android 8.0 interactive whiteboard office supply for business
Functions:
20point touch, 10point writing, 2points zoom/drag, gesture erase (hand back erase),
Annotation function: making annotations on-screen or during the presentation
Digital whiteboard function: insert and edit files, pictures, making notes, etc
Scan QR code to share annotation/memos

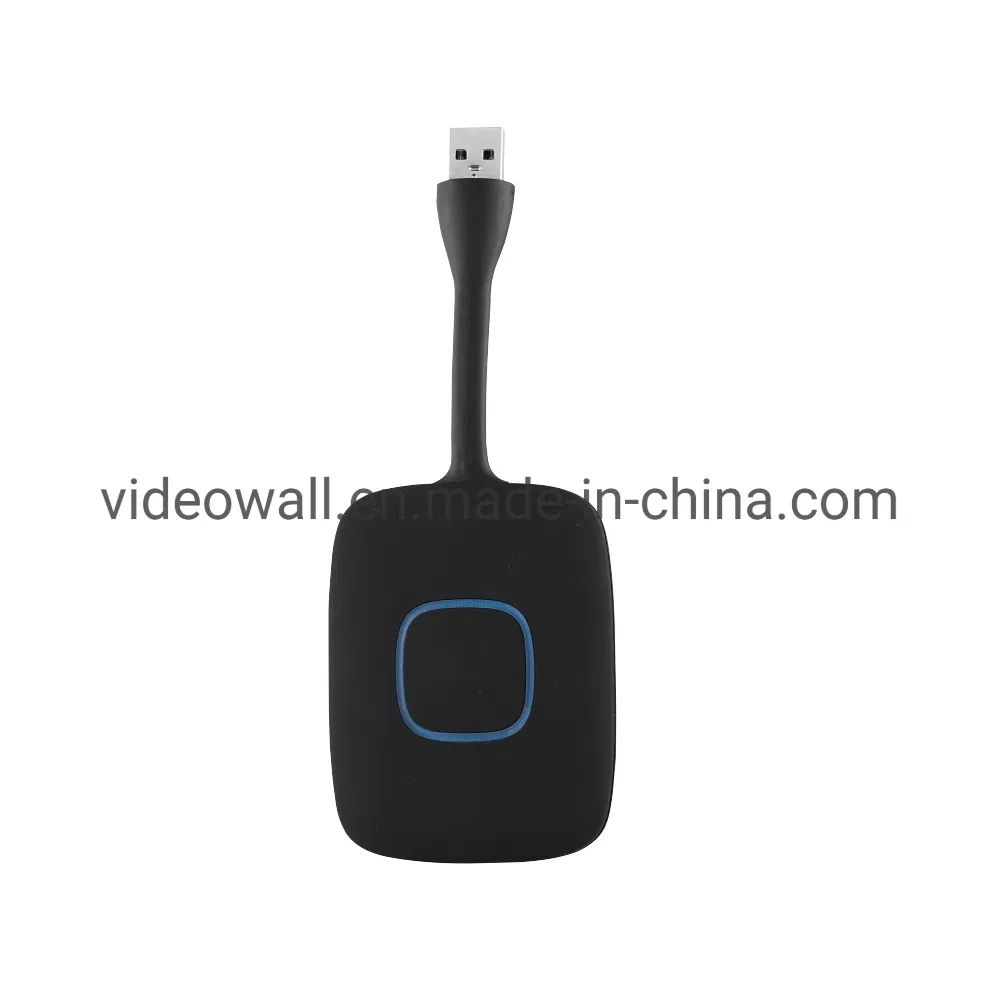

Wireless projection: share laptop, mobile screens to touch screen interactive flat panel without cable, just one click of wireless screen dongle.
OPS computer: OPS slot-in, support i7, i5 processor Windows system
A quick switch from Android system to the Windows system
Touch USB, USB, HDMI, etc multi-input and output ports

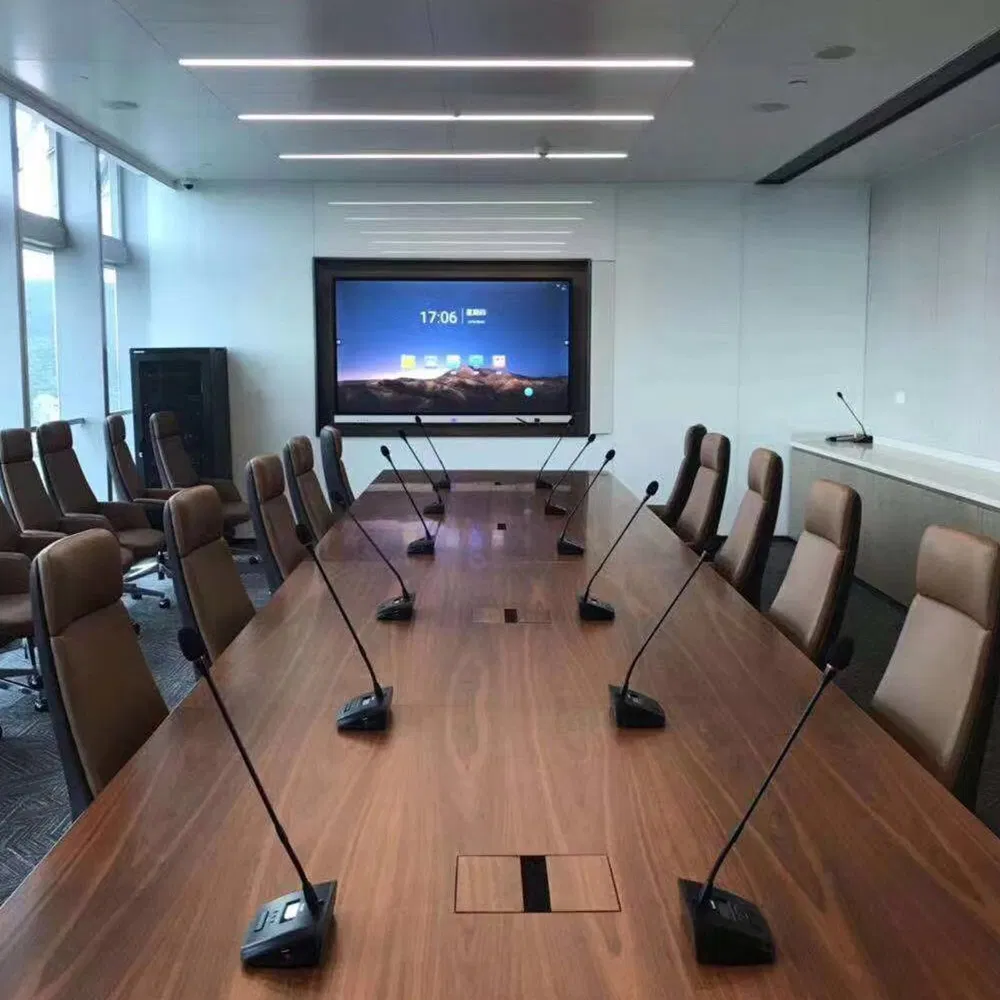

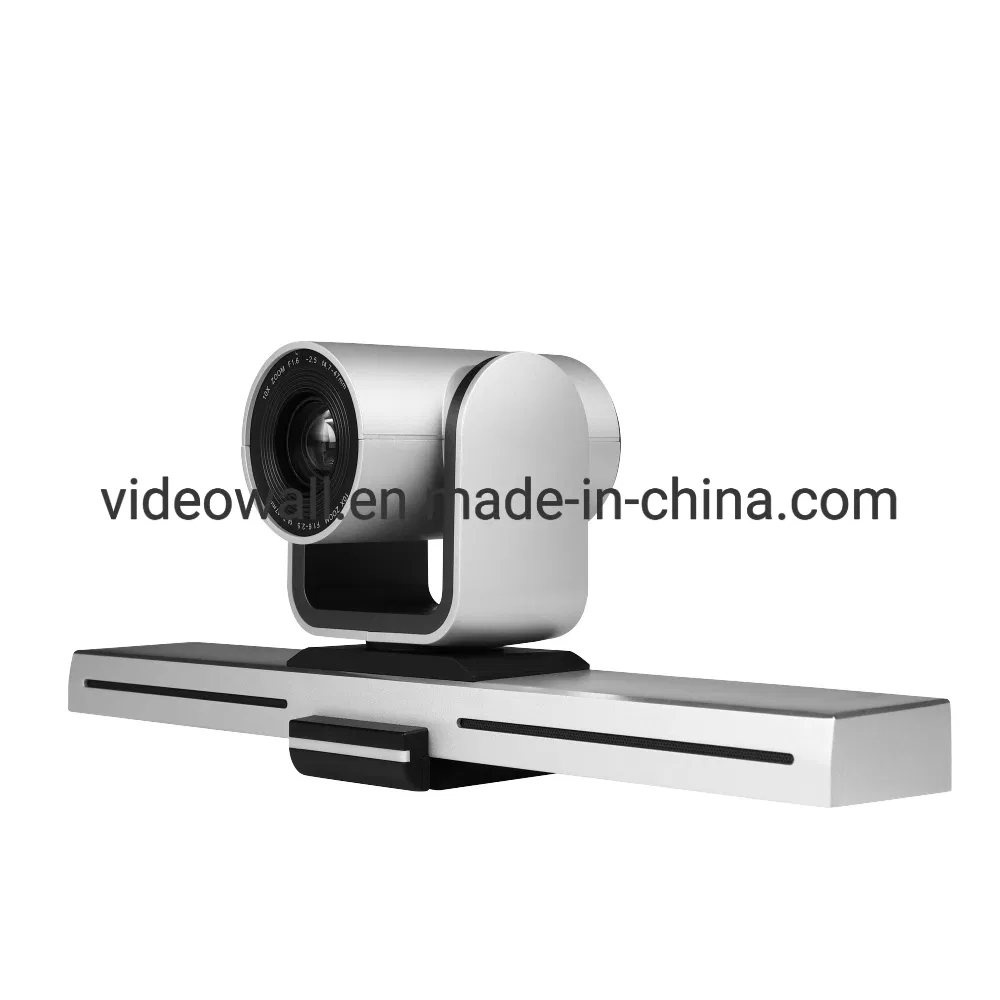

Can connect with the video camera, wireless microphone for video conference system
Features:
1.Supper Narrow Bezel:Only 12mm ultra-slim bezel brings a good view.
2.1mm High Writing Precision: Write and touch anywhere on panel
3.Android 7.0: Whole system fast and user friendly
4.RAM 2G+16G Storage: Fast response with bigger storage
5.Application: suitable for education and business use
6:Size available:65" 75" 85" 86"
Specification of interactive flat panel
| Model | DS-16M55 | DS-16M65 | DS-16M75 | DS-16M86 |
| Backlight | LED | LED | LED | LED |
| Active display size (diagonal) | 55" | 65" | 74.52" | 86" |
| Aspect Ratio | 16:09 | 16:09 | 16:09 | 16:09 |
| Display dimension (mm) | 1209.6 (H) x 680.4 (V) | 1428.48 (H) x 803.52(V) | 1650.24 (H) x 928.26(V) | 1895.04 (H) x 1065.96(V) |
| Dynamic Contrast Ratio | 1200:1(typ.) | 1100:1(typ.) | 1100:1(typ.) | 1200:1(typ.) |
| Resolution | 3840*2160 (4K) | 3840*2160 (4K) | 3840*2160 (4K) | 3840*2160 (4K) |
| Colors | 8 bit / 1.07 billion colors | 8 bit / 1.07 billion colors | 8 bit / 1.07 billion colors | 8 bit / 1.07 billion colors |
| Brightness | 350cd/m2 | 350cd/m2 | 350cd/m2 | 400cd/m2 |
| Response time | 3 ms | 3 ms | 3 ms | 3ms |
| View Angle | 178°, 178° | 178°, 178° | 178°, 178° | 178°, 178° |
| Pixel pitch(mm) | 0.315×0.315 (H×V) | 0.496 (W) x 0.372(H) | 0.4296 (W) x 0.4296(H) | 0.4935mm x 0.4935mm |
| Panel life expentance | ≥50000 hrs | ≥50000 hrs | ≥50000 hrs | ≥50000 hrs |
| LCD quality | Grade A+ | Grade A+ | Grade A+ | Grade A+ |
| Speakers | 10W x 2 | 10W x 2 | 10W x 2 | 10W x 2 |
| OPS Slot | Yes | Yes | Yes | Yes |
| Power consumption | Maximun< 200W, Eco<100W, Standby Mode<0.5W | Maximun< 280W, Eco<100W, Standby Mode<0.5W | Maximun< 320W, Eco<125W, Standby Mode<0.5W | Maximun< 380W, Eco<225W, Standby Mode<0.5W |
| Power voltage | 100V - 240VAC, 50/60Hz 10W x 2 | 100V - 240VAC, 50/60Hz 10W x 2 | 100V - 240VAC, 50/60Hz 10W x 2 | 100V - 240VAC, 50/60Hz 10W x 2 |
| Width of frame(T/B/L/R) | 13.8/60.6/13.8/13.8 mm | 13.8/60.6/13.8/13.8 mm | 13.8/60.6/13.8/13.8 mm | 13.8/60.6/13.8/13.8 mm |

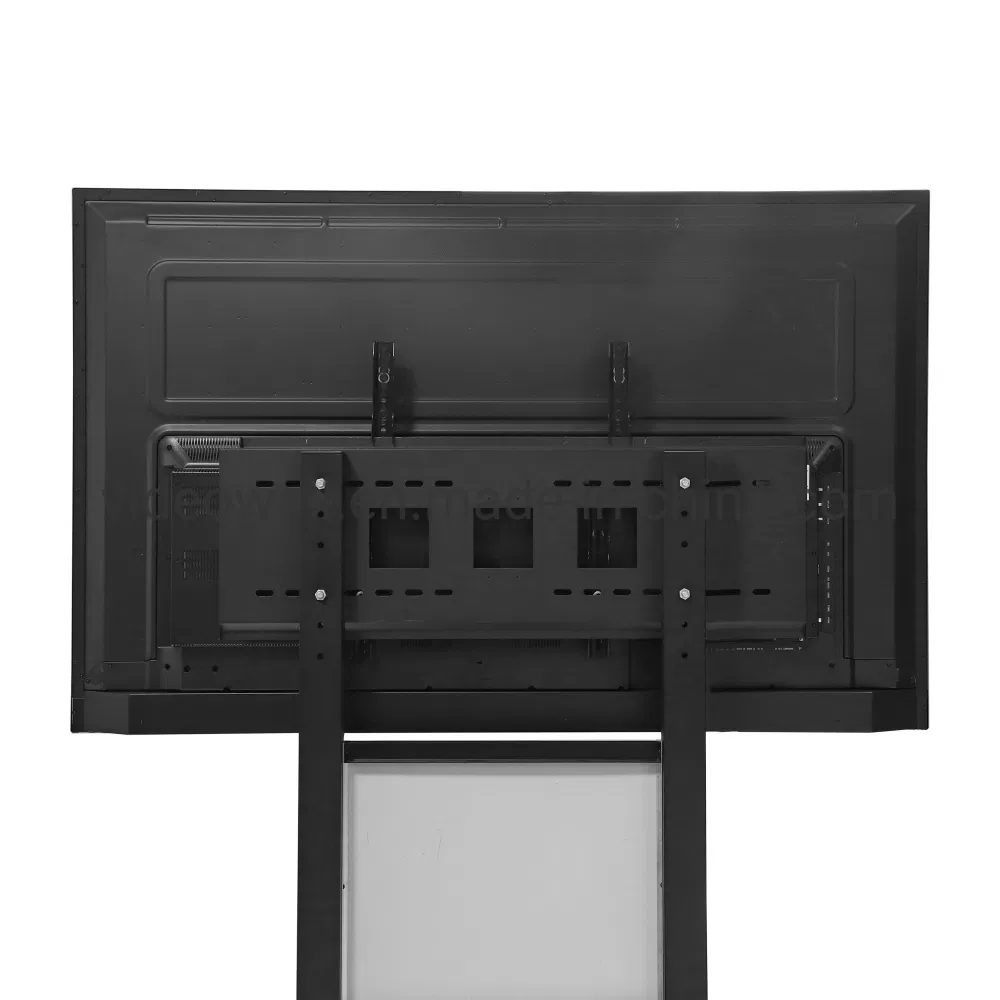

| VESA hole site | 4-M8 screw hole 400 x 400 mm | 4-M8 screw hole 400 x 400 mm | 4-M8 screw hole 600 x 300 mm | 4-M8 800 x 400 mm/4-M8 600 x 400 mm |
| OS Language | English,Chinese,Spanish,France, Spanish etc | English,Chinese,Spanish,France, Spanish etc | English,Chinese,Spanish,France, Spanish etc | English,Chinese,Spanish,France, Spanish etc |
| Model | DS-16M55 | DS-16M65 | DS-16M75 | DS-16M86 |
| Android System (Default) | ||||
| System configuration | Android 8.0 ; RAM 4G, 32G storage | |||
| Interface Inputs / Outputs | Input interface : RJ45 in*1; COAX I*1, RS232*1; AV*1; YPBPR*1; PC-Audio*1; VGA*1; VGA&DP Touch*1; DP IN*1; HDMI Touch*2; HDMI*2; FOLLOW USB3.0*2; USB2.0*1; TF Card*1; Output interface: RJ45 OUT*1; HDMI OUT*1; EARPHONE*1; Front panel interface: Follow USB*2; TOUCH-USB*1; HDMI *1 | |||
| Touch Screen Parameter | ||||
| Glass surface | 4 mm Anti-glare Tempered glass | |||
| Technology | IR touch | |||
| Touch supported | 10 points touch | |||
| Writing tools | finger or any opaque object | |||
| Positioning accuracy | 1 mm | |||
| Response Time | ≤ 2ms | |||
| Power supply | USB ; DC 5.0±5% | |||
| Minimum touch object | ≥φ2MM | |||
| Software | Yes | |||
| Touch Life Expectancy | ≥ 60 million times | |||
| OPS (optional) | ||||
| Chipset | InteI H110 Express | |||
| CPU | i3 Intel Skylake / i5 Intel Skylake / i7 Intel Skylake | |||
| Storage | 4G DDR4 RAM / SSD128G | |||
| Graphics | InteI InteIHD / NIVIDA GT1030 2G (i7) | |||
| Interface | USB2.0*4, USB 3.0*2, RJ45*1, HDMI*1, DP output*1, LINE output*1, MIC input*1, WIFI, COM (option) | |||
| OS | Windows10 (option) | |||
| Packing Details | ||||

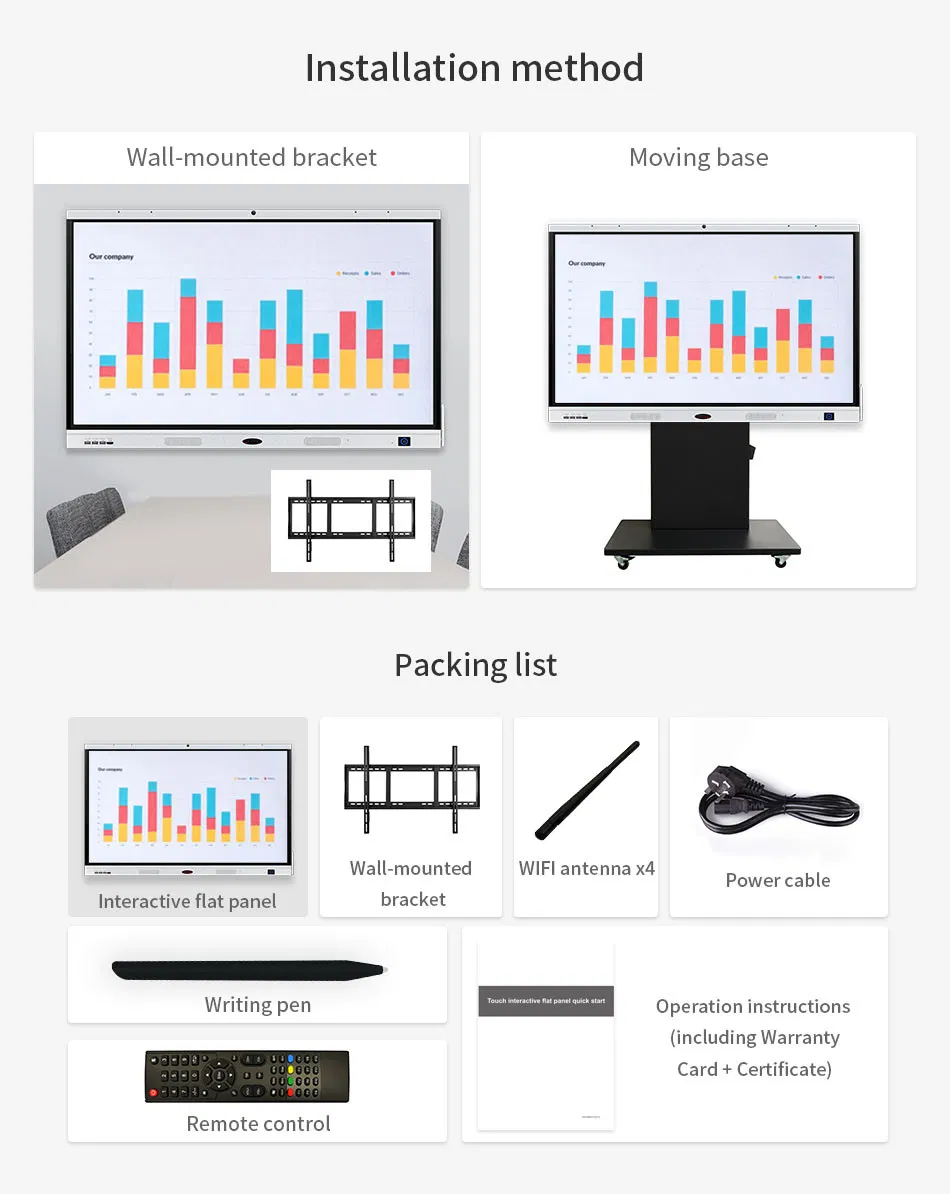

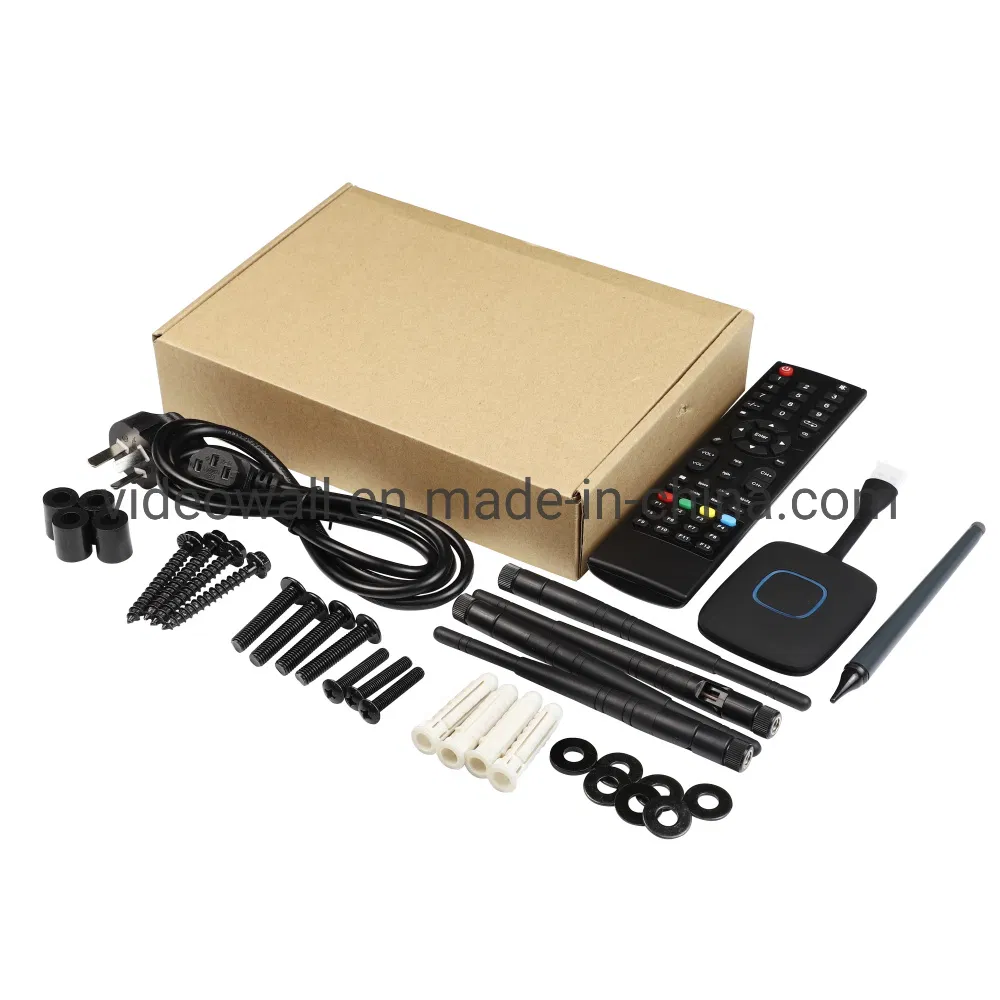

| Package list | Remote controller*1, Power cable 1.5m*1, Triangle fine pen *1;Wall Mount Bracket*1; User manual*1, WIFI antenna *4 | |||
| Packing Dimension (mm) | L1400*W240*H960 | L1680*W280*H1070mm | L1900*W280*H1210 | L2150*W280*H1350 |
| Net Weight (kg±4) | 40kg | 50kg | 75kg | 85kg |
| Gross Weight (kg±4) | 50kg | 62kg | 83kg | 98kg |
Shenzhen DS Technology Co., Ltd. is established in 2013 in Shenzhen.DS is a high-tech enterprise specialized in development, production and marketing of the special lcd display. Our products are divided into several series: Industrial LCD monitor, Touch screen LCD monitor(55"-98"), LCD video wall(46"-55"), video wall processor ,controller, matrix switcher ,HDMI /VGA splitter and other industrial screen display

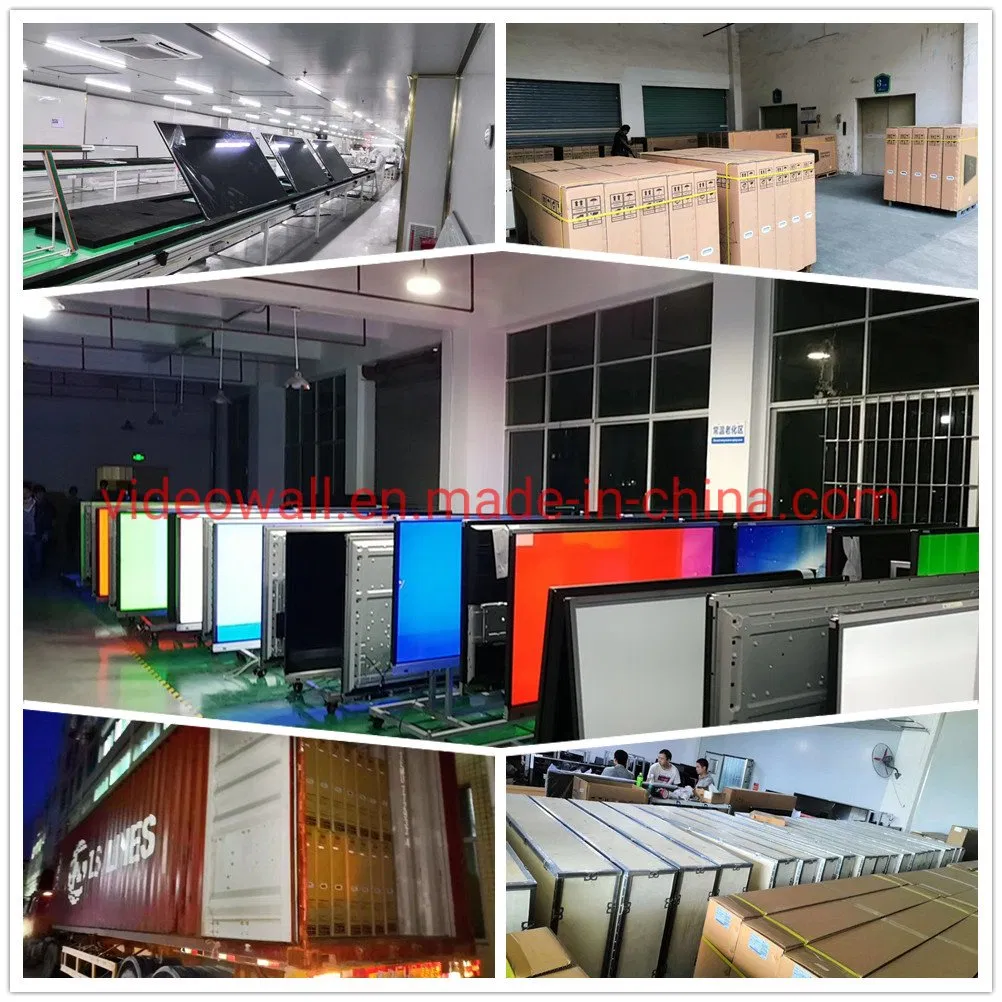

Our factory locates in Shenzhen, owning core experienced technology team. We are certificated ISO9001 : 2008 quality management system and ISO14001 : 2004 environmental management system. We have strict quality control process to ensure every product can meet our customer's requirement.
DS believes in profession, honesty and integrity will bring our customer value ,we dedicate our team in providing quality product and service. And we believes that is our brand value.
Shipping and Payment
1.Payment term : T/T 30% down payment before production,the 70% balance should be paid before shipment after inspection.
2.Warranty: 12 months warranty .Lifetime maintainance.
3.RMA policy: customer bear all the freight and duty charge to the factory,and the factory afford retum freight charge.
4.Remark: ROHS, CE & FCC certificates in e-file format are available.
5.PackagE:LCD display touch screen is packed in carton box with EPE protection.And carton will be packed with wooden case in international shipping.
Why Choose us?
1. Experienced engineers and sales with big lcd industry manufacturer and project background
2. ISO 9001 ,CE,ROHS, 3C,FCC Certificated products: touch screen kiosk, smart whiteboard touch screen and seamless bezel video wall
3. Full industrial display chain resources : LCD video wall,touch screen kiosk,all in one pc, interactive whiteboard,touch screen monitor,video wall controller,matrix, video splicing processor, matrix switcher and VGA HDMI cable etc accessories.
4. Original factory lcd screen,Reasonable price ,high quality and good after-sale tech support
5. Short delivery time ,flexible payment way
6. Quick response ,provide free training for customers.
