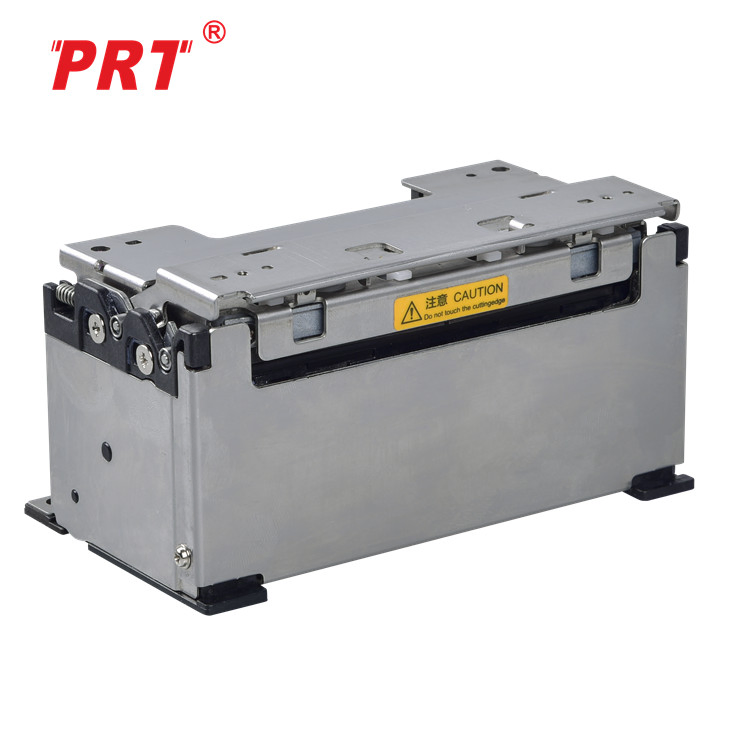

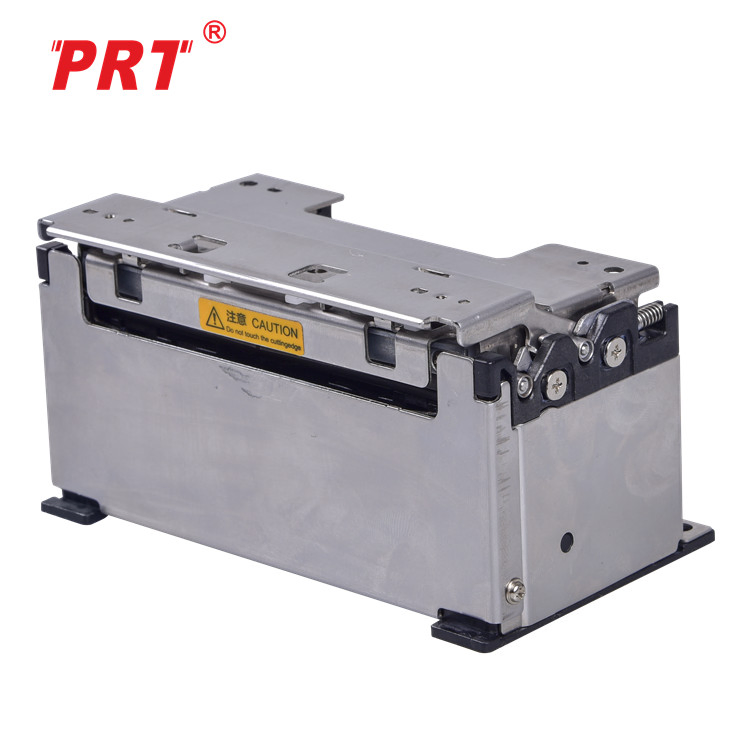

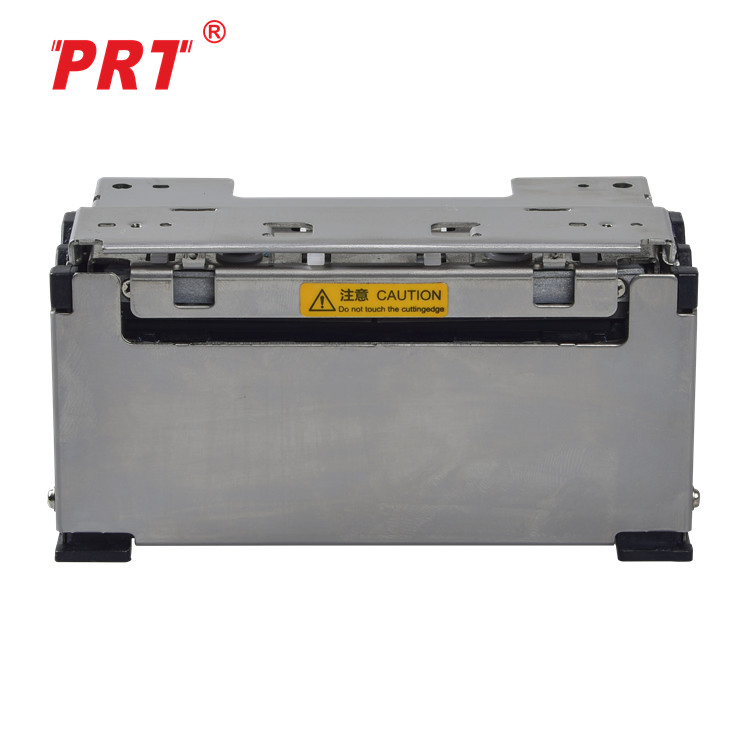

PT72AS Thermal Printer Mechanism with Auto-cutter Replacement of CAPM347

Product Description

PT72AS Thermal Printer Mechanism with Auto-cutter Replacement of CAPM347

Feature:
High-resolution printing
Printing speed adjustable
Easy paper loading

Specification:

Printing method		thermal dot line printing
Total dots per line		640 dots
Resolution		8 dots/mm
Print width		80mm	72mm	56mm	54mm
Paper width		83mm	80mm	60mm	58mm
Printable dots		640dots	576dots	448dots	432dots
Dimension		110.0 * 61.1 * 53.5mm
Weight		500g
Maximum printing speed		300mm/s
Recommended paper		PD160R(OJI)
Paper feed pitch		0.0625mm
Head temperature detection		Via thermistor
Head-up detection		Yes(via microswitch)
Paper-out detection		Via photo interrupter
Black mark detection		Via photo interrupter
Cutter reset detection		Via photo interrupter
Reliability parameter Life span	Activation pulse resistance	200 million pulses
	Abrasion resistance	200 km or more
	Autocutter life span	200 million times
Ambient condition	Operating temperature	0°C~50°C (non condensing)
	Operating humidity	20~85% RH
	Storage temperature	-30° C~70° C (non condensing)
	Storage humidity	10~90% RH

Application:

Kiosk printer
Self-service terminals/vendor/lining machine
POS terminals
Banking machine
Ticketing machin

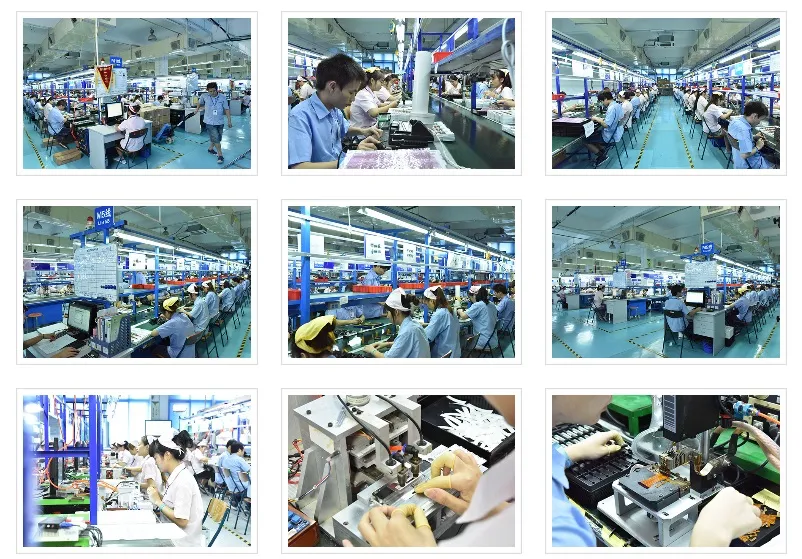

Workshop:
