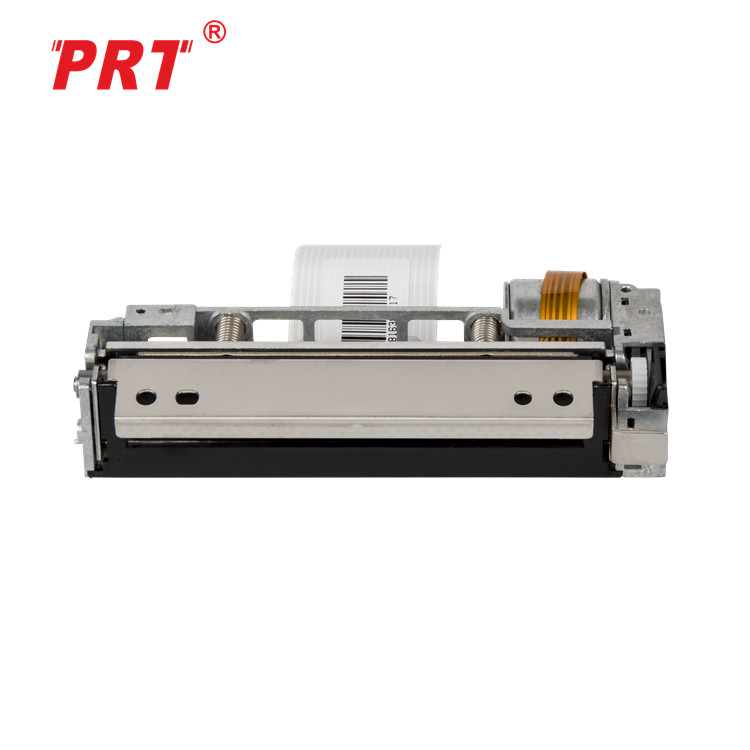

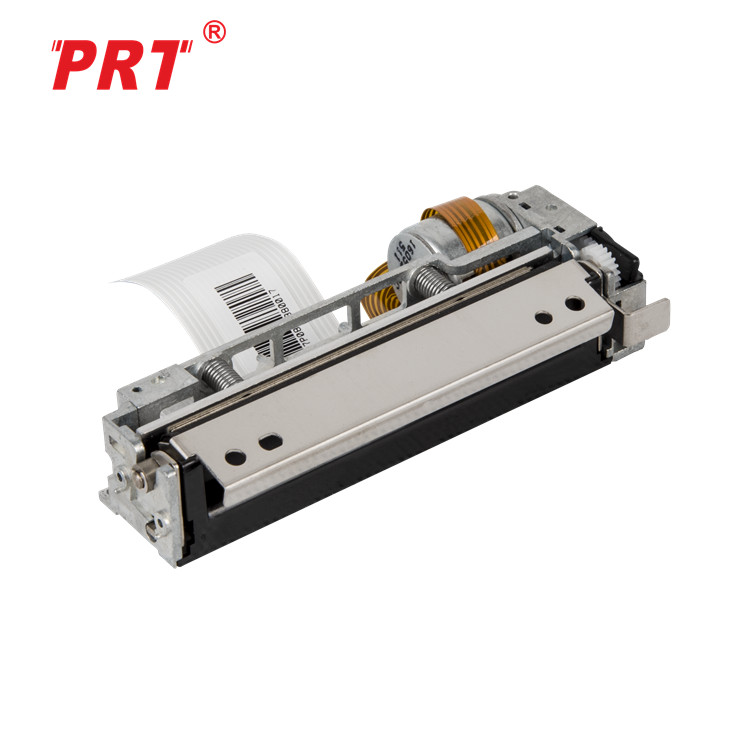

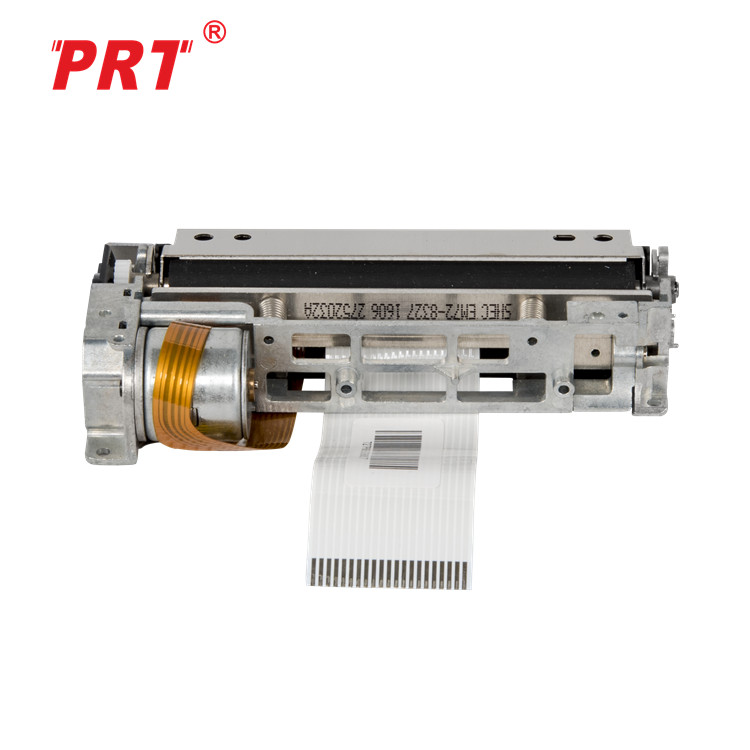

PT727F 3inch Thermal Printer Mechanism Compatible with Fujitsu FTP639 MCL103
PT727F 3inch Thermal Printer Mechanism Compatible with Fujitsu FTP639 MCL103Features:1. Low voltage supply2. Compact and lightweight design3. Printing with high resolution4. High speed printing5. Easy paper loading6. Low noiseSpecifications:Print methodThermal dot line printingDots per line576 dotsR......
Send Inquiry
Product Description
PT727F 3inch Thermal Printer Mechanism Compatible with Fujitsu FTP639 MCL103
Features:
1. Low voltage supply
2. Compact and lightweight design
3. Printing with high resolution
4. High speed printing
5. Easy paper loading
6. Low noise
Specifications:
Applications:
ECR/financial POSW
Weighing scale
Fire control system
Medical devices
Measuring device

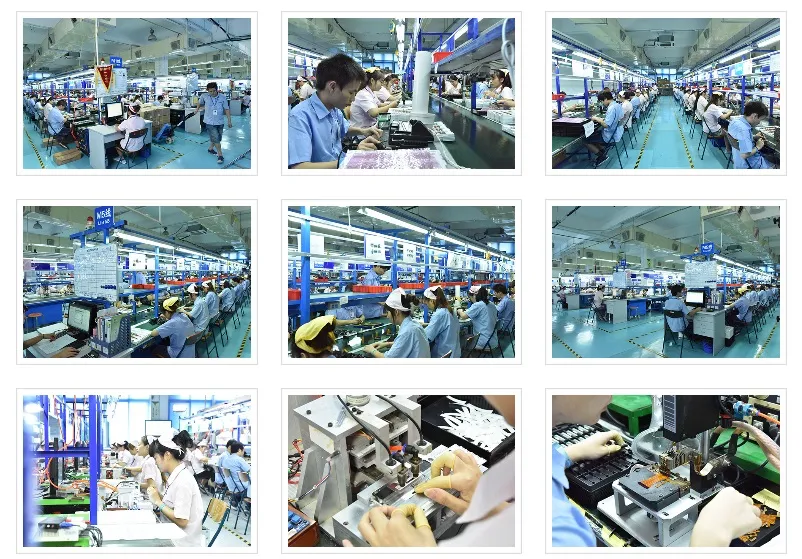

Workshop:
Features:
1. Low voltage supply
2. Compact and lightweight design
3. Printing with high resolution
4. High speed printing
5. Easy paper loading
6. Low noise
Specifications:
| Print method | Thermal dot line printing |
| Dots per line | 576 dots |
| Resolution | 8 dots/mm |
| Print width | 72mm |
| Paper width | 80mm |
| W * D * H(mm) | 104.3±1*40.5*20.3 |
| Weight | 116.7g |
| Maximum printing speed | 70mm/s |
| Recommended paper | PD160R (OJI Paper CO.,LTD.) |
| Paper feed pitch | 0.125mm |
| Head temperature detection | Via thermistor |
| Out-of-paper detection | Via photo interrupter |
| Life span (at 25ºC and rated energy) Activation pulse resistance Abrasion resistance | 100 million pulses or more (print ratio=12.5%) 50 km or more |
| Operating temperature range (ºC) | -10~+55 |
| Operating humidity (RH) | 20%~85% |
| Storage temperature range (ºC) | -20~+60 |
| Storage humidity(RH) | 5%~95% |
Applications:
ECR/financial POSW
Weighing scale
Fire control system
Medical devices
Measuring device
Workshop:
