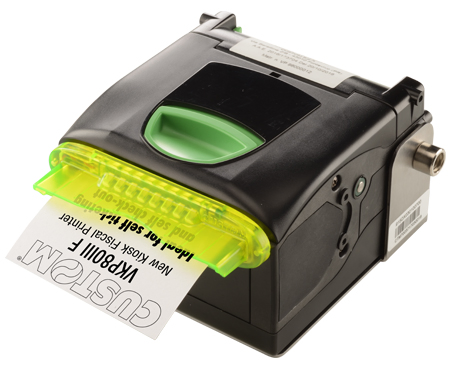

High Reliable Compact 80mm Fiscal Kiosk Printer CUSTOM VKP80III F Self-Service Kiosk Fiscal Resetting

Product Description

80mm Thermal Printer CUSTOM K80 for Self-Service Kiosk ATM Bank Parking and Vending Payment Machines Kiosk Ticket Receipt Printer CUSTOM K80

200dpi high printing quality
80mm paper width
Paper thickness: from 55 to 110 g/m²
Speed > 200 mm/sec
Ejection&Retract (speed>1000 mm/s)
Paper roll (diameter 150mm) and fan-fold (450 tickets)
Multi-position paper roll (3 positions for each side)
High reliability and sturdiness

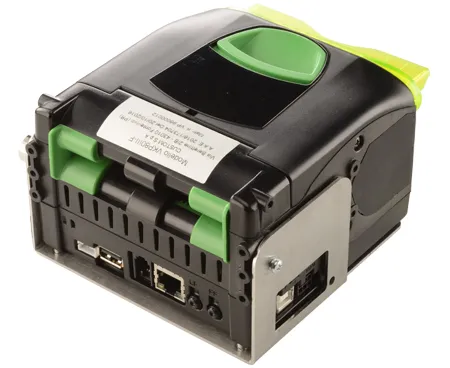

RS232 + USB 2.0 full speed + Ethernet interfaces
Printable barcodes: UPC-A. UPC-E, EAN13, EAN8, CODE39, ITF, CODE128, PDF417, QRCODE, GS1-DATABAR
True Font characters supported
Long lasting printing head (150 Km)
Highly reliable cutter: > 1.000.000 cuts
Sensors: paper presence in entrance, paper presence in exit, head temperature, ejector position, printing group opening, swinging bulkhead position, almost paper end with external roll holder

CHARACTERISTICS

Department and PLUs planning up to 22 characters
Header planning up to 36 characters on 9 lines
Automatic calendar with printing of perennial hour
Cancellation of wrong operations, undo of wrong receipt, returned goods
Calculation, printing and change visualization
Credit retrieval
VAT calculation and rates partition
Memorization and printing of fiscal code, VAT number and Customers' data
Fiscal resetting
Control of open receipt from keyboard

EXCLUSIVE FEATURES:

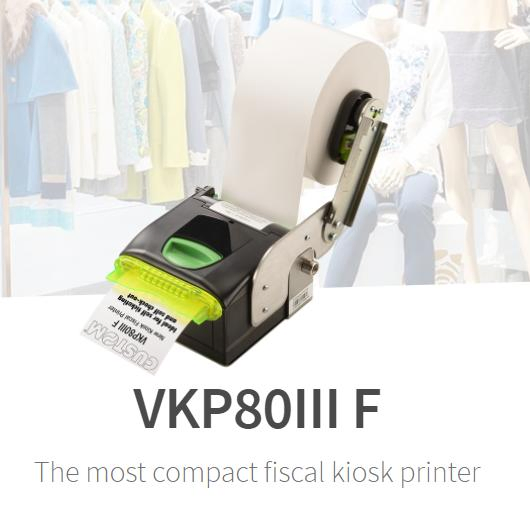

The most compact fiscal kiosk printer: only 129,1x143,5x77,9 mm

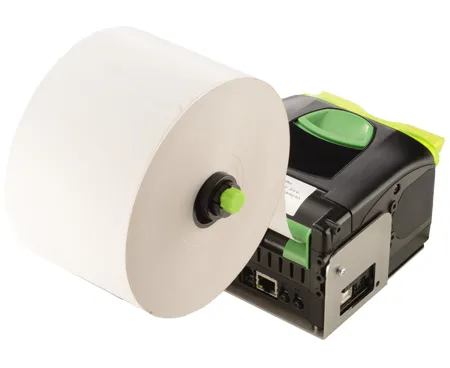

Flexible: roll holder separate from the printer body, with ergonomic system for paper loading from the right or left side, suitable for all types of kiosks
Anti-jamming system with printer clean command and jam removal
Automatic ticket issuing&retracting
Retracting function without ticket presentation
Hot swap function: the printer can be removed from the kiosk without powering it off
Print head with auto-diagnostic function: it's possible to get the number of non working dots
Printing width: 80 mm
Printing formats: double height, double width, bold, compacted, italic
Operating temperature: from 0 °C to +50 °C

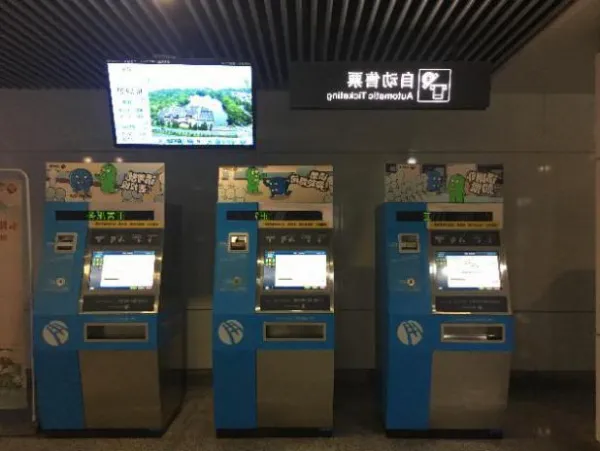

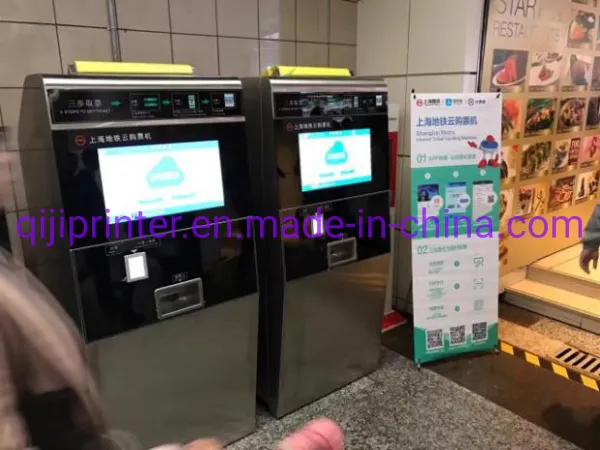

APPLICATIONS:

Self ticketing
Self check out

High Reliable Compact 80mm Fiscal Kiosk Printer CUSTOM VKP80III F Self-Service Kiosk Fiscal Resetting

0mm Touh Screen Embedded Tg2480hiii Thermal Ticket Printer Custom Kiosk Printer Tg2480h/Tg2480hiii for ATM Parking Payment Vending Machines

80mm Touch Screen Embedded Tg2480hiii Thermal Ticket Printer Custom Kiosk Printer Tg2480h/Tg248
High Reliable Compact 80mm Fiscal Kiosk Printer CUSTOM VKP80III F Self-Service Kiosk Fiscal Resetting 0hiii for ATM Parking Payment Vending Machin
80mm Touch Screen Embedded Tg2480hiii Thermal Ticket Printer Custom Kiosk Printer Tg2480h/Tg2480hiii for ATM Parking Payment Vending Machines

TECHNICAL SHEET
Electronic Journal	Micro SD
Mass Storage	Flash memory: 2 Mbytes (+1 Mbytes inside the micro)
	RAM memory: 128 Kbytes internal + 8 Mbytes external
	RAM memory without batteries: 64 Kbytes
	Fiscal memory: 256 Kbytes (2500 resettings)
Paper width	80 mm
Printing speed	200 mm/sec
Interfaces	RS232, USB, ETHERNET
PLUs	30 (free and fixed)
Customers	10 (with total sold management)
Users	2 (with possibility of password)
Payment types	10 programmable
Price Modifiers	Discounts and increases on item, on subtotal, per value and in percentage
VAT rates	6
Reports	Fiscal, financials, stats of sales and historic
Dimensions	143,5(L) x 77,9(H) x 129,1(W) mm
Resolution	203 dpi
Paper roll dimension	max 150 mm
Medium consumption	1.2 A
Power supply	24 Vdc±10% (optional external power supply)
MTBF	150.000 hours (electronic board)

80mm Touch Screen Embedded Tg2480hiii Thermal Ticket Printer Custom Kiosk Printer Tg2480h/Tg2480hiii for ATM Parking Payment Vending Machines

High Reliable Compact 80mm Fiscal Kiosk Printer CUSTOM VKP80III F Self-Service Kiosk Fiscal Resetting

1.Can I get a sample order first to test the quality and compatibility?

Yes, usually we have samples in stock, customers can easily buy them for testing purpose.

2.What about delivery time?

For sample, usually 3 days. For bulk order,usually 7 to 15 days,depends on order quantity.

3.How about shipping methods?

DHL, UPS, FedEx,China Post, etc are all ok, we will choose the economical and fast way.

4.How about the warranty?

All items have 1 year guarantee.

5.How will you control the printer's quality?

We fully tested every product before shipping out, and also we have QC persons.

6.Can you make OEM or ODM for products?

Yes, OEM and ODM products are available.
