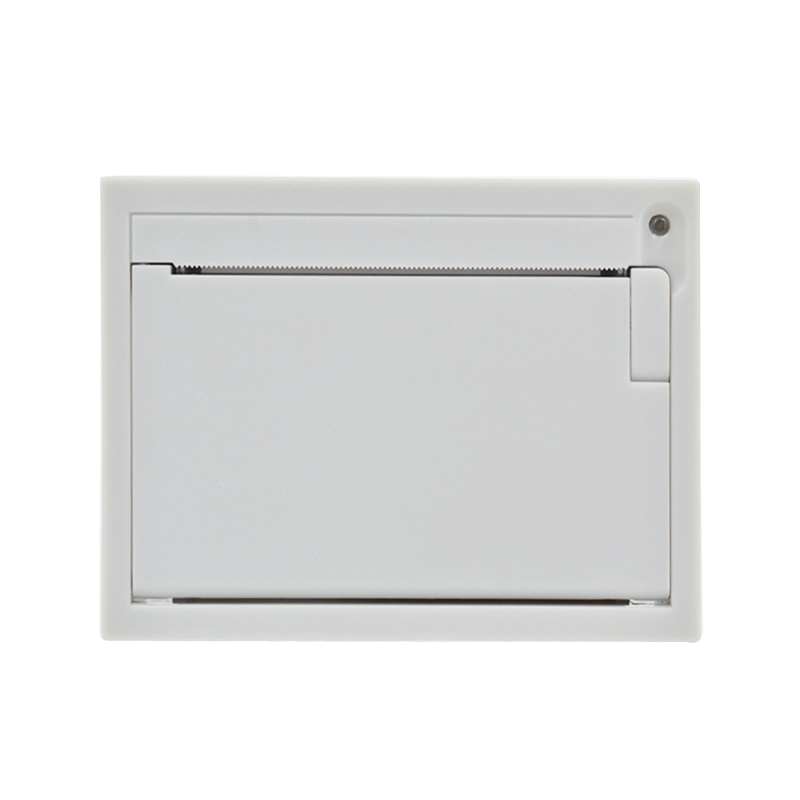

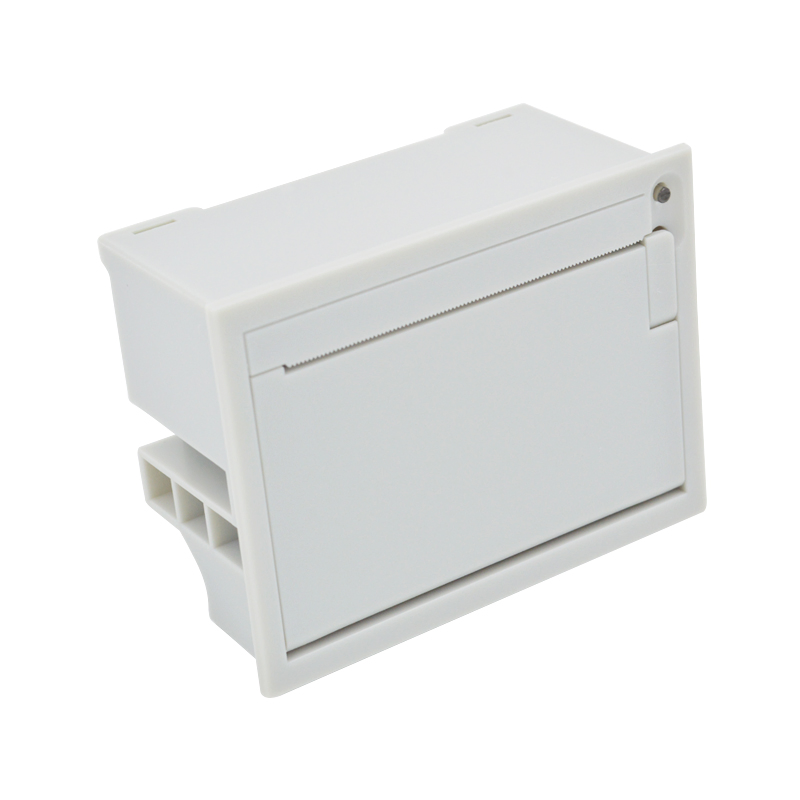

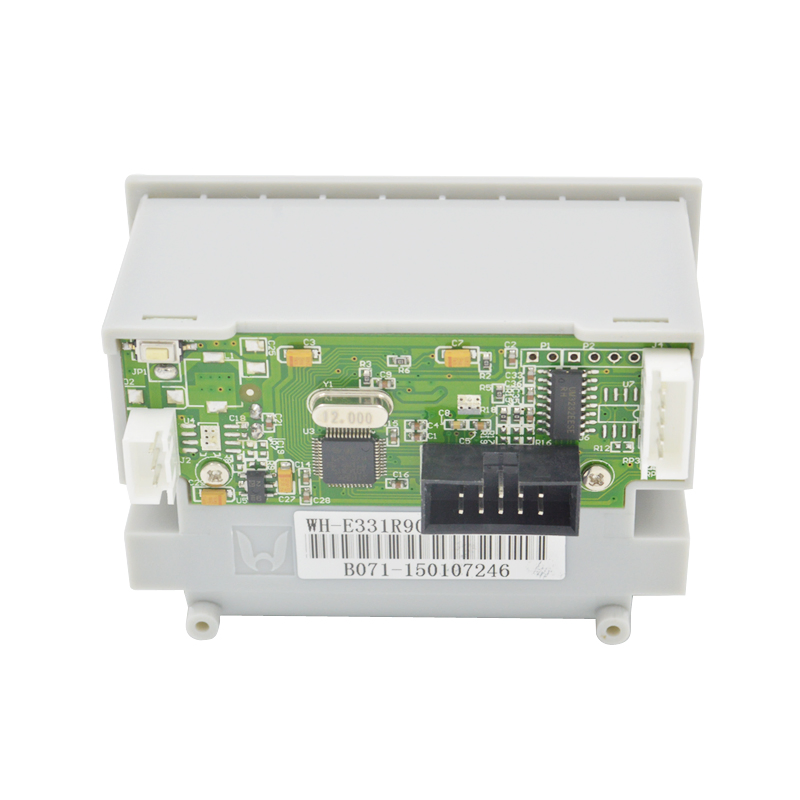

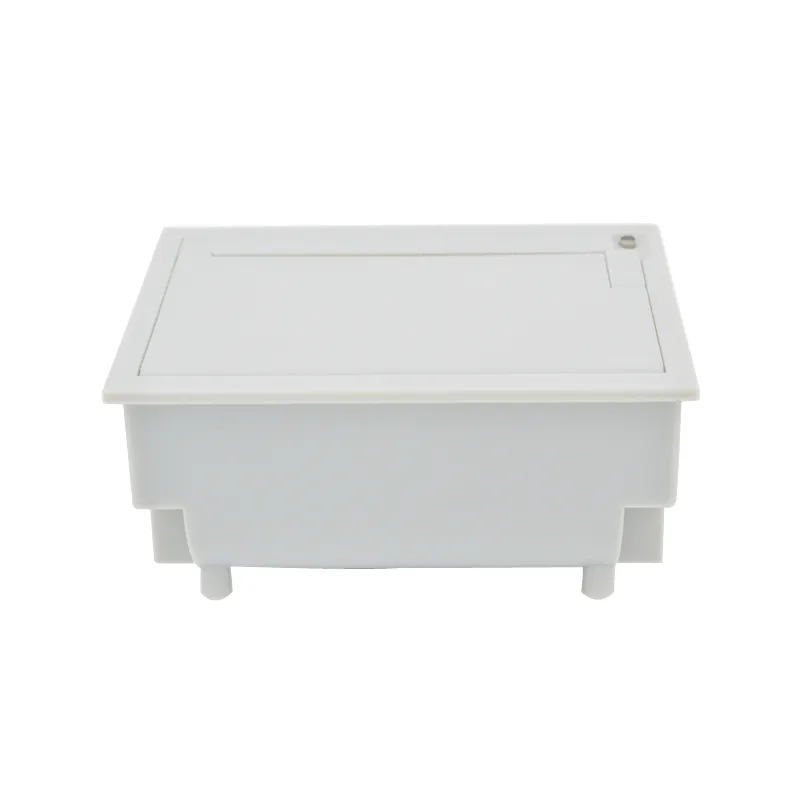

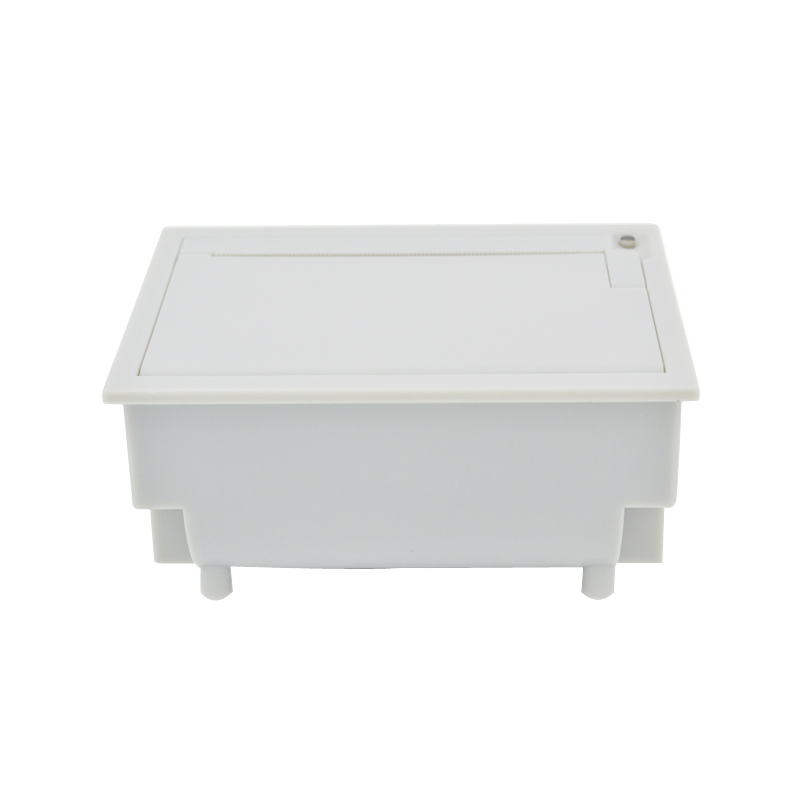

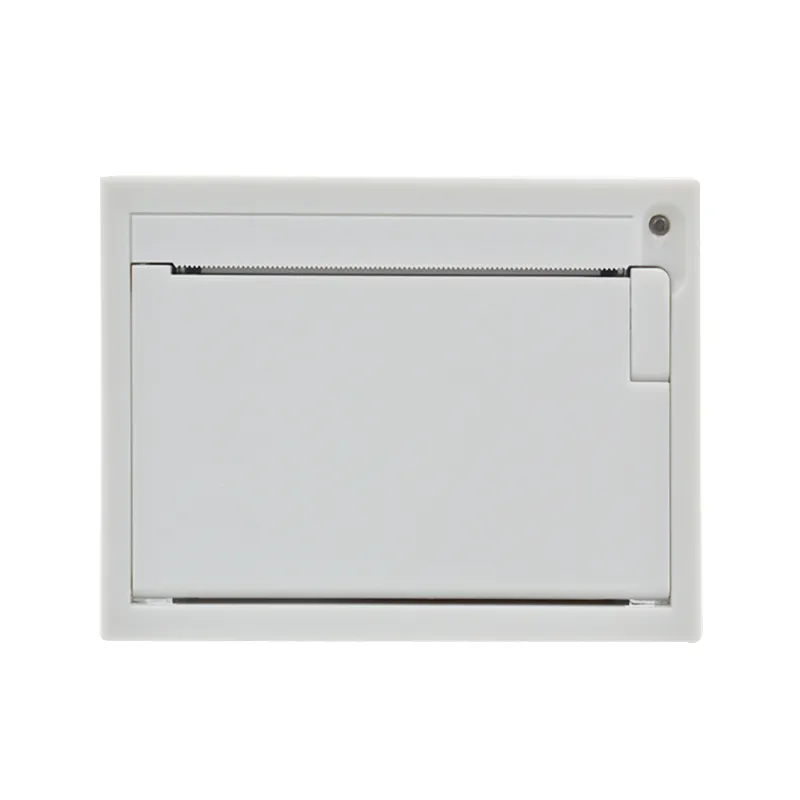

China Easily Embedded 58mm Serial Ttl Micro Thermal Printing Receipt Panel Printer

Product Description

Features

- With set/half cutter, scissors type paper cutting, with hard-wearing cutter
- Very silent printing thru direct thermal printing method
- High speed(100mm/sec, based on character ratio 25%)
- Support 24V power
- Paper end sensors function and self-motion memory printing function
- Serial RS-232, TTL / Parallel/ USB/ Ethernet interface
- Abundant figure / curves / characters print function
- Easier paper loading (key ejecting type)
Easily Embedded 58mm Serial Ttl Micro Thermal Printing Receipt Panel Printer

Easily Embedded 58mm Serial Ttl Micro Thermal Printing Receipt Panel Printer

Applications

Mobile POS, Field sales and service, Transportation, Hospitality, Parking, Utility billing, Safety, Material management.

Specification

Item	Specification
Printing method	Direct thermal line printing
cashbox	Two cashbox driver signals
Paper out detection	Paper end sensors and paper nearly end sensors function
Paper loading way	Easy paper loading
Paper width	80mm
Print width	72mm
Resolution ration	576dots/mm
Life of printing head	6,000,000 character lines
Printing speed	100mm/s
Character	68dots, 1224dots
Chinese character library	GB2312 1616dots,GBK 2424dots
Input power	DC 24V, 50W
Outline dimension	150mm192mm144mm
Paper supplied	Thermal roll paper(80mm, 80mmø)
Interface	Serial RS-232,TTL/ Parallel/ USB/ Ethernet interface
Operating Temperature	5ºC ~ 50ºC
Storage Temperature	-20ºC ~ 60ºC
Operating Humidity	10% ~ 80%
Storage Humidity	10% ~ 90%
