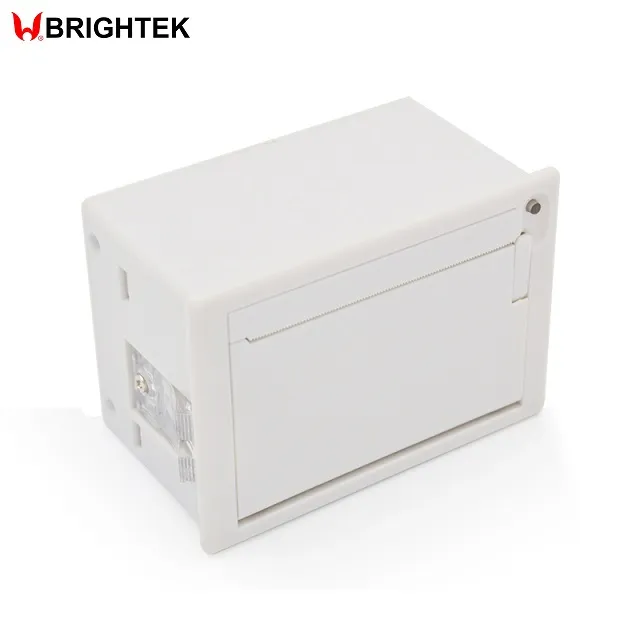

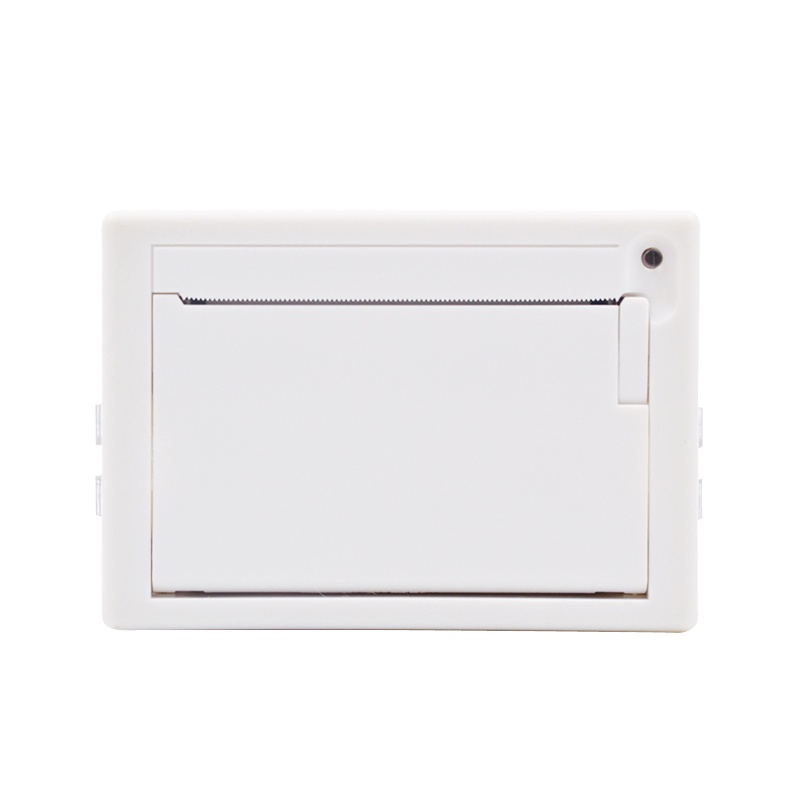

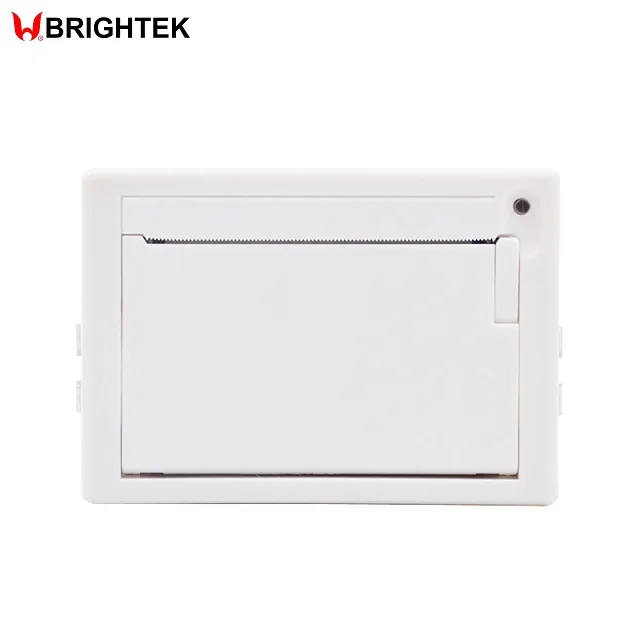

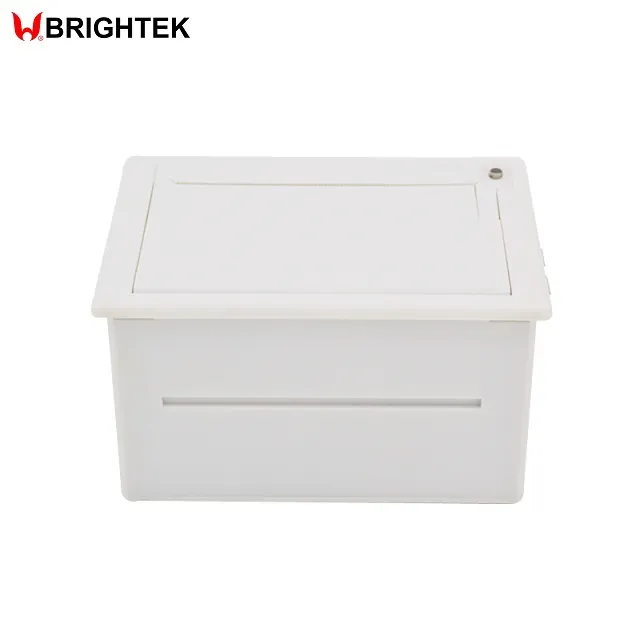

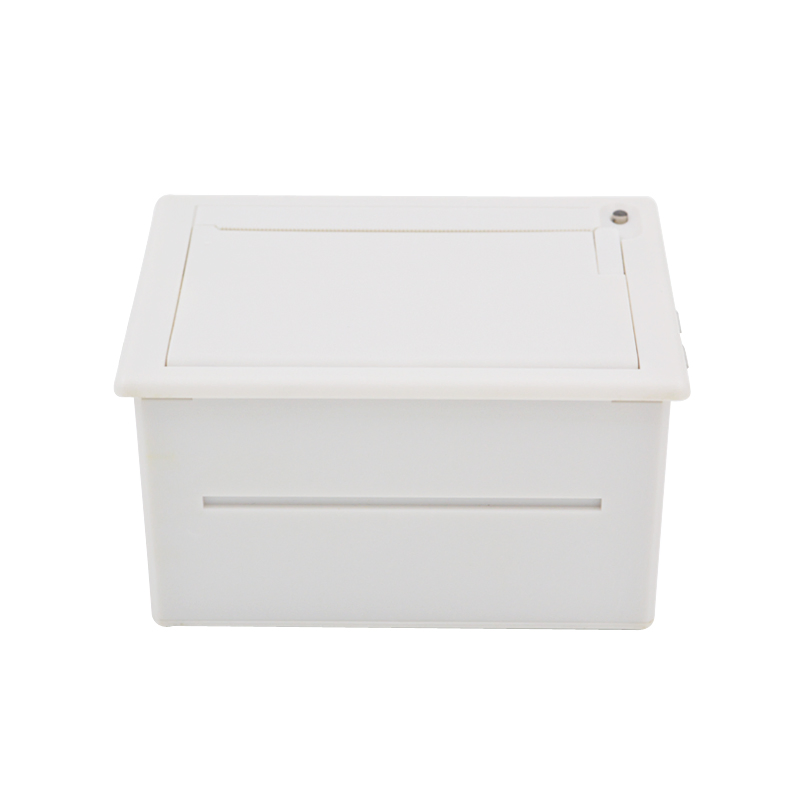

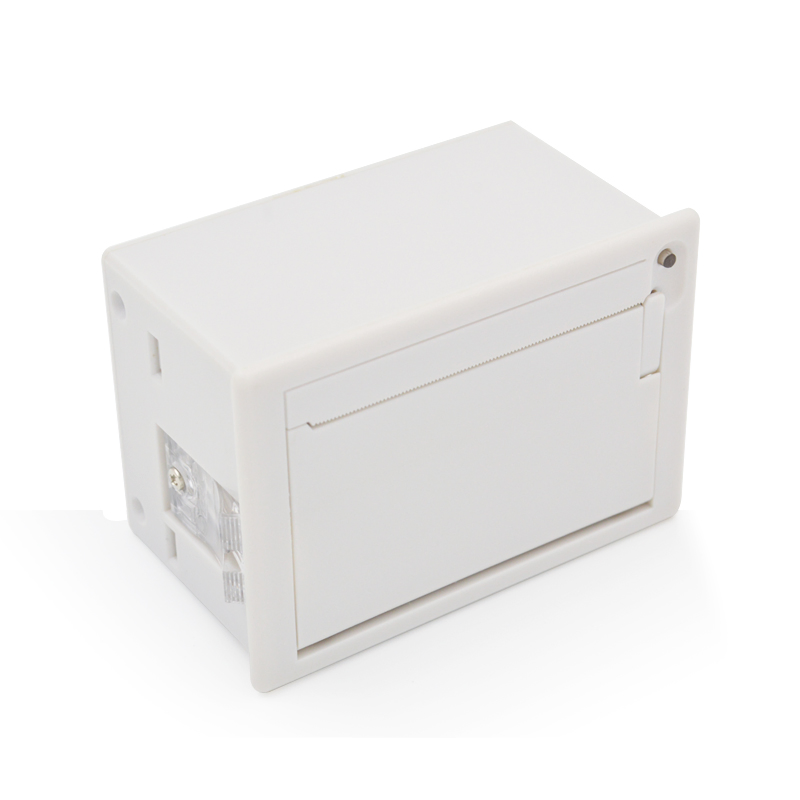

57mm Wh-E32 Portable Panel Thermal Printer with Interface Serial RS232 Ttl

Product Description

WH-E32 Thermal Panel printer with Serial RS232 485 TTL Parallel USB interface
Features:

- Stylish, delicate and elegant appearance
- Very silent printing thru direct thermal printing method
- The installation dimension: 78mm*53.5mm
- Paper end sensors and self-motion memory printing function
- Support 3.3V low voltage system
- Add coordinate curve printing function
- Serial RS-232C, 485, TTL/ Parallel/ USB interface
- Abundant figure/ curves/ characters print function
- Easier paper loading

Specification

Item	Specification
Printing method	Direct thermal line printing
Print out detection	Paper end sensors function
Paper loading way	Easy paper loading
Paper width	57mm
Print width	48mm
Resolution ration	384dots/line
Life of printing head	6,000,000 character lines
Printing speed	30mm/s(when the character ratio is 25%)
Character	68dots, 816dots, 12*24dots
Chinese character library	GB2312, 1616dots, 2424dots
Outline dimension	83mm58.5mm47.5mm
Installation dimension	78mm*53.5mm
Paper supplied	Thermal roll paper (57mm, 30mmø)

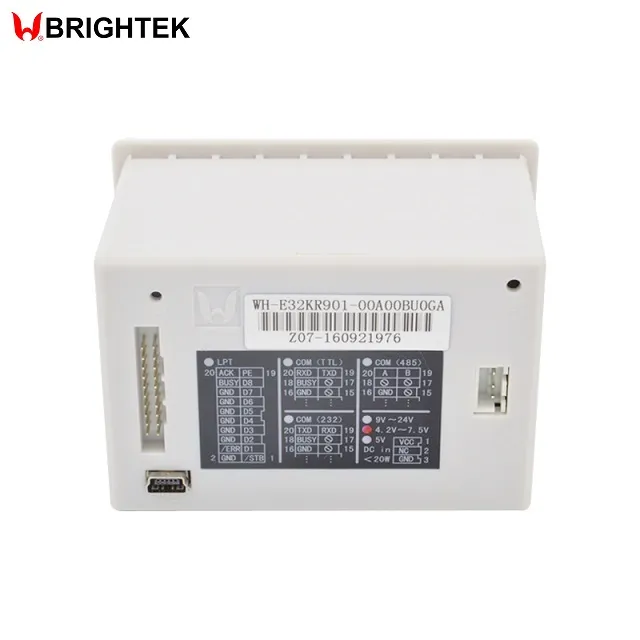

Interface	Serial RS-232, 485, TTL/ Parallel/ USB interface
Input power	DC5V-8.5V,3A/ 9-24V,30W
Operating temperature	5ºC~ 50ºC
Storage temperature	-20ºC~ 60ºC
Operating humidity	10% ~ 80%
Storage humidity	10% ~ 90%
