4 Inch Label Terminal Sticker Ticket Mobile Bar Code Printer Hcc-L51
Mobile Bluetooth Printer HCC-L51Feature1. LCD display2. 1",2",3",4" Paper Size available3. Super battery capability4. Super diameter paper by outside bracket5. Compatible with CPCL, ESC/POS command setSpecificationPrinting MethodThermal LineResolution8 dots/mm(203dpi)Effective Pr......
Send Inquiry
Product Description
Mobile Bluetooth Printer HCC-L51
Feature
1. LCD display
2. 1",2",3",4" Paper Size available
3. Super battery capability
4. Super diameter paper by outside bracket
5. Compatible with CPCL, ESC/POS command set
Specification
| Printing Method | Thermal Line | |
| Resolution | 8 dots/mm(203dpi) | |
| Effective Printing Width | 104mm/100mm/72mm/48mm/37.5mm | |
| 111.5mm±0.5mm:832dots/line 101.5mm±0.5mm: 800dots/line | ||
| Paper Width & Dots per line | 79.5mm±0.5mm: 576dots/line; 58mm±0.5mm: 384dots/line | |
| 44mm±0.5mm: 300dots/line | ||
| Printing Speed | 80mm/s (thermal paper); 50mm/s (label paper) | |
| Graph Printing | Diagram, downloaded bitmap supported | |
| Print Font | Chinese: 24×24; 16×16; ASCII: 9×24;12×24;18×16 | |
| TPH | 50km | |
| Barcode | 1-Dimension | UPCA, UPCE, EAN13, EAN8, CODE39, ITF25, CODABAR, CODE9 |
| 3, CODE128 | ||
| 2-Dimension (reserved) | PDF417, QR CODE, DATA Matrix | |
| Interface | Mini USB+Bluetooth Double Mould Bluetooth2.0&Bluetooth4.0, one-to-many | |
| BT or one-to-one BT optional)or WIFI (reserved) | ||
| Command Set | ESC/POS & CPCL | |
| Other Functions | Paper-out alarm, Black-mark detection, Auto-sleep, LCD Display, Buzzer | |
| Paper Type | Thermal Paper, Black mark Paper(44mm or 58mm)and Label Paper | |
| Paper Roll Diameter | Max 40mm (extensible) | |
| Paper Thickness | 0.06mm~0.14mm | |
| Battery& Charger | 7.4V/2300mAh rechargeable Li-ion battery; 8.4V/800mA charger | |
| Printing length for one charge | more than 120m(25% printing density) | |
| Standby | more than 150hours | |
| Paper Supply Method | Drop-in easy paper loading | |
| Outline Dimension | 140(L)X115(W)X51(H)mm | |
| Weight | 500g(not including paper) | |
| Drop Resistance | 1.5m | |

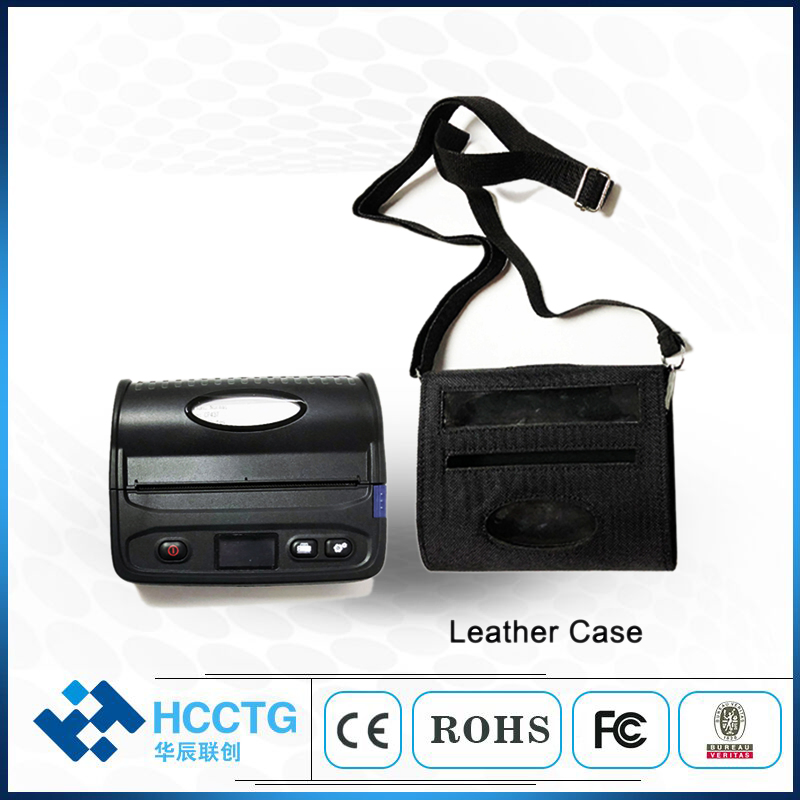

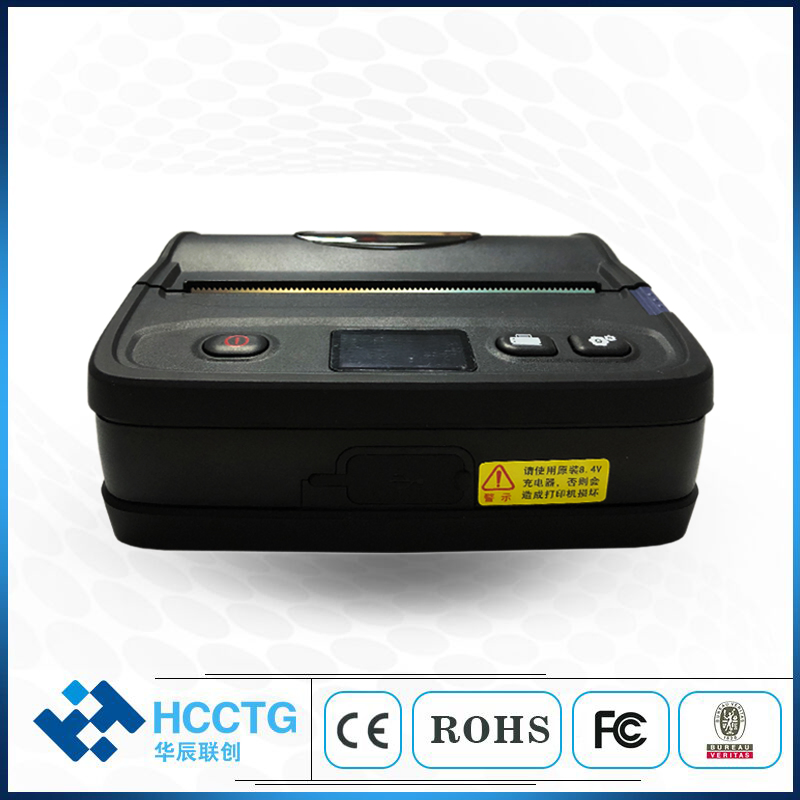

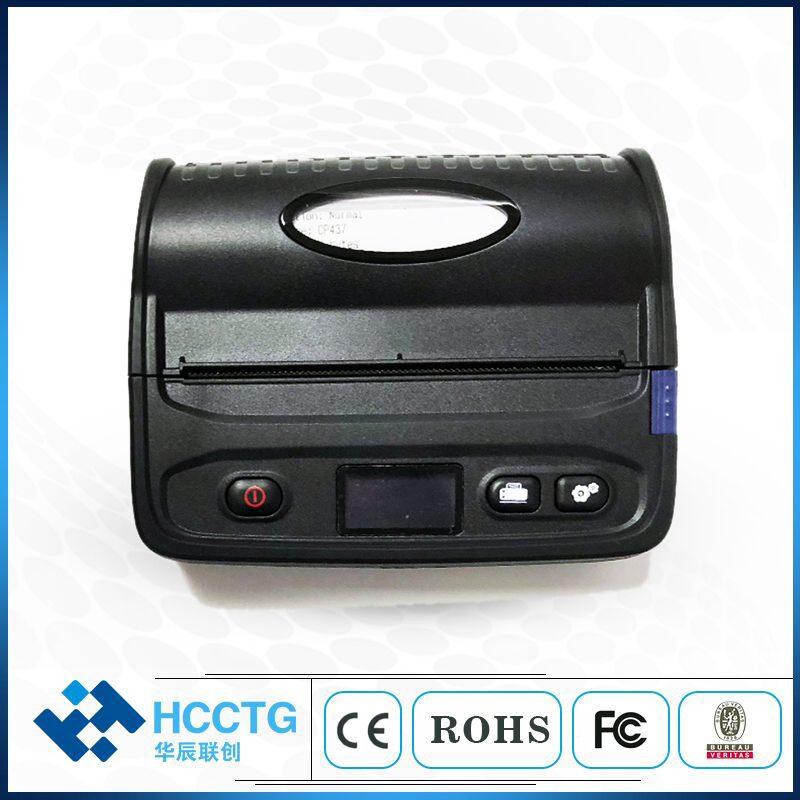

Picture:
FAQ
1. Are you manufacturer?
Yes, we are manufacturers. We have been in PC/POS/Mobile Payment product & Solution since 2008. We can provide OEM / ODM customized service according to our customers' various application and demands.
2. Would you provide SDK for me?
Yes, we offer free SDK if you order sample. All the contents in a CD ROM with sample together.
3. What warranty for the products?
According to our warranty policy, we will provide 12 months warranty time from the shipment date for our all products (Excluded the consumable parts). As for the mass order, we will provide certain proportion spare parts or RMA machine for local service.
4. What is the minimum order?
We accept one piece for standard products. If require OEM, will see detailed requirements and confirm MOQ to you from our sales department.
5. Can we get the free sample?
Sorry, generally we would not provide the free sample. If the customer confirm the specification and price, they can order the sample firstly for the testing and evaluation. When they place the mass order, we can return the sample cost to the customers.
6. Do you accept Paypal?
Yes, we accept paypal. Besides, we accept Western Union, T/T, L/C Secure payment (Escrow Service from Alibaba) and so on.
7. What's the delivery time?
Generally, sample can be shipped in 2-3 working days after payment. For quantity, theleading time will be 1-4 weeks depend on exact quantity.
8.Which way to deliver the goods?
By Express: DHL UPS TNT FEDEX or ARAMEX EMS E-packing.
By Sea: Inform us the Sea Port to check which ship line.
By Air: Inform us the Airport to check which flight.
Or pick up by the customers.
9. What the after sale service?
a. Our all products will provide 12 months warranty;
b. Enough stock spare parts for guarantee;
c. Professional engineers provide 7*24 online service; If required, our engineers can provide local service in field;
d. As for the returned failure products, we will fix it and return to the customers in one week after we received it;
