China 2 Inch 58mm Thermal Printer Mechanisms Winspu TP26X FTP628MCL701 for POS and Cash Registers and Ticket Issuing

Product Description

2 Inch Thermal Printer Mechanisms Winspu TP26X FTP628MCL701 for POS and Cash Registers and Ticket Issuing

2 Inch 58mm Thermal Printer Mechanisms Winspu TP26X FTP628MCL701 for POS and Cash Registers and Ticket Issuing

Brand Information:

Winspu is committed to provide highly reliable, innovative thermal printer solutions to meet customers' various demands. We are dedicating to achieve the mutual benefits between customers and us by professional and honest cooperation. We wish to establish and maintain a long-term relationship with every customer built on respect, confidence and mutual trust.

Product Basic Information:

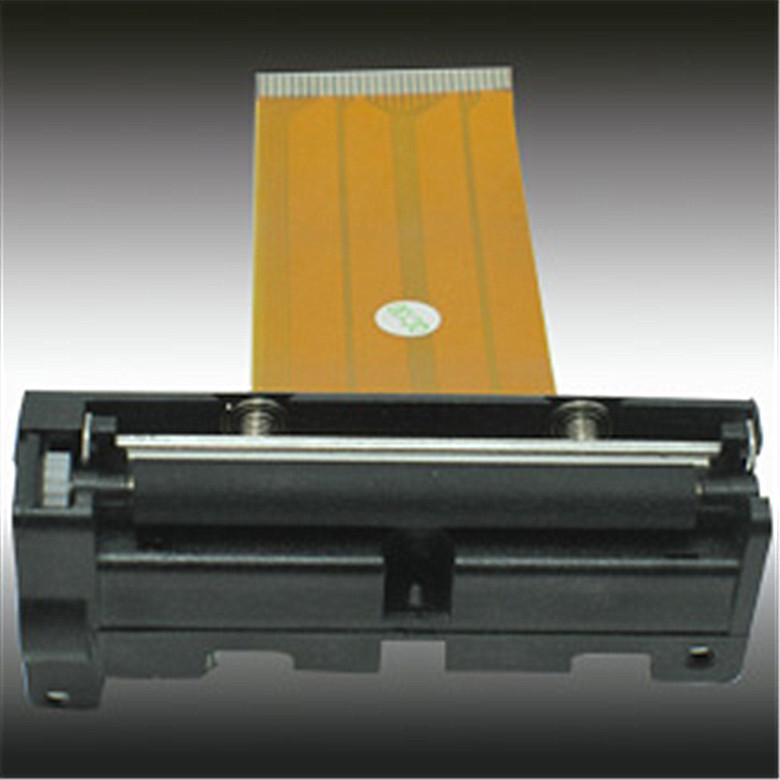

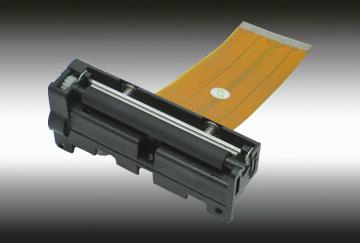

Thermal printer mechanism TP26X series is ultra compact, high speed, light weight thermal printer, printing on 2-inch wide paper (58mm). This thermal printer mechanism, with easy loading mechanism, improves paper loading and printer mechanism maintainance greatly

Product Key Benefits:

1. With easy loading mechanism, greatly improving paper loading and maintenance.
2. Ultra compact ,veritcal installation
3. High speed up to 80mm/s
4. High printing resolution up to 8 dot/mm
5. High endurance of 100km (using F230AA Mitsubishi paper, DJ03 paper or equivalent thermal paper)
Winspu 2 inch Thermal Printer Mechanisms TP26X FTP628MCL701 for POS and Cash registers and Ticket issuing
Product Applications:

1. Commercial cash registers
2. Fiscal Cash registers
3. Portable cash registers
4. POS
5. Ticket issuing terminals
6. Medical equiliments
7. Bank POS

2 Inch Thermal Printer Mechanisms Winspu TP26X FTP628MCL701 for POS and Cash Registers and Ticket Issuing

Model		ATP26FP6RX	ATP26MP8RX
Printing	Printing method	Thermal dot printing
	Number of dots	384dots/line
	Resolution	8dots/mm(203dpi)
	Paper entry width (mm)	58mm(paper width:57±0.5mm)
	Printing width (mm)	48mm
	Paper thickness (μm)	60~80μm
	Max printing speed	80mm/s	150mm/s
	Paper loading	Easy loading
Detection	Paper end sensor	By photo interrupter
	Head temperature	by NTC thermistor 30KΩ(25°C)
Operating voltage	For printer head	4.2V~8.5V	12V~14V
	For motor	4.2V~8.5V	12V~14V
	For logic	3.3V~5V
Peak current	Head	3.09A(at 8.5V,64dot)	2.38A(at 13.2V,45dot)
	Motor	0.266A
Life	Abrasion resistance	100 km (test with F230AA Mitsubishi paper or DJ03 paper)
	Pulse activation	100million
Operating environment	Operating temperature	0~50ºC
	Operating humidity	10~90%R.H.(No condensation)
	Storage temperature	-20~60ºC
	Storage humidity	5~95%R.H.(No condensation)
Physical characteristics	Mechanism Dimension	67.5x20x31.5mm
	Mechanism Weight (g)	30g

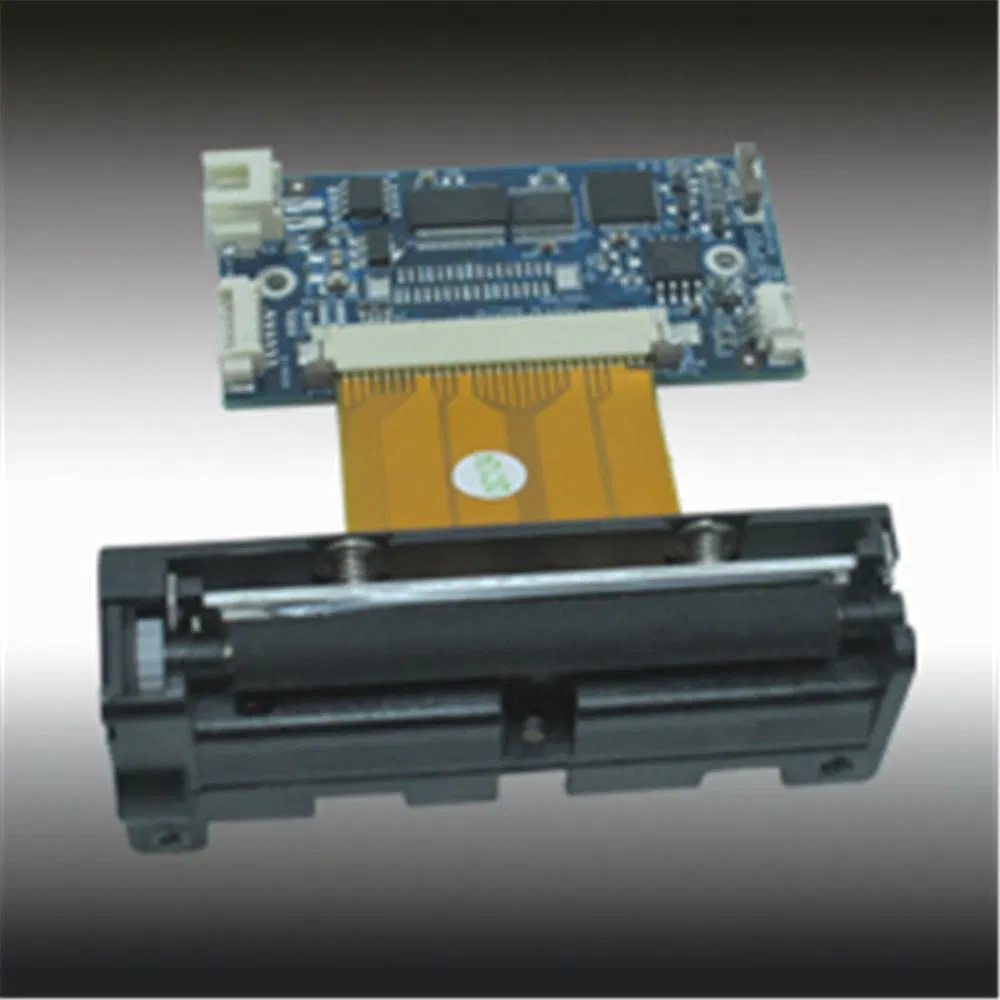

Driver board available		ATP26MBX	AEM1MBX
Compatible		628mcl701

Lead Time:2 Inch 58mm Thermal Printer head JX-2R-06 Compatible with FUJITSU's FTP-628MCL054 Thermal Printer mechanism For POS Printer

Quantity(Sets)	1 - 2000	>2000
Est. Time(days)	15	To be negotiated

Suzhou Qiji Electric Co., Ltd specializes in designing, developing, manufacturing and marketing of printing equipment.

With experienced and professional R&D team, we successfully launched a series of printing equipment, such as advanced POS receipt printers, portable printers and LCD modules, bluetooth printer, micro panel printer, KIOSK printer, barcode label printer, as well as printer mechanisms (thermal & impact type) and so on.
Our products are widely used for POS/ECR, transport ticketing, instrument analyzers, KIOSK system, electronic medical equipment, self-service solution, fire safety, tax control, shopping malls, car automotive, food and beverage industries, embedded printing solutions, cinemas, highway, boarding cards, tax control system and so on.
