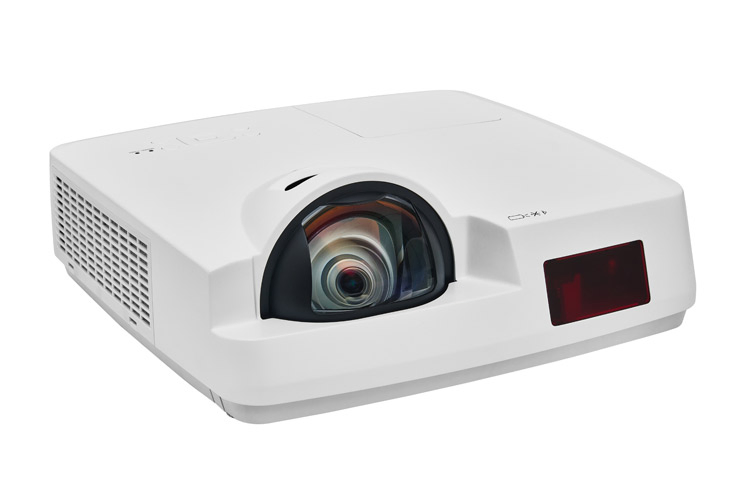

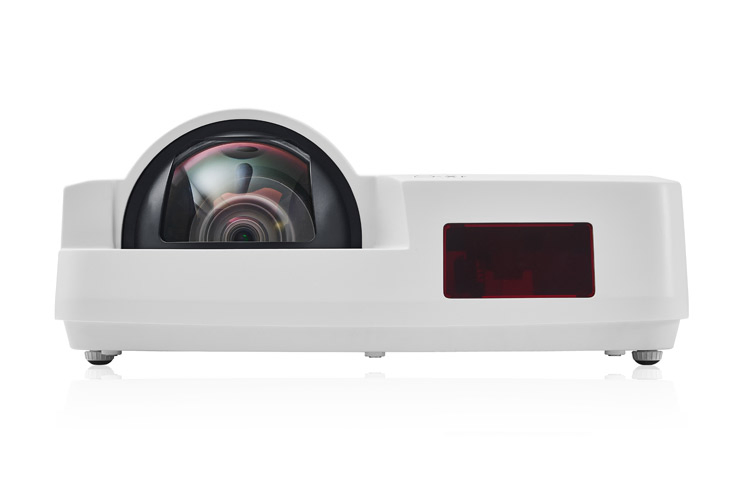

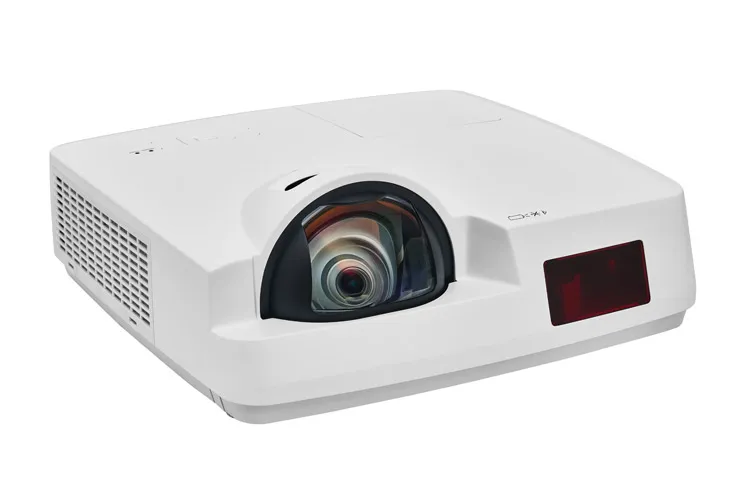

Factory Sale 3LCD Short Throw Projector 3700 ANSI Lumens School Use
3LCD 3700 ANSI Lumens Short Throw Projector for Education ProyectorSpecifications , PanelLCX172A-( B11 SML)LCX173A-(B11 SML)PJ LensF1.8_STF1.8_STLampPhilips:218WPhilips:218WPW ICTopaz:PWC878Topaz:PWC878Sony ICCXD3551+CXA3828CXD3551+CXA3828 Brightness (Marketing)( Ansi Lumens )45004500Brightness (T......
Send Inquiry
Product Description
3LCD 3700 ANSI Lumens Short Throw Projector for Education Proyector
Specifications ,
Specifications , | Panel | LCX172A-( B11 SML) | LCX173A-(B11 SML) |
| PJ Lens | F1.8_ST | F1.8_ST |
| Lamp | Philips:218W | Philips:218W |
| PW IC | Topaz:PWC878 | Topaz:PWC878 |
| Sony IC | CXD3551+CXA3828 | CXD3551+CXA3828 |
| Brightness (Marketing) ( Ansi Lumens ) | 4500 | 4500 |
| Brightness (Typ) ( Ansi Lumens ) | 3700 | 3700 |
| Display Panel | 3x0.63" | 3x0.59" |
| Display Technology | Liquid Crystal Display | Liquid Crystal Display |
| Native Resolution | XGA (1024x768) | WXGA (1280 x 800) |
| Lamp Consumption(W) | Philips:218W | Philips:218W |
| Lamp Lifetime(H) | 4000H(Normal) /10000H(ECO) | 4000H(Normal) /10000H(ECO) |
| Zoom/Focus | Manual | Manual |
| Throw Ratio | 80"@0.75m;0.46 : 1 | 80"@0.79m;0.46 : 1 |
| F | F=1.8 | F=1.8 |
| f | f=6.08mm | f=6.08mm |
| Zoom Ratio | N/A | N/A |
| Screen size | 0.455~0.943m(50"~100") | 0.484~1.004m(50"~100") |
| Lens Shift V | N/A | N/A |
| Lens Shift H | N/A | N/A |
| Contrast Ratio(Min) | 12000:1(with IRIS&ECO mode) | 12000:1(with IRIS&ECO mode) |
| Noise(dB)@1m | ECO: MAX 34.9dB; Normal: 38.9dB | ECO: MAX 34.9dB; Normal: 38.9dB |
| Uniformity(Actual Min) -JISX6911 | 80% | 80% |
| Aspect Ratio | 4:3 (Standard)/16:9(Compatible) | 16:10 (Standard)/4:3(Compatible) |
| VGA | *2 | *2 |
| Audio in (mini jack,3.5mm) | *1 | *1 |
| YCbCr/Comopnent | *1(share with VGA in 1) | *1(share with VGA in 1) |
| Video | *1 | *1 |
| Audio in(L/R) --RCA | *2 | *2 |
| S-Video | *1(share with VGA in1) | *1(share with VGA in1) |
| HDMI | *2(One is Compatible with MHL) | *2(One is Compatible with MHL) |
| USB- A | *1 1. Support Memeory viewer 2. WiFi Dongle (Optional Accessory) | *1 1. Support Memeory viewer 2. WiFi Dongle (Optional Accessory) |
| USB- B | *1(Display) | *1(Display) |
| RJ45 | *1(Display) | *1(Display) |
| VGA | *1(Share with VGA IN 2) | *1(Share with VGA IN 2) |
| Audio out (mini-jack,3.5mm) | *1 | *1 |
| Other Interface | N/A | N/A |
| RS232 | *1 | *1 |
| RJ45 | *1 (Control) | *1 (Control) |
| USB-B | *1(for up-grade) | *1(for up-grade) |
| Other Interface | N/A | N/A |
| Speaker | 1*10W | 1*10W |
| Power Requeirements | 100~240V@ 50/60Hz | 100~240V@ 50/60Hz |
| Power Consumption | 270W | 270W |
| ECO Standby Mode Power Consumption | <0.5W | <0.5W |
| Network standby Power Consumption | <3W (Remark:Jan/2017 run in) | <3W (Remark:Jan/2017 run in) |
| Operating Temp. | 0ºC~40ºC(35~ ECO) | 0ºC~40ºC(35~ ECO) |
| Store Temp. | -20ºC~~60ºC | -20ºC~~60ºC |
| Oparating Humidity | 20%~85% | 20%~85% |
| Storage Humidity | 10%~85% | 10%~85% |
| Security bar | Yes | Yes |
| Password protections | Yes | Yes |
| Control Panel Lock | Yes | Yes |
| Kenginston Lock | Yes | Yes |
| Ventilation (In/Ex) | Side/Side | Side/Side |
| Lamp access | Top | Top |
| Filter access | Side | Side |
| Dust filter | ESD filter() | ESD filter() |
| Keystone Correction | V: ±15°(auto+manual) H:±15°(manual) Pincushion/Barrel Correction Corner Keystone | V: ±15°(auto+manual) H:±15°(manual) Pincushion/Barrel Correction Corner Keystone |
| Languages | 26 languages: English, German, French, Italian, Spanish, Polish, Swedish, Dutch ,Portugese, Japanese, Simplified Chinese, Traditional Chinese, Korea, Russian, Arabic, Turkish, Finnish, Norwegian, Danish, Indonesian, Hungarian, Czech, Kazak,Vietnamese,Thai, Farsi | 26 languages: English, German, French, Italian, Spanish, Polish, Swedish, Dutch ,Portugese, Japanese, Simplified Chinese, Traditional Chinese, Korea, Russian, Arabic, Turkish, Finnish, Norwegian, Danish, Indonesian, Hungarian, Czech, Kazak,Vietnamese,Thai, Farsi |
| LAN Control-RoomView (Crestron) | Yes | Yes |
| LAN Control-AMX Discovery | Yes | Yes |
| LAN Control-PJ Link | Yes | Yes |
| H-Synch Range | 15~100KHz | 15~100KHz |
| V-Synch Range | 48~85Hz | 48~85Hz |
| Computer Signal Input | VGA, SVGA, XGA, SXGA,WXGA,UXGA,WUXGA,Mac, | VGA, SVGA, XGA, SXGA,WXGA,UXGA,WUXGA,Mac, |
| Video Signal Input | PAL, SECAM, NTSC 4.43, PAL-M, PAL-N, PAL-60, 480i, 480p, 576i, 576p, 720p, 1080p and 1080i | PAL, SECAM, NTSC 4.43, PAL-M, PAL-N, PAL-60, 480i, 480p, 576i, 576p, 720p, 1080p and 1080i |
| Auto Setup | INPUT SEARCH,AUTO PC, AUTO Keystone | INPUT SEARCH,AUTO PC, AUTO Keystone |
| Audio muting(Muting) | Yes | Yes |
| Suspend | Yes(5miniutes no singnal as default) | Yes(5miniutes no singnal as default) |
| Picture mode | Dynamic,Standard,Cinema, Blackboard,Colorboard | Dynamic,Standard,Cinema, Blackboard,Colorboard |
| Lamp mode | NORMAL,ECO | NORMAL,ECO |
| Filter Cleaning Cycle | 100/200/300 hours | 100/200/300 hours |
| Cooling time | 0S,60s,90s | 0S,60s,90s |
| Closed caption | Yes | Yes |
| High altitude | Yes(1400~2700m) | Yes(1400~2700m) |
| Signal Power On | Yes | Yes |
| Turn on countdown | Customized-(0S, 10S, 30S..) | Customized-(0S, 10S, 30S..) |
| Auto Ceiling | Yes | Yes |
| D-Zoom | 1~16 | 1~16 |
| Others | ||
| MAX Dimensions (WxHxD mm) | 347*341*141 | 347*341*141 |
| Net. Weight (KG) | 4 | 4 |
| Packaging Box Dimensions (WxHxD mm) | 463*458*211 | 463*458*211 |
| Gross. Weight (KG) | 5.5 | 5.5 |
| Manual Languages | Chinese, English,Korean | Chinese, English,Korean |
| Standard Accessaries | Power cord, VGA cable,Remote control& RC Battery | Power cord, VGA cable,Remote control& RC Battery |
| Safety and EMC | CCC | CCC |
| CECP | CECP | |
| Safety | cTUVUS | cTUVUS |
| CB | CB | |
| EMI | FCC | FCC |
| EMC | CE | CE |
