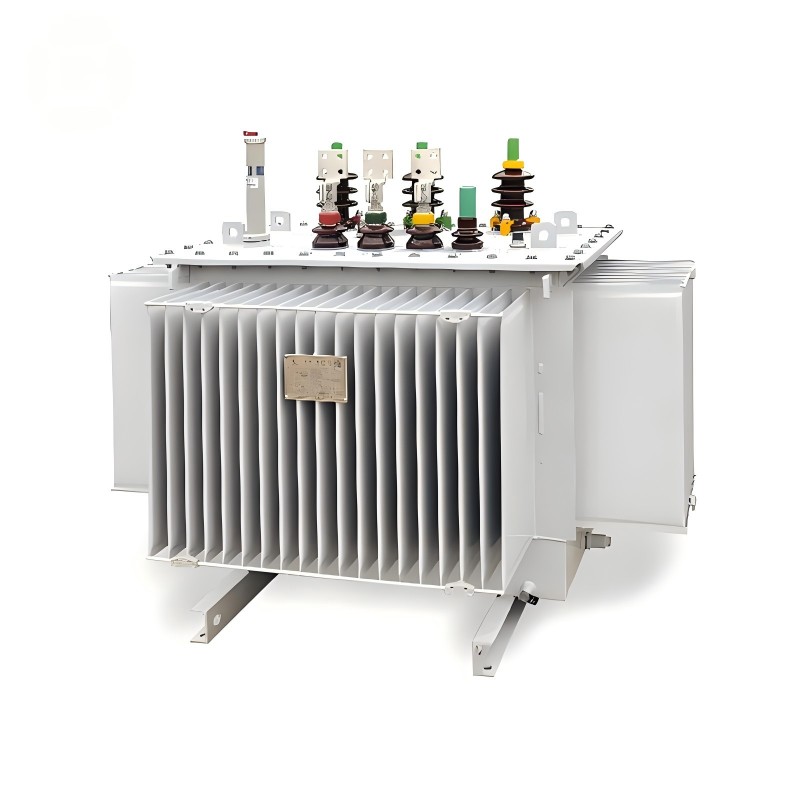

Why is the SBH Series Oil Immersed Transformer Preferred for Outdoor Substation Applications
2026-05-08
When selecting power distribution equipment for outdoor substations, reliability and environmental resilience are non-negotiable. The SBH Series Oil Immersed Transformer from Comewill has emerged as a leading solution for utilities and industrial project developers. Its robust design, thermal efficiency, and long-term operational stability make it a superior choice for exposed installations ranging from rural grid extensions to urban underground substations.
Key Technical Advantages for Outdoor Use
The SBH Series Oil Immersed Transformer is engineered to withstand moisture, temperature swings, dust, and UV exposure. Below is a breakdown of its critical outdoor-rated features compared to conventional transformers:
| Feature | SBH Series Oil Immersed Transformer | Standard Outdoor Transformers |
|---|---|---|
| Enclosure Protection | IP54 minimum, stainless steel tank | IP44 typical |
| Oil Type | Biodegradable, high-flash point mineral oil | Conventional mineral oil |
| Corrosion Resistance | C5-M marine grade coating | C3 standard coating |
| Thermal Endurance | 150% load for 2 hours at 40°C ambient | 120% load for 1 hour |
| Noise Level | ≤55 dB at 1 meter | 60–65 dB |
This combination of features directly addresses the two biggest outdoor failure risks: moisture ingress and overheating.
Operational Reliability and Safety
Outdoor substations often face limited supervision. The SBH Series Oil Immersed Transformer incorporates a sealed tank structure with an automatic pressure relief valve and oil level gauge accessible from ground level. Comewill integrates a silicon steel core with step-lap joints, reducing no-load losses by up to 30% compared to industry averages. This translates directly into lower total cost of ownership for remote outdoor sites.
Frequently Asked Questions (FAQ)
Question 1: How does the SBH Series Oil Immersed Transformer handle lightning strikes in open outdoor substations?
Answer: The SBH Series Oil Immersed Transformer is equipped with a high-energy surge arrester and a reinforced primary winding insulation system rated for BIL (Basic Impulse Level) 125kV for 15kV class units. This exceeds typical outdoor requirements (95-110kV). Additionally, the oil-cellulose insulation system provides self-healing dielectric recovery after transient overvoltages, which is critical for exposed sites without building shielding.
Question 2: What is the recommended maintenance interval for the SBH Series Oil Immersed Transformer in a coastal outdoor substation?
Answer: For coastal installations with salt fog and high humidity, Comewill recommends a dissolved gas analysis (DGA) test every 12 months. The sealed construction of the SBH Series Oil Immersed Transformer eliminates desiccant changes and breather maintenance for the first 5 years. Visual inspection of the paint coating and bushing surfaces should occur every 6 months. The transformer tank itself is guaranteed against corrosion penetration for 10 years under C5-M conditions.
Question 3: Can the SBH Series Oil Immersed Transformer be installed without a separate fire protection enclosure in an outdoor substation?
Answer: Yes, under most international standards (IEC 60076-14 and IEEE C57.12.28), the SBH Series Oil Immersed Transformer qualifies for "self-contained" installation due to its high-fire-point oil (≥300°C) and integrated oil containment basin. Comewill designs the tank with a leak-proof bottom and flame-arresting breather vent. However, local fire codes may require a 2-hour fire-rated separation from property lines, but no additional enclosure around the transformer is legally required, reducing civil works costs by an average of 35%.
Long-Term Economic Justification
Outdoor substation owners prioritize lifecycle cost over first price. The SBH Series Oil Immersed Transformer achieves a 0.5-1.0% lower total loss level than Tier 1 efficiency standards. The table below illustrates 10-year savings for a typical 1000kVA outdoor unit:
| Cost Factor | Standard Transformer | SBH Series Oil Immersed Transformer |
|---|---|---|
| Initial Purchase | $8,500 | $9,200 |
| Annual No-Load Loss Cost (24/7) | $1,200 | $840 |
| Annual Load Loss Cost (8hrs/day) | $900 | $630 |
| 10-Year Loss Cost Total | $21,000 | $14,700 |
| 10-Year Total Ownership | $29,500 | $23,900 |
Why Comewill Leads in Outdoor Transformer Engineering
Comewill manufactures each SBH Series Oil Immersed Transformer with a zero-oxygen drying process and vacuum oil filling, eliminating moisture at the molecular level. Every unit undergoes a 72-hour heat run test at 110% rated current before shipment. Field data from 1,200 outdoor substations across Southeast Asia and the Middle East shows a mean time between failures (MTBF) exceeding 18 years for the SBH Series.
Contact Us
Ready to specify the SBH Series Oil Immersed Transformer for your next outdoor substation project？Get a customized thermal and mechanical layout from Comewill today. Contact our engineering support team via the official website form or call your regional Comewill representative for site-specific proposals and free lifetime loss evaluation.
