Which Bridge Flap Turnstile Delivers Reliable Security and Smooth Pedestrian Flow?

1. What Is a Bridge Flap Turnstile?

A bridge flap turnstile is an automated pedestrian barrier designed to manage access through a defined passage. It typically consists of a cabinet, moving flap panels, a motorized drive, detection sensors, status indicators, and an electronic control system. When a valid credential is recognized, the barrier opens to allow an authorized person to pass and then returns to its controlled position.

The word "bridge" generally describes the turnstile's elongated cabinet configuration, which creates a structured passageway between adjacent units. Compared with a simple open doorway, this arrangement provides a clearly defined access lane and supports integration with electronic security systems.

Depending on the configuration, users may enter through an RFID card reader, QR code scanner, fingerprint terminal, facial recognition device, or another compatible credential reader. The turnstile receives an authorization signal and controls the barrier accordingly.

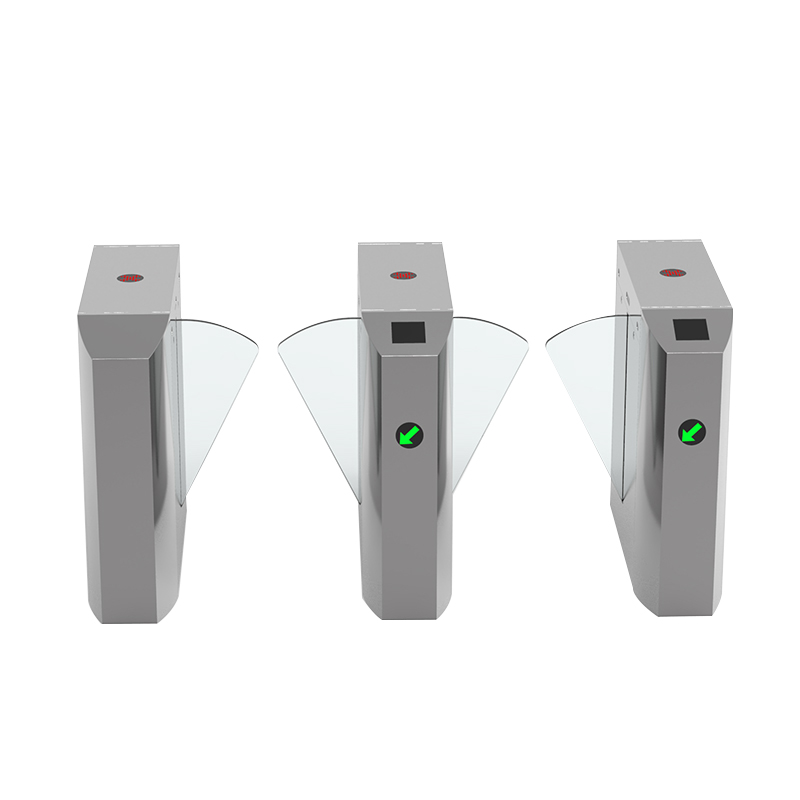

For buyers considering a commercial solution, the ZOJE bridge flap turnstile product range includes the ZOJE-Y508 model. Its published specifications and available configurations provide a practical starting point for assessing a project's requirements.

A critical distinction is that the turnstile is only one part of the entrance system. Access permissions, credential management, emergency procedures, and monitoring software also influence the overall security result.

2. Which Entrance Problems Can It Solve?

Uncontrolled pedestrian entrances create operational problems that extend beyond security. People may enter behind another visitor, employees may share credentials, reception teams may struggle with queues, and facility managers may have limited visibility into access events.

These benefits depend on correct configuration and real-world operating conditions. A turnstile cannot independently prevent every form of unauthorized access, especially when users deliberately follow others through an open barrier. Where tailgating is a significant concern, buyers should evaluate detection features, alarm logic, lane design, and any optional anti-tailgating functions.

3. Which Features Matter Most in a Bridge Flap Turnstile?

3.1 Fast and Consistent Barrier Operation

At a busy entrance, a slow or inconsistent barrier can quickly create a queue. The drive mechanism should respond promptly to valid authorization and operate smoothly throughout repeated opening and closing cycles.

ZOJE lists an approximately 0.2-second unlocking time for its Y508 model. Buyers should distinguish this specification from total pedestrian processing time: credential presentation, system communication, barrier movement, and the person's walking speed all affect the actual number of people passing through each minute.

3.2 Reliable Sensors and Anti-Pinch Protection

Detection sensors help determine whether a person is approaching, occupying the passage, or has completed the crossing. Anti-pinch functions are especially important in locations used by children, older adults, and visitors carrying bags.

When evaluating a model, ask how the system detects people within the lane, how it responds to an obstruction, and whether its protective behavior has been verified under the conditions expected at the site.

3.3 Anti-Collision Protection

Barrier panels may be struck by luggage, carts, or people moving unexpectedly. An anti-collision mechanism can help limit damage and reduce stress on the drive assembly. However, the precise behavior depends on the design and settings, so buyers should request details about the protection mechanism and its operating limits.

3.4 Durable Materials and Surface Finish

Cabinet materials affect appearance, corrosion resistance, cleaning requirements, and expected service life. The ZOJE-Y508 uses 304 stainless steel as its standard material, with 316 stainless steel available as an option according to the product information.

For coastal sites or environments exposed to corrosive cleaning agents, the material specification deserves particular attention. A higher-grade material may be appropriate, but the final choice should reflect the actual exposure conditions rather than the assumption that one material is best for every project.

3.5 Access Control Compatibility

A turnstile should work with the credential readers and control platform selected for the building. Common options include RFID cards, QR codes, fingerprint recognition, and facial recognition. Compatibility must be confirmed at the interface level, including authorization signals, electrical requirements, communication protocols, and software integration.

3.6 Emergency Operation

Emergency behavior is a fundamental purchasing consideration. Buyers should establish what happens during a power failure, fire alarm, controller fault, or evacuation command. The system must be configured to support the building's approved emergency procedures and applicable local requirements.

Do not assume that all models automatically behave in the same way during a power interruption. Confirm whether the required configuration opens the lane automatically, how the emergency input is connected, and whether backup power or additional hardware is needed.

4. How to Understand Technical Specifications Before Ordering

Technical data helps buyers compare models, but specifications should be assessed in relation to the installation rather than treated as isolated selling points. The following table summarizes published ZOJE-Y508 reference specifications. Confirm the final configuration with the supplier before placing an order.

Important: Product data may vary by configuration, revision, and project requirements. Confirm all electrical ratings, environmental limits, ingress protection, and optional features in the quotation and technical documentation. In particular, an enclosure rating does not automatically establish that every installed component or the entire entrance assembly is suitable for every outdoor environment.

5. Where Can Bridge Flap Turnstiles Be Used?

Office Buildings and Corporate Campuses

Corporate entrances often need a balance between professional appearance and access control. A bridge flap turnstile can help manage employee credentials, visitor permissions, and movement between public reception areas and controlled office zones.

Metro Stations and Bus Terminals

Transport facilities must process large numbers of people within limited spaces. A flap barrier can support ticket validation and organized pedestrian movement. Site planners should also consider peak-hour demand, passenger luggage, accessible routes, and emergency egress.

Hotels and Commercial Properties

Hotels, mixed-use developments, and commercial complexes may use turnstiles to manage entry to staff-only areas, fitness facilities, private lounges, or controlled amenities. The barrier's finish and operating noise can be important where guest comfort is a priority.

Clubs, Fitness Facilities, and Residential Communities

Membership cards, QR codes, and compatible biometric credentials can help distinguish authorized members from visitors. A suitable configuration can simplify routine access while allowing staff to manage exceptions and temporary permissions.

Industrial and Institutional Facilities

Factories, campuses, and public institutions may use turnstiles to organize staff entry and maintain controlled access records. In demanding industrial environments, buyers should assess dust, moisture, temperature, cleaning procedures, and the need for a different type of access barrier.

6. How Does a Bridge Flap Turnstile Compare With Other Turnstiles?

Different turnstile designs solve different access problems. A bridge flap turnstile is not automatically the best choice for every building. The most suitable option depends on the required level of control, available space, user population, and project budget.

For projects requiring efficient processing, an attractive cabinet, and integration with electronic credentials, a bridge flap turnstile can be a practical candidate. Where full-height physical restriction, wheelchair access, or large equipment movement is the primary requirement, a different barrier arrangement or a dedicated wider lane may be more appropriate.

7. How to Select the Right Bridge Flap Turnstile

Step 1: Estimate Peak-Hour Traffic

Calculate how many people need to pass through the entrance during the busiest period. Consider credential scanning time, walking speed, occasional rejected credentials, and visitors who need assistance. Published maximum throughput is a useful reference, but it should not replace an operational estimate based on the actual site.

Step 2: Choose the Correct Lane Width

Standard lanes can work well for ordinary pedestrian traffic. However, wheelchairs, mobility aids, strollers, and bulky bags may require wider passages. Determine the required clear opening and verify local accessibility regulations before finalizing the equipment layout.

Step 3: Define the Security Requirements

Identify the risks the entrance must address. Basic credential validation, anti-pinch protection, anti-collision functionality, tailgating detection, and alarm integration serve different purposes. Request written confirmation of which functions are standard and which require optional equipment or software.

Step 4: Match the Reader and Software

List the existing access control platform, reader type, communication method, and credential format. Ask the supplier to confirm compatibility and provide a wiring diagram or interface documentation. A successful integration test is preferable to relying on a general statement that a turnstile supports access control systems.

Step 5: Evaluate the Environment

Indoor office lobbies and exposed transport entrances have different requirements. Consider rain exposure, dust, temperature, humidity, cleaning chemicals, corrosion, and direct sunlight. Verify the manufacturer's stated limits and determine whether protective shelters or other installation measures are necessary.

Step 6: Review Maintenance and Support

Ask about expected maintenance intervals, spare parts, troubleshooting procedures, warranty coverage, technical assistance, and replacement component availability. For sites with multiple entrances, standardized models can simplify training and inventory management.

8. Installation and Integration Essentials

Even a well-designed turnstile can perform poorly if installation planning is incomplete. Before equipment arrives, the project team should coordinate the physical layout, electrical supply, network connections, access controller, and emergency interfaces.

Prepare the Site

Confirm the finished floor level, foundation or anchoring requirements, cable routes, and cabinet spacing. Leave adequate access for servicing and ensure that the layout does not obstruct evacuation paths or other required circulation areas.

Test the Access Control Logic

Verify valid and invalid credentials, entry and exit directions, timeout behavior, alarms, and any anti-tailgating functions included in the configuration. Bidirectional operation should be configured to match the intended traffic plan, not simply enabled without considering opposing pedestrian flows.

Verify Emergency and Safety Functions

Test the agreed emergency release procedure with the relevant building personnel. Confirm how the gate responds to fire alarm inputs, loss of power, sensor faults, and controller communication failures. Document the approved behavior and ensure the system remains consistent with local safety and accessibility requirements.

Commission the Complete Entrance

Commissioning should cover more than whether the flaps move. Check reader response, sensor alignment, repeated operating cycles, network communication, indicator lights, and safe passage under realistic conditions. Train reception staff and maintenance personnel before the entrance is placed into normal service.

9. Maintenance and Total Cost of Ownership

The purchase price is only one part of the cost of operating a pedestrian access system. Installation, software integration, replacement components, maintenance labor, and downtime can affect the long-term value of the investment.

Build a Practical Maintenance Schedule

• Routine visual checks: Look for cabinet damage, loose fittings, unusual noises, and visible obstruction of the passage.
• Sensor inspection: Keep detection areas clean and confirm that sensors respond correctly during scheduled tests.
• Drive and barrier inspection: Follow the manufacturer's instructions for inspecting moving parts, alignment, and wear.
• Electrical and network checks: Investigate unstable power, communication interruptions, and recurring controller faults.
• Emergency function testing: Test approved emergency procedures at the intervals established by the site safety plan.
• Maintenance records: Record inspections, faults, component changes, and corrective actions to help identify recurring problems.

Cleaning and servicing procedures should follow the manufacturer's instructions. Avoid applying unapproved lubricants or cleaning agents, and never bypass safety sensors to keep a lane operating. If the barrier behaves unpredictably, isolate the equipment according to the site's procedures and have qualified personnel inspect it.

Look Beyond the Initial Quote

When comparing suppliers, assess the expected service life, spare parts availability, support response, warranty terms, and the cost of integrating optional readers or controllers. A model with a higher initial price may be justified if it better matches traffic requirements and reduces operational disruption, but that conclusion should be based on documented project needs.

10. Common Purchasing Mistakes to Avoid

Choosing Only by Price

The cheapest quotation may exclude readers, software integration, wider lanes, emergency interfaces, or essential installation work. Compare equivalent configurations rather than headline prices alone.

Assuming Rated Throughput Equals Real Capacity

Maximum passage figures do not necessarily represent sustained throughput in a crowded entrance. Test the intended credential workflow and allow for visitors who pause, scan incorrectly, or need assistance.

Ignoring Accessible Passage Requirements

A standard lane may not be suitable for all users. Plan the necessary accessible route at the beginning of the project, including its width, operation, signage, and emergency behavior.

Overlooking Tailgating Risks

A flap barrier does not guarantee one-person-per-authorization passage in every situation. If tailgating prevention is essential, specify the required detection and alarm capabilities and verify their performance.

Leaving Integration Until the Final Stage

Late discovery of incompatible interfaces can lead to delays and additional costs. Involve the access control integrator early and confirm all interface requirements before approving the order.

Failing to Plan After-Sales Support

Operational interruptions become more serious when spare parts or technical assistance are difficult to obtain. Establish support responsibilities and service arrangements before deployment.

12. Conclusion: Building a Better Entrance With the Right Turnstile

Selecting a bridge flap turnstile requires a clear understanding of pedestrian traffic, security risks, accessibility, environmental exposure, and integration requirements. The most suitable solution is not necessarily the model with the highest advertised speed or the longest feature list. It is the configuration that performs reliably within the building's actual operating conditions.

For commercial buildings, transport hubs, and other busy entrances, the ZOJE-Y508 bridge flap turnstile offers a combination of stainless steel construction, automated barrier operation, sensor-based protection features, and access control integration options. Its published specifications provide a useful reference when comparing equipment for a new project or an entrance upgrade.

Before making a final decision, confirm the technical details, optional functions, installation conditions, and emergency operating requirements with the supplier. Careful planning can help improve pedestrian flow, simplify access management, and support more dependable long-term operation.
