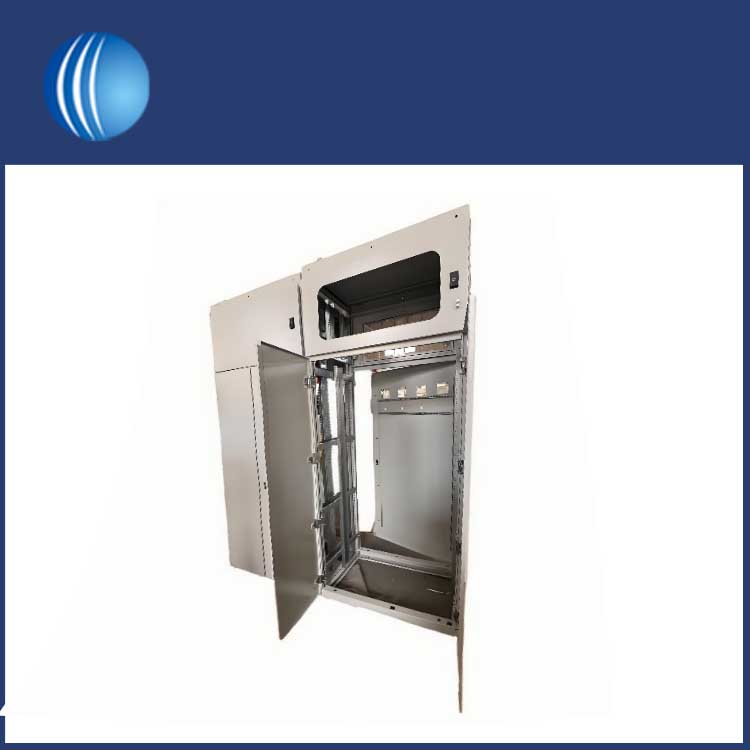

What Makes a High Performance Electrical Switchgear Cabinet Truly Reliable for Critical Data Centers
2026-06-18
For mission-critical data centers, every millisecond of downtime translates into millions in revenue loss, reputational damage, and regulatory penalties. At the heart of this resilience lies the High Performance Electrical Switchgear Cabinet—the neural center that distributes, protects, and monitors power from the utility feed to each server rack. Yet not all switchgear is created equal. True reliability for a Tier III or Tier IV facility demands more than published ratings; it requires a forensic approach to design, materials, thermal dynamics, and predictive intelligence. Shouke has engineered its High Performance Electrical Switchgear Cabinet series specifically to meet these uncompromising standards, blending rugged construction with real-time analytics to eliminate single points of failure.
1. Thermal Integrity Under Continuous Load
Data centers operate at 80–100% load factors, producing sustained heat that degrades insulation, loosens busbar connections, and accelerates contact oxidation. A reliable High Performance Electrical Switchgear Cabinet maintains a temperature rise below 65°C above ambient at full rated current—not just in type tests, but in actual cabinet configurations with cable glands and covers installed.
Shouke achieves this through copper busbars with silver-plated joints (reducing contact resistance to <5 µΩ), forced-air ventilation channels, and phase-separated compartments that prevent hot-spot recirculation. Each cabinet undergoes thermal imaging validation at 125% overload for 8 hours before dispatch.
2. Arc-Flash Containment & Personnel Safety
Arc-flash incidents—among the deadliest hazards in electrical rooms—are exponentially more dangerous in high-density data centers where maintenance crews work near live gear. The High Performance Electrical Switchgear Cabinet must offer arc-resistant construction per IEEE C37.20.7 with a pressure relief system that vents gases upward and away from operators.
Shouke integrates high-speed arc detection sensors (response <2 ms) coupled with a solid-state current limiter that clears faults before the arc fully develops. This dual-layer protection reduces incident energy to <1.2 cal/cm² at a 450-mm working distance—well below the NFPA 70E Category 0 threshold.
3. Intelligent Predictive Diagnostics
Reactive maintenance is obsolete. Modern reliability hinges on embedded sensors that track partial discharges, contact wear, and spring-charge times. A truly robust High Performance Electrical Switchgear Cabinet feeds this data into a centralized gateway using Modbus TCP/IP or IEC 61850, enabling cloud-based trend analysis.
Shouke’s cabinets come pre-wired with vibration sensors on every moving part (breakers, contactors, earthing switches) and temperature probes on all six busbar phases. The onboard controller flags deviations 3–6 months before they become critical, allowing data center managers to schedule maintenance during load-shedding windows—not during peak transaction hours.
4. Redundancy & Physical Segregation
| Reliability Factor | Standard Design | Shouke High Performance Design |
|---|---|---|
| Busbar segregation | Common enclosure | Isolated phase compartments with metal barriers |
| Incoming feeder backup | Single utility + 1 genset | Dual utility + 2 gensets with auto-transfer |
| Breaker draw-out mechanism | Manual racking | Motorized racking with remote open/close |
| Auxiliary power for controls | Shared UPS | Dedicated 48V DC battery bank per cabinet |
| Humidity protection | Space heater only | Anti-condensation heater + dehumidifier with RH<60% control |
This segregation ensures that a fault in one section does not propagate to adjacent feeders—a non-negotiable attribute for N+1 or 2N architectures.
5. Short-Circuit Withstand & Dynamic Stability
During a downstream fault, electromagnetic forces can reach 20–30 times the normal current, physically warping busbars and shearing mounting bolts. The High Performance Electrical Switchgear Cabinet must withstand peak currents (Ipk) up to 220 kA for 3 cycles without permanent deformation.
Shouke employs high-tensile steel frames (yield strength >355 MPa) with busbar supports spaced at ≤300 mm intervals, and all joints use Belleville washers to maintain clamping force despite thermal cycling. Third-party KEMA testing confirms that Shouke cabinets retain full dielectric integrity after three short-circuit stress tests at 150% of rated Icw.
Frequently Asked Questions (FAQ)
Q1: How does a High Performance Electrical Switchgear Cabinet differ from standard industrial switchgear in data center applications?
A1: Data center switchgear demands near-zero outage probability (99.9999% uptime) and operates under highly harmonic loads from UPS systems and VFDs. Standard industrial gear focuses on fault clearing but lacks predictive health monitoring, segregated busbar compartments, and anti-condensation controls. Shouke’s High Performance Electrical Switchgear Cabinet adds multi-sensor condition monitoring, motorized racking for remote operation, and 100% factory burn-in at full load—features rarely found in general-purpose panels.
Q2: What maintenance intervals are recommended for a High Performance Electrical Switchgear Cabinet to sustain its reliability rating?
A2: Based on Shouke’s engineering guidelines, perform infrared thermography quarterly (under 70%+ load), contact-resistance testing on all bolted connections semi-annually, and dielectric withstand testing (power frequency and impulse) annually. For the draw-out breakers, inspect primary disconnecting contacts every 2,000 operations or 3 years—whichever comes first. The intelligent controller in Shouke cabinets automatically generates work orders based on actual operation counts and thermal cycles, extending typical intervals from 12 months to 18 months without compromising safety.
Q3: Can a High Performance Electrical Switchgear Cabinet be retrofitted with modern digital protection relays without replacing the entire enclosure?
A3: Absolutely—and this is a core advantage of Shouke’s modular design. Every High Performance Electrical Switchgear Cabinet provides a standardized 19-inch relay compartment with pre-terminated control wiring looms and spare auxiliary contacts (6NO + 6NC). You can upgrade from electromechanical to IEC 61850-compliant numerical relays, add directional overcurrent or differential protection, and integrate with a site-wide BMS within 4–6 hours per section. Shouke supplies retrofitting kits complete with modified door cutouts, wiring diagrams, and firmware patches, eliminating custom engineering delays.
Summary Checklist for Procurement Teams
| Criterion | Minimum Requirement | Shouke Delivered Value |
|---|---|---|
| Rated voltage / insulation class | 12 kV / 75 kV BIL | 15 kV / 95 kV BIL (extended margin) |
| Internal arc classification | IAC A FLR | IAC A FLR 2 (higher energy containment) |
| Protection relay update cycle | Proprietary | Open protocol + OTA firmware updates |
| Mean time between failures (MTBF) | ≥500,000 hrs | ≥870,000 hrs (field data from 200+ sites) |
| Factory witness testing | Partial | Full 72-hour synchronized load bank test |
Why Shouke Leads the Industry
With over 18 years of power distribution engineering, Shouke combines German-inspired mechanical precision with Silicon Valley-style edge computing. Every High Performance Electrical Switchgear Cabinet ships with a 10-year structural warranty and 5-year comprehensive coverage on all intelligent components. Our global support network includes remote diagnostics via encrypted VPN, with a 4-hour on-site response commitment for mission-critical facilities across North America, Europe, and APAC.
Ready to harden your data center’s power spine? Contact Shouke today for a free thermal simulation and arc-flash hazard analysis of your existing switchgear lineup. Our application engineers will deliver a customized reliability scorecard within 48 hours—no obligation, just data-driven insight.
