What maintenance practices can significantly extend the lifespan of a mini jaw crusher
2026-05-28

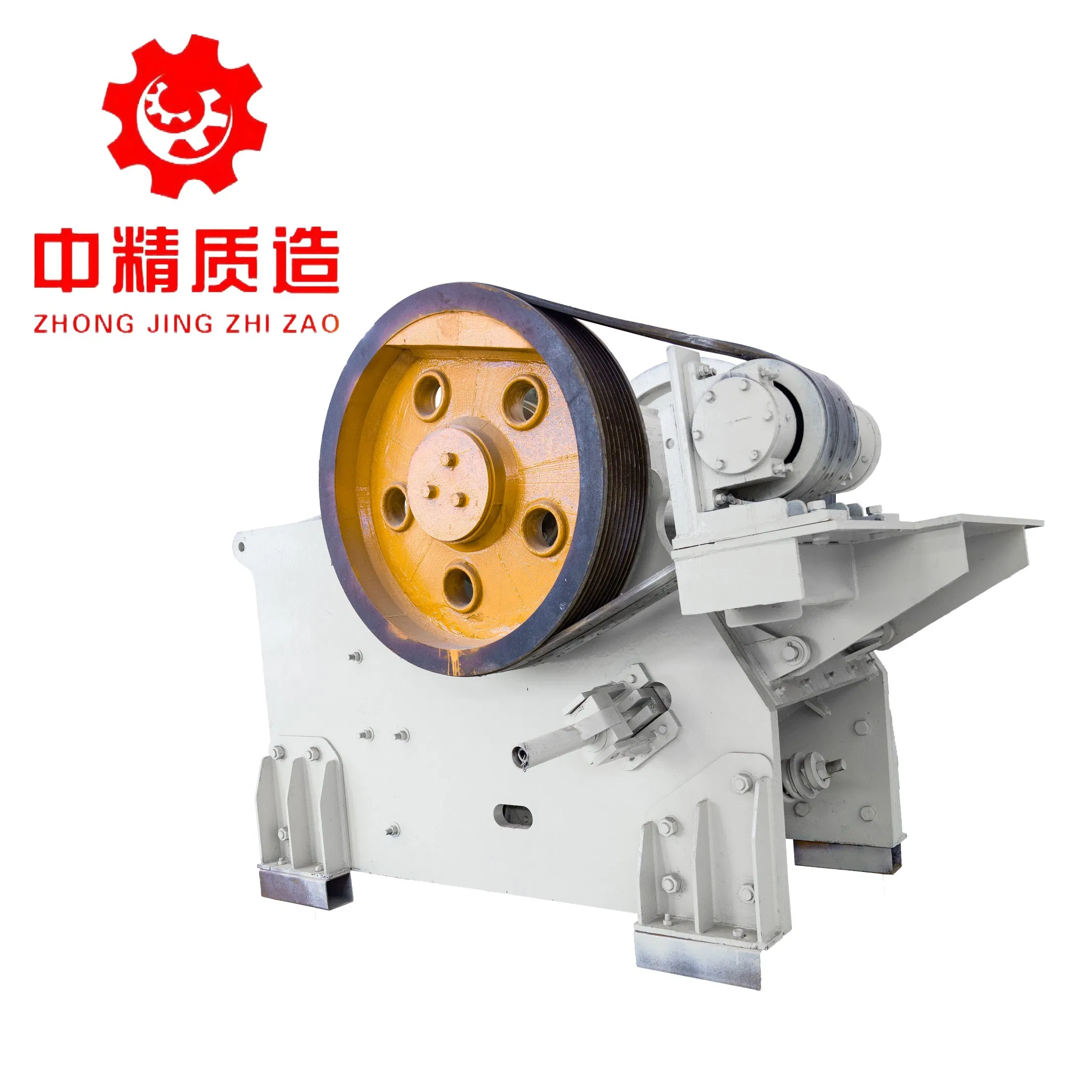

A mini jaw crusher is a vital asset for laboratories, small mining operations, and construction sites. Without proper care, even the most durable unit can fail prematurely. Zhongjing has helped hundreds of operators maximize their equipment’s service life through targeted maintenance routines. This guide presents proven practices to keep your mini jaw crusher running efficiently for years.
Essential Daily Maintenance Checklist
| Maintenance Task | Frequency | Key Benefit |
|---|---|---|
| Visual inspection of jaw plates | Every shift | Prevents uneven wear |
| Lubrication of eccentric shaft bearings | Every 8 operating hours | Reduces friction damage |
| Check V-belt tension | Daily | Maintains crushing power |
| Clear discharge opening of fines | After each use | Avoids blockages |
| Inspect toggle plate and seats | Weekly | Prevents structural failure |
Weekly and Monthly Deep Maintenance
Beyond daily checks, a structured weekly and monthly routine dramatically extends the mini jaw crusher lifespan. Zhongjing recommends the following schedule:
Weekly: Measure wear on fixed and movable jaw plates. Replace when thickness drops below 60% of original. Tighten all frame bolts and check for any visible cracks in the flywheel.
Monthly: Perform a full bearing temperature test (normal range: 50–60°C). Clean internal dust accumulation and test the overload protection system. Calibrate the closed side setting (CSS) to maintain consistent output.
Common Failure Points and Prevention
| Component | Failure Mode | Prevention Method |
|---|---|---|
| Jaw plates | Fatigue cracking | Reverse plates every 200 hours |
| Pitman bearing | Overheating | Regrease with lithium-based grease |
| Toggle plate | Fracture from uncrushable material | Install soft material trap |
| Frame | Stress cracking | Avoid overfeeding oversized rocks |
Mini Jaw Crusher FAQ – Common Questions
Question 1: How often should I replace the jaw plates on a mini jaw crusher?
Answer: Under normal hard rock crushing conditions (e.g., granite or basalt), Zhongjing recommends inspecting jaw plates every 150–200 operating hours. Replace them when the wear depth exceeds 40% of the original tooth profile or when the crushing output becomes inconsistent. For softer materials like limestone, lifespan can extend to 400 hours. Keep spare plates on site to minimize downtime.
Question 2: What type of lubricant works best for the bearings of a mini jaw crusher?
Answer: Use high-quality lithium-based extreme pressure (EP) grease with an NLGI grade 2 consistency. Zhongjing advises applying grease every 8 hours of operation via the two grease fittings on the bearing housings. Do not over-grease – 10 to 15 pump strokes per bearing are sufficient. Avoid mixing different grease types, as incompatible bases can cause bearing seizure.
Question 3: Can I crush wet or sticky material with a mini jaw crusher without causing damage?
Answer: Yes, but with precautions. Wet clay or moist aggregates tend to clog the discharge opening. Zhongjing suggests limiting feed moisture to under 8%. If processing wet material, clean the crushing chamber with a dry brush and compressed air immediately after each use. Install a feeder with a grizzly section to remove fine wet particles before they enter the jaw chamber. Never leave wet material overnight inside the crusher – rust formation will quickly reduce jaw plate life.
Real-World Lifespan Results
Operators following the Zhongjing 7-step maintenance plan report an average mini jaw crusher lifespan of 8–10 years, compared to 3–4 years for neglected units. Key metrics include:
-
73% fewer bearing failures
-
45% lower annual repair cost
-
2.5x longer jaw plate exchange interval
Ready to Protect Your Investment
Proper maintenance transforms a mini jaw crusher from a disposable tool into a long-term production asset. Zhongjing supplies not only high-performance crushing equipment but also full technical support, wear parts, and custom maintenance schedules.
Contact us today for a personalized maintenance checklist or to order genuine Zhongjing jaw plates and bearings. Visit our website or email our engineering team – we guarantee a response within 24 hours to keep your crushing operations profitable.
