What Are the Common Installation Mistakes for a Variable Spring Support for Pipeline
2026-09-29

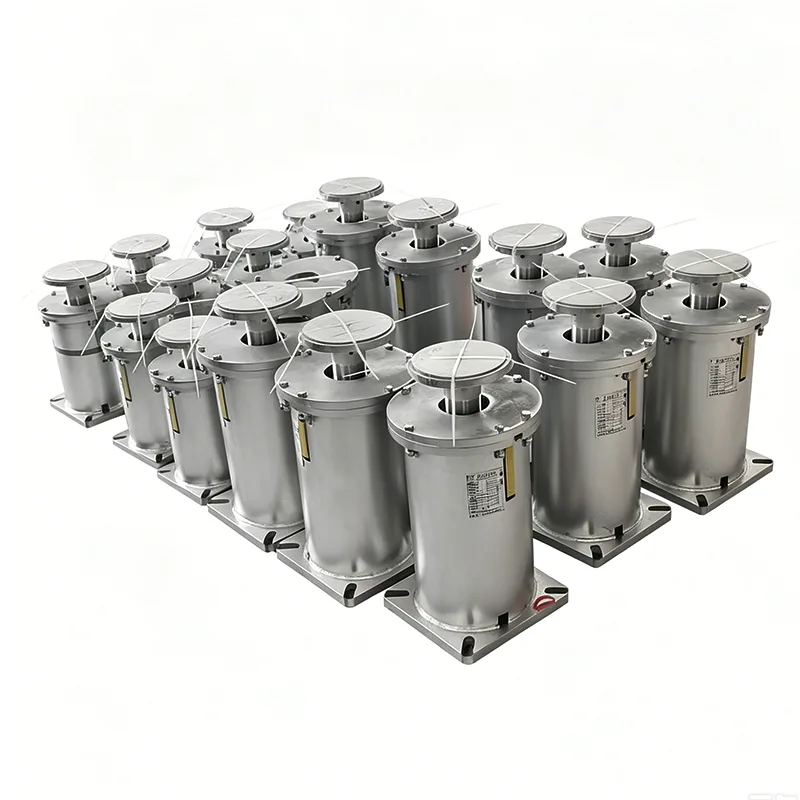

Installing a Variable Spring Support for Pipeline correctly is critical to maintaining pipe integrity, controlling load variations, and preventing premature failure in thermal piping systems. At Tianshun, we have supplied and supported thousands of spring hanger installations across power, petrochemical, and process industries. Even so, we continue to see the same avoidable errors on job sites—errors that compromise performance, safety, and long-term reliability. This article outlines the most common installation mistakes and how to prevent them.
Common Installation Mistakes at a Glance
| Mistake | Consequence | Correct Practice |
|---|---|---|
| Incorrect preset / cold load setting | Pipe stress, support overload | Set per design cold load before hydrotest |
| Travel indicator not zeroed | Wrong load reading, misdiagnosis | Verify indicator at installation temperature |
| Welding or cutting near the spring coil | Loss of calibration, coil damage | Remove or shield unit during hot work |
| Misalignment with pipe movement direction | Binding, side loading | Align support axis with calculated travel |
| Over-tightening or missing lock pins | Restricted movement or unsafe release | Follow Tianshun installation sequence |
| No record of as-installed position | Impossible future inspection | Document travel and load data |
1. Incorrect Cold Load and Preset Position
A Variable Spring Support for Pipeline is factory-set to a specific cold load. Installers sometimes assume the unit arrives ready for any position, but the preset travel must match the design cold position. If the support is installed at the wrong preset, the pipe will experience unexpected stress at operating temperature. Always confirm the cold load value against the support drawing before installation.
2. Ignoring the Travel Indicator
The travel indicator exists for a reason. Many crews install the unit and never check whether the indicator sits at the correct reference mark. Without this check, there is no baseline for future inspection. A Variable Spring Support for Pipeline that is installed with an unverified indicator cannot be properly monitored.
3. Damage During Welding and Hot Work
Spring coils are precision components. Welding arcs, cutting sparks, and excessive heat can alter the coil's mechanical properties or damage the casing. Whenever possible, remove the Variable Spring Support for Pipeline during adjacent welding, or protect it with approved heat shields. Tianshun recommends isolating the unit until all hot work in the area is complete.
4. Misalignment with Pipe Travel
Pipes move in specific directions due to thermal expansion. A support installed out of alignment with that movement will bind, causing side loads and unpredictable behavior. The support's travel axis must match the calculated displacement direction. This is one of the most frequent field errors and one of the easiest to prevent with proper layout review.
5. Improper Lock Pin Handling
Lock pins hold the spring in position during shipping and installation. Removing them too early—or leaving them in place during operation—both cause problems. Follow the Tianshun procedure: keep pins in place until the pipe is fully supported, then remove them only when the system is ready for movement.
FAQ: Variable Spring Support for Pipeline
Q: What happens if a Variable Spring Support for Pipeline is installed at the wrong cold load?
A: The pipe will not receive the intended support at the design cold position. This can cause excessive stress at the nozzle or adjacent supports, potentially leading to deformation, leakage, or fatigue failure over time.
Q: Can a Variable Spring Support for Pipeline be adjusted after installation?
A: Yes, most units have an adjustment feature, but adjustment must be done by qualified personnel using the correct load-travel chart. Unauthorized adjustment can void calibration and compromise the entire piping system.
Q: How often should a Variable Spring Support for Pipeline be inspected?
A: Inspect at initial startup, after the first thermal cycle, and then at regular intervals based on system criticality. Always record the travel indicator reading and compare it to the design values.
Final Recommendations from Tianshun
Avoiding these mistakes requires training, documentation, and the right hardware. Tianshun provides Variable Spring Support for Pipeline solutions with clear installation manuals, factory calibration certificates, and technical support to ensure every unit performs as designed. Our team helps contractors and engineers get it right the first time.
