How to Troubleshoot Common Issues with an Electronic Shaft Rotogravure Printing Machine
2026-10-14

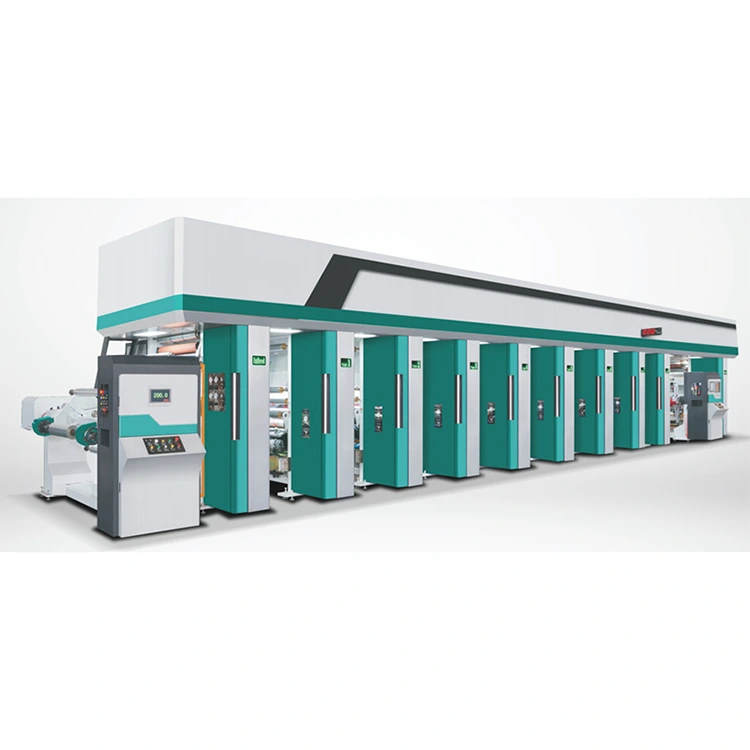

Operating an Electronic Shaft Rotogravure Printing Machine requires precision, experience, and a systematic approach to problem-solving. At Green Ohm, we have supported converters and packaging printers for years, and we know that even well-maintained equipment can develop faults that disrupt production. This guide walks through the most frequent problems, their root causes, and field-proven solutions to keep your press running at peak efficiency.
Why Systematic Troubleshooting Matters
An Electronic Shaft Rotogravure Printing Machine integrates servo-driven cylinder positioning, tension control, and ink transfer systems. A fault in one subsystem often mimics a fault in another. Rushing to replace parts without diagnosis leads to wasted downtime and unnecessary cost. Follow the sequence below: observe, isolate, verify.
Common Issues and Solutions
| Issue | Likely Cause | Recommended Action |
|---|---|---|
| Print misregistration | Encoder drift, worn gearbox, incorrect tension | Recalibrate servo encoders; inspect gearbox backlash; verify web tension setpoints |
| Ink smearing or mottling | Improper doctor blade angle, low ink viscosity | Adjust blade angle to 55–65°; check viscosity with a Zahn cup; clean ink circulation lines |
| Web wrinkling | Uneven roller pressure, moisture imbalance | Level nip rollers; check dryer temperature and substrate storage conditions |
| Color variation between jobs | Anilox roll wear, inconsistent ink pH | Measure anilox cell volume; standardize ink pH and temperature |
| Machine vibration | Loose coupling, bearing wear, unbalanced cylinder | Torque all couplings; replace bearings; dynamic-balance cylinders |
| Servo alarm faults | Overheating, voltage fluctuation, parameter error | Inspect cooling fans; install voltage stabilizer; reload drive parameters |
Step-by-Step Diagnostic Workflow
-
Document the symptom – note the job, substrate, speed, and environmental conditions.
-
Check the basics – power supply, air pressure, ink levels, and safety interlocks.
-
Isolate the subsystem – run a test without ink or substrate to separate mechanical from process faults.
-
Verify with data – use the HMI trending tools on your Electronic Shaft Rotogravure Printing Machine to compare current values against baseline records.
-
Implement and log – record the fix, parts used, and downtime duration for future reference.
Preventive Maintenance Schedule
| Frequency | Task |
|---|---|
| Daily | Clean doctor blades, check ink viscosity, inspect web path |
| Weekly | Lubricate bearings, verify tension calibration |
| Monthly | Inspect servo motors, test emergency stops, audit encoder signals |
| Quarterly | Replace worn anilox rolls, align print cylinders, review drive parameters |
FAQ: Electronic Shaft Rotogravure Printing Machine
Q: How often should I calibrate the tension control system on an Electronic Shaft Rotogravure Printing Machine?
A: Calibrate tension control monthly under normal production, or weekly when running thin films and extensible substrates. Always recalibrate after replacing load cells, drive belts, or dancer rollers.
Q: What causes sudden color shifts during a long print run on an Electronic Shaft Rotogravure Printing Machine?
A: The most common causes are ink viscosity rise due to solvent evaporation, temperature drift in the drying tunnel, and gradual anilox roll wear. Monitor viscosity every 30 minutes and maintain consistent dryer setpoints.
Q: Can I retrofit an older Electronic Shaft Rotogravure Printing Machine with modern servo drives?
A: Yes, many older presses can be upgraded with modern servo drives and digital registration controls. The retrofit improves registration accuracy and reduces mechanical wear, but a full audit of the mechanical transmission is required before installation.
When to Call a Specialist
Persistent registration errors, repeated servo faults, or structural vibration that returns after adjustment usually indicate deeper mechanical or electrical problems. Green Ohm provides remote diagnostics and on-site service for Electronic Shaft Rotogravure Printing Machine operators who need expert support without prolonged production loss.
