How Much Floor Space Is Required to Install a 100Kg Medical Waste Incinerator Safely
2026-05-28
When healthcare facilities evaluate on-site waste treatment solutions, one of the first practical questions involves physical space. A 100Kg Medical Waste Incinerator from Hongsheng offers a powerful yet compact design, but safe installation requires more than just a concrete slab. Proper clearance for operation, maintenance, and regulatory compliance must be factored in.
Core Footprint of the 100Kg Medical Waste Incinerator

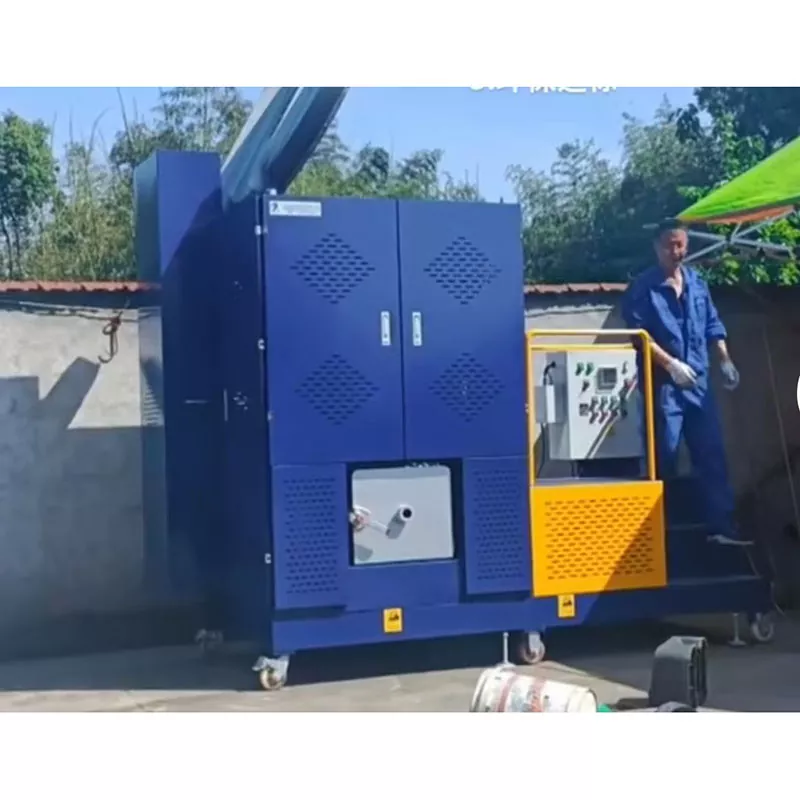

The primary unit of a 100Kg Medical Waste Incinerator typically occupies between 12 and 18 square meters. This includes the combustion chamber, secondary chamber, and control panel. However, total required floor space is significantly larger once safety zones are added.
| Space Component | Minimum Area Required (m²) | Key Consideration |
|---|---|---|
| Incinerator unit (primary) | 12–18 | Model dependent |
| Front loading area | 4–6 | Ash removal and waste feeding |
| Rear service access | 3–5 | Burner and thermocouple access |
| Side clearance (both sides) | 2–3 per side | Emergency access |
| Control station | 2–3 | Operator panel and monitoring |
| Ash storage zone | 2–4 | Cool-down and sealed containers |
| Total safe installation area | 25–35 m² | Includes all mandatory clearances |
Recommended Room Dimensions
For a standard 100Kg Medical Waste Incinerator, Hongsheng recommends a dedicated room of at least 6 meters in length, 5 meters in width, and 3 meters in ceiling height. This ensures proper ventilation, heat dissipation, and safe movement of personnel.
Critical Clearance Requirements
-
Front clearance: 1.5 meters minimum for door swing and waste cart maneuvering
-
Rear clearance: 1 meter for exhaust duct and maintenance of secondary chamber
-
Side clearances: 0.8 meters each for visual inspection and emergency shutdown
-
Above unit: 1 meter unobstructed space for flue pipe and heat radiation
100Kg Medical Waste Incinerator FAQ - Common Questions
Question 1: Can a 100Kg Medical Waste Incinerator be installed outdoors under a simple roof?
Answer: No. A 100Kg Medical Waste Incinerator requires a fully enclosed, fire-rated room with climate control. Outdoor installation exposes the unit to moisture, temperature extremes, and wind interference with exhaust draft. Hongsheng advises an indoor, dedicated incinerator room meeting local fire codes. Outdoor placement would violate most environmental permits and compromise safety clearances by at least 40%.
Question 2: Does the floor need special reinforcement for a 100Kg Medical Waste Incinerator?
Answer: Yes. The 100Kg Medical Waste Incinerator has a dead weight of approximately 1,800 to 2,500 kg depending on refractory thickness. During operation, thermal expansion adds no extra vertical load, but the floor must withstand concentrated point loads from support legs. A reinforced concrete slab of at least 150 mm thickness with compressive strength of 25 MPa is standard. Hongsheng provides detailed footing drawings with each shipment.
Question 3: Is separate space required for waste storage and ash handling when using a 100Kg Medical Waste Incinerator?
Answer: Absolutely. Safe installation requires three distinct zones: waste holding area (refrigerated if storage exceeds 24 hours), incinerator operation zone, and ash quarantine area. Each zone must be separated by fire-resistant barriers. For a 100Kg Medical Waste Incinerator, Hongsheng suggests an additional 10–15 m² for waste staging and 5–8 m² for ash solidification and container storage. Never combine these functions within the incinerator’s main clearance area.
Ventilation and Safety Margins
Beyond floor space, a 100Kg Medical Waste Incinerator needs dedicated combustion air intake (0.5 m² wall louver) and exhaust duct routing. Add at least 2 meters of vertical clearance above the flue connection point.
Contact Us
Proper space planning ensures your 100Kg Medical Waste Incinerator operates safely, complies with local regulations, and delivers years of reliable service. Hongsheng offers free site evaluation and CAD layout support for your specific facility. Contact us today to request a customized floor plan and technical consultation for your 100Kg Medical Waste Incinerator project.
