Does a stainless steel toll booth require special foundations compared to traditional booths

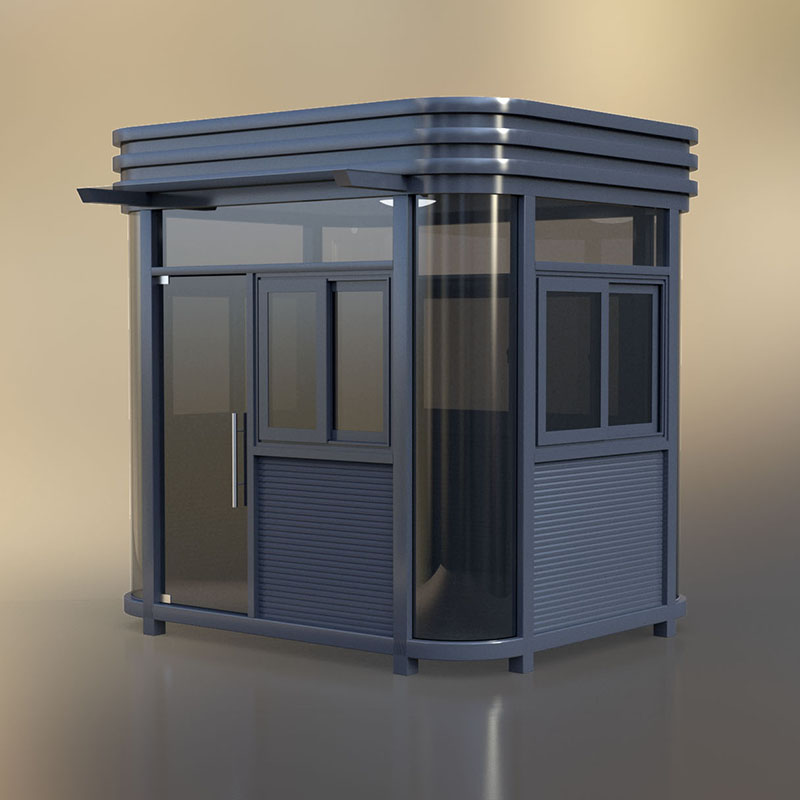

When infrastructure planners compare a Stainless Steel Toll Booth with traditional painted steel or concrete booths, foundation requirements often emerge as a critical differentiator. Cymdin has engineered modular Stainless Steel Toll Booth solutions that frequently reduce substructure complexity, challenging the assumption that premium materials demand premium foundations.

Foundation comparison: Stainless steel vs traditional booths

Why foundations differ

A Stainless Steel Toll Booth from Cymdin utilizes monocoque construction: the skin and frame act as a unified structural shell. This distributes wind and impact loads evenly, eliminating the need for massive concrete inertia blocks. Traditional booths rely on heavy frames to resist overturning, transferring larger point loads to foundations.

Surface conditions also matter. Traditional booths often require piles or deep footings in poor soil. A Stainless Steel Toll Booth can often rest on a reinforced slab even on compacted fill, because the booth’s own rigidity absorbs minor settlement without cracking cladding or jamming doors.

Three critical FAQs about Stainless Steel Toll Booth foundations

Question 1: Can a stainless steel toll booth be installed on an existing asphalt surface without excavation?

Answer: Yes, in many cases. Cymdin offers a Stainless Steel Toll Booth with a distributed base frame and optional ballast plates. If the asphalt is at least 100 mm thick over a compacted subgrade and the site has no seismic or high-wind classification above Zone 2, the booth can be bolted through asphalt into chemical anchors. No excavation is needed, though a leveling mortar bed is recommended to prevent door misalignment.

Question 2: How do seismic requirements differ for a stainless steel toll booth compared to a traditional concrete booth

Answer: A Stainless Steel Toll Booth has a lower center of gravity per unit height due to its thinner walls and integrated equipment mounting rails. During seismic events, it experiences lower inertial forces. Traditional concrete booths require deep foundations with reinforced dowels to prevent shear failure. Cymdin designs its Stainless Steel Toll Booth with slotted anchor connections that allow 12 mm of sliding displacement, dissipating energy without foundation cracking. Most seismic zones accept a slab-on-grade foundation for stainless steel booths instead of a pile-supported mat.

Question 3: Does the foundation need special grounding or cathodic protection for a stainless steel toll booth

Answer: No cathodic protection is required if the foundation uses ordinary clean concrete. However, Cymdin recommends two precautions. First, use a plastic vapor barrier under the slab to prevent moisture wicking that could deposit chlorides on the steel base. Second, if the Stainless Steel Toll Booth shares foundation bolts with galvanized steel conduits, install isolating bushings to avoid galvanic coupling. Otherwise, standard Ufer grounding (concrete-encased grounding electrode) works identically as for traditional booths. No extra anode beds or impressed current systems are ever needed.

Best practices for specifying foundations

• Always provide a 50 mm thick concrete haunch around the booth perimeter for drainage and impact protection

• Use non-shrink grout under the base frame to achieve 100% contact

• Specify stainless steel anchor bolts (grade 316) to match Cymdin hardware

• Include a 150 mm access pit for future utility connections beneath the booth

Contact us to request a foundation load calculation sheet for your next Stainless Steel Toll Booth project. Cymdin engineers will review your soil report and propose a foundation design that saves time and concrete while exceeding safety standards. Reach out through the project inquiry form on our official website.
