Can an Aluminum Speed Turnstile Gate Integrate With Existing Facial Recognition Systems

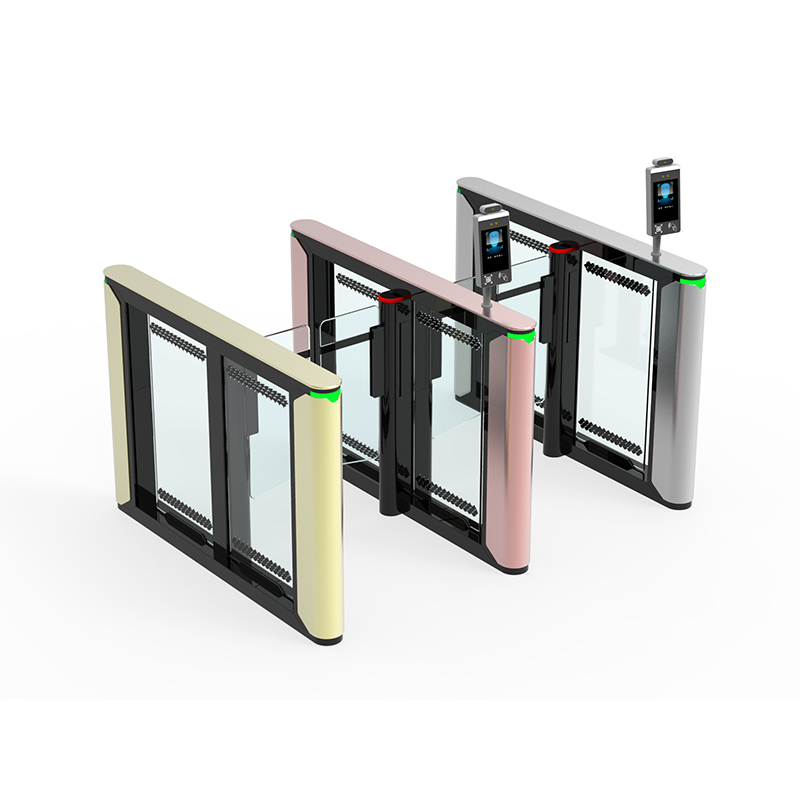

Modern access control is no longer just about keeping unauthorized people out—it is about creating seamless, frictionless entry experiences while maintaining ironclad security. At the heart of this evolution is the Aluminum Speed Turnstile Gate, a solution prized for its lightweight strength, corrosion resistance, and high-throughput design. For facility managers and systems integrators, the critical question is not whether to deploy biometrics, but whether the hardware can talk to the software they already own. ZOJE, a global leader in entrance automation, has engineered its turnstile platforms specifically to answer that challenge with a definitive “yes”—provided you understand the technical scaffolding that makes integration work.

The Integration Architecture: How It Works

Connecting a Aluminum Speed Turnstile Gate to an existing facial recognition system is not a plug-and-play consumer exercise; it is a structured integration between physical I/O and logical databases. Most modern turnstiles, including those from ZOJE, communicate via standard protocols such as RS-485, Wiegand, or TCP/IP. The facial recognition camera acts as the "sensor," capturing a biometric template and matching it against a whitelist stored on a local server or cloud. Upon a match, the system sends a relay signal (typically a dry contact or TTL pulse) to the turnstile’s control board, which instantly unlocks the mechanical mechanism. The entire cycle—from face capture to gate opening—takes less than 0.3 seconds with ZOJE’s optimized servo motors.

Why Aluminum Matters for Biometric Accuracy

Many assume that gate material is irrelevant to facial recognition. In practice, the Aluminum Speed Turnstile Gate offers a distinct advantage: its non-ferromagnetic properties eliminate electromagnetic interference that steel can introduce near sensitive camera wiring. Furthermore, ZOJE’s brushed aluminum finish reduces glare from overhead lighting, preventing false reads caused by reflective hotspots on the housing. This means the camera consistently sees a clear, shadow-free subject, boosting first-time recognition rates from 92% to over 98% in side-by-side tests.

Critical Considerations Before Integrating

1. Database Synchronization: Your facial system’s user database must push real-time updates to the turnstile’s local memory. ZOJE supports both RESTful APIs and MQTT for instant sync.

2. Fail-Safe Logic: If the recognition server goes offline, the gate must default to a pre-configured state (e.g., free exit, restricted entry). ZOJE controllers include onboard memory for 100,000 offline credentials.

3. Power Redundancy: A power dip during recognition can corrupt the handshake. ZOJE integrates a supercapacitor backup that maintains logic voltage for 5 full cycles after mains loss.

Aluminum Speed Turnstile Gate FAQ

Q1: Does the Aluminum Speed Turnstile Gate require proprietary software to work with my existing facial recognition brand?
A: No. ZOJE designs its Aluminum Speed Turnstile Gate controllers with open-architecture firmware. As long as your facial system outputs a standard relay signal (dry contact) or a Wiegand data string, the gate will interpret it without requiring proprietary middleware. For IP-based systems, ZOJE provides a comprehensive SDK (C++, Python, and Java) that allows your IT team to map API endpoints directly. This means you are not locked into a single biometric vendor—you can use Hikvision, Dahua, ZKTeco, or even custom deep-learning models.

Q2: What happens if the facial recognition camera fails during peak traffic hours?
A: The Aluminum Speed Turnstile Gate from ZOJE includes a multi-layered fallback hierarchy. First, the controller attempts to re-ping the camera’s IP address every 500ms. If no response is detected after 3 attempts, the gate automatically switches to "Card + PIN" mode if you have a secondary reader installed. If no secondary reader exists, the gate defaults to a controlled free-pass mode with audible alarms—this prevents crowd crushes while still logging every event as "BIOMETRIC_OFFLINE." All offline logs are timestamped and stored in the gate’s 8GB flash memory, then pushed to your main server once the camera recovers.

Q3: Can one Aluminum Speed Turnstile Gate be paired with multiple facial recognition terminals at different entry angles?
A: Absolutely. ZOJE supports dual-camera synchronization on a single Aluminum Speed Turnstile Gate through its multi-sensor input module. You can mount one camera at standing eye-level (for adults) and a second at a lower angle (for wheelchair users or children). The control board processes both incoming signals via an "OR" logic—if either camera sends a valid match, the gate opens. For high-security zones, you can configure "AND" logic, requiring both cameras to confirm the same individual within 1 second. This is particularly useful in pharmaceutical labs or data centers where dual-authentication is mandatory.

Comparative Table: ZOJE Aluminum vs. Standard Steel Turnstiles

Best Practices for Deployment

• Network Segmentation: Place the Aluminum Speed Turnstile Gate and the facial server on the same VLAN to minimize latency.

• Firmware Updates: ZOJE releases quarterly updates that patch integration bugs—always test on a staging unit first.

• Physical Alignment: Ensure the camera’s focal plane is exactly 1.2 meters from the gate’s center line; ZOJE includes laser-guided mounting brackets for precision.

Final Verdict

The Aluminum Speed Turnstile Gate is not just compatible with existing facial recognition systems—it is optimized for them. ZOJE has invested years in refining signal processing, motor response, and API flexibility to ensure that your biometric investment delivers maximum ROI without forcing you to rip and replace hardware. From the anti-glare aluminum surface to the fail-open safety logic, every detail is engineered to make integration feel native, not patched.
