Wireless Microphones Room Tracking USB 3.0 Conference Video PTZ Camera

Product Description

Wireless Microphones Tracking USB 3.0 Conference Video PTZ Camera

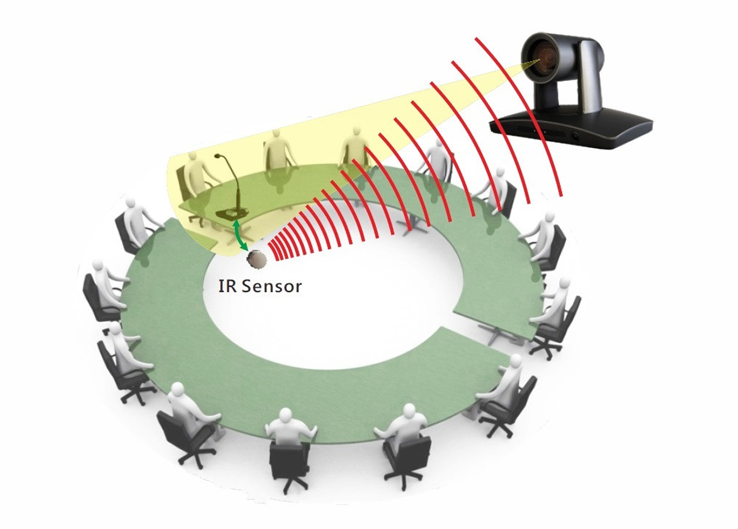

Automatically track object(s) holding wireless microphone with IR sensor

Precisely & smoothly track with automatic zoom to get suitable size of target

There is no need to set or call preset to get the camera tracking

Tracking performance fits different size or shape of conference room

Ignore interfarence of sunlight, whiteboard or other lighting sources

Has HD-SDI, DVI, Ethernet, USB interfaces for easy preview and control

1/2.8" CMOS, 12x optical zoom,72.5° field of view

Model No.	AMC-E200R
Tracking Camera
Image Sensor	1/2.8" Exmor CMOS, 2.14MP
Focal	3.9mm - 46.8mm
IRIS	F1.6 - F2.8
Zoom	Optical: 12X, Digital: 12X
Field of View	72.5° - 6.3°
Focus	Auto, Manual, PTZ Trigger AF, One push
Min.Illumination	0.5Lux(Color), 0.1Lux(B/W)
Shutter Speed	1/1 - 1/10,000s
Gain	Auto/Manual
White Balance	Auto, Indoor, Outdoor, One push, Manual, Auto Tracking
AE Control	Auto, Manual, Shutter Priority, Iris priority
Full View Camera
Image Sensor	1/2.8" CMOS
Effective Pixel	2.14MP
White Balance	Auto
Exposure	Auto
Lens	Manual Focus
Field of View	Horizontal: 68°; Vertical: 41°
Pan & Tilt
Pan Range	-170° - +170°
Tilt Range	-30° - +90°
Pan Speed	0.1° - +120°/s
Tilt Speed	0.1° - +90°/s
Preset Number	256
Control Interface	RS-232/RS-485/USB3.0
Network	100M self-adaptive(RJ45)
Control Protocol	PELCO-D / VISCA / UVC1.1
HD Video
Video Output	3G-SDI / DVI-D / USB3.0
Video Format	1080P60,1080P50,1080P30,1080P25,1080i60,1080i50,720P60,720P50
Network
Resolution	Max support 1920x1080@60fps
Video Compression	H.264
Audio Compression	AAC
Protocol	ONVIF/RTSP/HTTP/TCP/UDP/RTMP
Dual stream	Support
Simultaneous Users	Up to 10 users
General
Power Supply	DC12V
Power Consumption	< 30W
Working Temp	0°C - +40°C
Storage Temp	-20°C - +60°C
Dimension	243mm x 145mm x 263mm
Color	Grey
