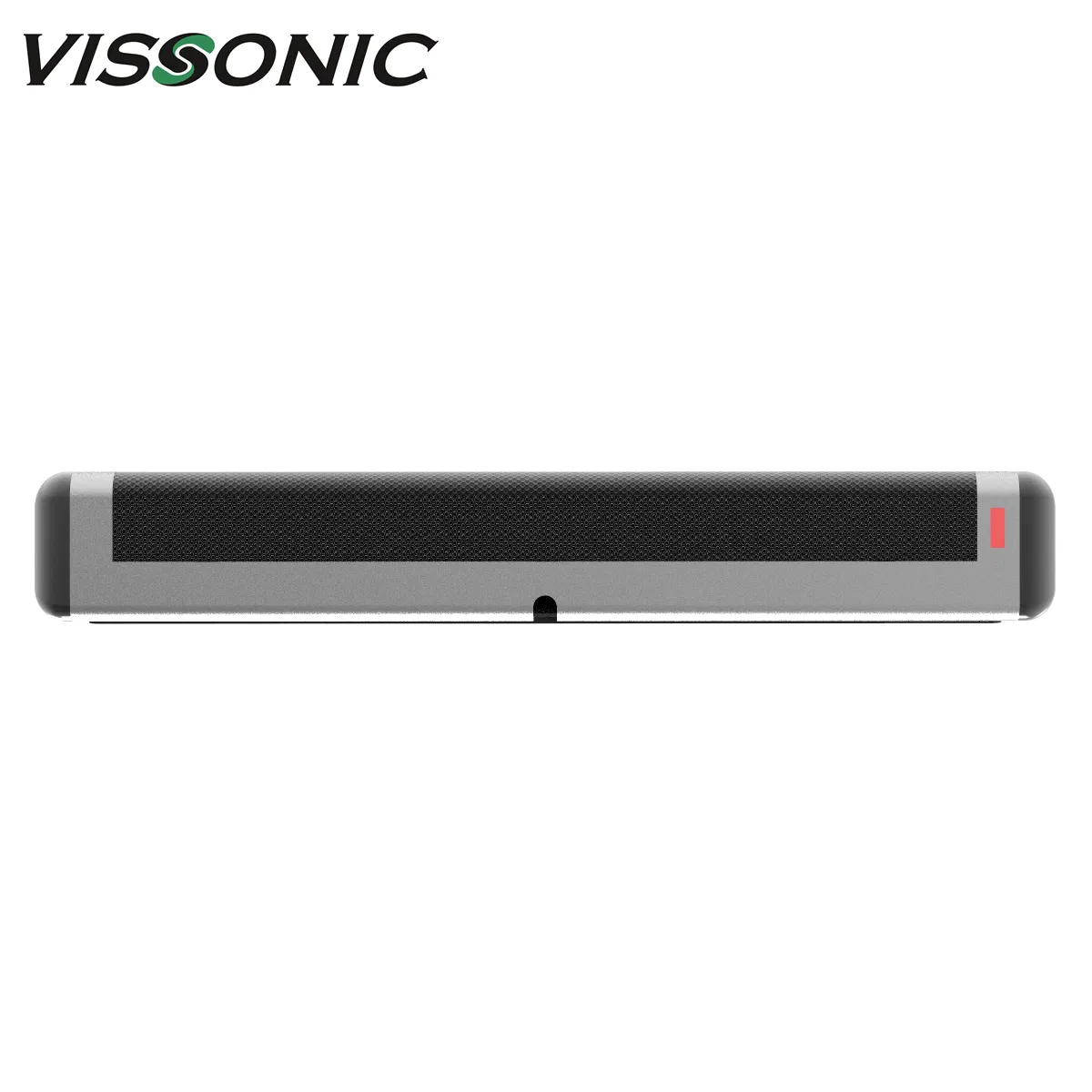

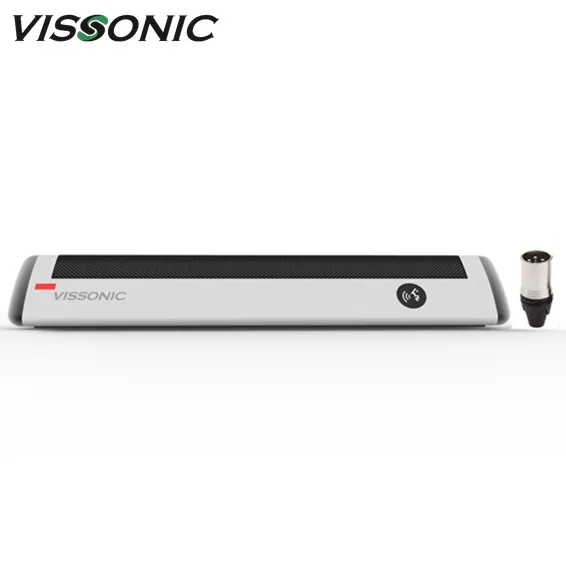

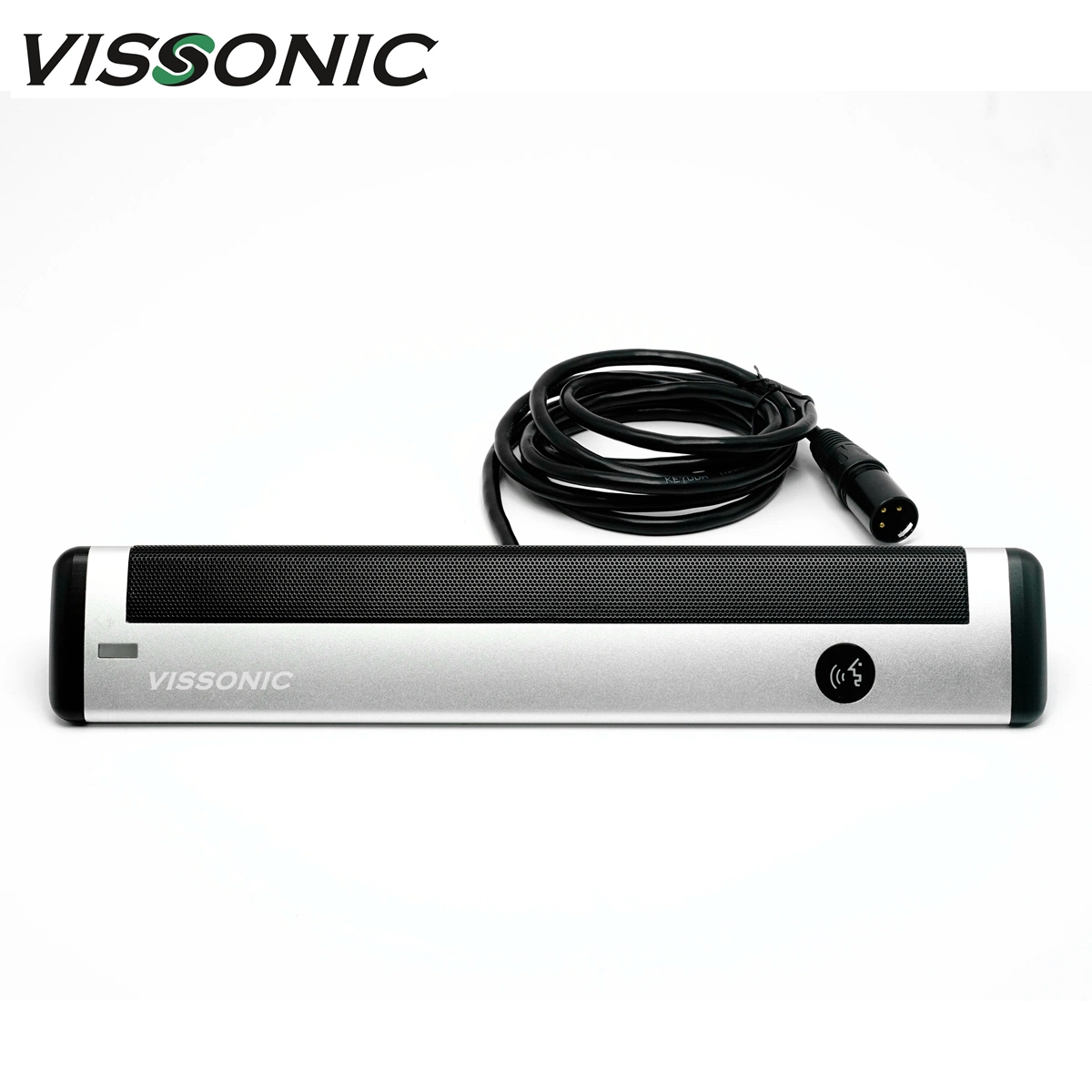

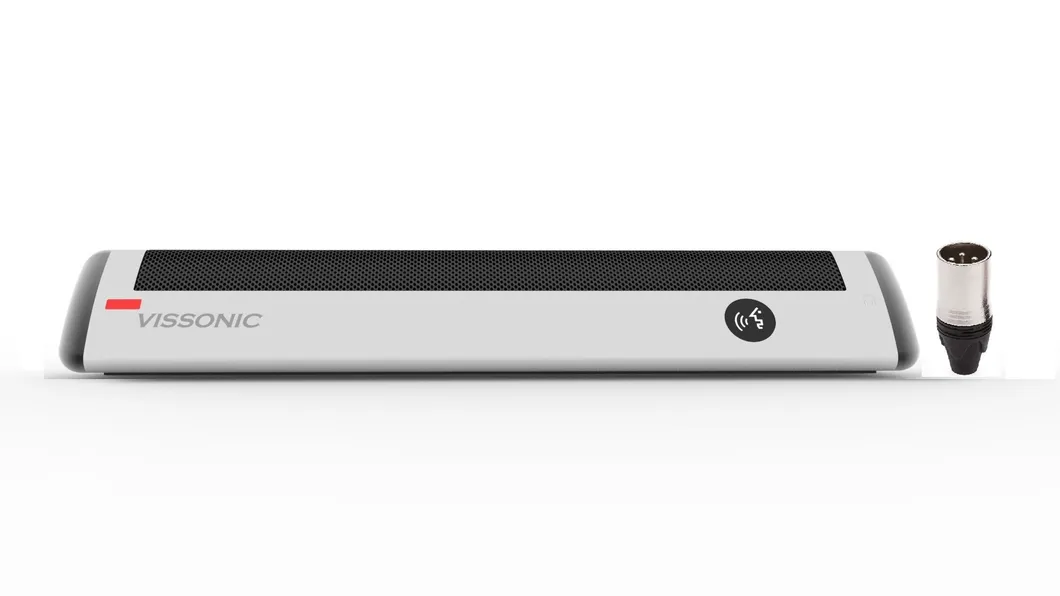

Vissonic Analog Array Microphone with XLR Connector

Product Description

The Analog Array Microphone provides corridor-type audio pickup area, which are greatly improved in relation to the "heart type" pointing characteristics of the goose neck microphone, so that the speaker can move in a wider range, while the sound quality and volume are not affected. The Array Microphone can be connected to any analog device system (like dB-NET DSP audio matrix, digital automatic mixing system, mixer, etc.) for Plug and Play

Item Model for Order
VIS-PTA-T.............. Phantom power Analog Array Microphone

1.Unique modern design with touch button.
2.Using the self-developed ARRA-TechTM array microphone technology,
3.The pickup distance is 60~80CM. The establishment of a personal pick-up sound area, whether the speaker is standing, backward or sideways, provide freely speaking experience.
4.With no goose neck design, speakers and attendees can communicate without hindrance and the speaker also has a better visual effect.
5.The hidden adjustable gain knob can quickly set up the whole system according to the field sound amplification conditions.

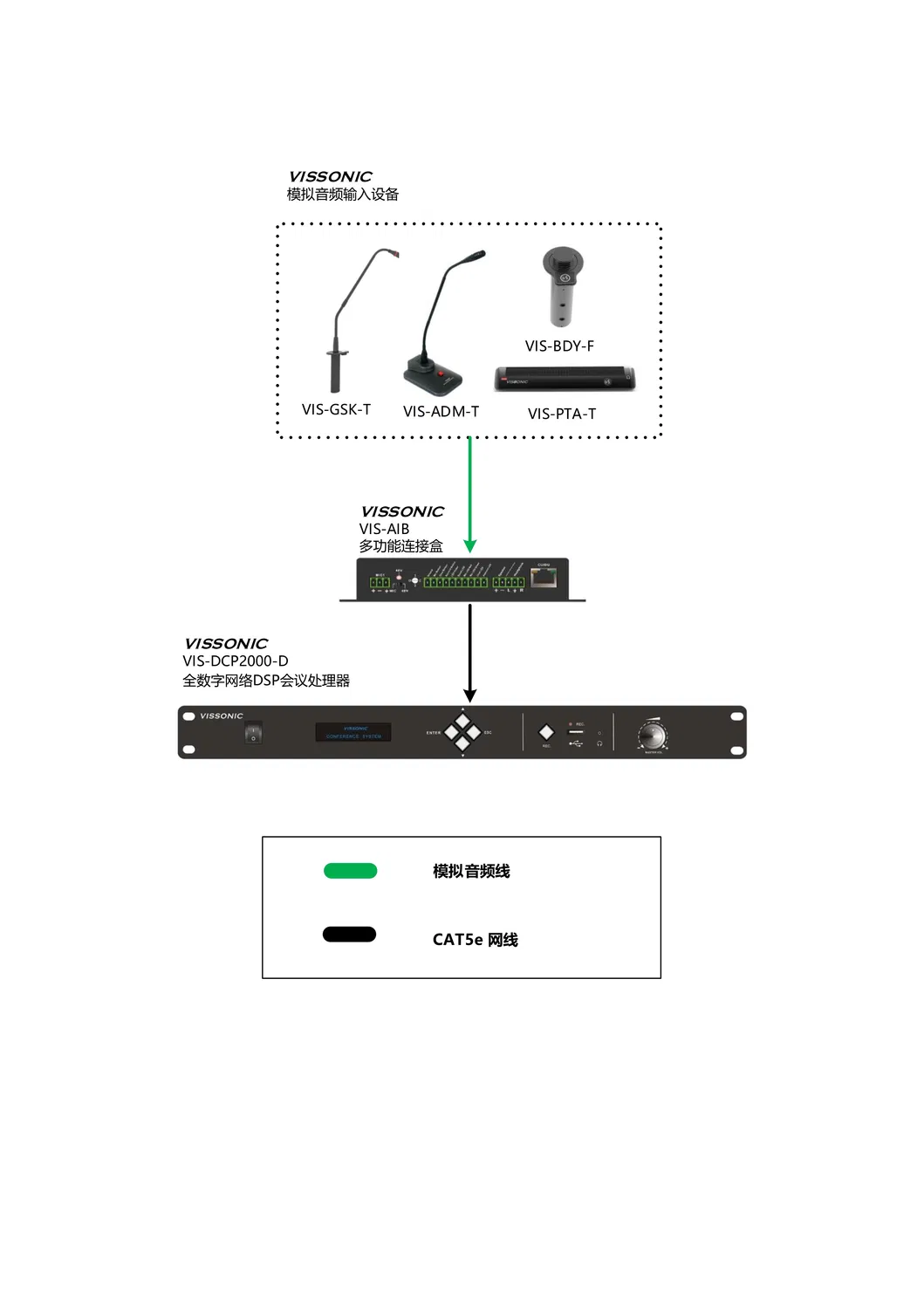

6.2m audio cable with XLR male connector for extending to the VISSONIC dB-NET series DSP audio matrix or any mixer system.

Control & Indicators
Indicator for MIC ON/OFF

Interfaces
1x 3.5mm stereo headphone socket
1x XLR cable

Technical Parameters
Button: Touchable interface, no physical buttons
Sound Pickup: up to 120CM
Maximum power consumption: 1.0W
Headphone load: 16Ω
headphone volume: 10mW
Headphone jack: 3.5mm stereo
Input impedance: 2kΩ
SNR: 70dB
Frequency response: 20 ~ 20000Hz
Connection: CAT5 / CAT6 cable + RJ45
Equivalent noise: 20dBA (SPL)
Main material: Aluminum
Weight: 1.1kg
Dimension: 185W × 130 D× 50H mm
Operating temperature: 0 ºC to + 55 ºC
Color: Silver or Black
