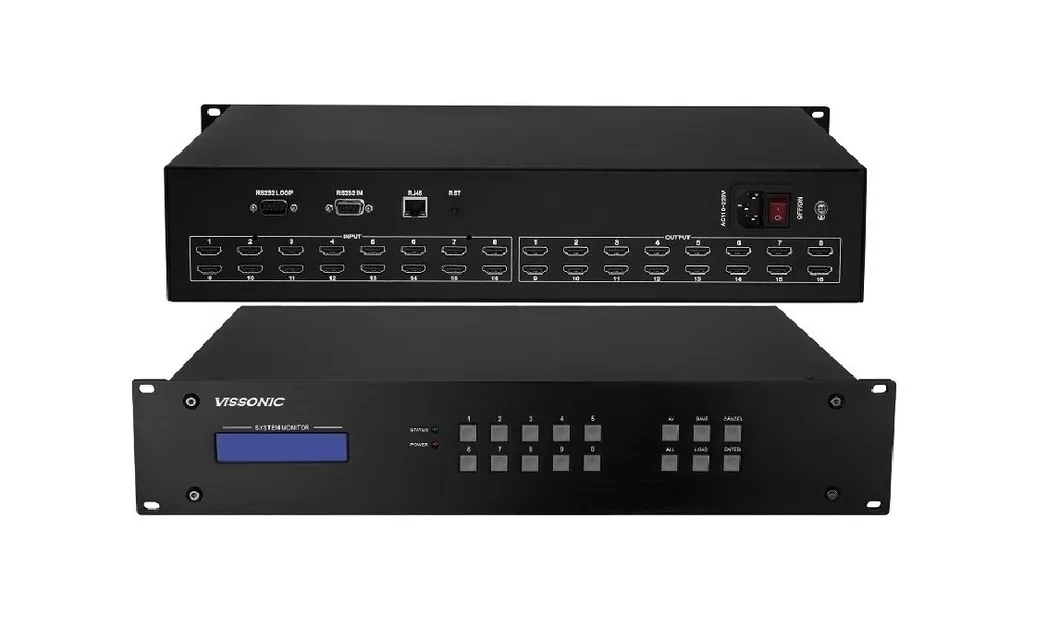

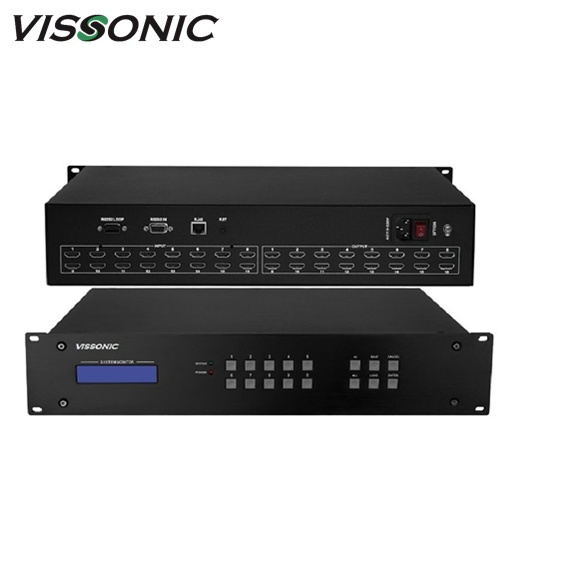

Vissonic 4kx2K HDMI 16X16 Matrix Support HDMI1.4 Hdcp1.4 Video Wall Controller
Overview:PHD series HDMI matrix is professional switcher routs UHD 4Kx2K HDMI signals to any outputs in need.It provides high peak data transfer rate and perfectly supports synchronous switching of HDMI signals, the robust industrial design makes it able to be a signal management center for high def......
Send Inquiry
Product Description
Overview:
PHD series HDMI matrix is professional switcher routs UHD 4Kx2K HDMI signals to any outputs in need.
It provides high peak data transfer rate and perfectly supports synchronous switching of HDMI signals, the robust industrial design makes it able to be a signal management center for high definition signal transmission. It can be widely used in command control center, multi-screen systems, conference room, high definition medical or education teaching etc.
2.Resolution is up to 4Kx2K at 30Hz.
3.Support 3D video
4.Support HDMI1.4.
5.Control way is front panel,RS-232,TCP/IP.
6.EDID reading function to fix any compatible problems.
7.Built-in varied of control protocols to work with control system, like AMX,CRESTRON,VISSONIC.
8.The firmware can be updated by the TCP/IP and be convenient for remote support and OEM the special features.
9.Input distance is up to 30m(98 feet)
10.Powerful memory support to preset and call switching mode. With power-down memory function, with power-off site protection;
11.2U standard housing with rack-mounting design
PHD series HDMI matrix is professional switcher routs UHD 4Kx2K HDMI signals to any outputs in need.
It provides high peak data transfer rate and perfectly supports synchronous switching of HDMI signals, the robust industrial design makes it able to be a signal management center for high definition signal transmission. It can be widely used in command control center, multi-screen systems, conference room, high definition medical or education teaching etc.
Features
1.High speed switching2.Resolution is up to 4Kx2K at 30Hz.
3.Support 3D video
4.Support HDMI1.4.
5.Control way is front panel,RS-232,TCP/IP.
6.EDID reading function to fix any compatible problems.
7.Built-in varied of control protocols to work with control system, like AMX,CRESTRON,VISSONIC.
8.The firmware can be updated by the TCP/IP and be convenient for remote support and OEM the special features.
9.Input distance is up to 30m(98 feet)
10.Powerful memory support to preset and call switching mode. With power-down memory function, with power-off site protection;
11.2U standard housing with rack-mounting design
| Model | VIS-PHD1616 |
| Specification | Input/output support 16 channels |
| Input | HDMI |
| Output | HDMI |
| Control way | Front panel,RS-232,TCP/IP |
| Resolution | Up to 4k x 2k(4096×2160 ) |
| HDMI version | HDMI 1.4,Support 3D TV |
| HDCP | Compliant to HDCP 1.4 |
| Hot plug | Support plug and play |
| Input cable | Up to 30m(98 feet) |
| Output cable | Up to 15m (50 feet) |
| HDMI input/output interface | Type A, 19 pin, female |
| Power supply | 110~220 VAC |
| Environment | Storage and Work Temperature: -20°~+70°C; humidity:10%~90% |
| Weight | 7KG |
| Consumption | 20W |
| Dimension(WxDxH) | 2U(440mmx333mmx88mm) |
| Warranty | 3 years |

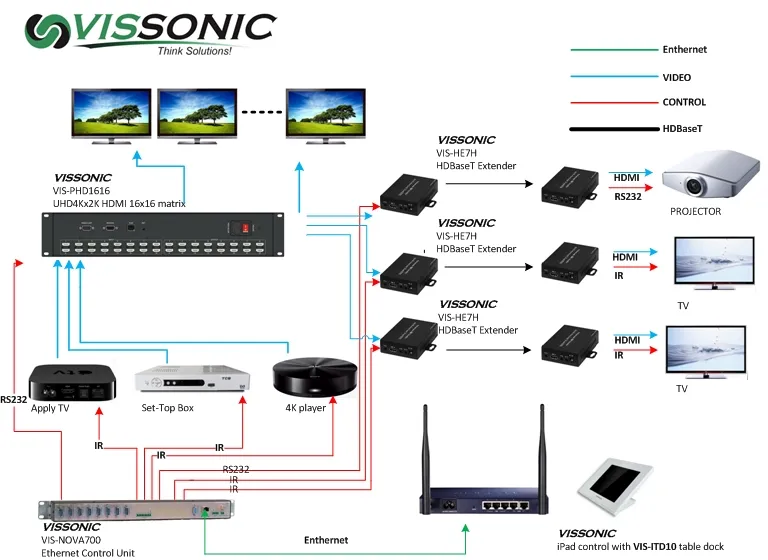

Application
