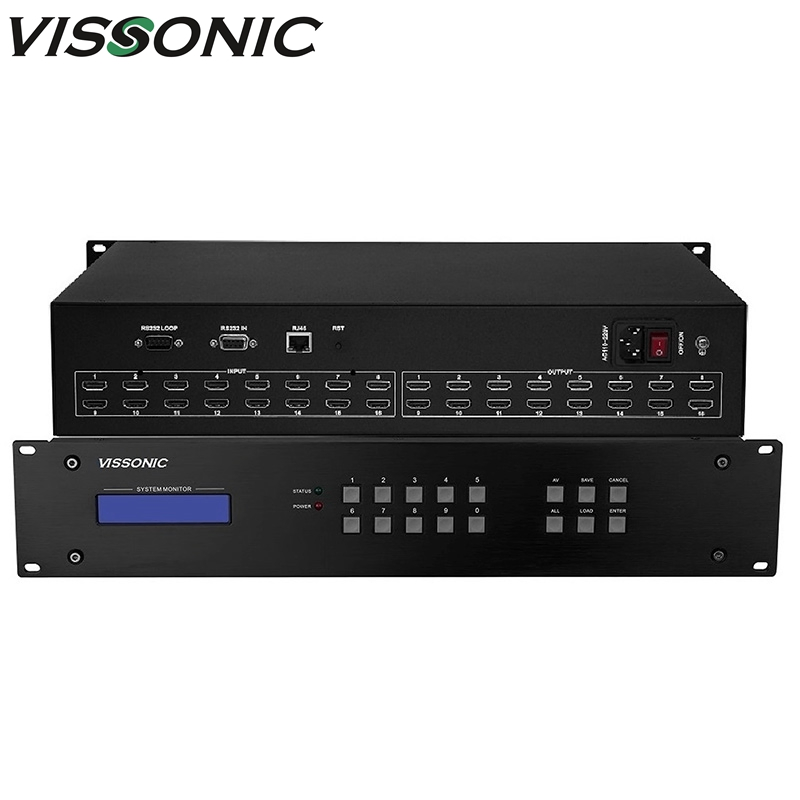

UHD HDMI 16X16 Matrix Signal Management Transmitter
UHD HDMI 16x16 Matrix Signal Management Transmitter, also UHD 4Kx2K HDMI 16x16 Matrix Signal Management Transmitter16 HDMI Inputs, 16 HDMI Outputs Product DescriptionVIS-PHD series are professional HDMI Matrix Signal Management Transmitters, which also called signal switchers that routs UHD 4Kx2K HD......
Send Inquiry
Product Description
UHD HDMI 16x16 Matrix Signal Management Transmitter, also UHD 4Kx2K HDMI 16x16 Matrix Signal Management Transmitter
16 HDMI Inputs, 16 HDMI Outputs
VIS-PHD series are professional HDMI Matrix Signal Management Transmitters, which also called signal switchers that routs UHD 4Kx2K HDMI signals to any outputs/devices in need.
It provides high peak data transfer rate and perfectly supports synchronous switching of HDMI signals.
Their robust industrial design makes them strong signal management center for high definition signal transmission.
It can be widely used in command control center, multi-screen systems, conference room, high definition medical or education teaching etc.
- High speed in switching and signal transmition
- Resolution is up to 4Kx2K at 30Hz.
- Support 3D video and HDMI1.4.
- Control way: front panel,RS-232,TCP/IP software control,IOS app control
- EDID reading function to fix any compatible problems.
- Built-in control protocols to work with control system, like AMX,CRESTRON,VISSONIC and the LCD display the switching status
- The firmware can be updated by the TCP/IP and being convenient for remote support to meet OEM special requirements.
- Input distance can be up to 30m(98 feet)
- With power-down memory and power-off site protection functionality;Powerful memory support to preset and call switching mode.
- 1U standard housing with rack-mounting design
16 HDMI Inputs, 16 HDMI Outputs
| Product Description |
VIS-PHD series are professional HDMI Matrix Signal Management Transmitters, which also called signal switchers that routs UHD 4Kx2K HDMI signals to any outputs/devices in need.
It provides high peak data transfer rate and perfectly supports synchronous switching of HDMI signals.
Their robust industrial design makes them strong signal management center for high definition signal transmission.
It can be widely used in command control center, multi-screen systems, conference room, high definition medical or education teaching etc.
| Features and Parameters |
- High speed in switching and signal transmition
- Resolution is up to 4Kx2K at 30Hz.
- Support 3D video and HDMI1.4.
- Control way: front panel,RS-232,TCP/IP software control,IOS app control
- EDID reading function to fix any compatible problems.
- Built-in control protocols to work with control system, like AMX,CRESTRON,VISSONIC and the LCD display the switching status
- The firmware can be updated by the TCP/IP and being convenient for remote support to meet OEM special requirements.
- Input distance can be up to 30m(98 feet)
- With power-down memory and power-off site protection functionality;Powerful memory support to preset and call switching mode.
- 1U standard housing with rack-mounting design
| Parameters | Description |
| Input type | HDMI |
| Output type | HDMI |
| Video Protocol | HDMI 1.4, HDCP 1.4 |
| Maximum resolution | Up to 4kx2k at 30Hz |
| HDMI interface | Type A, 19 pin, female |
| Serial Interface | RS-232 IN, DB9, Female; RS-232 OUT, DB9, Male |
| Input cable length | Adaptive equalizer for cable lengths up to 30 meters |
| Output cable length | ≤ 15m |
| RJ45 control protocol | TCP/IP |
| Ethernet rate | Self-adaptive 10M/100M |
| Storage environment | Temperature: -20ºC ~ +70ºC, humidity: 10%~90% |
| Work environment | Temperature: -20ºC ~ +70ºC, humidity: 10%~90% |
| Power supply | AC 110~240V |
| Maximum power dissipation | 10W |
| Dimensions(WxDxH) | 1U( 436.8X280X44.5)mm |
| Weight | About 2.3Kg |
| MTBF | 30,000 hours |
| Warranty | One year warranty and lifetime maintenance |

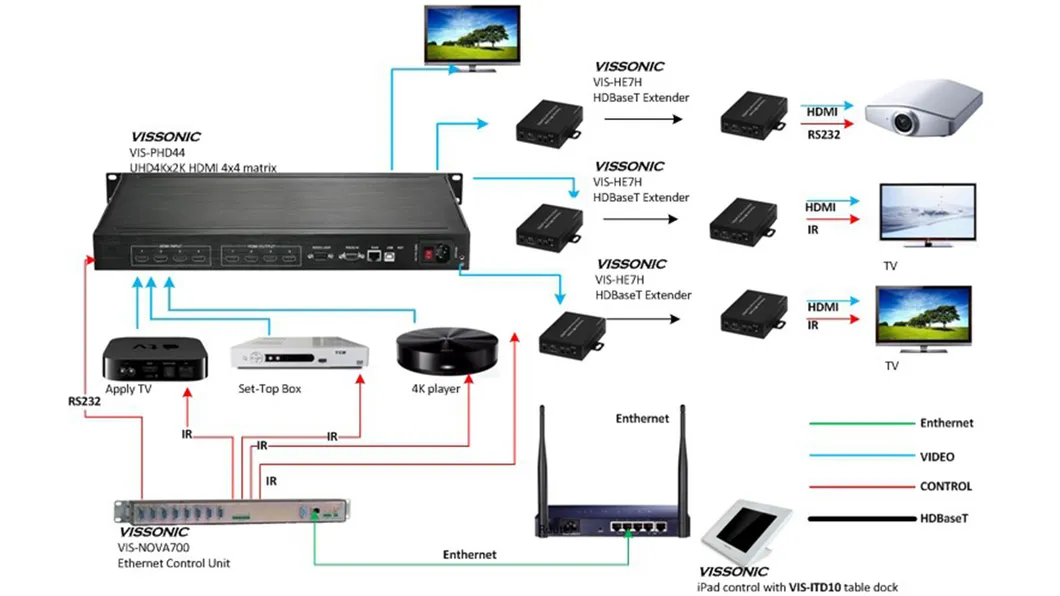

| System Diagram |

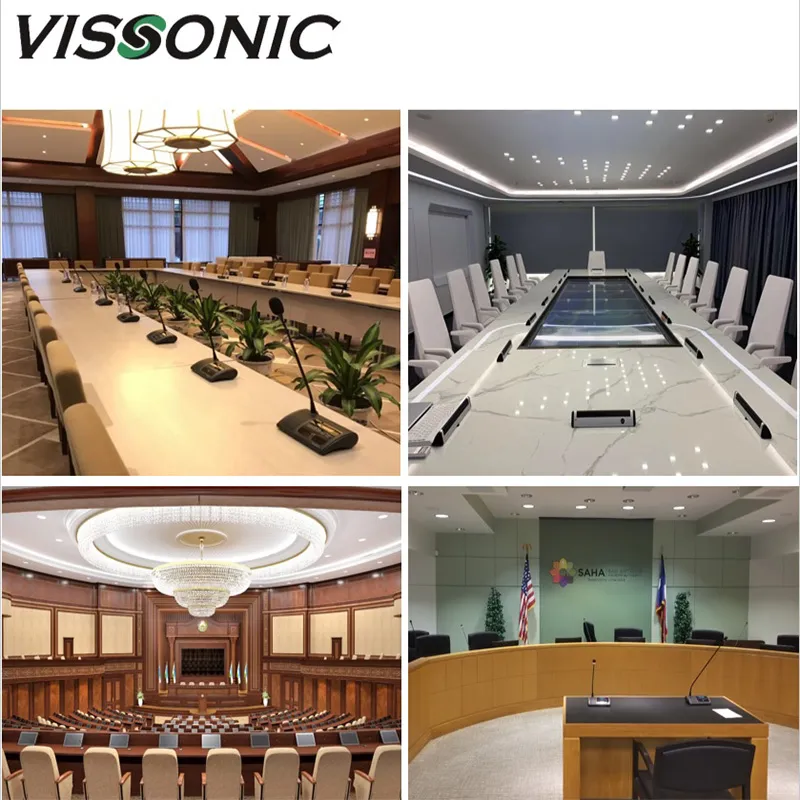

| Application |
