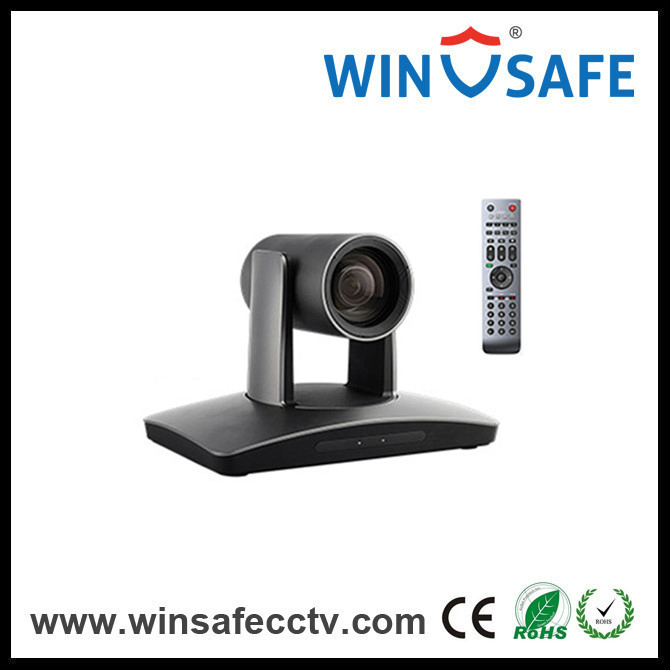

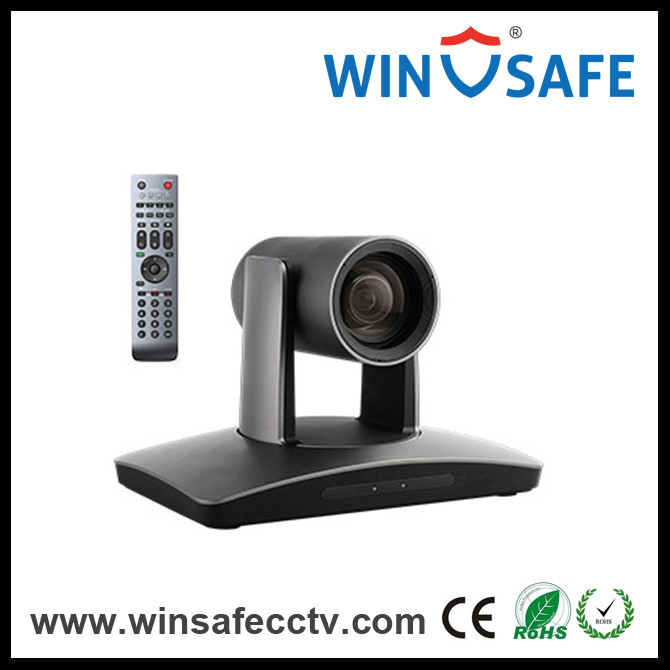

New Design Onvif IP Video Conference PTZ Camera

Product Description

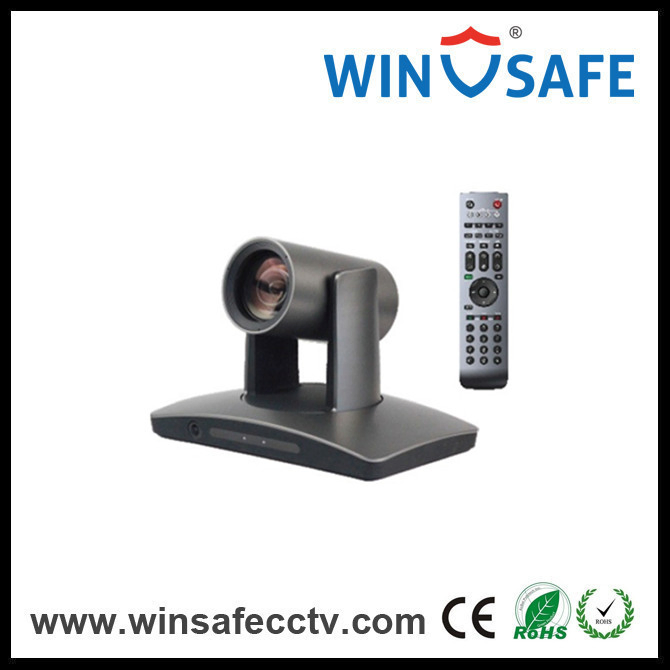

New design ONVIF IP Video Conference PTZ Camera

Model No.	AMC-E200N
Image Sensor	1/2.8" Exmor CMOS, 2.14MP
Video Standard(HD)	1080p/60,1080p/50,1080/30,1080p/25,1080i/60,1080i/50,720p/60,720p/50,720p/30,720p/25
Focal	f = .3.9mm -46.8mm
IRIS	F1.6 - F2.8
Zoom	Optical: 12X, Digital: 12X
Field of View	72.5° - 6.3°
Focus	Auto, Manual, PTZ Trigger AF, One push
Min.Illumination	0.5Lux(Color), 0.1Lux(B/W)
Shutter Speed	1/1 - 1/10,000s
AGC	Auto/Manual
White Balance	Auto, Indoor, Outdoor, One push, Manual, Auto Track
AE Control	Auto, Manual, Shutter Priority, Iris Priority,Intelligence
PTZ
Pan Range	-170° - +170°
Tilt Range	-30° - +90°
Pan Speed	0.1° - +120°/s
Tilt Speed	0.1° - +80°/s
Preset Number	256
OSD	Yes
Image Flip	Yes
Network
Max,Image Size	1920x1080
Frame Rate	HD:50Hz:50fps(1920x1080) 60Hz:60fps(1920x1080)
Video Compression	H.265,H.264
Audio Compression	AAC
Protocol	HTTP,RTSP,RTMP,RTP,TCP,UDP,ONVIF
Dual Stream	Support
Simultaneous Users	up to 10 users
Interface
HD Video Output Interface	DVI-D,HD-SDI
Control Interface	RS-232IN/IR, RS-232OUT/RS-485
Ethernet	RJ45,100M
General
Control Protocol	VISCA and Support Daisy Chain, PELCO-D, PELCO-P
Address	0 - 63
Power Supply	DC12V
Working Temp	0°C - +40°C
Storage Temp	-20°C - +60°C
Dimension	243mm x 145mm x 163mm
Weight	1.2KG
Color	Grey
