IP RS232 RS485/422 Control Onvif H. 265 3D Joystick PTZ Camera Controller Avl-Kc50
3D Joystick Keyboard Controller with RS485 for Video Conferencing Cameras Features Support Pelco-D, Pelco-P, Sony VISCA, Cisco, Polycom, Canon, AW etc.Support up to 64 channels, each channels can be setting special protocol and baud rate , muti-brand camera can ......
Send Inquiry
Product Description

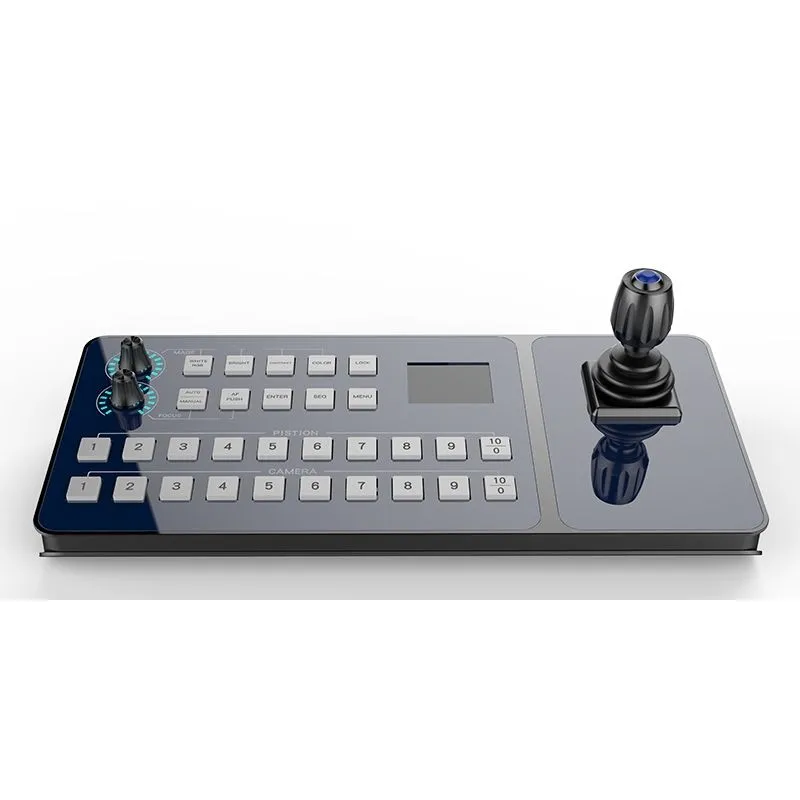

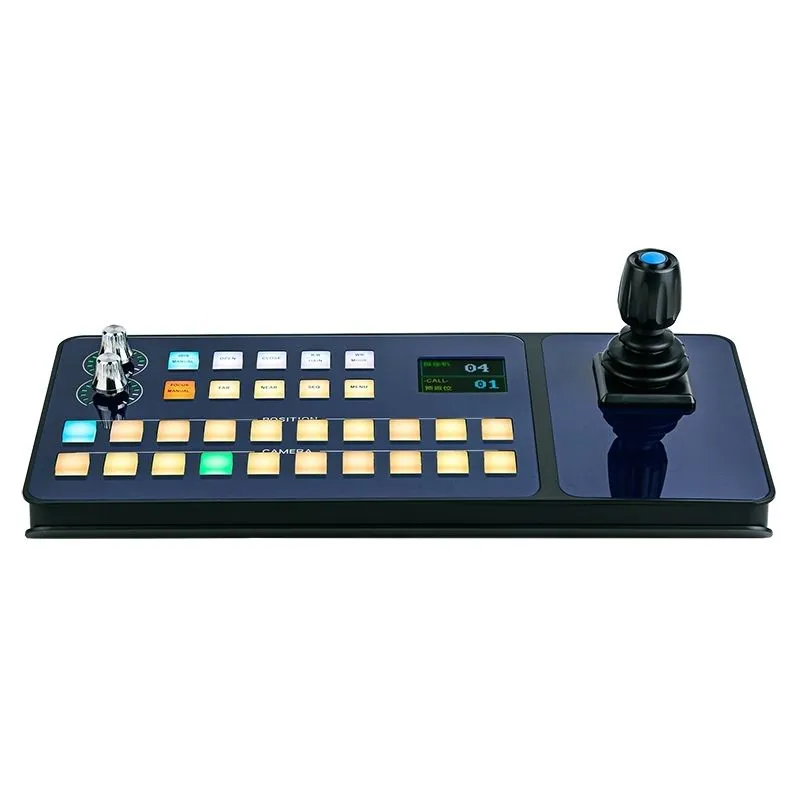

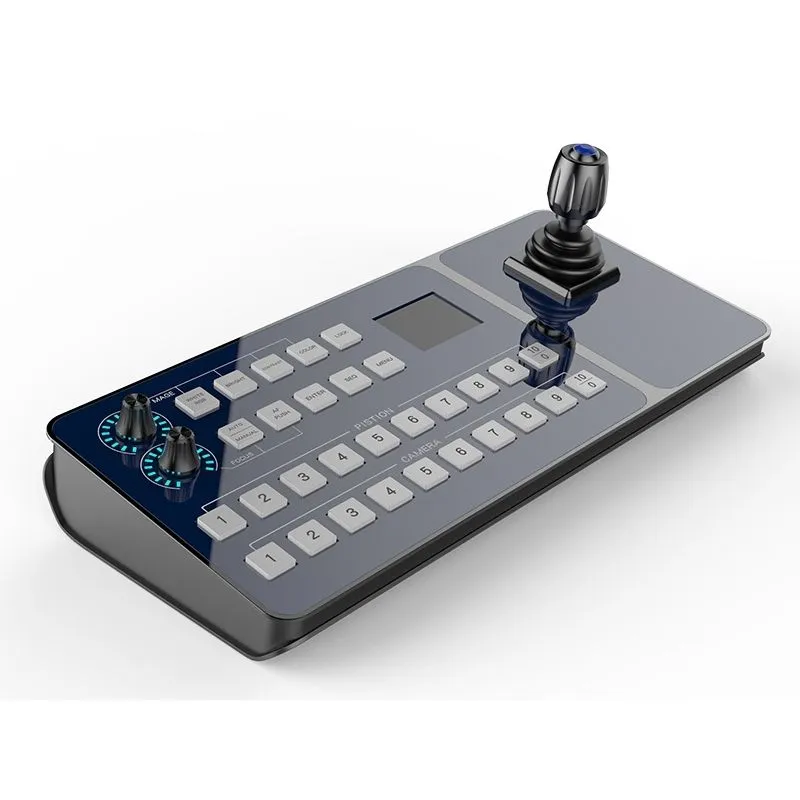

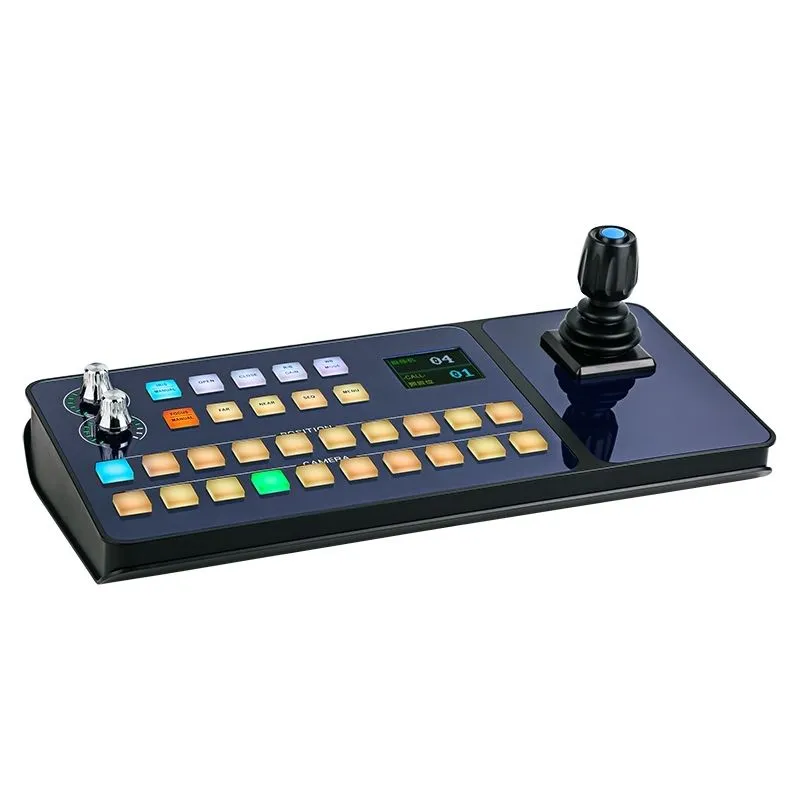

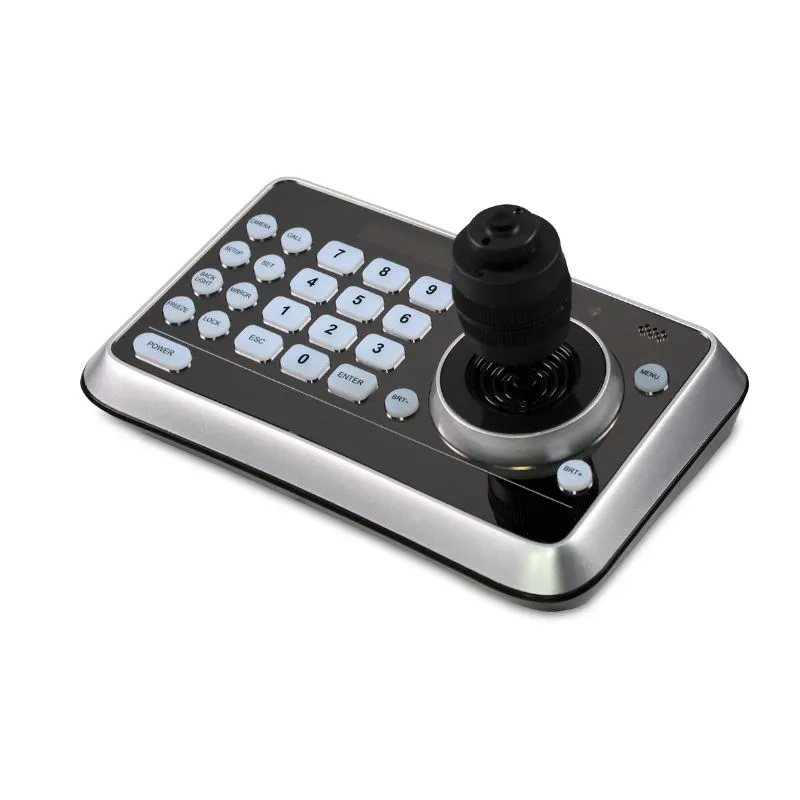

3D Joystick Keyboard Controller with RS485 for Video Conferencing Cameras
Features
- Support Pelco-D, Pelco-P, Sony VISCA, Cisco, Polycom, Canon, AW etc.
- Support up to 64 channels, each channels can be setting special protocol and baud rate , muti-brand camera can work in one controller.
- Under Visca, Cisco, Polycom protocol, presets can be save on the keyboard, 8 presets per channel.
- Under Visca, Cisco protocol, Controller can automatically assigns address.
- Use high quality joystick, nimble, feel good, and high accuracy.
- 10 levels backlight can be set
| Support Protocol | Pelco-D, Pelco-P(Pelco), Visca(Sony), Polycom(Polycom), Cisco(Cisco), Canon(Canon), AW(Panasonic) |
| Baudrate | 1200, 2400, 4800, 9600, 19200 |
| Joystick | 3D+1key, Light encode, ±80 level. |
| LCD Screen | ASCII display, blue backlight, 20 chars, 2 lines. |
| Button | 28Keys, Double color backlight, 10 level light. |
| Control System Capacity | 64 |
| P/T/Z Control | Support |
| Iris Control | Support |
| Preset Numbers | 255 |
| Camera Shortcut | Support |
| Camera Remote Menu | Support |
| Remote Power Switch | Support |

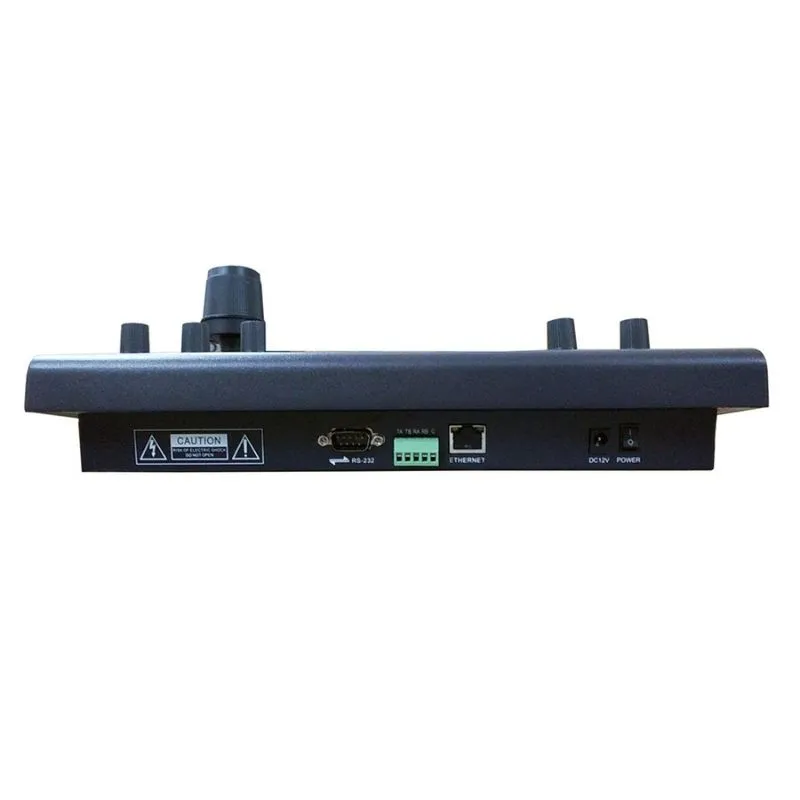

| Connectors | 1 x RS232, max distance: 30m |
| 1 x RS485, max distance: 1200m | |
| 1 x RJ45 (RS485/RS232), Reserved | |
| 1 x USB | |
| Input Voltage | DC 12V |
| Current Consumption | 0.5A(Max) |
| Operating Temperature | 0°C ~ 40°C |
| Storage Temperature | '-20°C ~ 60°C |
| Power Consumption | 2.7W |
| Dimensions (LxWxH) | 354mm × 164mm × 115mm |
| Weight | 1.25Kg |
About AVLink Video Conference Solution
Shenzhen AVLink technology co., ltd, based on Guangming, Shenzhen, China. Leader of Chinese Conference System.
Shenzhen AVLink is a professional AV integration and conference solution supplier, specialized in high-definition video PTZ camera and PTZ keyboard controller over 10 years. Our production series from indoor camera such as High-Definition video conferencing PTZ camera, MCU, All-in-one camera terminal, HDBaseT, tracking camera 4K camera to Outdoor camera. range from 5x, 10x, 20x, to 30x optical.
We offer interactive whiteboard from 32inch, 43inch, 49inch, 55inch, 65inch, 75inch, and 86inch, even up to 98inch and 100inch.
Which Certificate AVLink Has?
Each product meets CE Certificate: CE (EN62368-1:2014+A11:2017) (EN 55032:2015, EN 55035:2017, EN 61000-3-2:2019, EN61000-3-3:2013), and RoHs(2011/65/EU; 2015/863/EU), ROHS(IEC62321-1), IP65(EN60529)
