Home > Products > Conferencing System > HD PTZ 20X Zoom 1080P@60fps DVI-I USB 2.0 3G- SDI Video Conference Camera
HD PTZ 20X Zoom 1080P@60fps DVI-I USB 2.0 3G- SDI Video Conference Camera
HD 18x Multi-interface CameraTypeHD 20x Multi-interface CameraImage SensorSensor1/2.8" Progressive CMOSEffective Pixel2.0 MegapixelMin. Illumination0.5 Lux at F1.6White BalanceAUTO/MANUAL/INDOOR/OUTDOOR/ATW/MANUIGain ControlAUTOBack-light CompensationOn/OffShutter1/11/30000S/N Ratio>50dbLens......
Send Inquiry
Product Description
HD 18x Multi-interface Camera
| Type | HD 20x Multi-interface Camera | |
| Image Sensor | Sensor | 1/2.8" Progressive CMOS |
| Effective Pixel | 2.0 Megapixel | |
| Min. Illumination | 0.5 Lux at F1.6 | |
| White Balance | AUTO/MANUAL/INDOOR/OUTDOOR/ATW/MANUI | |
| Gain Control | AUTO | |
| Back-light Compensation | On/Off | |
| Shutter | 1/11/30000 | |
| S/N Ratio | >50db | |
| Lens | Focus | f=5.9-106.2 mm F1.8-3.9 |
| Iris | F1.6-F9.6 | |
| Zoom | 18x optical zoom | |
| HOV | 56°-4° | |

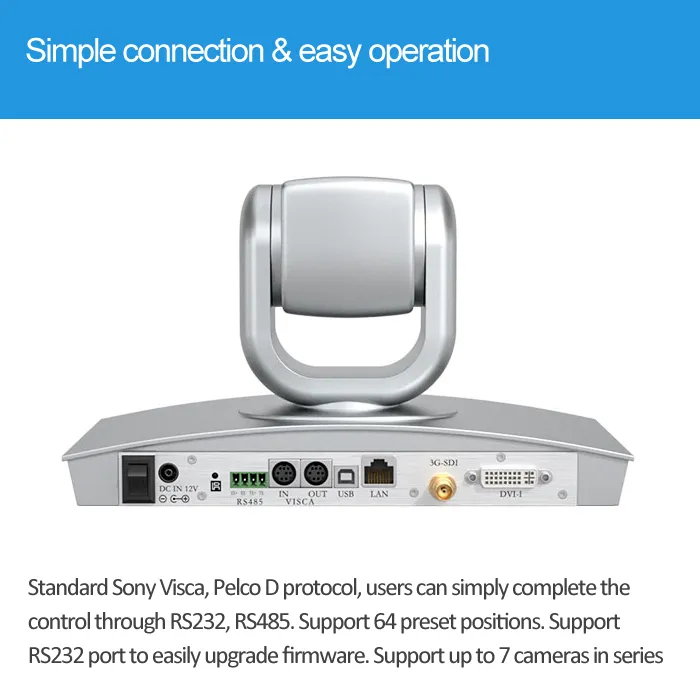

| Video Output | 3G-SDI, USB2.0, LAN,DVI-I (DVI-I change to HDMI,YPbPr) | |
| Video Output Format | 1080p60/50/, 1080i60/50, 720p60/50/30/25 | |
| Communication Interface | RS232C, RS485 (bidirectional) | |
| Communication Protocol | VISCA, PELCO-D | |
| Baud Rate | 2400/4800/9600/38400bps | |
| Tour Path | 1 | |
| Preset Position | 256 | |
| 256 Speed Match | Speed can be determined by the zoom in/out of the lens | |
| OSD Menu | Support | |
| Image Flip | Support | |
| Pan Movement Speed | 100°/S | |
| Tilt Movement Speed | 72.2°/S | |
| Pan Movement Angle | 355° | |
| Tilt Movement Angle | 90°(up), 30°(down) | |
| Auto Scan | Support | |
| Boundary Scan | 0-355°(programmable) | |
| Remote Control | IR wireless P/T/Z | |
| Power Supply | DC12V±10%,2A | |
| Working Temperature | 50ºC | |
| Working Humidity | 0-95% RH | |
| Dimension (LxWxH) | 250mm×140mm×154mm | |
| Net Weight | 1400g | |
