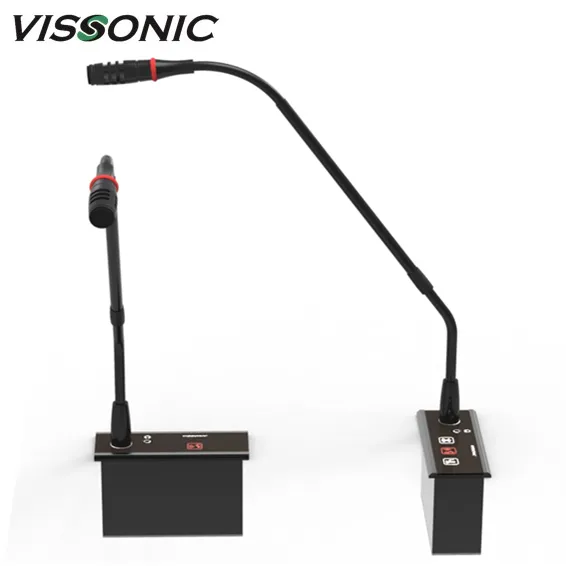

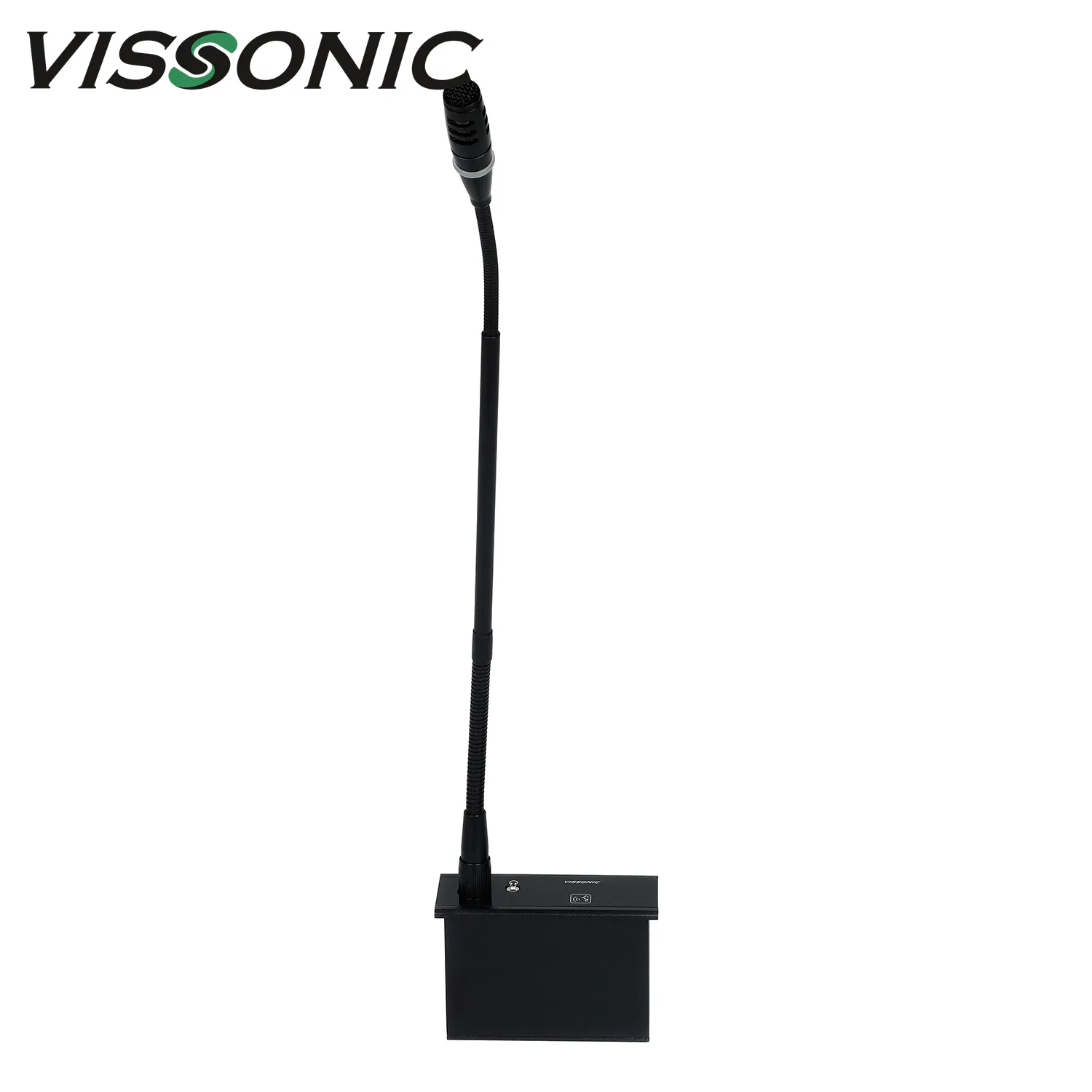

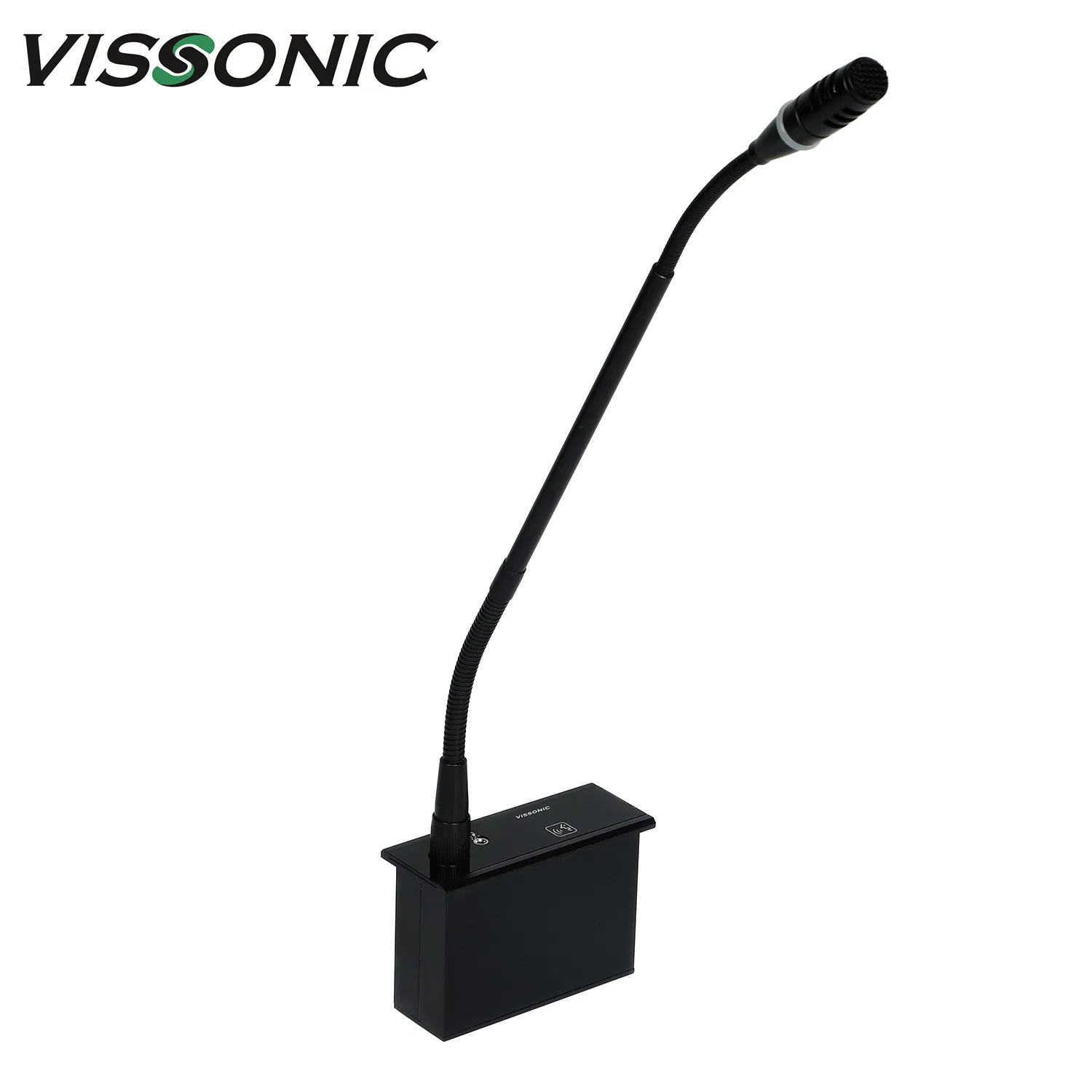

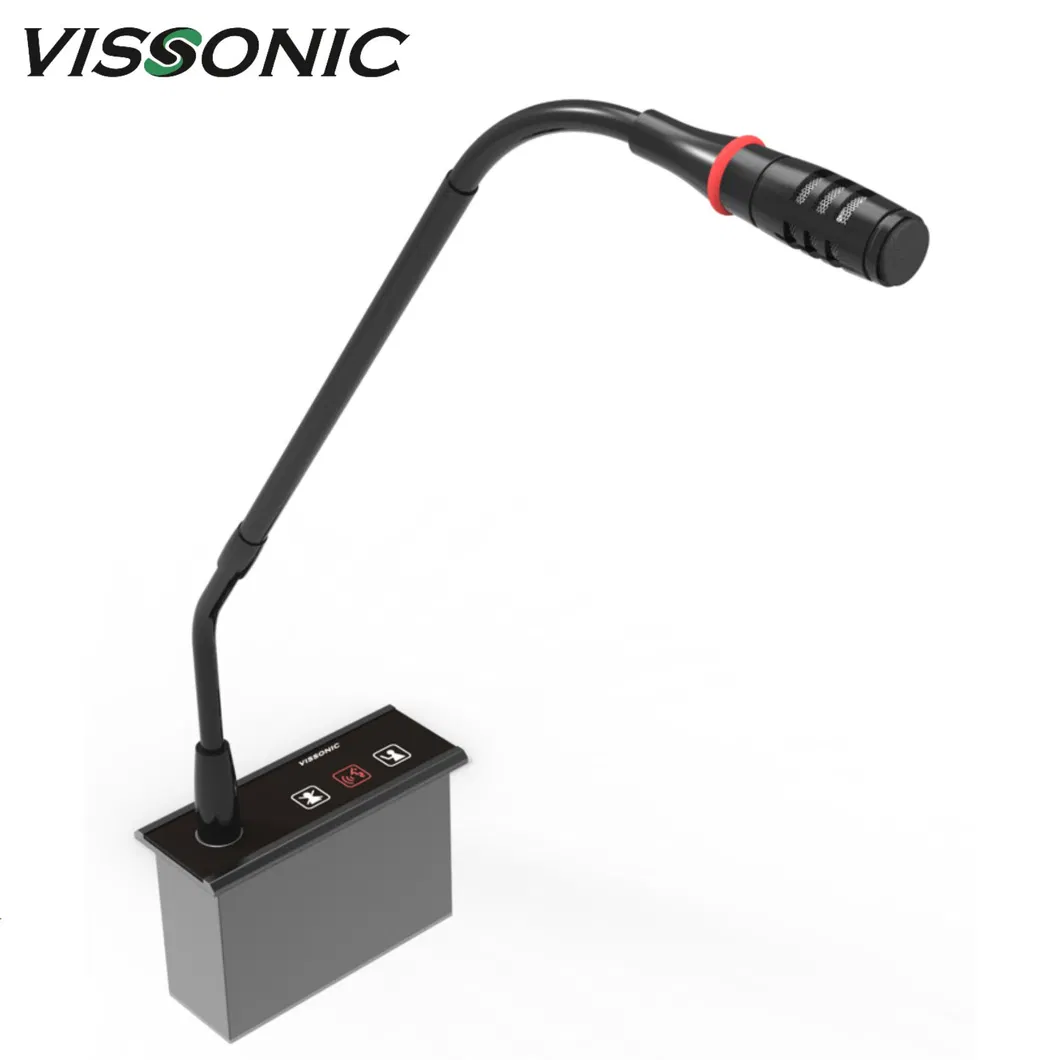

Cat5 Wired DSP Conference System Flush Mount Gooseneck Microphone with Earphone for Delegate Unit
Full Digital Wired DSP Flush-mounting Discussion Conference System Microphones with EarphoneFeatures:1.Stylish, low profile design with touchable interface2.Standard CAT5e and RJ45 connectors are used in CLEACON series to provide more convenient on project and maintenance. 3.The connection of MIC un......
Send Inquiry
Product Description
Full Digital Wired DSP Flush-mounting Discussion Conference System Microphones with Earphone
Features:
1.Stylish, low profile design with touchable interface
2.Standard CAT5e and RJ45 connectors are used in CLEACON series to provide more convenient on project and maintenance.
3.The connection of MIC units are either hiding underneath or from the rear of the unit, makes it convenient for different request of installation,
4.OLED screen, providing excellent brightness, contrast, wide viewing angle but low power consumption
5.Internal high fidelity loudspeaker
6.Head-set interface in both sides with volume adjust
7.Line-in interface which allows microphone or other line-in device like cell phone, laptop to pass audio through to perform teleconference
8.The unique AUDIO-LINK digital ring network technology achieve full-digital signal transmission and processing, completely avoid the RF interference from cell phone or similar devices.
9.Strong system robust by the "Hand-in-Hand-Loop-Network" connection method.
10.The microphone sensitivity of each unit and 16 level equalizer EQ can be
adjusted independently
11.Timer on display to set certain time for each delegate to speak, will remind user or close the MIC automatically
12.VIP delegate: If order all the units as chairman, you can re-set some units as VIP delegate (MAX 32 units), VIP delegate can open mic to speak freely if there is no more than 8 units activated at the same time.
13.All units can be configured as Chairman or Delegate unit through software settings based on model DCC-T.
1.Stylish, low profile design with touchable interface
2.Standard CAT5e and RJ45 connectors are used in CLEACON series to provide more convenient on project and maintenance.
3.The connection of MIC units are either hiding underneath or from the rear of the unit, makes it convenient for different request of installation,
4.OLED screen, providing excellent brightness, contrast, wide viewing angle but low power consumption
5.Internal high fidelity loudspeaker
6.Head-set interface in both sides with volume adjust
7.Line-in interface which allows microphone or other line-in device like cell phone, laptop to pass audio through to perform teleconference
8.The unique AUDIO-LINK digital ring network technology achieve full-digital signal transmission and processing, completely avoid the RF interference from cell phone or similar devices.
9.Strong system robust by the "Hand-in-Hand-Loop-Network" connection method.
10.The microphone sensitivity of each unit and 16 level equalizer EQ can be
adjusted independently
11.Timer on display to set certain time for each delegate to speak, will remind user or close the MIC automatically
12.VIP delegate: If order all the units as chairman, you can re-set some units as VIP delegate (MAX 32 units), VIP delegate can open mic to speak freely if there is no more than 8 units activated at the same time.
13.All units can be configured as Chairman or Delegate unit through software settings based on model DCC-T.
| Button | Touchable interface, no physical buttons |
| Sound Pickup | heart type capacitance |
| Sensitivity | -46 dBV / Pa |
| Maximum power consumption | 2.0W |
| Directivity | 0 ° / 180 °> 20 dB (1 kHz) |
| Headphone load | 16Ω |
| Headphone volume | 10mW |
| Headphone jack | 3.5mm stereo |
| Input impedance | 2kΩ |
| SNR | 70dB |
| Frequency response | 20 ~ 20000Hz |
| Equivalent noise | 20dBA (SPL) |
| Main material | ABS |
| Operating temperature | 0 ºC to + 55 ºC |
| Color | Black |
| The maximum sound pressure | 125dB (THD <3%) |
| Weight | 0.2kg (with microphone) |
| Dimension | 100L × 40W × 65D mm(without microphone) |
| Connection | CAT5 / CAT6 cable + snap |

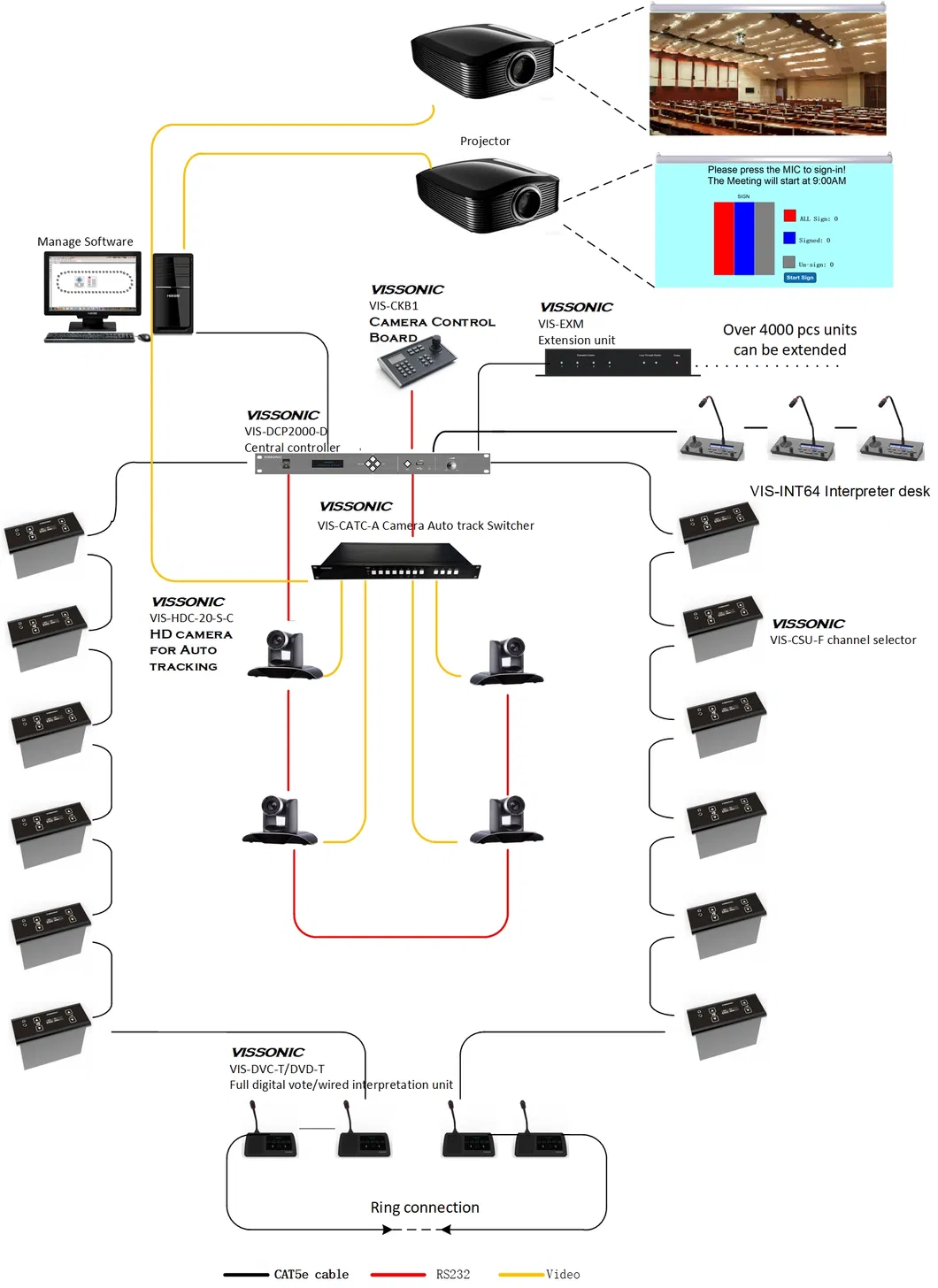

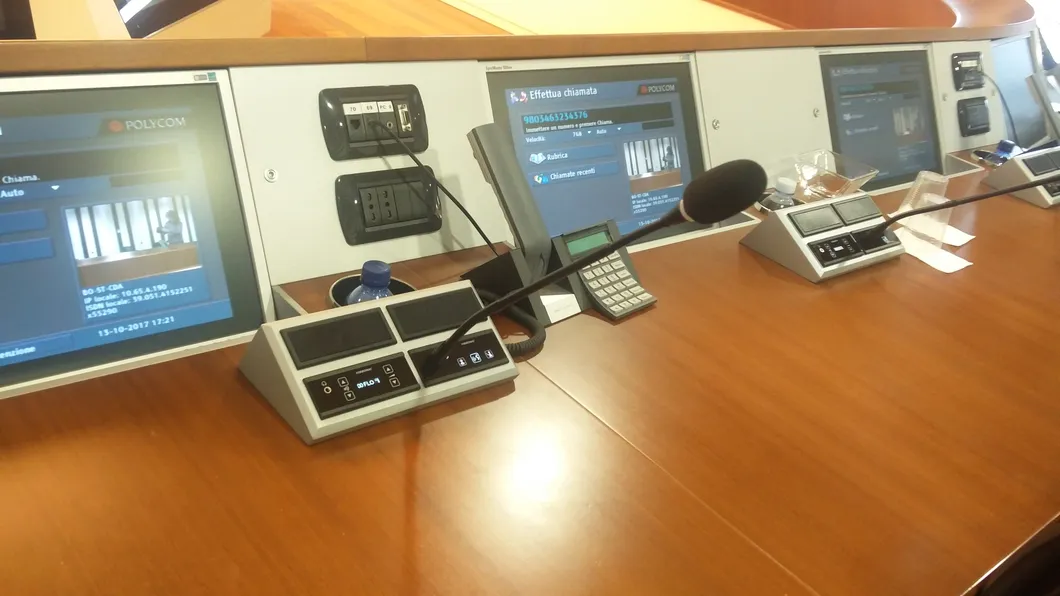

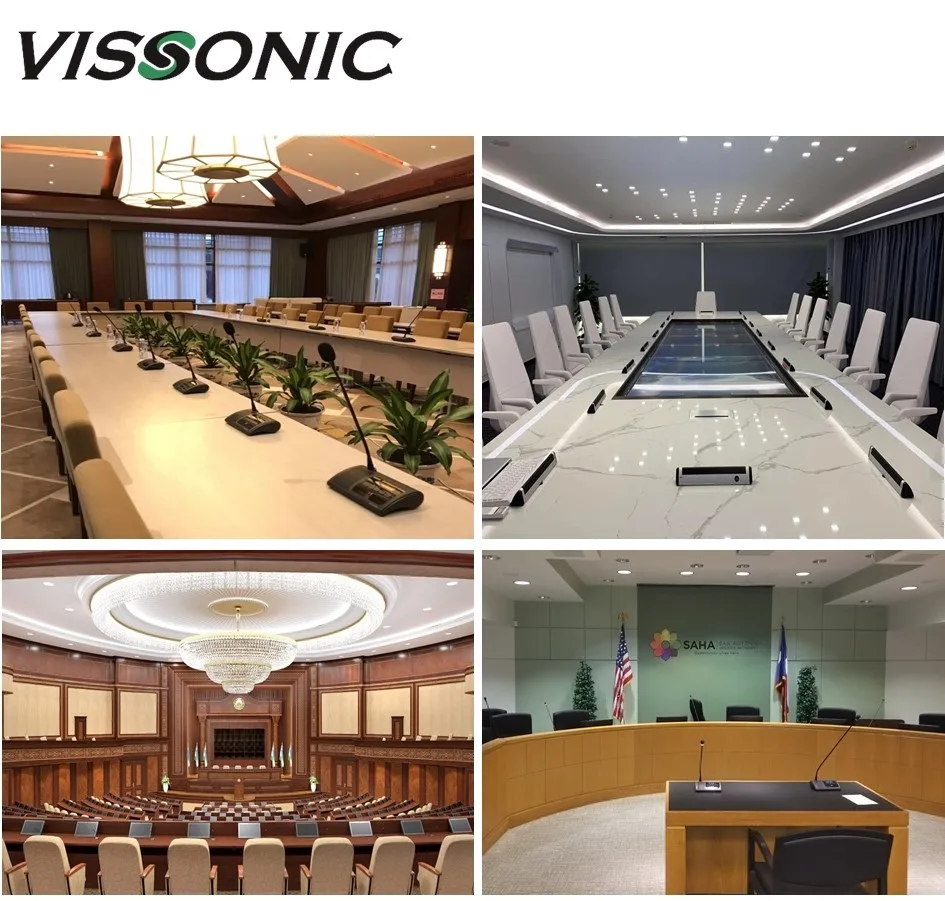

Application
