Product Description
AVL-HD620 PTZOptic HDMI SDI IP Output NDI 20X Zoom NDI Video Conference PTZ Camera
Key Features
Sensor: 1/2.7" CMOS, 207MP
Video Format: Full HD1080P60
Zoom: 20 x Optical
Output: 3G-SDI, HDMI, IP
Protocol: VISCA, PELCO-D/P
Horizontal Field of View: 60.7°
Presets: 255
Functionality
H.265 Support
The first H.265 encoding support conference video camera in the world, enabling full HD 1080p video stream by ultra-low bandwidth.
1080P Full HD
Apply Panasonic's 1/2.7 inch, 2.07 million effective pixels high quality HD CMOS sensor, can reach maximum 1920 x 1080 high resolution and achieve quality image.
Ultra-high Frame Rate
The output frame rate up to 60fps in 1080P.
AAC Audio Encoding
Support AAC audio encoding, better sound quality and smaller bandwidth.
Local Storage
Support local storage module, directly recording to local USB flash disk without NVR.
Low-light
High SNR of CMOS sensor combined with 2D and 3D noise reduction algorithm, effectively reduce the noise, even under low illumination conditions, picture can still keep clean and clear.
Abundant & Perfect Interface
Support HDMI output, 3G-SDI interface, effective transmission distance up to 150 meters (under 1080p30). HDMI, SDI, Network can output at the same time.
20x Optical + 16x Digital Zoom
Use TAMRON high quality super telephoto lens, support 20x optical zoom, 16x digital
Remote Control
Using RS232/485 interface, all the parameters of the camera can be remote controlled by the high-speed communications.
20x Video Conference Camera Specification:
| Camera | |
| Video CMOS Sensor | 1/2.7'', CMOS, Effective Pixel: 2.07M |
| Frame Rate | 1080P60/59.94/50/30/29.97/25,1080I60/59.94/50,720P60/59.94/50/30/29.97/25, 480I60, 576I50 |
| Lens Zoom | 20x, f4.42mm ~ 88.5mm, F1.8 ~ F2.8 |
| Horizontal Field of View | 3.36°(T)-60.7°(W) |
| Vertical Angle of View | 34.1° ~ 1.89° |
| Min Lux | 0.5 lux @ (F1.8, AGC ON) |
| Shutter Speed | 1 to 1/10000s |
| White Balance | Auto, 3000K/Indoor, 4000K, 5000K/Outdoor, 6500K_1, 6500K_2, 6500K_3, One Push, Manual |
| Backlight Compensation | Support |
| Digital Noise Reduction | 2D&3D Digital Noise Reduction |
| Video S/N | ≥55dB |
| Image Freeze | Support |
| Vertical Flip & Mirror | Supported |
| Working environment | Indoor |
| Mechanical | |
| Pan Rotation Angle | ±170° |
| Tilt Rotation Angle | -30°~ +90° |
| Pan Speed (per second) | 1.7° ~ 100°/s |
| Tilt Speed (per second) | 1.7° ~ 69.9°/s |
| Presets | 255 Presets |
| Number of Preset | 0.1° |
| PTZ Control Protocol | Sony VISCA and PELCO D/P |
| IPC Features | |
| Video Compression | H.265/H.264/MJEPG |
| Video Stream | Main Stream, Sub Stream |
| Main Stream Resolution | 1920x1080, 1280x720, 1024x576 |
| Sub Stream Resolution | 720x576, 720x480, 320x240 |
| Video Bit Rate | 128Kbps ~ 8192Kbps |
| Bit Rate Type | Variable Rate, Fixed Rate |
| Frame Rate | 50Hz: 1fps ~ 50fps, 60Hz: 1fps ~ 60fps |
| Audio Compression | AAC |
| Audio Bit Rate | 96Kbps, 128Kbps, 256Kbps |
| Support protocols | TCP/IP, HTTP, RTSP, RTMP, Onvif, DHCP, Multicast, etc. |

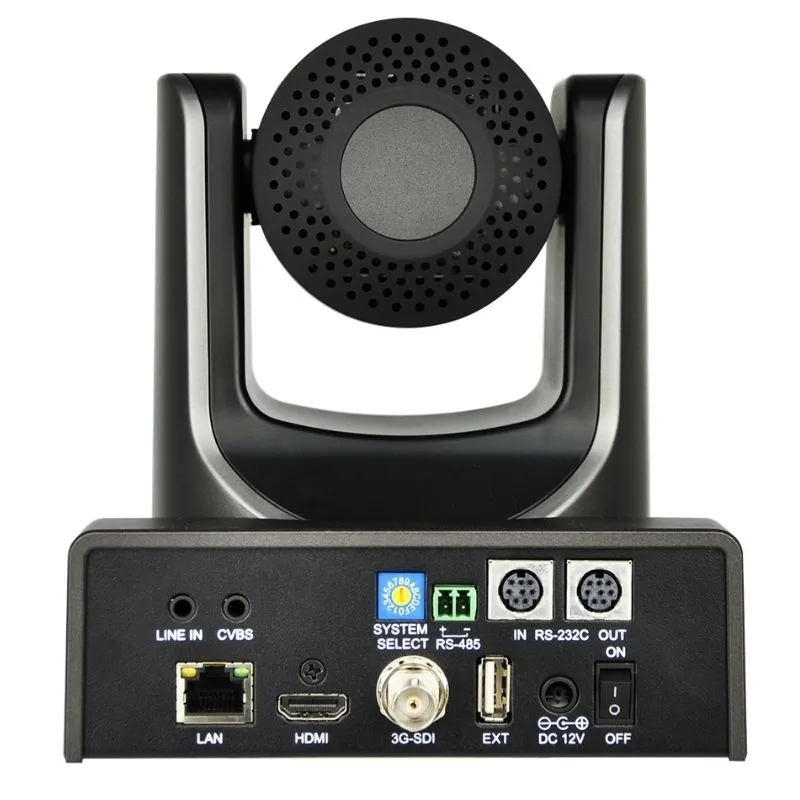

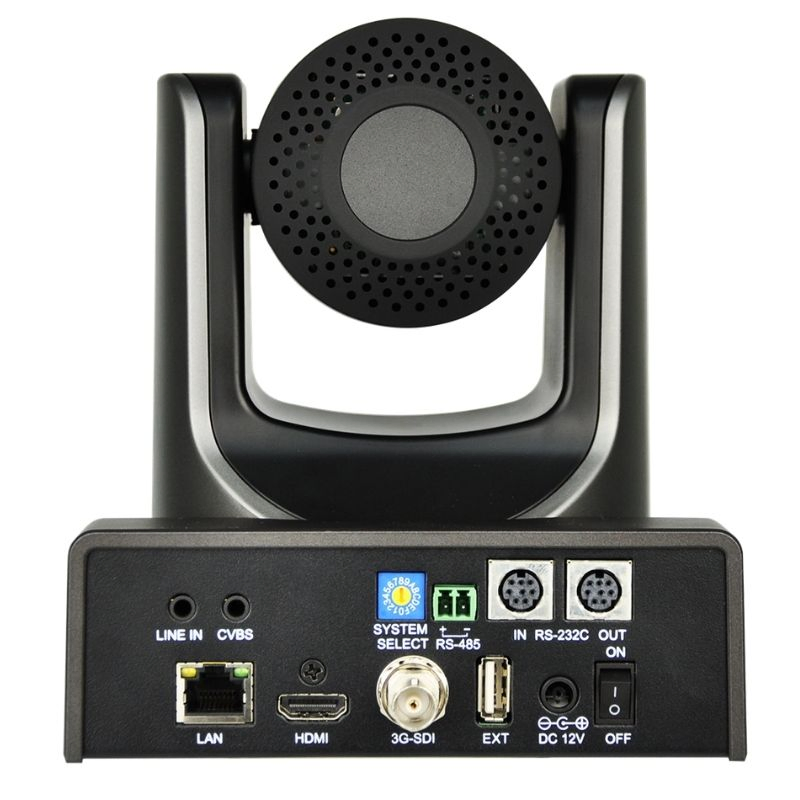

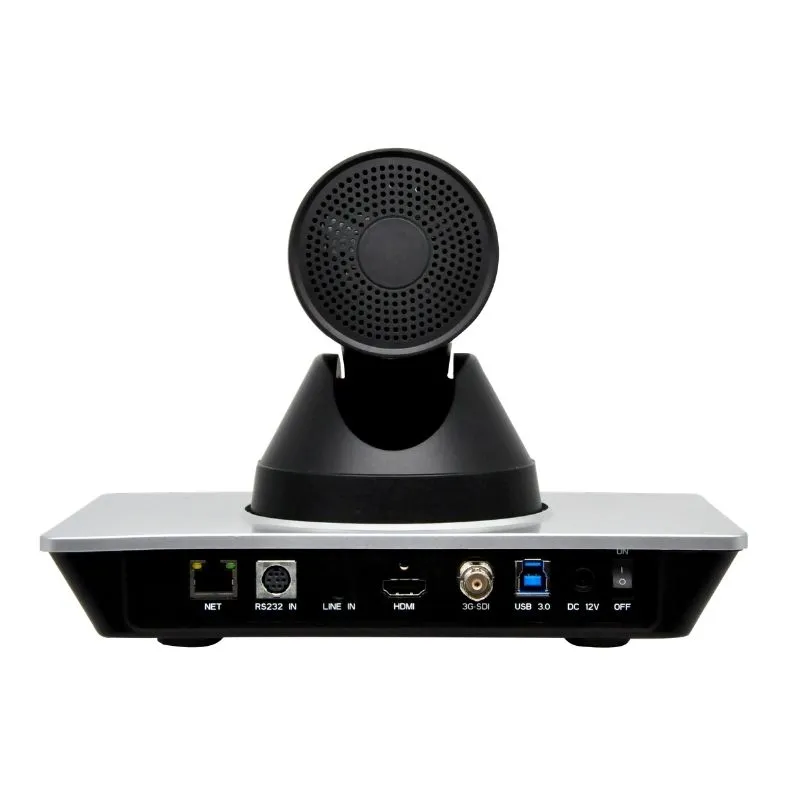

| Interface | |
| HD Output | 1xHDMI: Version 1.3 |
| 1x3G-SDI: BNC type, 800mVp-p, 75Ω, Along to SMPTE 424M standard | |
| SD Output | 1xCVBS: 3.5mm mini jack, 1Vp-p, 75Ω |
| Network Interface | 1xRJ45: 10M/100M Ethernet Interface |
| Audio Interface | 1-ch: 3.5mm Audio Interface, Line In |
| USB | 1xUSB2.0: Type A female jack |
| Communication Interface | 1xRS232 In: 8pin Min DIN, Max Distance: 30m, Protocol: VISCA/Pelco-D/Pelco-P |
| 1xRS232 Out: 8pin Min DIN, Max Distance: 30m, Protocol: VISCA network use only | |
| 1xRS485: 2pin Phoenix Port, Max Distance: 1200m, Protocol: VISCA/Pelco-D/Pelco-P | |
| Power Jack | JEITA type (DC IN 12V) |
| General | |
| Dimensions (W x H x D) | 169mm x 142mm x 164mm |
| Weight | 1.35 kg |
| Input Voltage | DC 12V |
| Current Consumption | 1.0A (Max) |
| Operating Temperature | -10°C ~ 40°C (14°F ~ 104°F) |
| Storage Temperature | -40°C ~ 60°C (-40°F ~ 140°F) |
| Power Consumption | 12W (Max) |
| Color | Black, Silver, or special order |

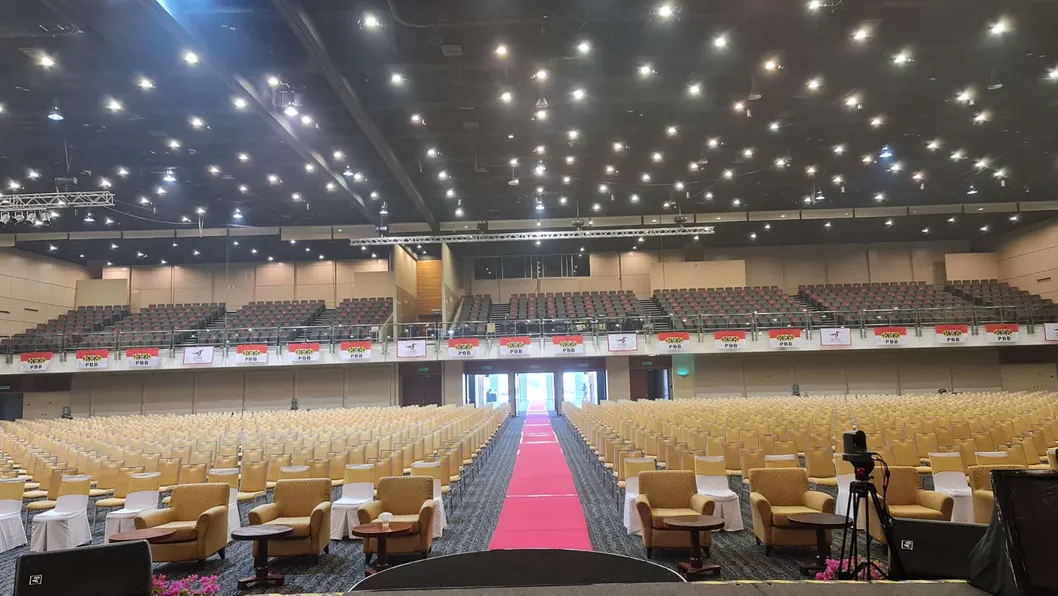

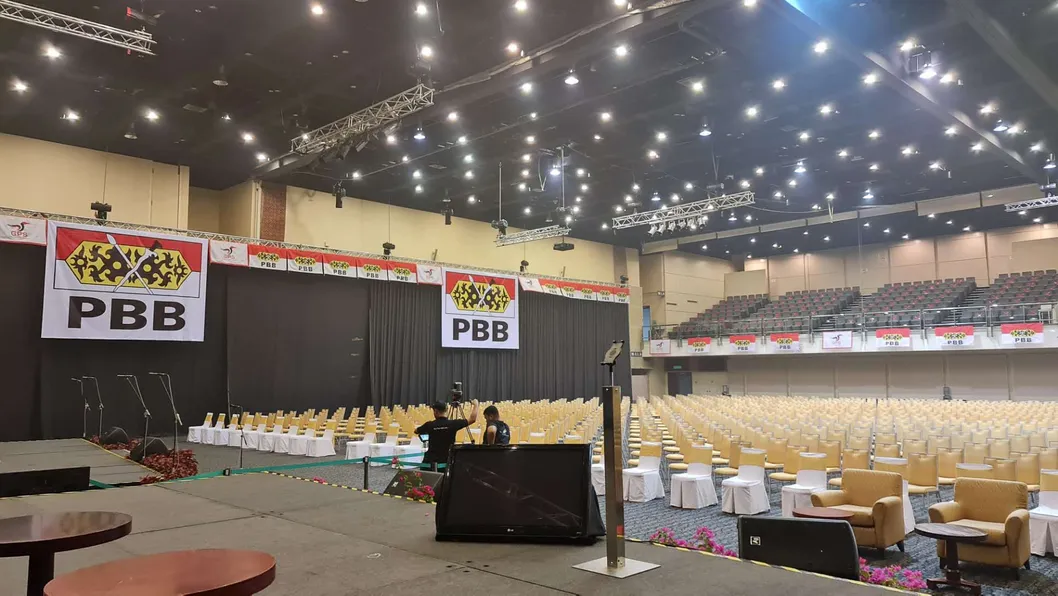

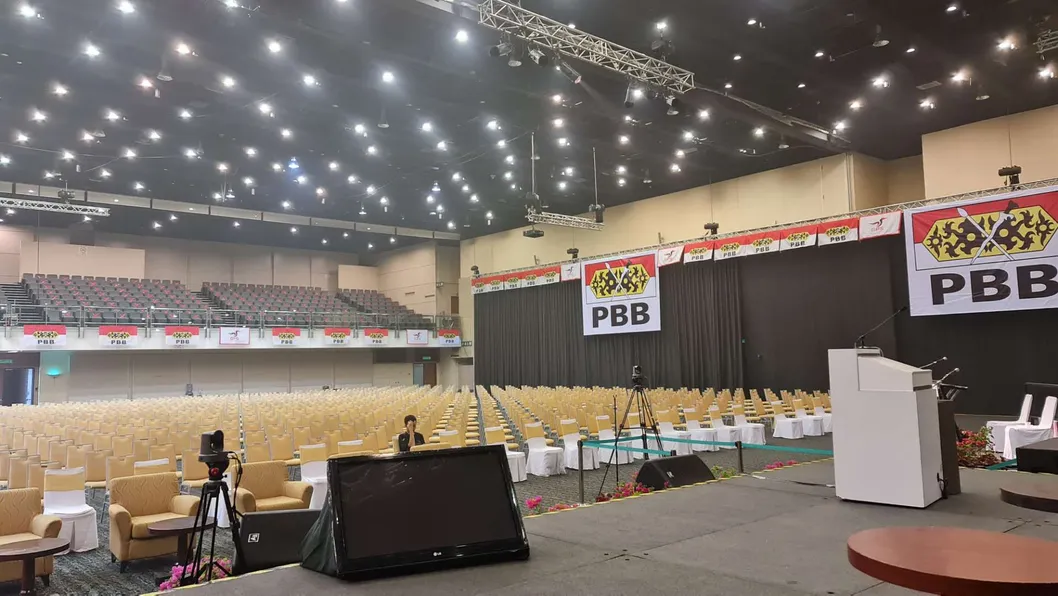

Case story:

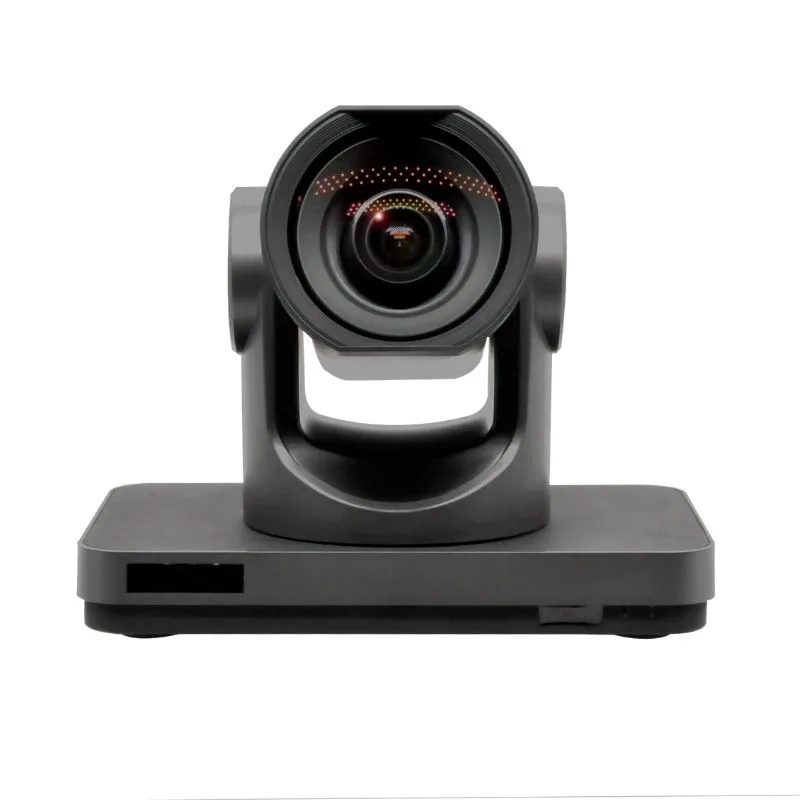

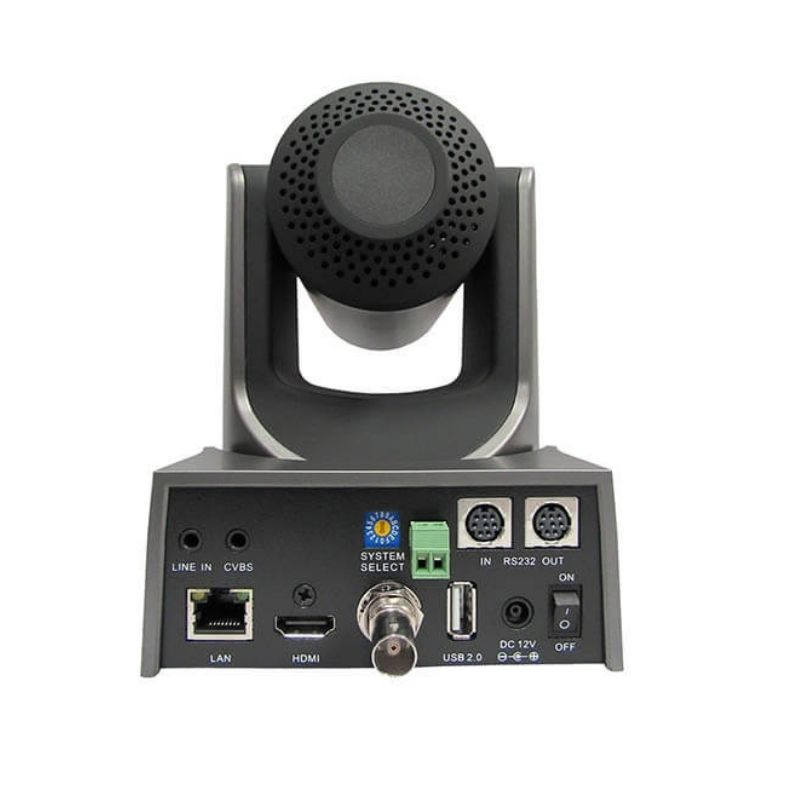

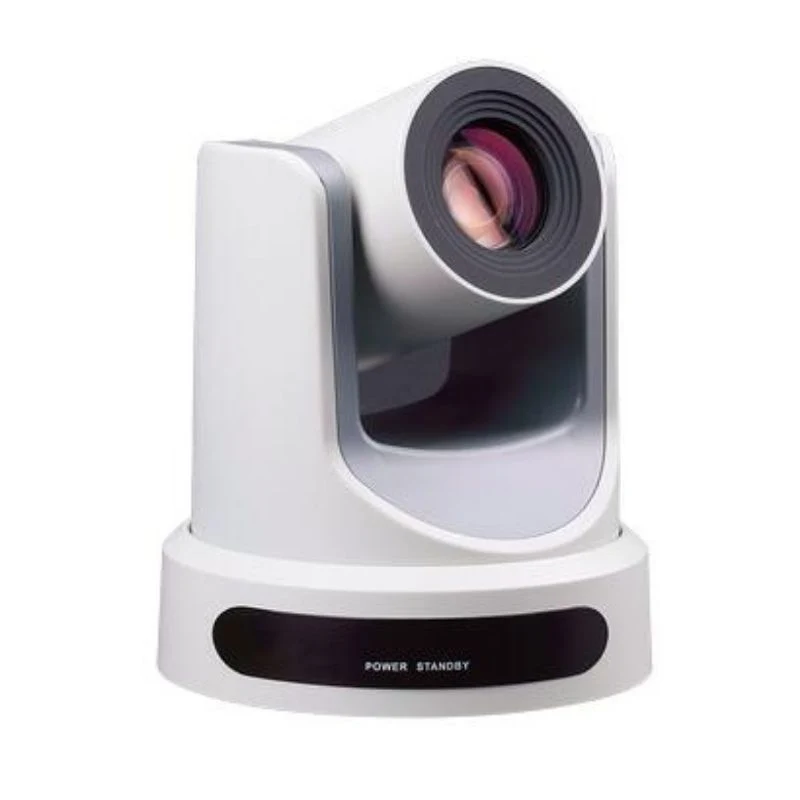

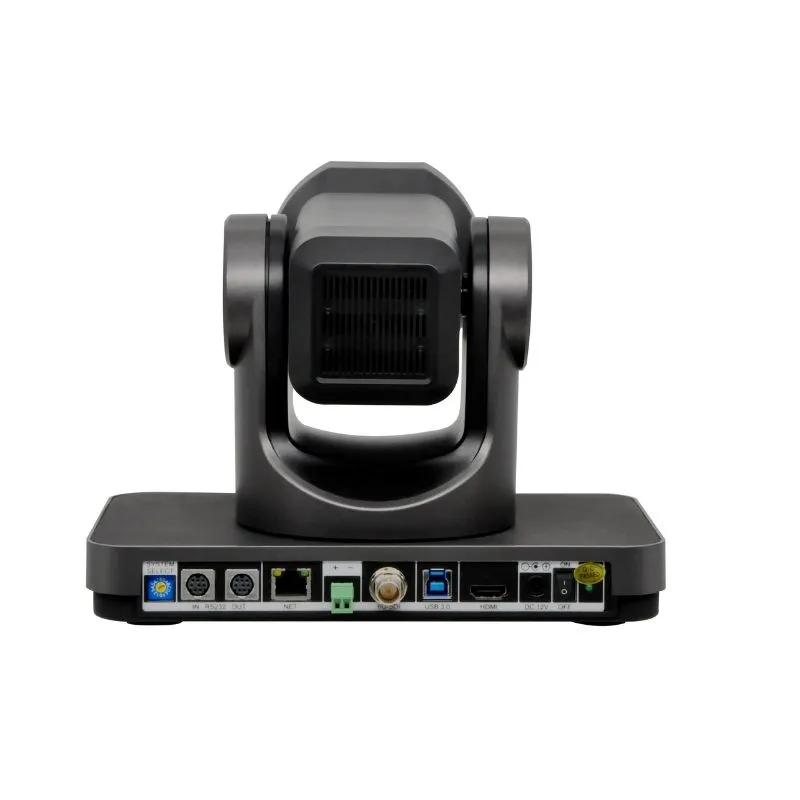

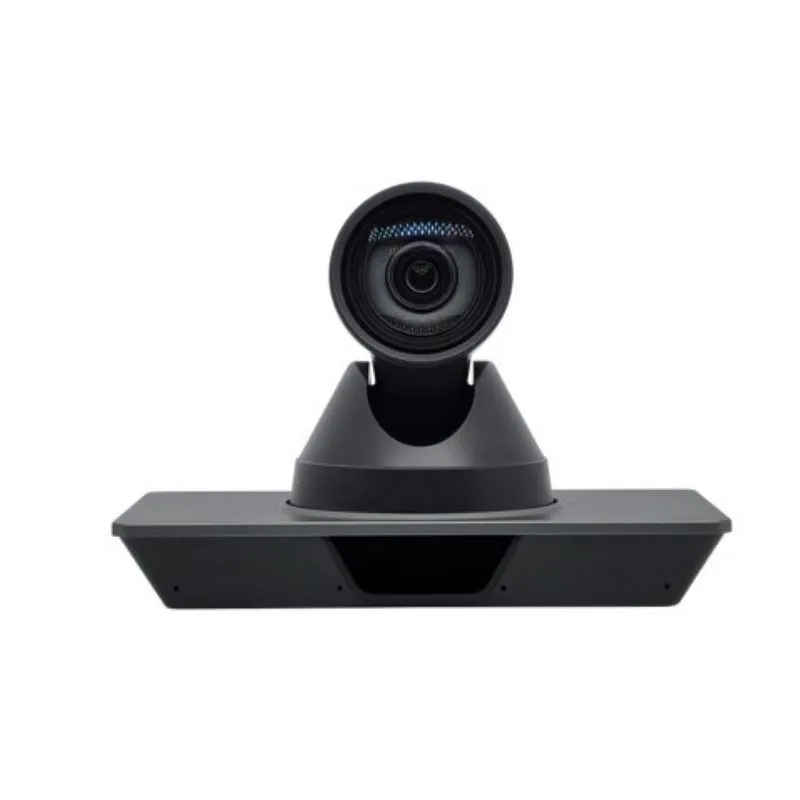

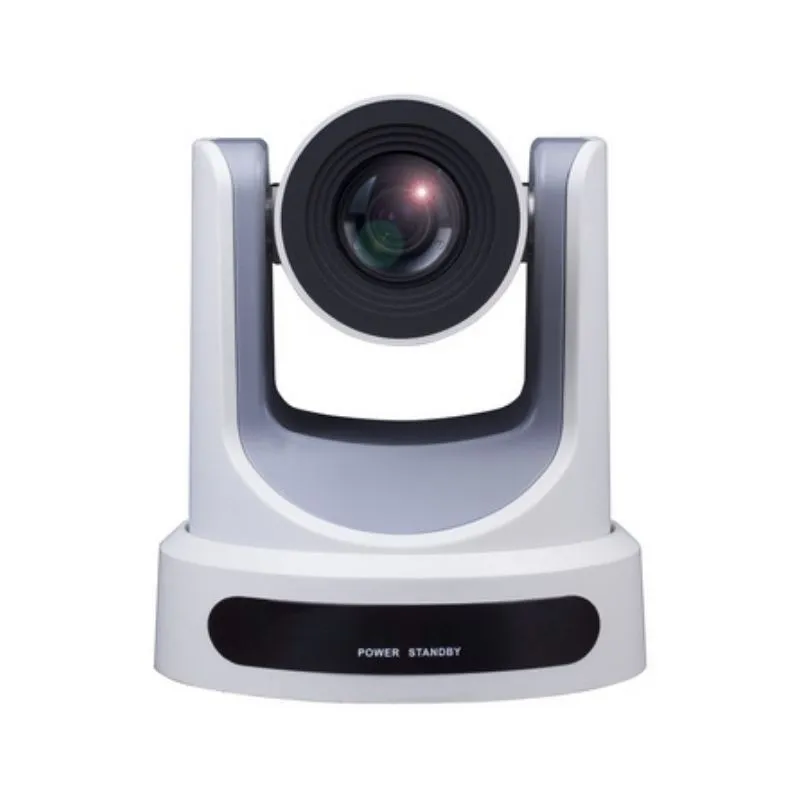

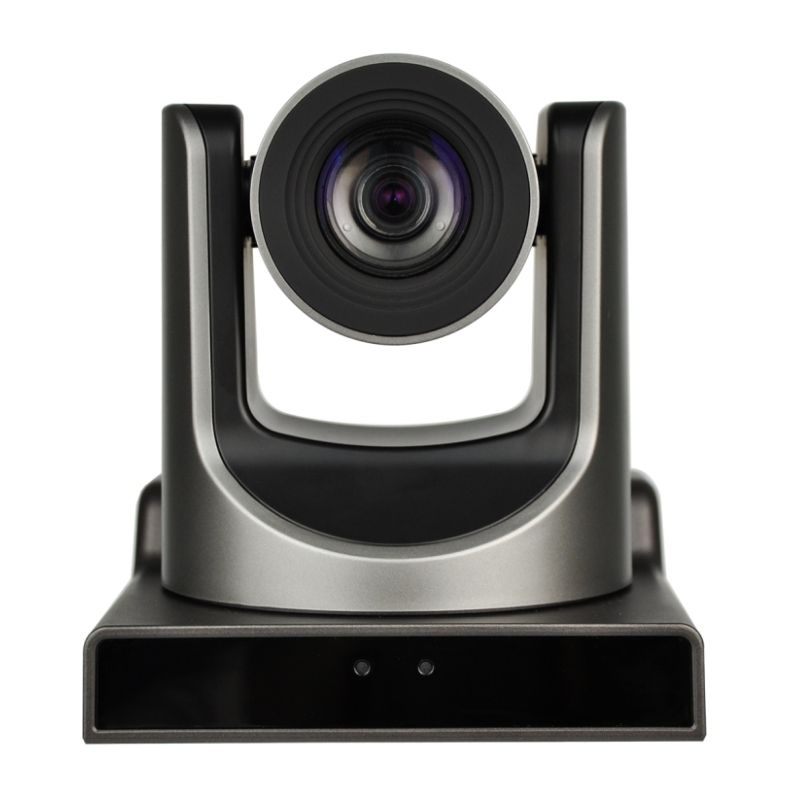

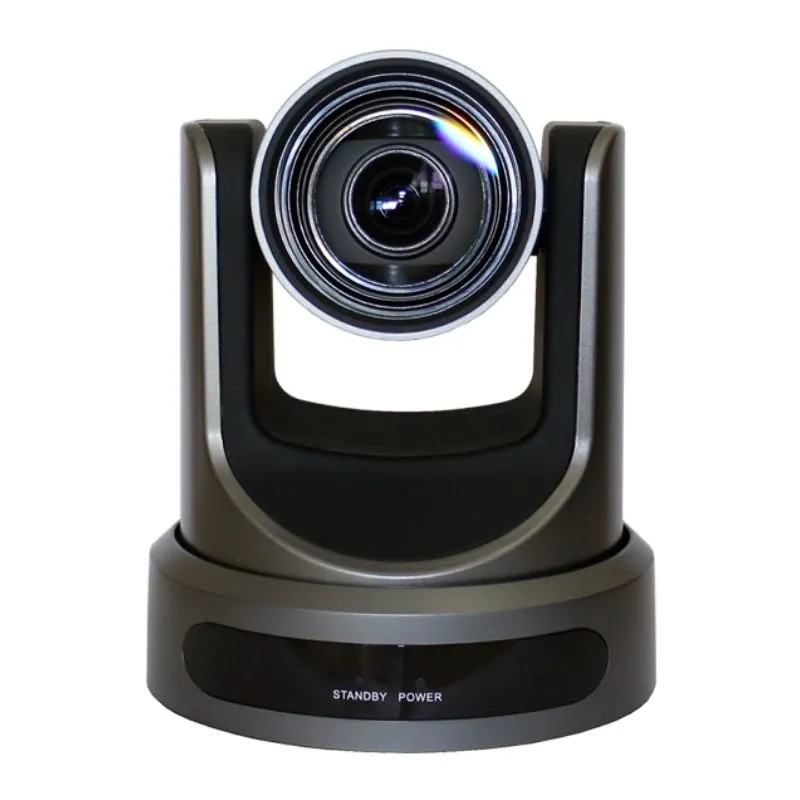

Similar product:
About AVLink Video Conference Solution:
Shenzhen AVLink technology co., ltd, based on Guangming, Shenzhen, China. Leader of Chinese Conference System.
Shenzhen AVLink is a professional AV integration and conference solution supplier, specialized in high-definition video PTZ camera and PTZ keyboard controller over 10 years. Our production series from indoor camera such as High-Definition video conferencing PTZ camera, MCU, All-in-one camera terminal, HDBaseT, tracking camera 4K camera to Outdoor camera. range from 5x, 10x, 20x, to 30x optical.
We offer interactive whiteboard from 32inch, 43inch, 49inch, 55inch, 65inch, 75inch, and 86inch, even up to 98inch and 100inch.
Which Certificate AVLink Has?
Each product meets CE Certificate: CE (EN62368-1:2014+A11:2017) (EN 55032:2015, EN 55035:2017, EN 61000-3-2:2019, EN61000-3-3:2013), and RoHs(2011/65/EU; 2015/863/EU), ROHS(IEC62321-1), IP65(EN60529)
Which Kind of Service You Will Get?
- Provide free marketing material to distributor
- Get the affordable price of hot item PTZoptics camera
- Enjoy 7/24 after-sales service
Ask Us Anything(FAQ)
1.Q: Are you Manufacturer or Trading company?A: Manufacturer with more than 10 years experience.
2. Q: What's your main products?
A: We have been focusing on the production of Video conference camera and interactive whiteboard for 10 years.
3.Q: Can you do OEM / ODM for us?
A: Of cause. Let us know what you need, we'll do it for you.
4. Q: Can we visit your factory?
A: Yes, warmly welcome to visit our factory anytime.
5. Q: What is your delivery time?
A: For samples, 1~3 days delivery for indoor dynamic screen, 15~20 dayS for outdoor digital signage
For bulk order, it depends on your quantity and requirements on OEM / ODM.
6. Can I be your distributor?
For distributor issue, please confirm with our director. Send inquiry now!
