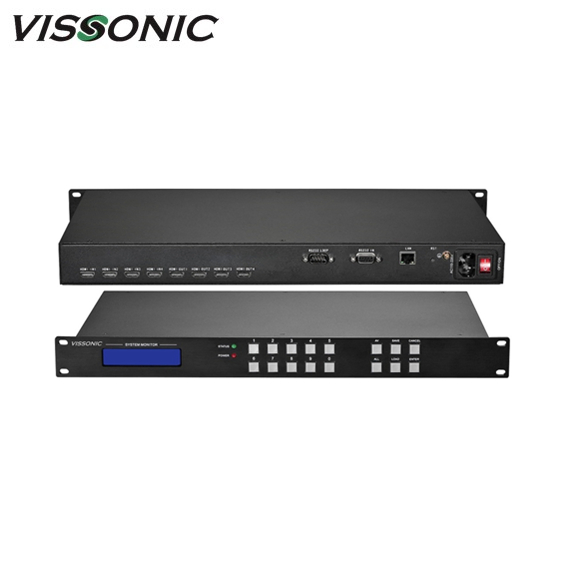

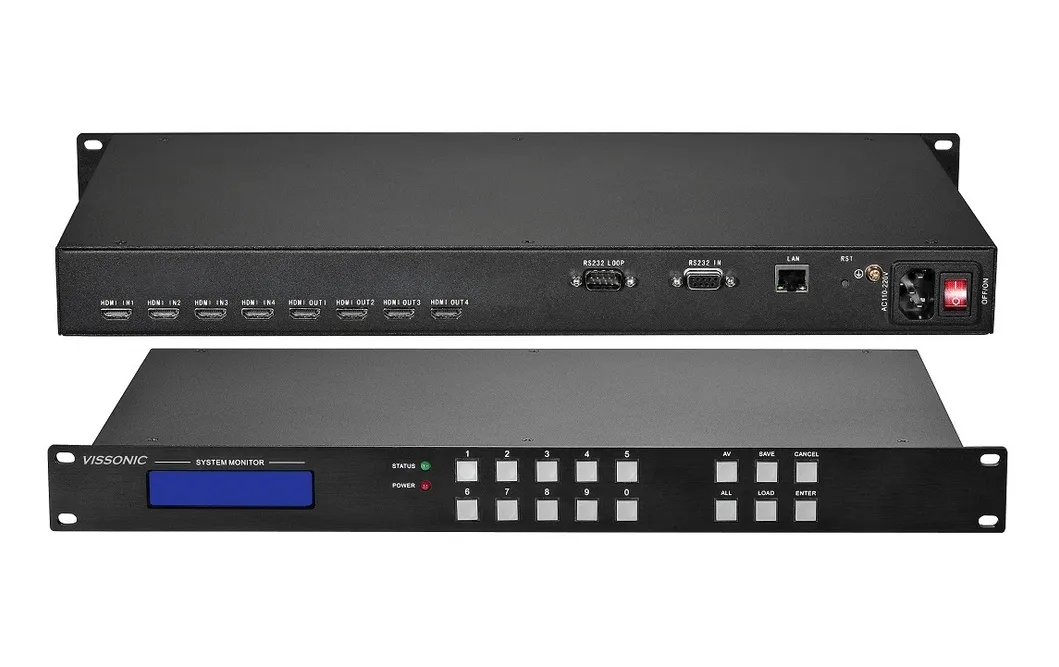

4kx2K HDMI 4X4 Matrix Switcher Support HDMI1.4 Hdcp1.4 Video Wall Controller with Software
PHD series HDMI matrix is professional switcher routs UHD 4Kx2K HDMI signals to any outputs in need.It provides high peak data transfer rate and perfectly supports synchronous switching of HDMI signals, the robust industrial design makes it able to be a signal management center for high definition s......
Send Inquiry
Product Description
PHD series HDMI matrix is professional switcher routs UHD 4Kx2K HDMI signals to any outputs in need.
It provides high peak data transfer rate and perfectly supports synchronous switching of HDMI signals, the robust industrial design makes it able to be a signal management center for high definition signal transmission. It can be widely used in command control center, multi-screen systems, conference room, high definition medical or education teaching etc.
Features
1.High speed switching
2.Resolution is up to 4Kx2K at 30Hz.
3.Support 3D video
4.Support HDMI1.4.
5.Control way is front panel,RS-232,TCP/IP software control,IOS app control
6.EDID reading function to fix any compatible problems.
7.Built-in varied of control protocols to work with control system, like AMX,CRESTRON,VISSONIC and the LCD display the switching status
8.The firmware can be updated by the TCP/IP and be convenient for remote support and OEM the special features.
9.Input distance is up to 30m(98 feet)
10.Powerful memory support to preset and call switching mode. With power-down memory function, with power-off site protection;
11.1U standard housing with rack-mounting design
| Model | VIS-PHD44 |
| Input type | HDMI |
| Output type | HDMI |
| Video Protocol | HDMI 1.4, HDCP 1.4 |
| Maximum resolution | Up to 4kx2k at 30Hz |
| HDMI interface | Type A, 19 pin, female |
| Serial Interface | RS-232 IN, DB9, Female; RS-232 OUT, DB9, Male |
| Input cable length | Adaptive equalizer for cable lengths up to 30 meters |
| Output cable length | ≤ 15m |
| RJ45 control protocol | TCP/IP |
| Ethernet rate | Self-adaptive 10M/100M |
| Storage environment | Temperature: -20ºC ~ +70ºC, humidity: 10%~90% |
| Work environment | Temperature: -20ºC ~ +70ºC, humidity: 10%~90% |
| Power supply | AC 110~240V |
| Maximum power dissipation | 10W |
| Dimensions(WxDxH) | 1U( 436.8X280X44.5)mm |
| Weight | About 2.3Kg |
| MTBF | 30,000 hours |
| Warranty | One year warranty and lifetime maintenance |

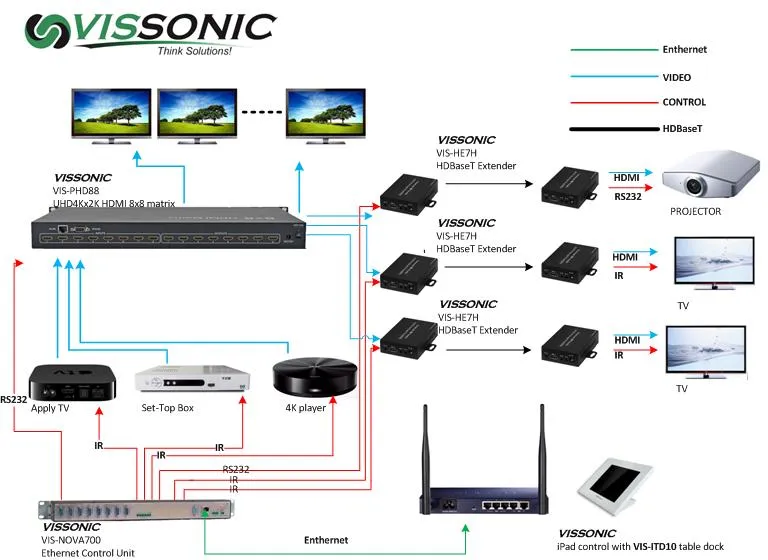

Application
